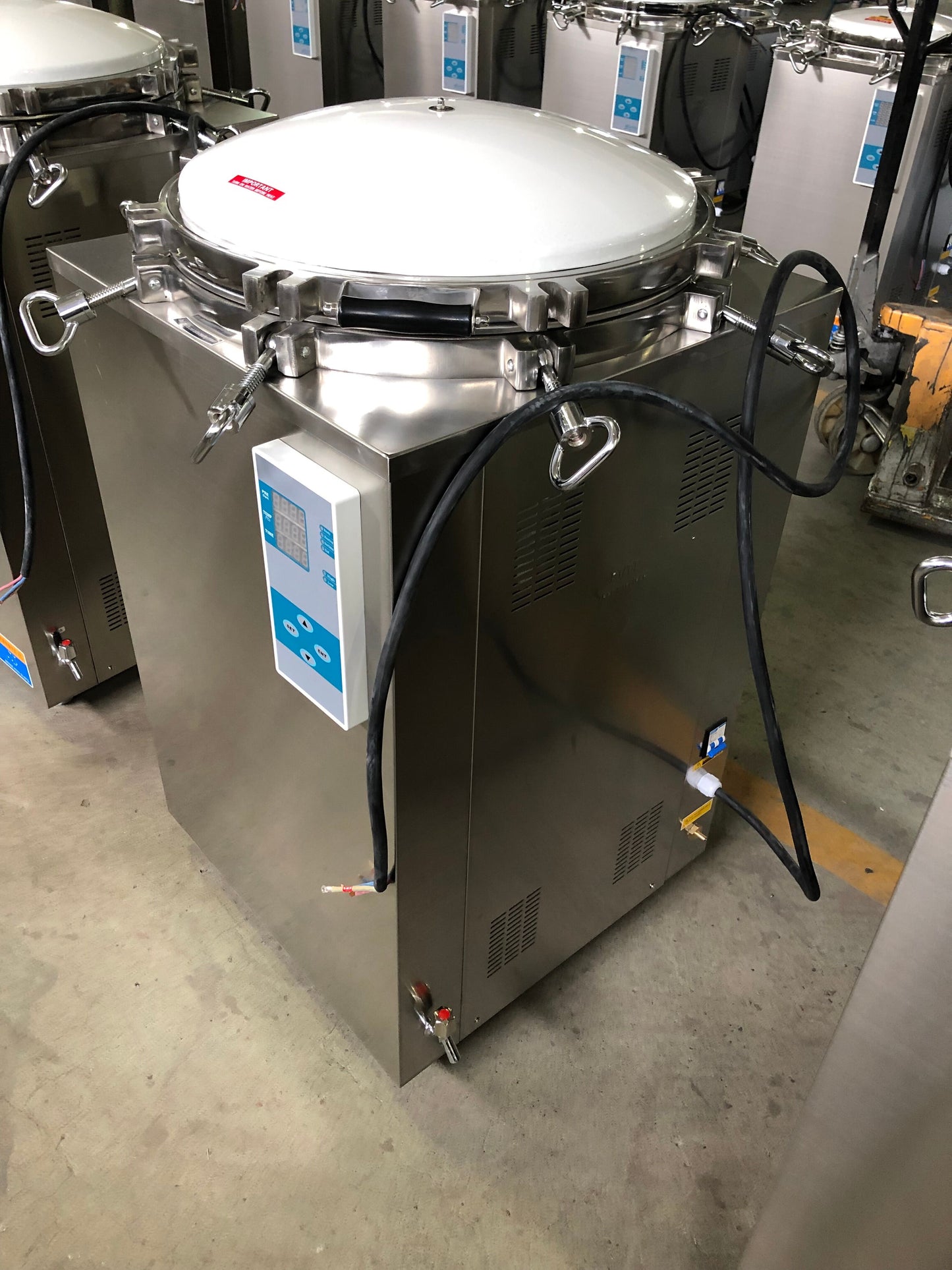

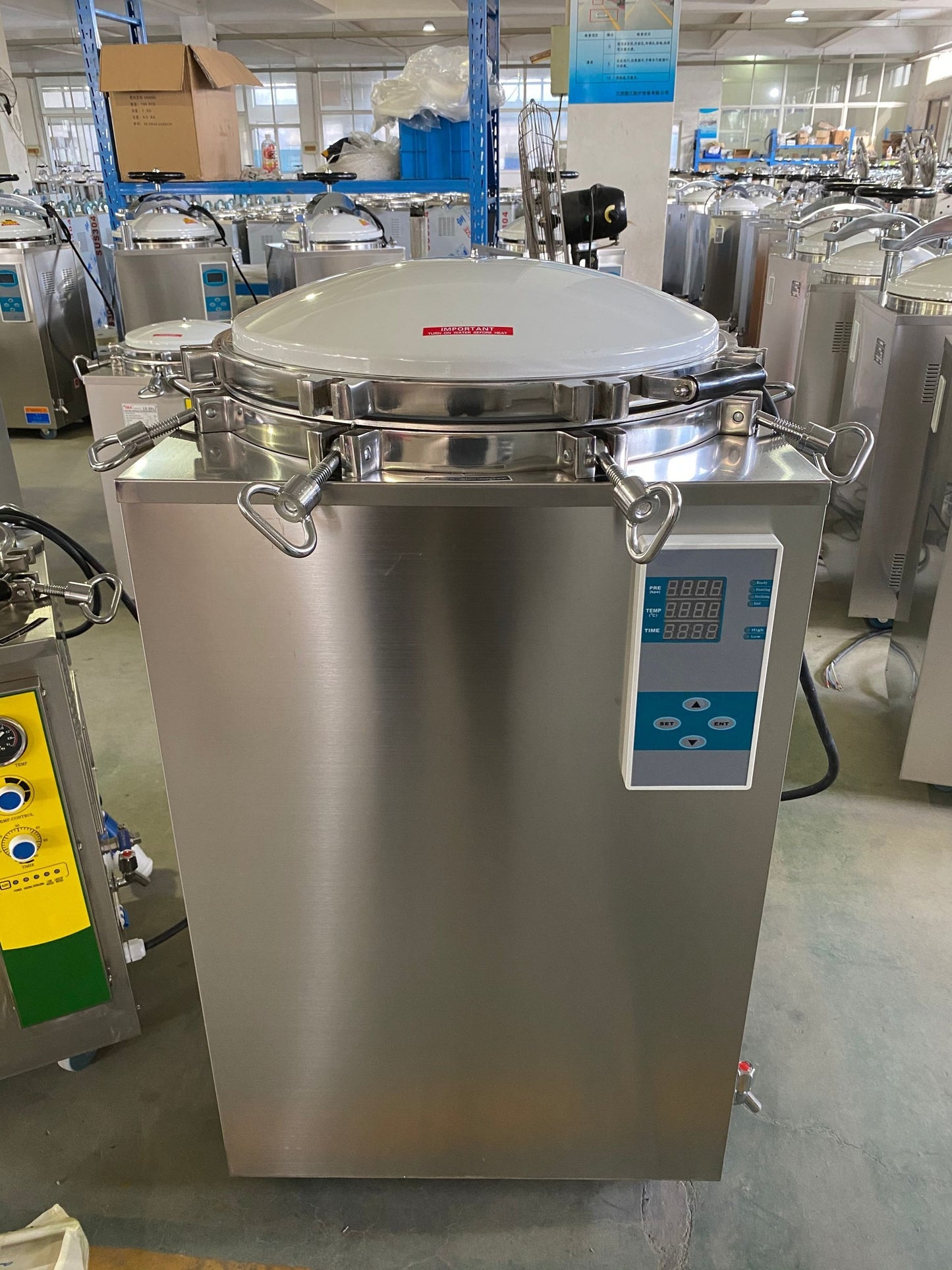

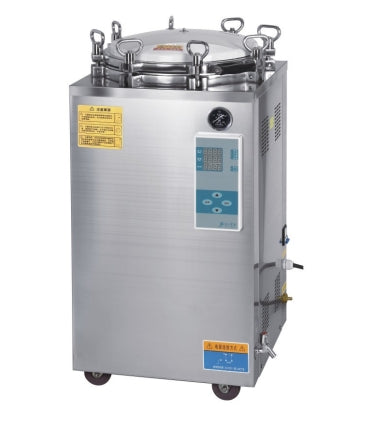

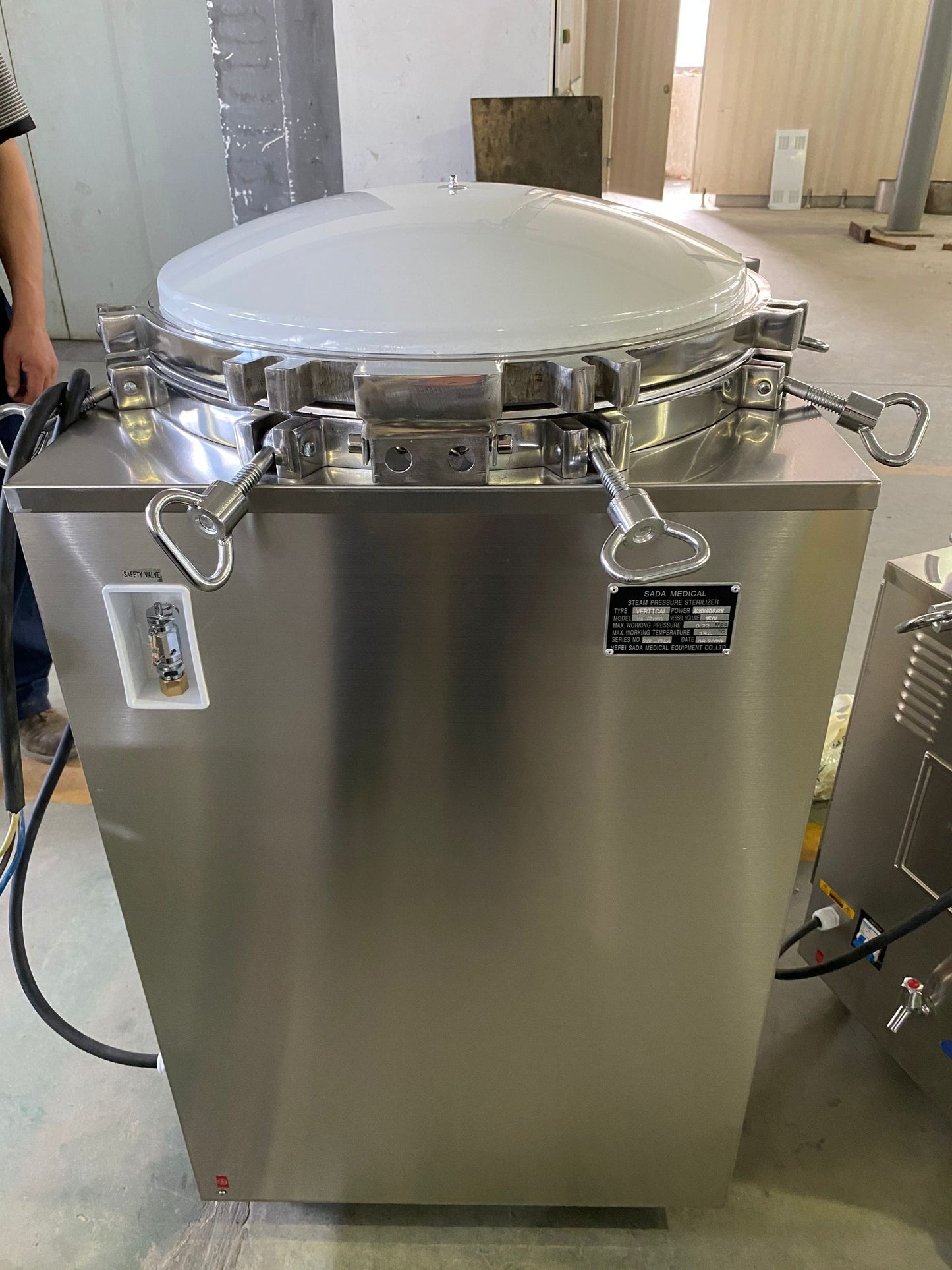

Digital Display Autoclave Machine Pressure Steam Sterilizer

Model: VA-FD

Volume: 35L, 50L, 75L, 100L, 120L, 150L
Class: Class N
Machine Material: Fully stainless steel 304
Display: Digital display
Control: Processor controlled

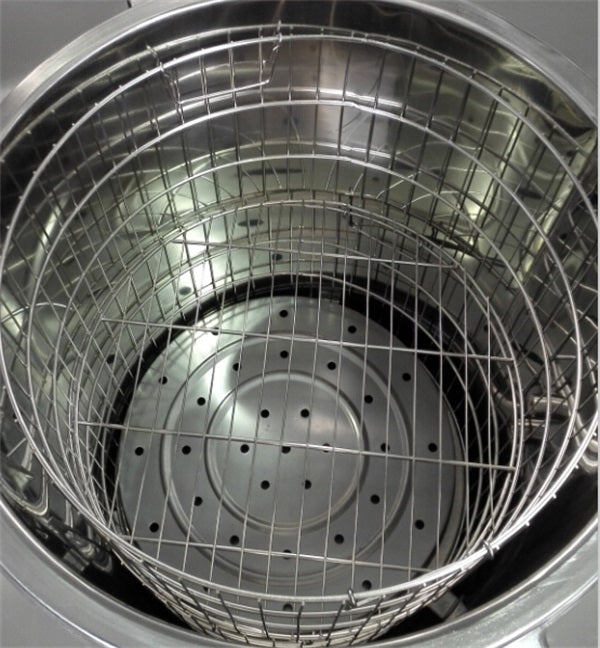

Configuration: 2 pcs stainless steel baskets
HS Code: 8419200000
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.

Features
1. All material is SUS304 stainless steel.

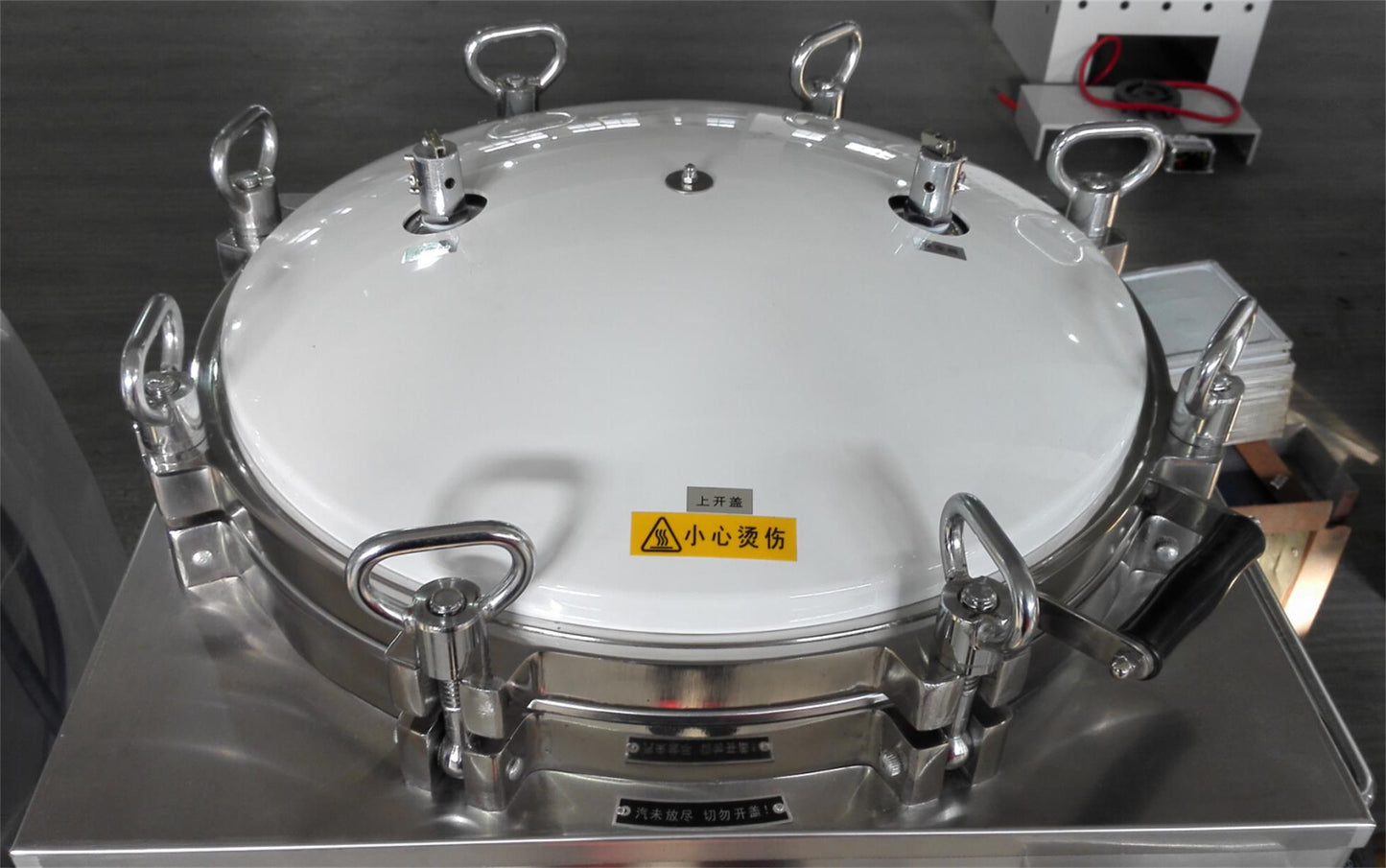

2. Over pressure auto-discharging at 0.22-0.23 Mpa.
3. The working temperature: 105°C-134°C.
4. Digital display of working status, touch type key.
5. Electric heating, Direct heating by immersed copper tubes of heating elements.
6. The drying system is optional, which can be equipped according to the customers request.
7. Sterilization temperature and time are adjusted.
8. Automatically shut off with beep reminding after sterilization.
9. Auto discharge the cool air, and steam discharging automatically after sterilization.
10. Drying system is optional.

Safety Protection

1. Heater protection
2. Anti-dry heating
3. Over-temperature protection
4. Over-pressure protection
5. Automatic release safety valve
6. Electric safety protective device

Parameters:

Model: VA-FD35, VA-FD50, VA-FD75, VA-FD100, VA-FD120, VA-FD150
Volume: 35/50/75/100/120/150 Liters

Chamber Size:
35L: Ø318*450mm
50L: Ø340*550mm
75L: Ø400*600mm
100L: Ø440*650mm
120L: Ø480*660mm
150L: Ø510*740mm

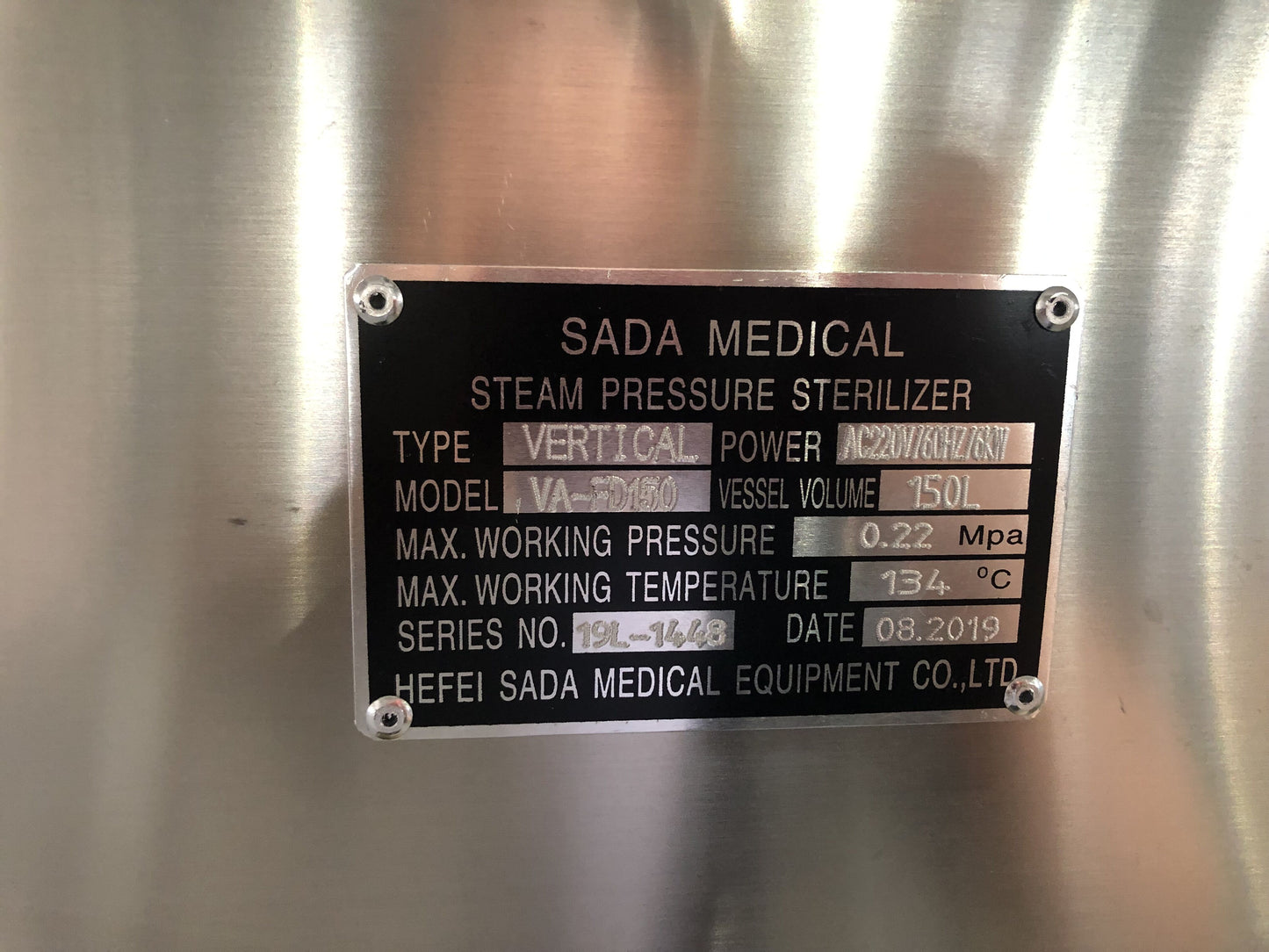

Working Pressure: 0.22 Mpa
Max Working Pressure: 0.23 Mpa
Working Temperature 134°C
Adjustment of Temperature: 105°C-134°C
Timer: 0-99 min or 0-99 h 59min
Heat Average: ≤± 1°C
Power: 2.5-4.5kw, AC220V 50Hz


Overall Dimension(mm):
35L: 480*460*850
50L: 520*520*980
75L: 560*560*980
100L: 590*590*1080
120L: 600*640*1140
150L: 670*690*1130

Transport Dimension(mm)
35L: 570*550*970
50L: 590*590*1110
75L: 650*630*1150
100L: 680*650*1220
120L: 730*730*1270
150L: 760*760*1270

Gross/Net Weight:
35L: 56kg/42kg
50L: 68kg/50kg
75L: 90kg/70kg
100L: 105kg/85kg
120L: 125kg/100kg
150L: 135kg/110kg
