VA-SM Vertical steam sterilizer with pulse vacuum function

Automatic Medical Vertical Autoclave VA-SM

Model: VA-SM
Chamber Capacity: 35L, 50L, 75L, 100L
Class: Class B
Machine Material: Fully stainless steel 304
Display: LED touch screen display

Control:Microcomputer automatic control
Door: Hand wheel type door, safety lock door system
Configuration: 2 pcs stainless steel baskets

Production time: 15 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.

Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.

Features

• Hand wheel translation and quick opening structure
• Three times pre-vacuum
• High quality stainless steel material
• Microcomputer automatic control, arbitrary setting sterilization parameters
• Safety interlocking device
• LED touch screen display
• Standard test interface
• Self-expanding seal
• With drying function
• With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.

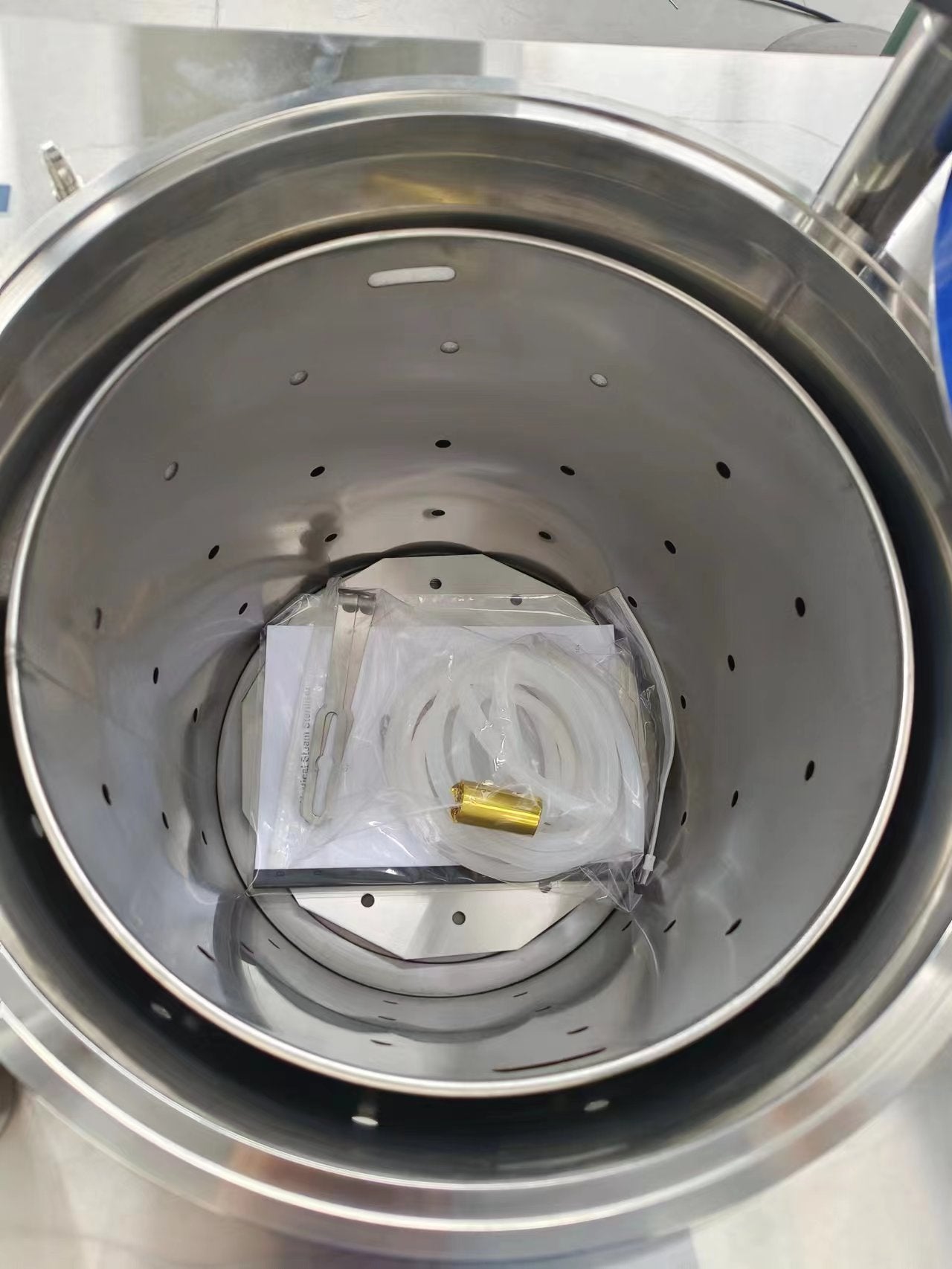

• With stainless steel bucket or basket
• Buzzer reminder after sterilization, automatic stop.
• Automatic discharge of cold air, automatic steam exhaust after sterilization.
• Internal printer

Technical Specifications

Model   Technical parameter	VA-SM35	VA-SM50	VA-SM75	VA-SM100
Volume	35L	50L	75L	100L
Power	3.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220V、50HZ
Rated working pressure	0.22Mpa
Rated working temperature	134℃
Sterilization temperature	50℃~134℃
Sterilization time setting range	4~120 min
Drying time setting range	0~240min
Chamber volume	Ø350×400	Ø400×505	Ø400×655	Ø450×650
Bucket dimension	Ø330×320	Ø380×430	Ø380×560	Ø420×540
Basket dimension（optional）	Ø320×350	Ø360×280×1	Ø360×280×2	Ø410×300×2
Outer dimension	698×498×940	630×530×1180	630×530×1180	760×560×1260
Packing size (L× W× H )mm	790×610×1130	800×600×1230	840×610×1310	870×650×1380
Gross/net weight	130/115KG	138/118KG	150/124KG	159/132KG



Video of VA-SD Autoclave:

SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
