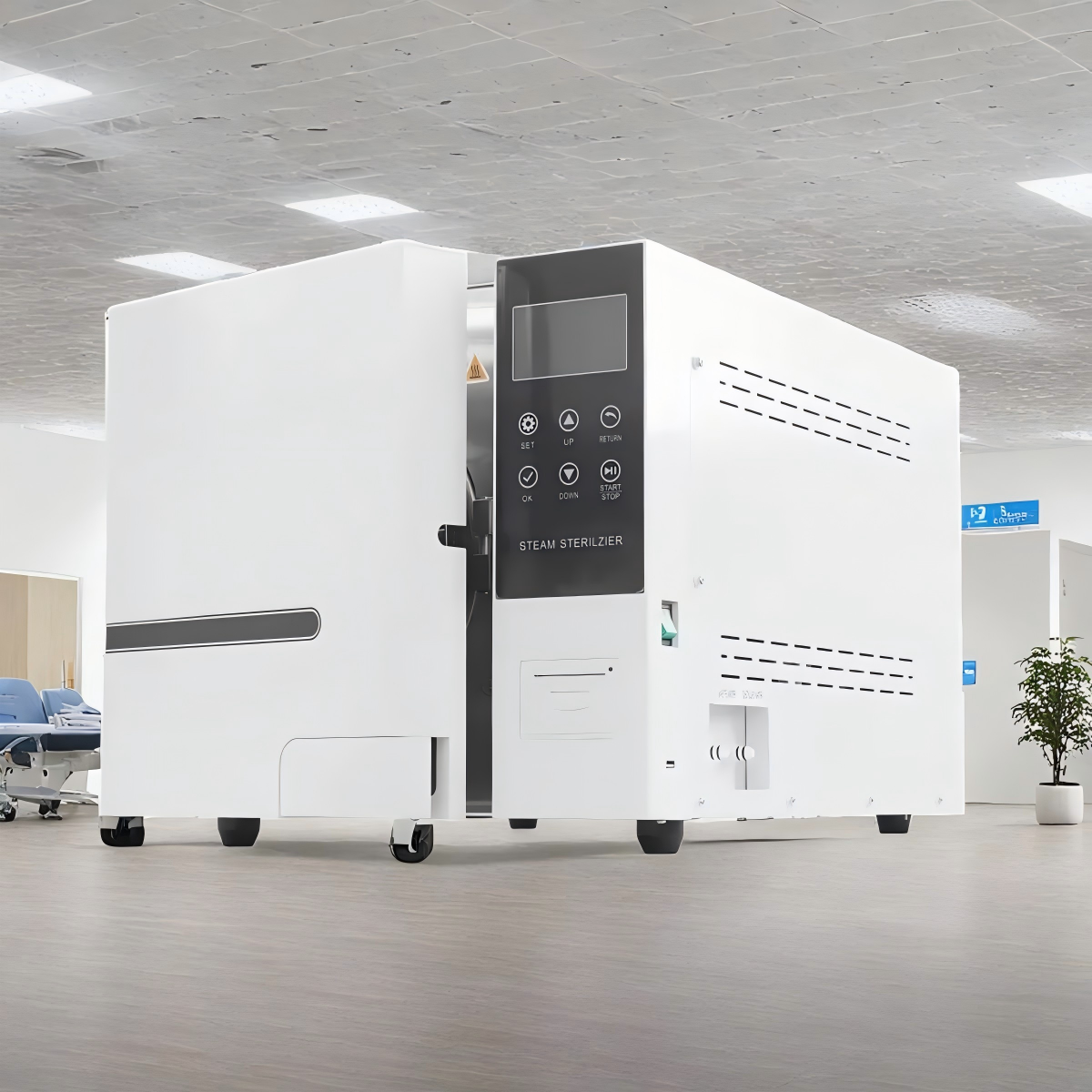

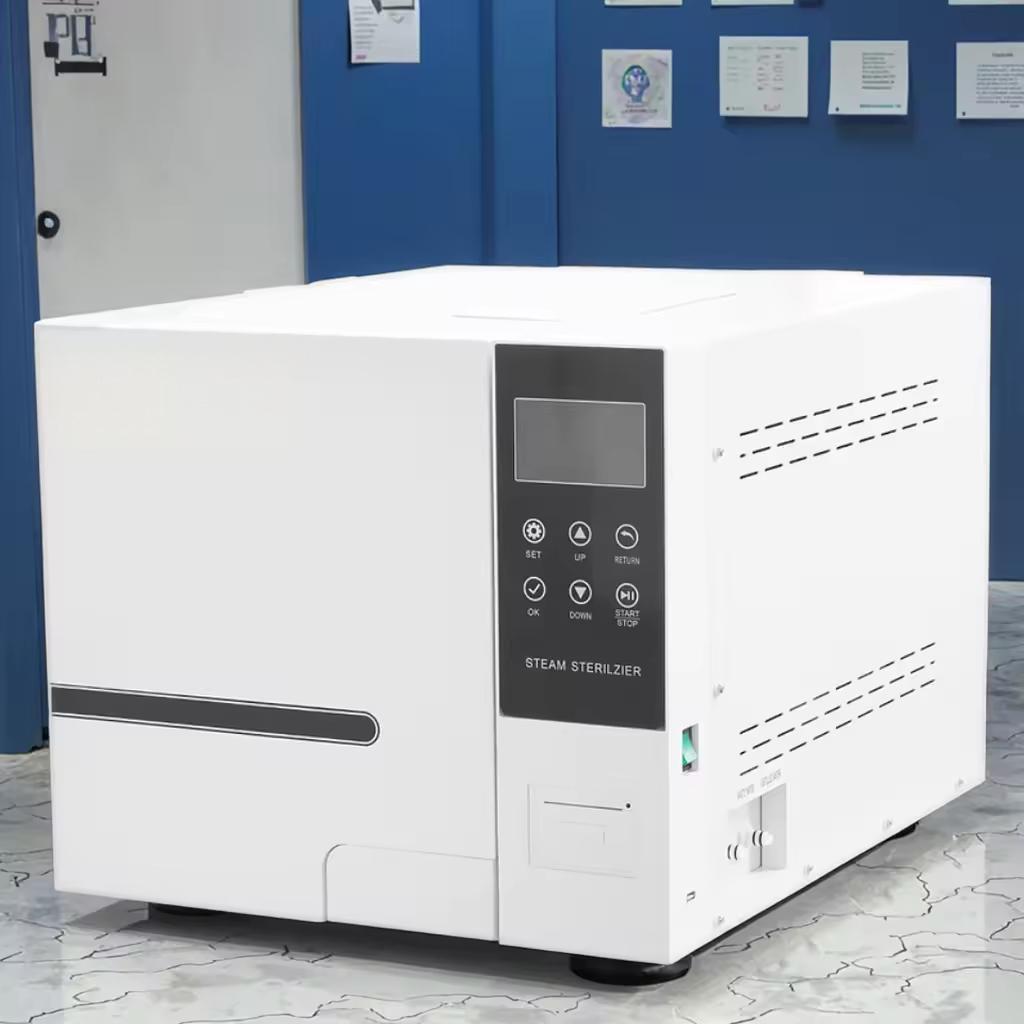

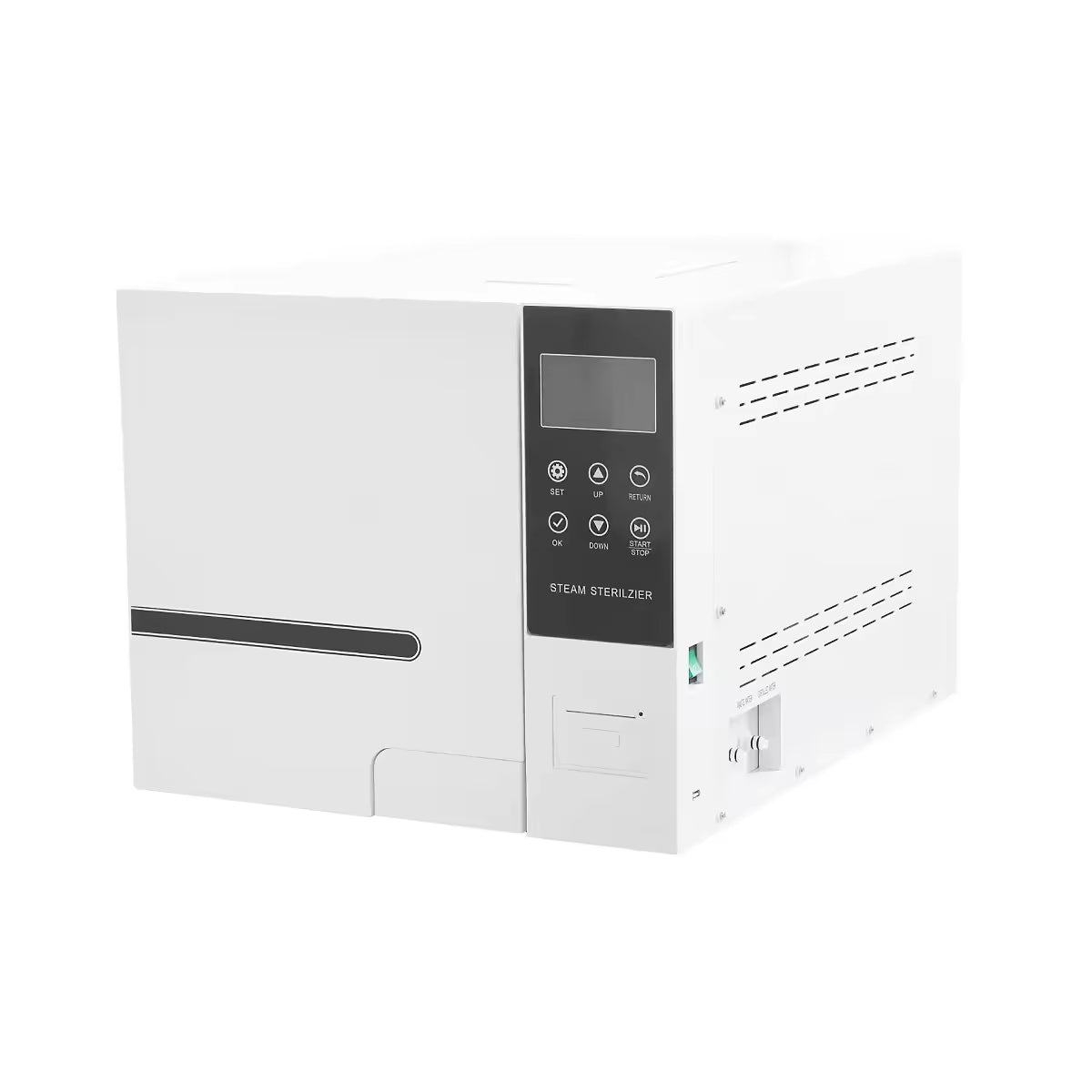

TS-X Series Tabletop Steam Autoclave – 18L/23L Class B Pulse Vacuum Sterilizer with Printer & USB for Dental Clinics & Laboratories
TS-X Series Tabletop Steam Autoclave – 18L/23L Class B Pulse Vacuum Sterilizer with Printer & USB for Dental Clinics & Laboratories

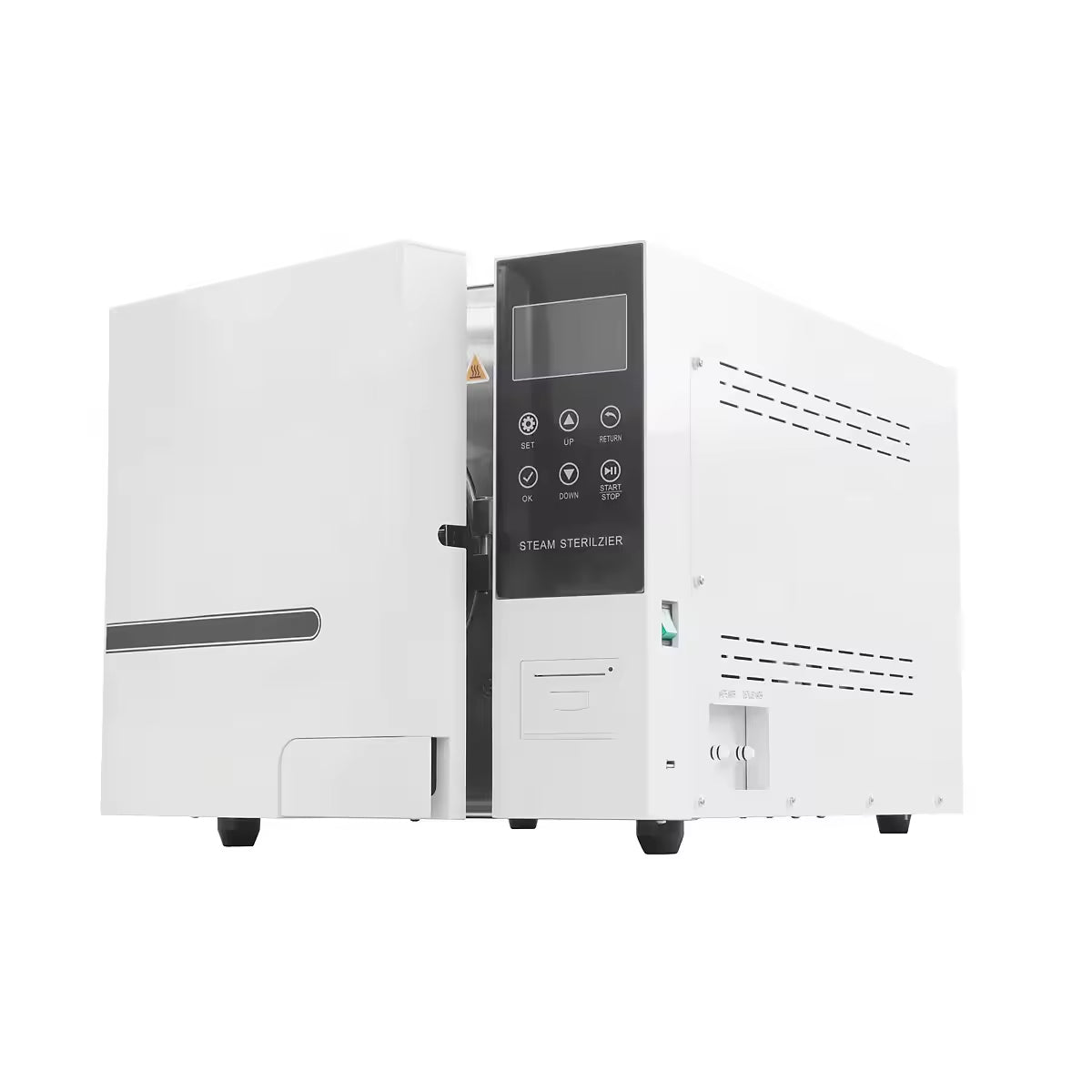

For dental clinics, medical offices, and research laboratories that need a compact yet powerful Class B tabletop autoclave, the SADA Medical TS-X Series pulse vacuum sterilizer delivers hospital-grade sterilization in a space-saving design. Using triple pulse vacuum technology, this steam autoclave removes air before steam injection – ensuring complete penetration into wrapped instruments, hollow lumens, dental handpieces, and porous materials. Available in 18L and 23L capacities, the TS-X Series features a 4.3-inch full-color LED display, built-in printer and USB port for full traceability, an independent steam generator for fast cycles, and adjustable sterilization parameters (116–134°C, 4–120 minutes). Whether you run a small dental practice, a lab, or a beauty clinic, the TS-X ensures your instruments are sterile, dry, and ready for use – every time.

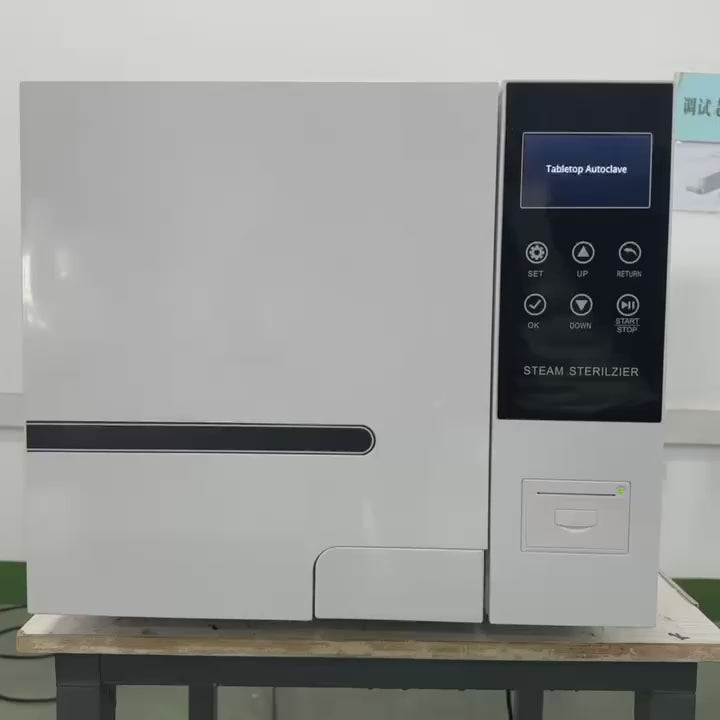

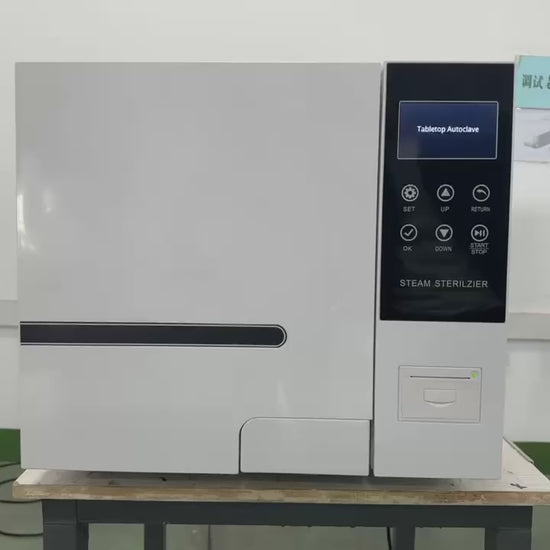

Product Video – TS-X Series Tabletop Autoclave in Action
Watch the pulse vacuum cycle, LED display operation, printer output, and USB data export.
⚙️ Why TS-X Series Stands Out for Dental & Medical Professionals

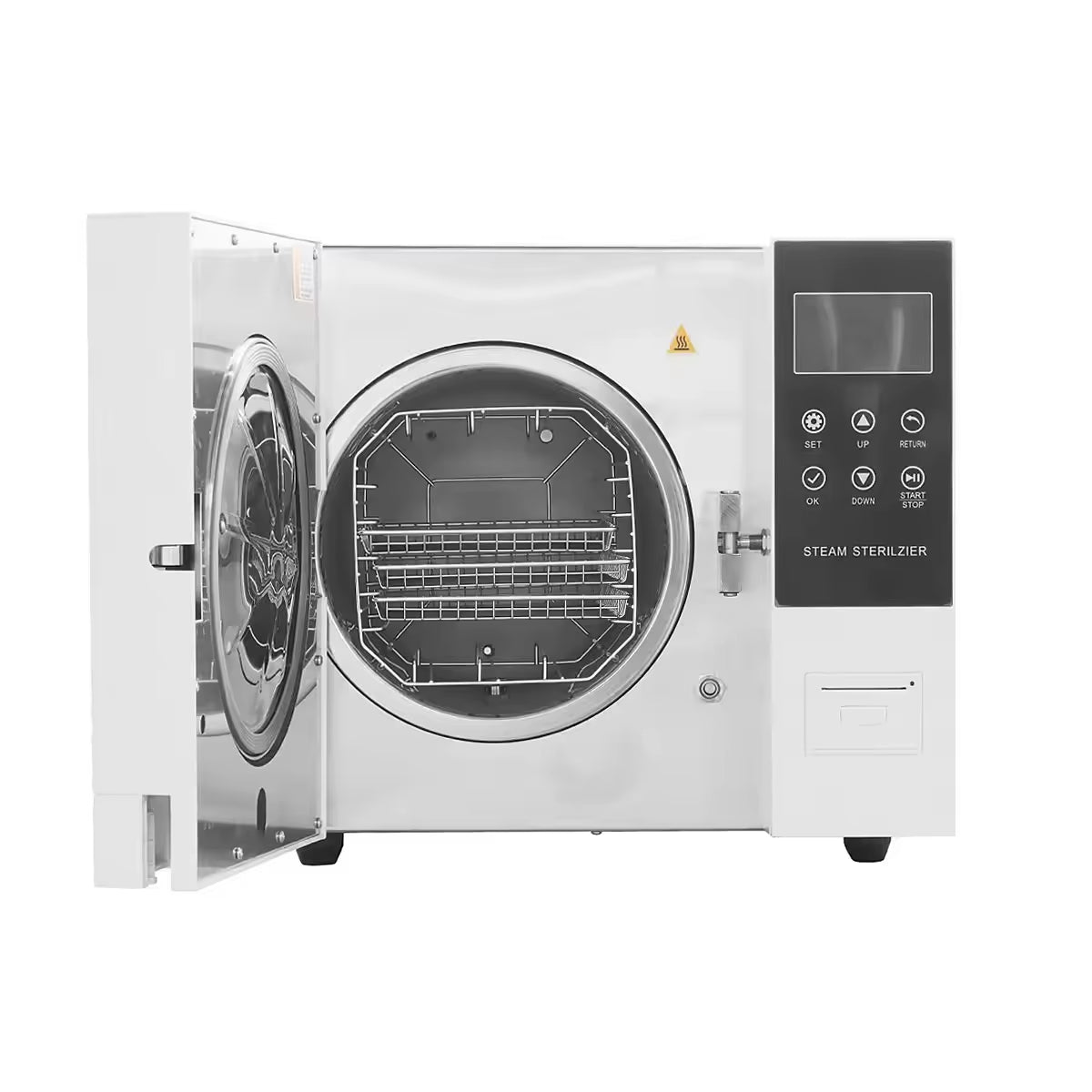

Triple vacuum pulses remove air completely – sterilizes wrapped instruments, hollow items, and porous loads with full steam penetration.

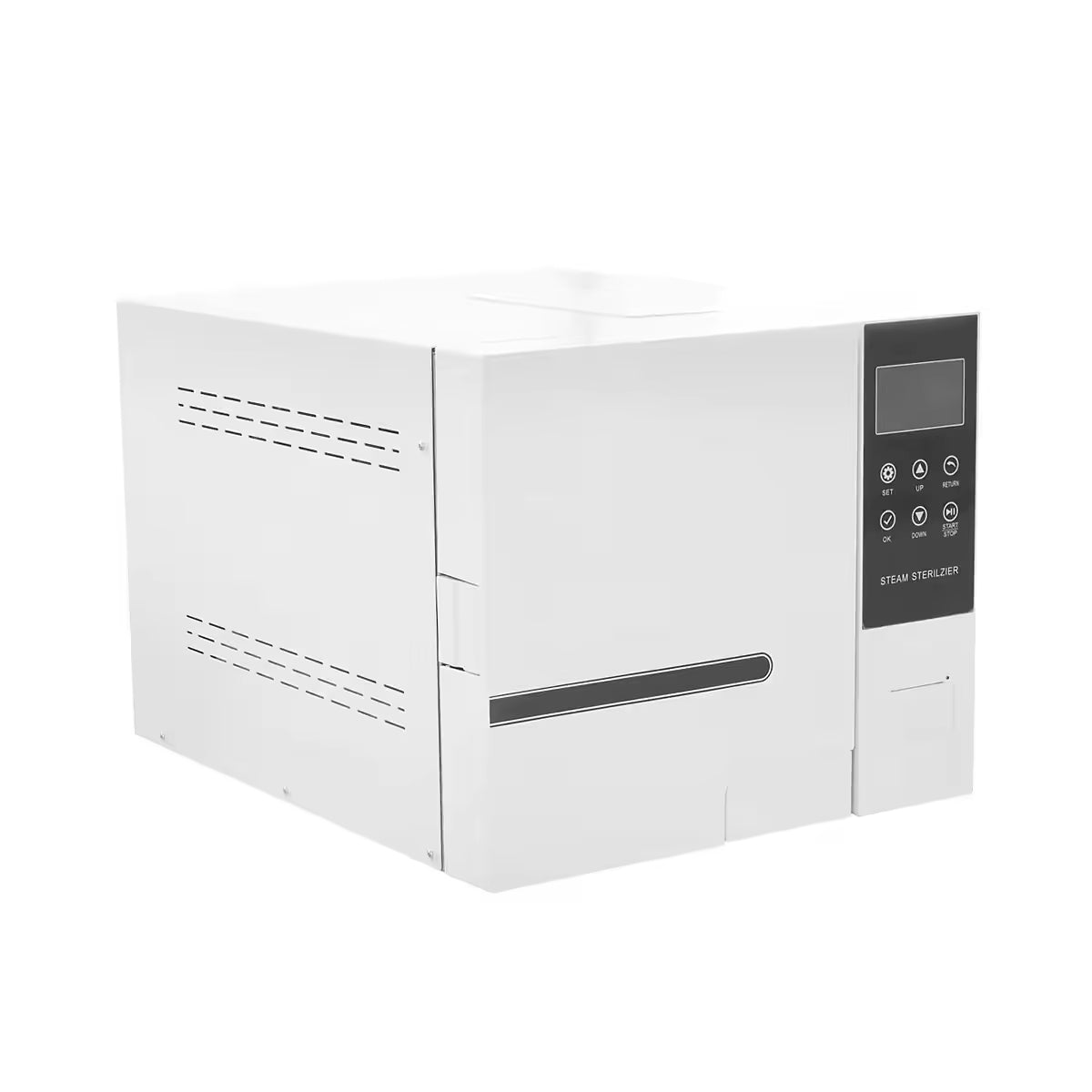

Clear monitoring of temperature, time, and pressure. Touch keys for intuitive cycle control – no complex menus.
Fast, stable steam supply – shorter warm-up time, consistent sterilization cycles.
Built-in thermal printer for real-time cycle records. USB port for historical data download – full traceability.
Sterilization time: 4–120 min | Temperature: 116–134°C | Drying time: 0–240 min – one machine adapts to your loads.
Over-temperature & over-pressure protection + electronic door lock – safe handling during and after cycles.
AC 110V 60Hz OR AC 220V 50Hz – choose the voltage that matches your country's standard.
📋 Technical Specifications – TS‑18X & TS‑23X
Engineered for daily clinical use. Both models feature Class B pulse vacuum technology, a stainless steel chamber, and full digital controls.
| Parameter | TS‑18X | TS‑23X |
|---|---|---|
| Volume | 18 Liters | 23 Liters |
| Chamber Size (mm) | Φ250 × 360 | Φ250 × 450 |
| Power Consumption | 2.2 kW | |
| Voltage (selectable) | AC 110V 60Hz OR AC 220V 50Hz | |
| Design Pressure | -0.1 ~ 0.25 MPa | |
| Design Temperature | 139°C | |
| Rated Working Pressure | 0.22 MPa | |
| Rated Working Temperature | 134°C | |
| Sterilization Temp Range | 116 – 134°C (adjustable) | |
| Sterilization Time Range | 4 – 120 minutes (adjustable) | |
| Drying Time Range | 0 – 240 minutes (adjustable) | |
| Overall Size (mm) | 590 × 505 × 450 | 640 × 505 × 450 |
| Packaging Size (mm) | 710 × 560 × 510 | 750 × 560 × 510 |
| Display | 4.3" Full-Color LED Screen + Touch Keys | |
| Sterilization Type | Class B Pulse Vacuum (Triple Vacuum Pulses) | |
| Printer & USB | Built-in thermal printer + USB data export | |
| Safety Features | Over-temp protection, over-pressure protection, electronic door lock | |
🌟 What Makes Class B Different? Unlike gravity displacement (Class N) or single-pulse (Class S), the TS-X Series uses triple pulse vacuum technology. Each vacuum pulse removes air from the chamber and load, followed by steam injection. After three pulses, air is virtually eliminated – ensuring steam reaches every surface, including the internal lumens of dental handpieces, hollow instruments, and wrapped packs.
🌟 Complete Traceability: Built-in printer gives you a paper record for every cycle. USB port lets you download historical data for audits – no extra purchase needed.
🌟 What's included: Tabletop autoclave, stainless steel trays, printer with starter paper roll, power cord, user manual.
🏥 Perfect For
- Dental clinics – handpieces, forceps, mirrors, burs, implantology tools
- Medical clinics & outpatient centers – surgical instruments, dressing packs
- Laboratories – glassware, culture media, biohazardous waste
- Veterinary clinics – surgical kits and dental instruments
- Beauty & tattoo studios – reusable needle holders, forceps, and piercing tools
- Small hospitals & clinic CSSD – wrapped and unwrapped instrument processing
✅ Why Choose the TS-X Series?
- Compact & Efficient – Fits on any countertop, perfect for smaller clinics and dental offices
- Affordable – Cost-effective Class B solution for daily sterilization needs
- Safe & Reliable – Meets international standards, triple safety protections
- Customizable – Adjust time, temperature, and drying to match your specific loads
- Dual Voltage Available – 110V or 220V – order the right version for your country

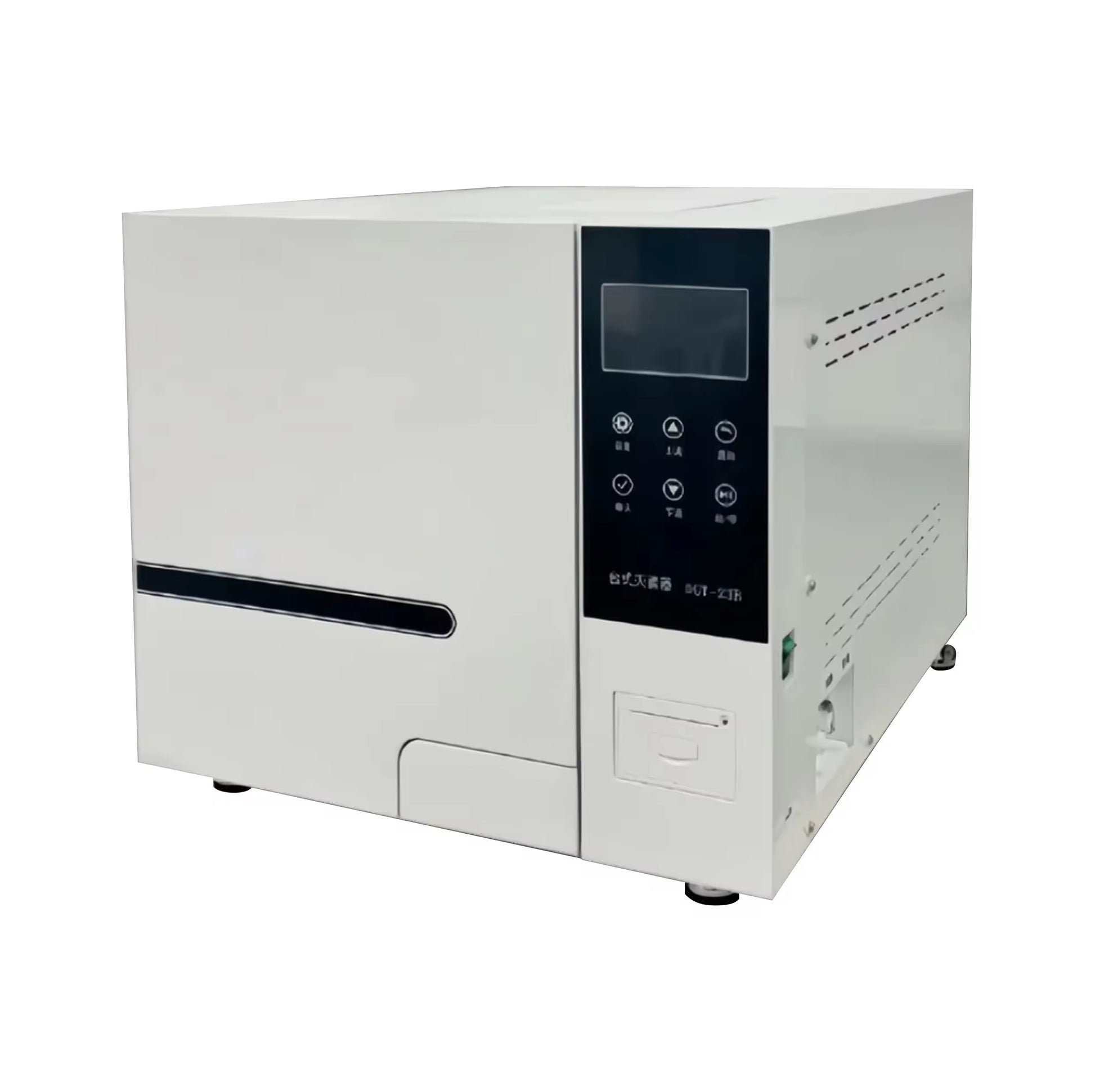

📏 Which size is right for your practice?
Best for: Small dental offices (1-2 chairs), tattoo studios, small labs
Chamber: Φ250×360mm
Best for: Busy dental clinics, group practices, larger labs
Chamber: Φ250×450mm
✅ SADA Medical – Your Trusted Sterilization Partner
SADA Medical Co., Ltd. is a professional manufacturer and supplier of steam autoclaves, low-temperature plasma sterilizers, and ethylene oxide sterilizers, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The TS-X Series tabletop steam autoclave is factory-tested and ready for daily clinical use.
Why customers choose us:
- Factory-direct pricing – no middlemen
- OEM/private labeling available for volume orders
- 12-month warranty + 24/7 technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
📄 Download the full catalog, user manual, and cycle validation guide using the blue button below.
📞 Order Your TS-X Series Autoclave Today
Contact us for factory pricing, OEM service, and fast worldwide shipping. Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Sterilization equipment for medical, dental, and laboratory use.
✔ Class B pulse vacuum technology – for wrapped instruments, hollow loads, and porous materials.
✔ 12-month warranty, 24-hour technical support, and spare parts availability.
✔ Printer + USB both included – complete traceability out of the box.
✔ Dual voltage available: AC 110V 60Hz or AC 220V 50Hz – please specify when ordering.
