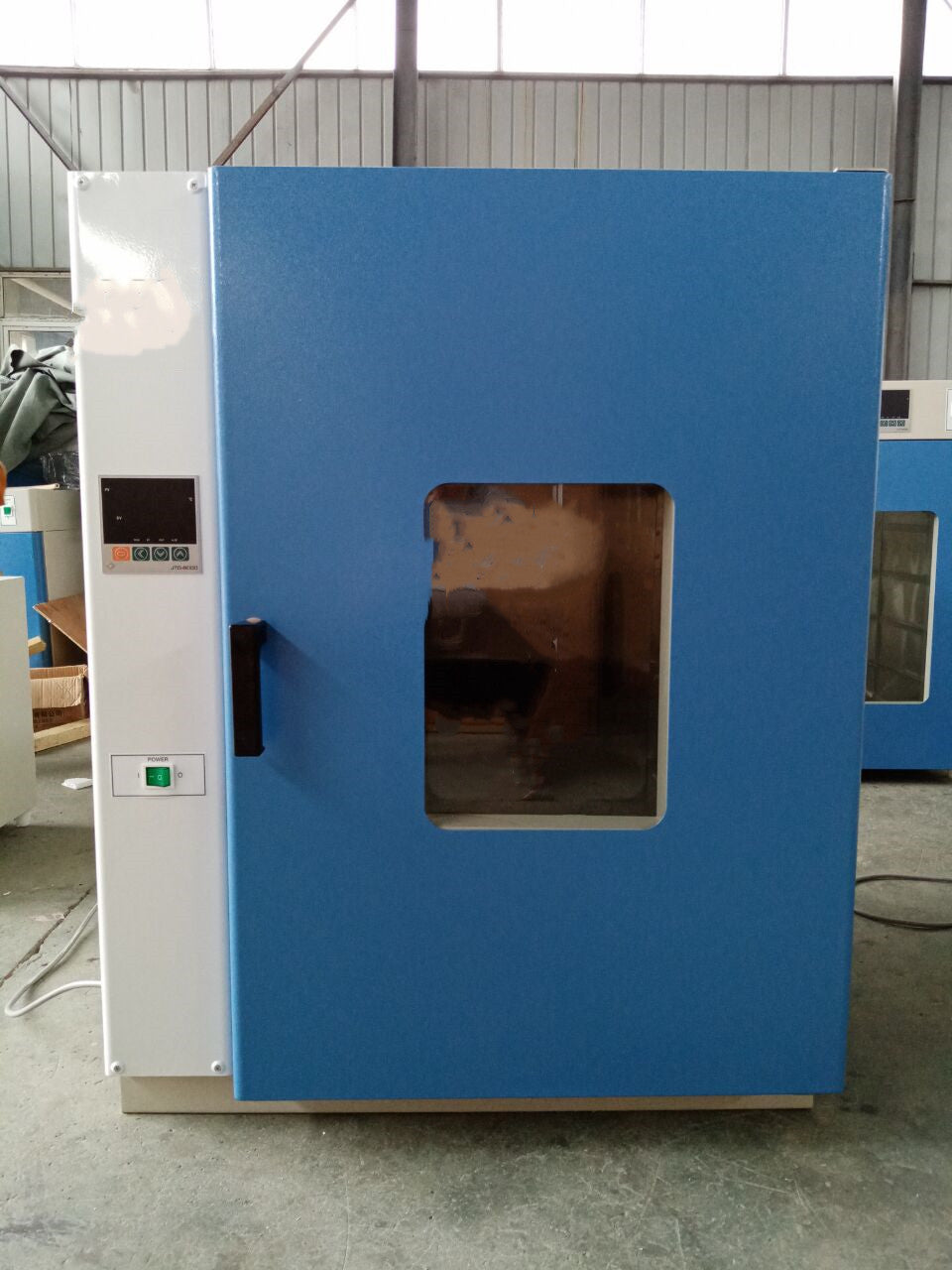

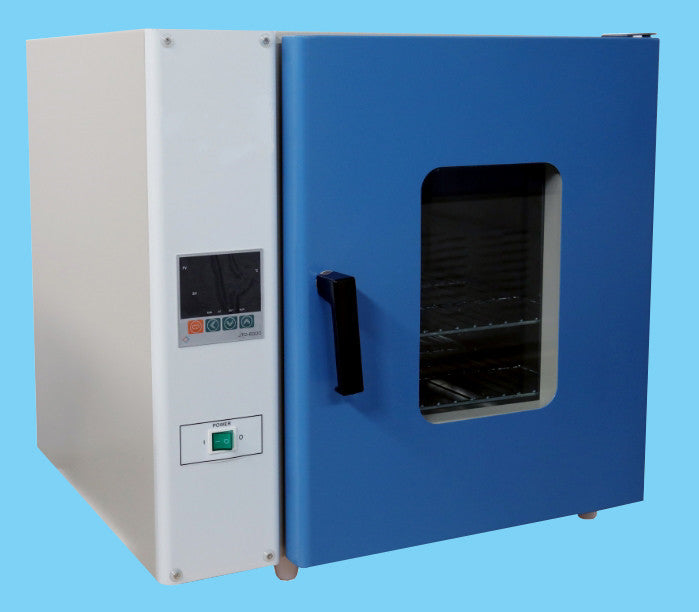

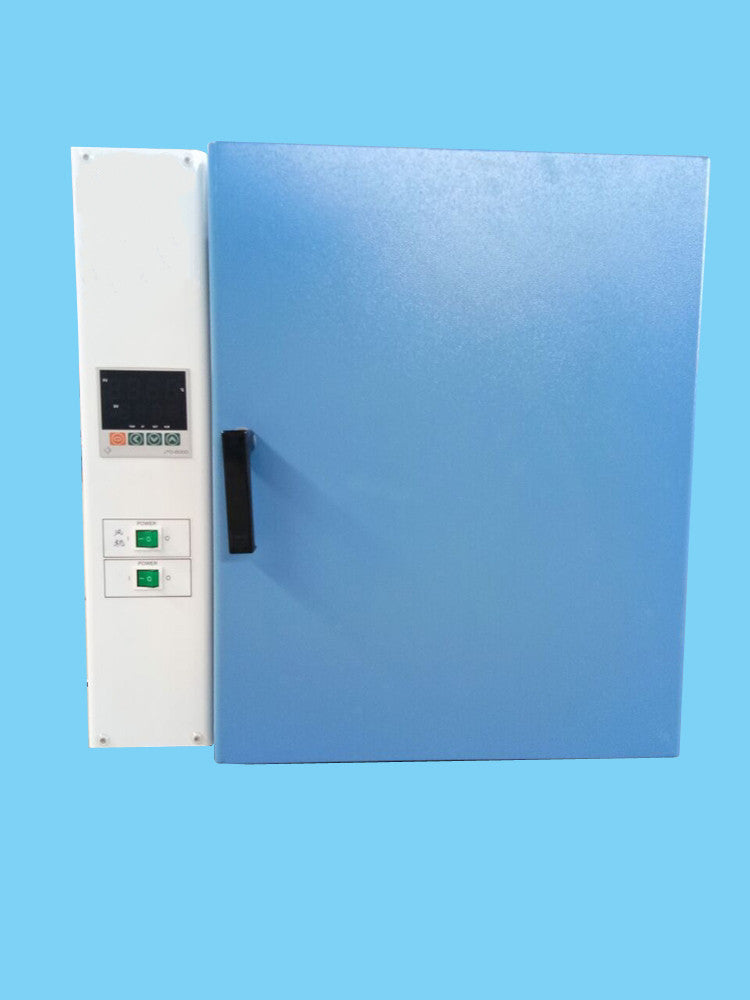

SD-G200S Stainless Steel Electric Blast Drying Oven

SD-G200S Stainless Steel Electric Blast Drying Oven

Intelligent Blast Drying Oven SD-G

Model: SD-G
Chamber Capacity: 30L, 70L, 135L, 250L,500L,640L

-Product features
1. The temperature control system with high performance CPU processing chip and high sensitivity and high precision platinum resistance sensor makes the temperature control more accurate and the operation more convenient.
2. It has sensor fault alarm, over temperature alarm, self diagnosis, dynamic control, temperature display correction, parameter memory and 9999 minute timing function.
3. The shell made of high-quality cold-rolled steel plate adopts spraying electrostatic powder technology, which is more durable and easier to clean.

4. The studio made of high-quality stainless steel, four corner arc design, cleaning more convenient.
5. High temperature resistant motor, bottom heating mode and optimized forced convection duct structure are adopted,
6. Ensure the uniformity of temperature control.

7. The shelf made of stainless steel round steel welded with polishing process is durable and heavier
8. The three-layer tempered glass observation window in accordance with CCC certification is safer and the samples in the observation box are clearer.


Model NO. SD-G200S
Volume 200L
Environment condition Temperature 5-30 ºC
Relative maximum humidity: 80%
Wave height to 2000 meters
supply voltage AC220V 50Hz
Temperature Range RT+10-300ºC
Accuracy of temperature +/-1 ºC  at 100 ºC
Fluctuation of temperature +/-1 ºC
Uniformity of temperature +/-1degree at 100 ºC
Temperature controller Digital display, touch screen, fuzzy PID control technology of micro processing temperature control
Temperature sensor K-type thermocouple
Studio size 400*400*450
Dimensions 550*550*800
Timing range 0-999 min or Continuous Operation
Internal material 304 stainless steel
External material cold rolled steel plate
Power consumption 1640w
Shelving 2


SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices




Video of SADA MEDICAL Products:

Catalog, Brothures and User Manual Please refer below Link:

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, dry ovens, consumables, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
