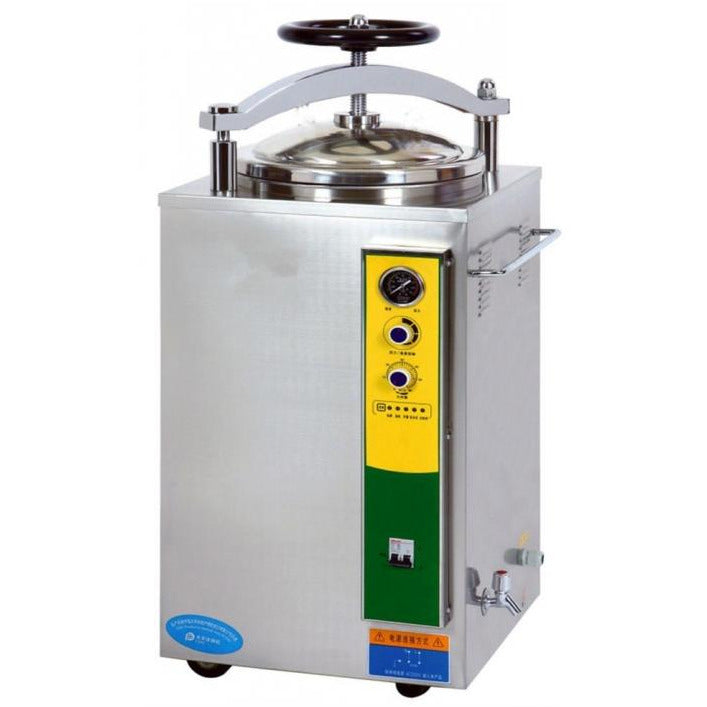

VA-SJ Series Vertical Pressure Steam Autoclave – Hand Wheel Quick‑Open Door Sterilizer for CSSD, Clinics & Laboratories
VA-SJ Series Vertical Pressure Steam Autoclave – Hand Wheel Quick‑Open Door Sterilizer for CSSD, Clinics & Laboratories
For hospital CSSD (Central Sterile Supply Department), dental clinics, and research labs that need a reliable yet easy‑to‑operate pressure steam sterilizer, the SADA Medical VA-SJ series vertical autoclave delivers. Its hand wheel quick‑open door saves time while maintaining absolute safety – the door cannot be opened under pressure. Built with a fully stainless steel chamber (SUS304), this infection control device is perfect for sterilizing surgical instruments, glassware, culture media, rubber materials, gowns, and medical waste. Whether you run a private clinic or manage a busy CSSD, the VA-SJ brings sterilization equipment for CSSD to a new level of convenience and compliance.
Product Video – VA-SJ Hand Wheel Autoclave in Action
Watch the quick‑open door operation, digital display, and sterilization cycle.
⚙️ Why the VA-SJ Stands Out for CSSD & Clinics

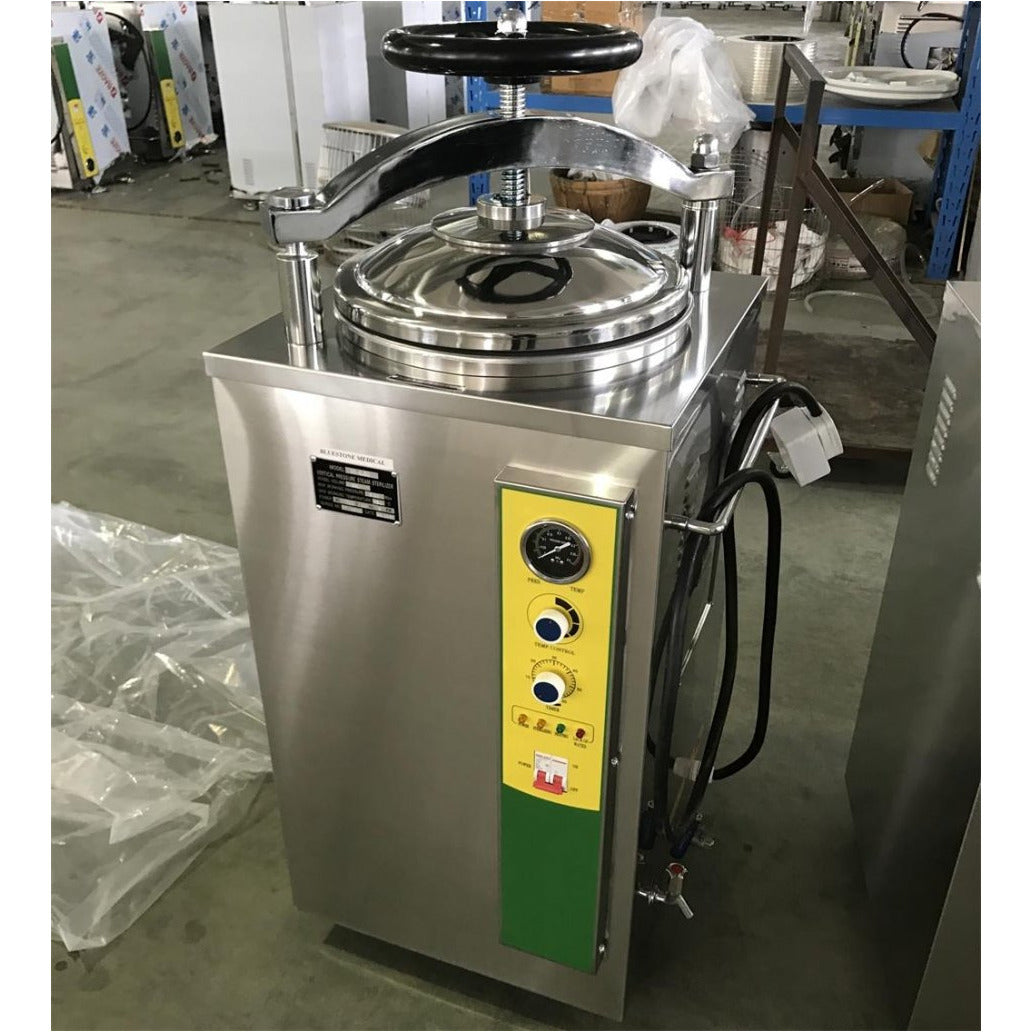

One‑hand operation, self‑inflating seal, and door safety interlock – no tools needed.
Over‑temp/over‑pressure cut‑off, water lacking protection, current overload, and auto safety valve.
Beep reminder when cycle finishes – no need to watch the clock.
Easy visual check of chamber pressure at a glance.
📋 Technical Specifications – VA-SJ Series
Available in four capacity options: 35L, 50L, 75L, and 100L. All models feature a working temperature of 134°C, adjustable from 105°C to 134°C, with a timer range of 0‑60 minutes. The cylindrical pressure steam sterilizer body is made of SUS304 stainless steel, and two stainless steel baskets are included.
| Model | Volume | Chamber Size (mm) | Power (kW) / Voltage | G.W. (kg) |
|---|---|---|---|---|
| VA-SJ35 | 35L | Ø318×450 | 2.5kW / AC220V 50Hz | 72 |
| VA-SJ50 | 50L | Ø340×550 | 3.0kW / AC220V 50Hz | 88 |
| VA-SJ75 | 75L | Ø400×600 | 4.5kW / AC220V 50Hz | 100 |
| VA-SJ100 | 100L | Ø440×650 | 4.5kW / AC220V 50Hz | 110 |
🌟 Common parameters (all models): Working pressure 0.22 MPa | Max pressure 0.23 MPa | Working temperature 134°C | Heat average ≤±1°C | Timer 0‑60 min | Temperature range 105‑134°C | Indicator lights for working state | Double scale pressure gauge.
🛡️ Safety Protection Devices
- Safe protection of water lacking (auto‑stop if low water)
- Over‑temperature & over‑pressure auto‑protection
- Over‑current protector
- Door safety interlock – cannot open under pressure
- Safety valve for auto pressure release
- Buzzer alarm on cycle completion
🏥 Sterilization Applications (CSSD / Dental / Lab)
- Hospital CSSD – surgical packs, drapes, and instruments
- Dental clinics – handpieces, forceps, burrs, mirrors
- Research labs – culture media, glassware, bio‑waste
- Veterinary & podiatry – reusable tools and waste
- Tattoo & piercing studios – needles and forceps
✅ Quality Management & Certifications
SADA Medical Co., Ltd. is certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). Each VA-SJ vertical autoclave is fully tested before shipment. Our workshop follows strict GMP‑like procedures. We have supplied steam autoclaves, low‑temperature plasma sterilizers, and ethylene oxide sterilizers to hospitals, distributors, and clinics across the globe. Competitive pricing, OEM/ODM available, and after‑sales support within 24 hours.
📄 Download the full catalog, brochure, and user manual using the blue button below.
📞 Get Your Quote & Expert Support in One Click
Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Steam sterilizers for medical, surgical or laboratory use.
✔ 1‑year warranty, 24‑hour response for tech support.
✔ Custom voltage (110V/220V) and drying system available on request.
