DR -  Mobile Digital X-ray System SD-NKX-100D

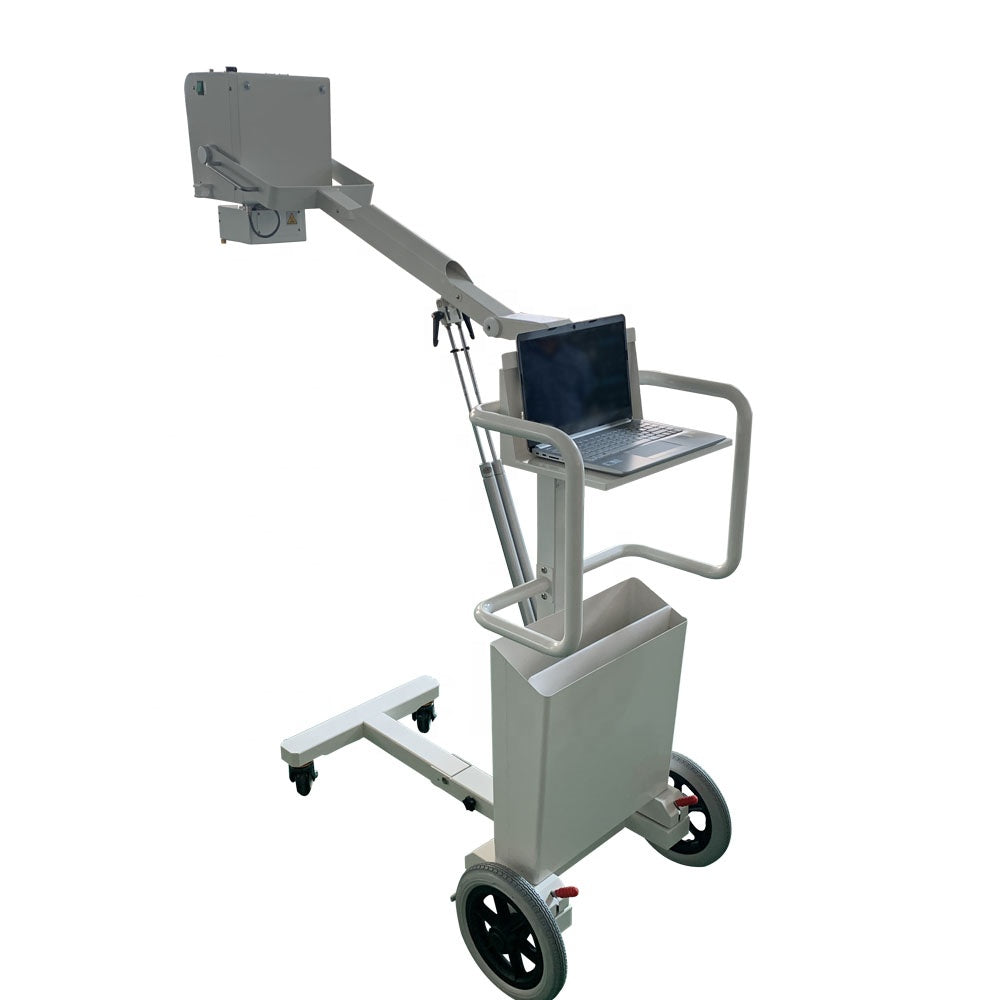

DR - Mobile Digital X-ray System SD-NKX-100D

Features

  1. Produced by high-frequency inverter technology, stable high-voltage output can get good image quality;
  2. A compact design, easy to carry and work in different regions and locations;
  3. There are three exposure control methods: remote control, hand brake and interface buttons;
  4. Fault self-diagnosis and self-protection;
  5. With a flexible digital interface, users can go deep into the core programming control and can adapt to different DR detectors.
  6. You can choose push-button or touch screen


Technical Specification

PARAMETER

SPECIFICATION

Maximum power

5KW

Photography KV range

40-50KV、40-60KV、40-80KV、40-100KV、40-110KV

Photography mA range

100mA、80mA、63mA、50mA、32mA

mAs range

0.32-315 mAs

Exposure time range

0.01-6.3s

Working frequency

≥30 kHz

Input power type

220V±10%, 50Hz/60Hz

Host size

37(L)×26(W)×23(H)cm

Weight

21KG

Inverter method

PWM(Pulse width modulation)


Standard Configure

Flat panel detector+ Image workstation+ Trolley


Flat panel detector

Detector category: amorphous silicon

Scintillator CsI

Image size 35×43 cm

Pixel matrix: 2560×3072

Pixel pitch 140 μm

A/D conversion 16 Bit

Spatial resolution 3.6

LP/mm drawing time: 2S

Battery standby time: 10 H


Image workstation

Screen size 14.1/15.6

Processor Core Quad

Core

Memory 4G

Hard disk 500G

Graphics card


Trolley

Net weight 70KG

Maximum height: 200cm

Width 66cm

Adjust 50~200cm
