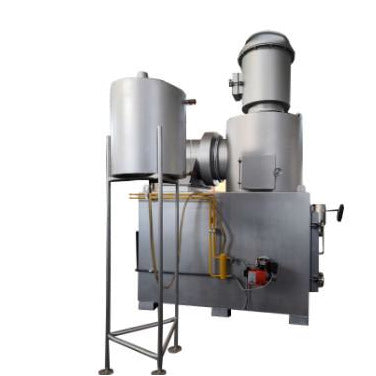

Medical Waste Incinerator
The series medical waste incineration installation with the characteristic of small size, high efficiency and reasonable incineration, leading technology, higher harmless degree, is the ideal garbage treatment facilities apply to all kinds of hospital, hotel, station..

Feature:
1, Smoke free, odorless, non-secondary pollution
2,No need of combustion adjuvant, spontaneous ignition(value: 3000kcal/kg),recovery of vapor, gas for heat generating.
3,8-10 years of life time of converter body.
4, Zero failure: low failure rate and cost of maintenance.
5, Easy operation: easy to learn, easy to burn, energy saving.
6,Sub-pressure design, no-backfire, consecutive feeding and large treating capacity.
7, High security: open type design for non-explosion, auto water and power-cutoff system as well as warning system.

Incineration material:
1, Industrial waste(polymer waste):PE,PU,rubber (tire),styrofoam, PET bottle, fiber, foam, cloth, resin, PMMA, leather, laminated board, bakelite, urea powdering, scouring pad, tape, painting, organics etc.
2, Medical waste: syringe, glove, bandage, gauze and infusion set
3, Ordinary waste: paper board, sawdust, foliage etc.
4, Special waste: waste oil, solution, sludge, iron painting, sieve residue

Design basis:
1. Furnace body type:Vertical closed furnace combustion chamber;
2. Burning capacity:10-400kg/time ( daily burn 3-6times,each time consume about 1 hour )
3. Ignition manner:automatic
4. Fuel type:0# or-10# diesel;
5. Feeding mode:Solid waste manual feeding
6. Take ash manner :manual
7. Furnace inner pressure:adopt negative pressure design, no back-fire,-3~-10mmH2O
8.Design heat value: waste mix 1500kcal/kg ~2500kcal/kg,0# diesel 10000kcal/kg
9.Flue gas treatment manner: Gasification combustion chamber(first combustion chamber) + blower + mixed combustion chamber+high temperature secondary combustion chamber + flue gas purification room (calcium hydroxide filter brick) +exhaust fan + independent chimney
10. Burning temperature: First combustion chamber: 600-800ºC Secondary combusition chamber:1500ºC Flue gas residence time≥2s Combustion efficiency: ≥99.99%.
safety index
1.Incinerator burner equipped with safety protection devices, when burner start is not normal, safety protection device automatically cut off oil supplies.
2. (normal stop furnace and safety program stop furnace ),before incinerator stop operating it has a combustion chamber cooling process, temperature dropsto set value,cooling process finish, incinerator stops working.
3.After technical department verify this equipment factory, the oil and gas path,installation is very strong, and through the pressure test, no leakage phenomenon
4, Alarming system:
1)Incinerator switch power supply instructions ;
2)Residual burning timing unit to guarantee no remaining flammable liquid and organism in furnace body, operate safety reliable;
3)overloading protect device,to protect the motor from overload
4) temperature control burning.

Technic Data:

Model item Burning Capacity (3-6 times per day) Size of the Burner (m)(L*H*B) Size of the filling entrance (mm) Chimney(mm) Air-blower  Auxiliary machine  Re-burning machine  Running voltage  Weigh(kg)
SA-DF-20 10-20KG/time 1.6*1.2*1.7m 380*480 Ø280(OD) 0.25kw Power 0.11kw oil consumption 4-6kg/h Power 0.11kw oil consumption 4-6kg/h 380V or 220V 1600
SA-DF-30 20-30kg/time  1.45*0.9*1.75  480*600  Ø280(OD)  0.37kw Power 0.11kw Oil consumption 4-6kg/h Power 0.11kw Oil consumption 4-6kg/h 380V or 220V 2800
SA-DF-50 30-50kg/ time  1.8*1.15*3  620*800  Ø280(OD)  0.37kw Power 0.11kw Oil consumption 4-10kg/h Power 0.11kw Oil consumption 4-10kg/h 380V or 220V  4500
SA-DF-100  50-100kg/time 1.8m*1.4m*3.4m 520*720 Ø300(OD) 0.5kw Power 0.11kw Oil consumption 4-10kg/h Power 0.22kw Oil consumption 7-14kg/h 380V or 220V 6000
SA-DF-150 100-150kg/ time  2*1.4*3.5  760*960  Ø300(OD)  0.5kw Power 0.11kw Oil consumption 4-10kg/h Power 0.22kw Oil consumption 7-14kg/h 380V or 220V  7600
SA-DF-300 200-300kg/ time  2.2*1.4*3.8  900*1100  Ø400(OD)  1.1kw Power 0.22kw Oil consumption 7-14kg/h Power 0.37kw Oil consumption 10-20kg/h 380V or 220V  8600
SA-DF-500 300-400kg/ time  3*2*4.8  1080*1280  Ø460(OD) 1.1kw Power 0.22kw Oil consumption 7-14kg/h Power 0.37kw Oil consumption 15-26kg/h 380V or 220V  14500
