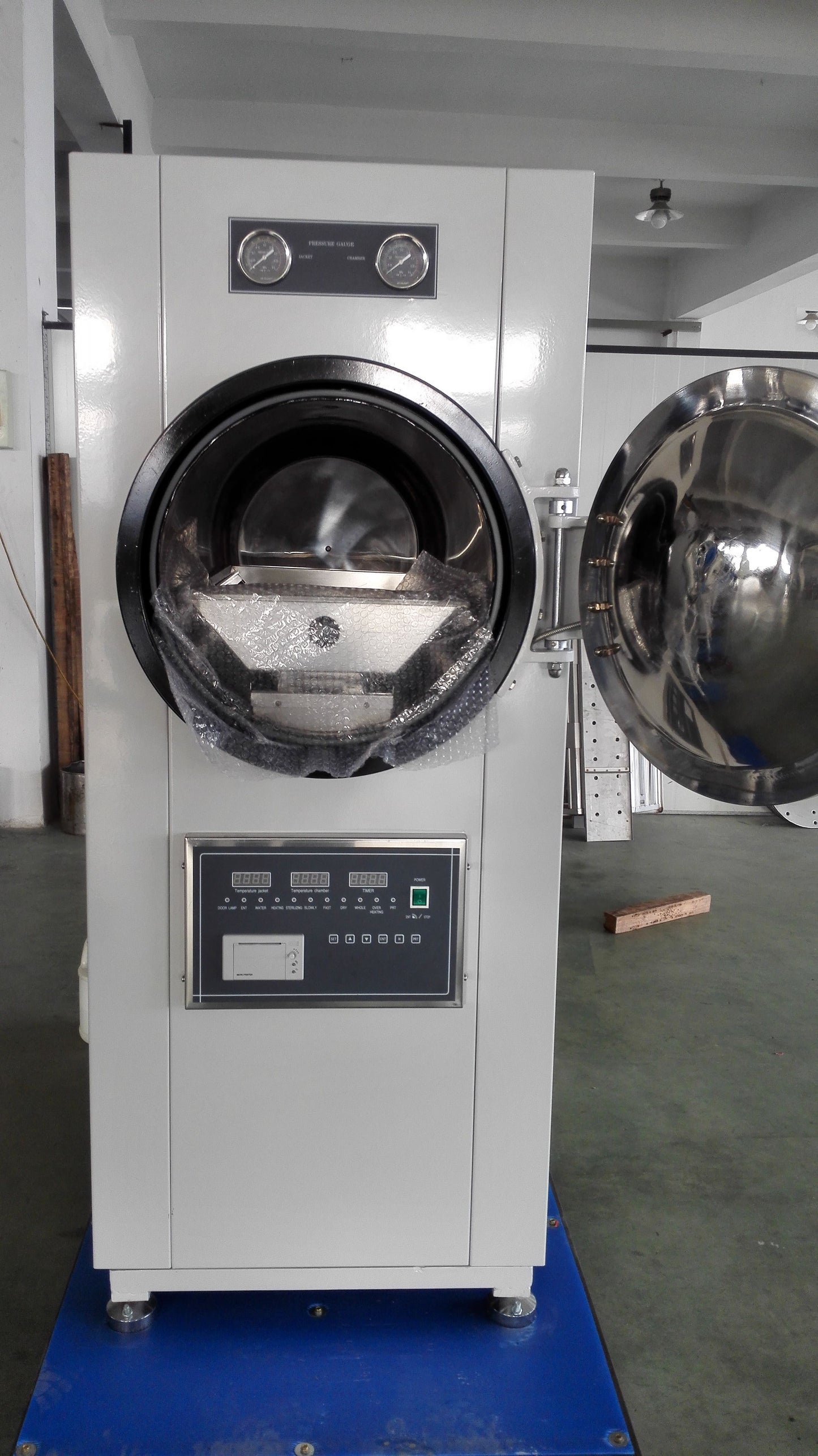

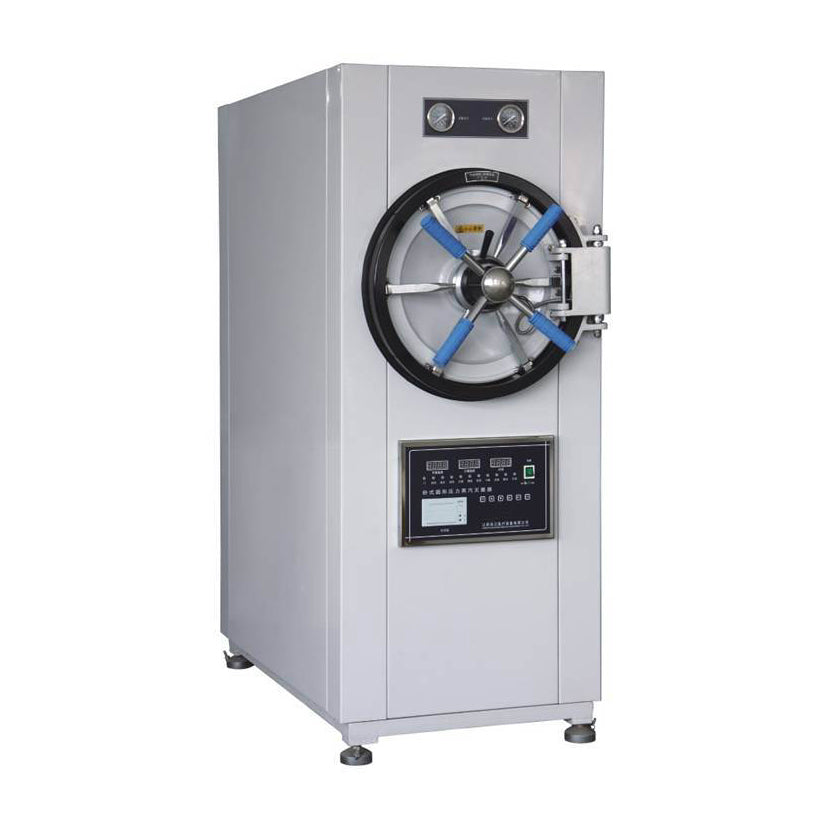

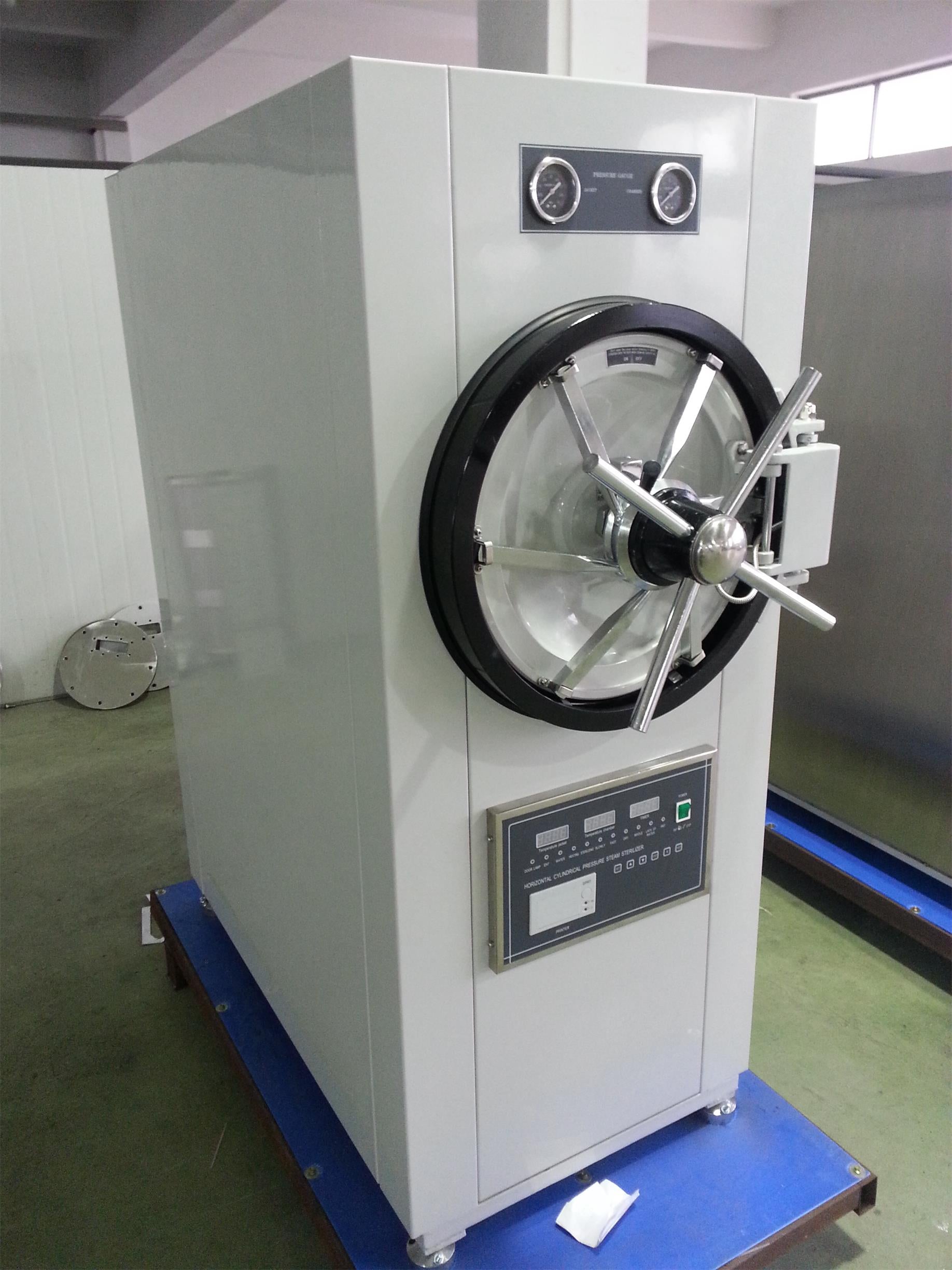

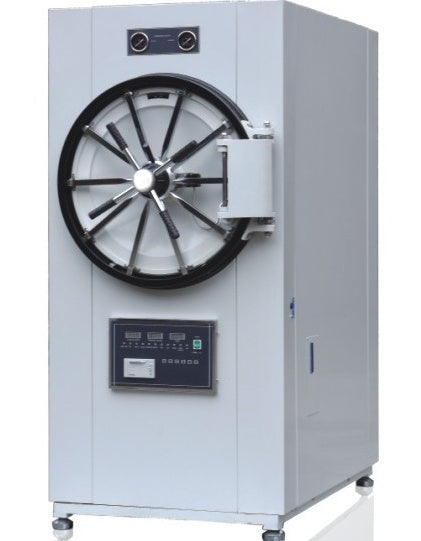

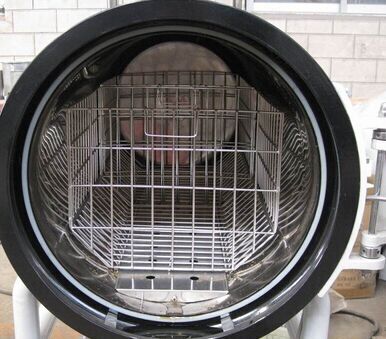

Horizontal Cylindrical Autoclave Pressure Steam Sterilizer.

Model: HA-BA
Chamber Capacity: 150 L, 200 L, 280 L
Class: Class N
Chamber Material: Stainless steel 304

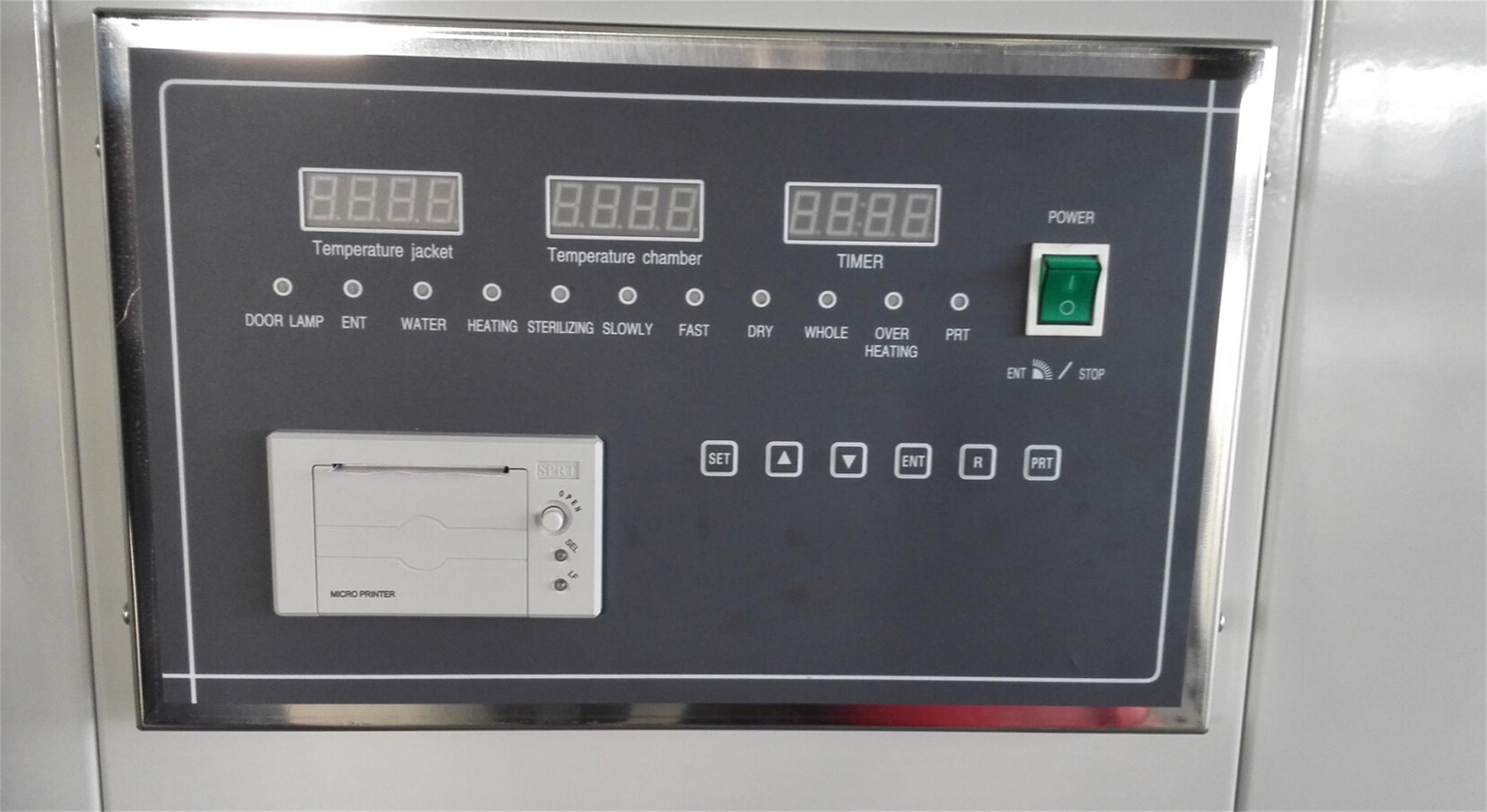

Display: Digital display
Control: Computer controlled
Door: Safety lock door system
Configuration: Drying device, printer, tray
Production time: 20 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.

Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai Ningbo Qingdao

Features:

1. Fully automatic controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027 Mpa. It can’t be start on if the door doesn’t close well.
5. The safety valve will be open automatically when the inner pressure over 0.24 MPa and the steam be exhausting to the water link.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. The chamber is made of stainless steel 304.
8. With printer.

Sterilization Objects: Unwrapped or Wrapped instruments, Surgical instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.

Safety Protection:

1. Heater protection;
2. Anti-dry heating;
3. Safety interlock door;
4. Over-temperature protection;
5. Over-pressure protection;
6. Automatic release safety valve;
7. Electric safety protective device.

Specifications:

Model: HA-BA150, HA-BA200, HA-BA280

Sterilizing Chamber Volume:
150L: Ø440×1000mm
200L:Ø515×1000mm
280L:Ø600×1000mm

Working Pressure: 0.22 Mpa

Working Temperature:134°C

Adjustment of Temperature: 40°C – 134°C

Time for Sterilization: 0-99 min

Time for Drying: 0-99 min

Heat Average: ≤ ±1°C

Power: 9-12KW/220/380V, 50/60HZ

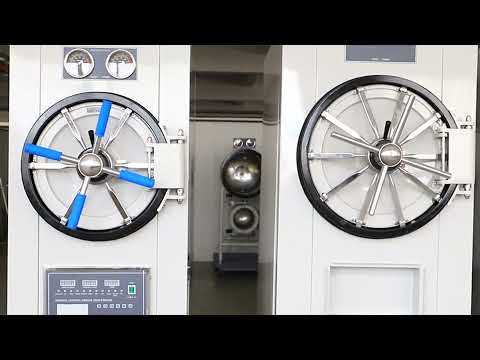

Video of HA-BA Autoclave:




SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:

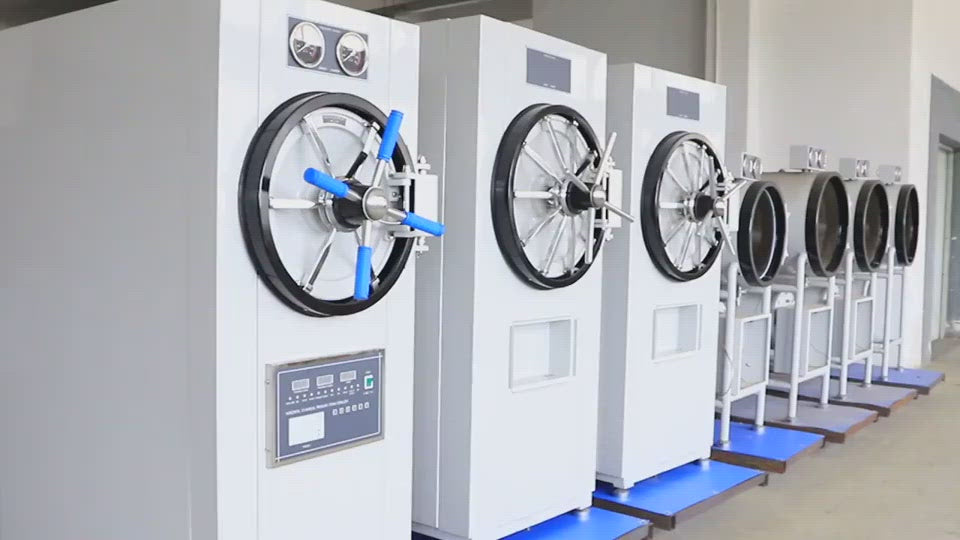

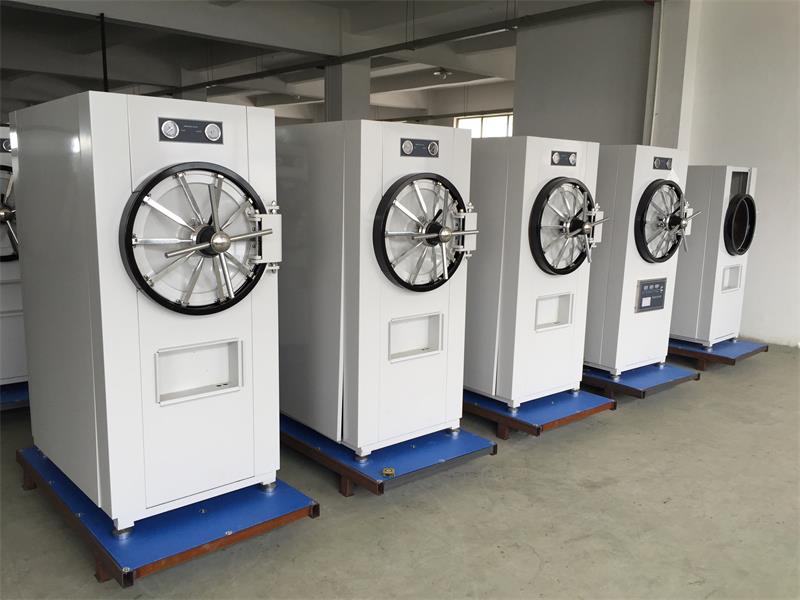

SADA MEDICAL Workshop:


Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
