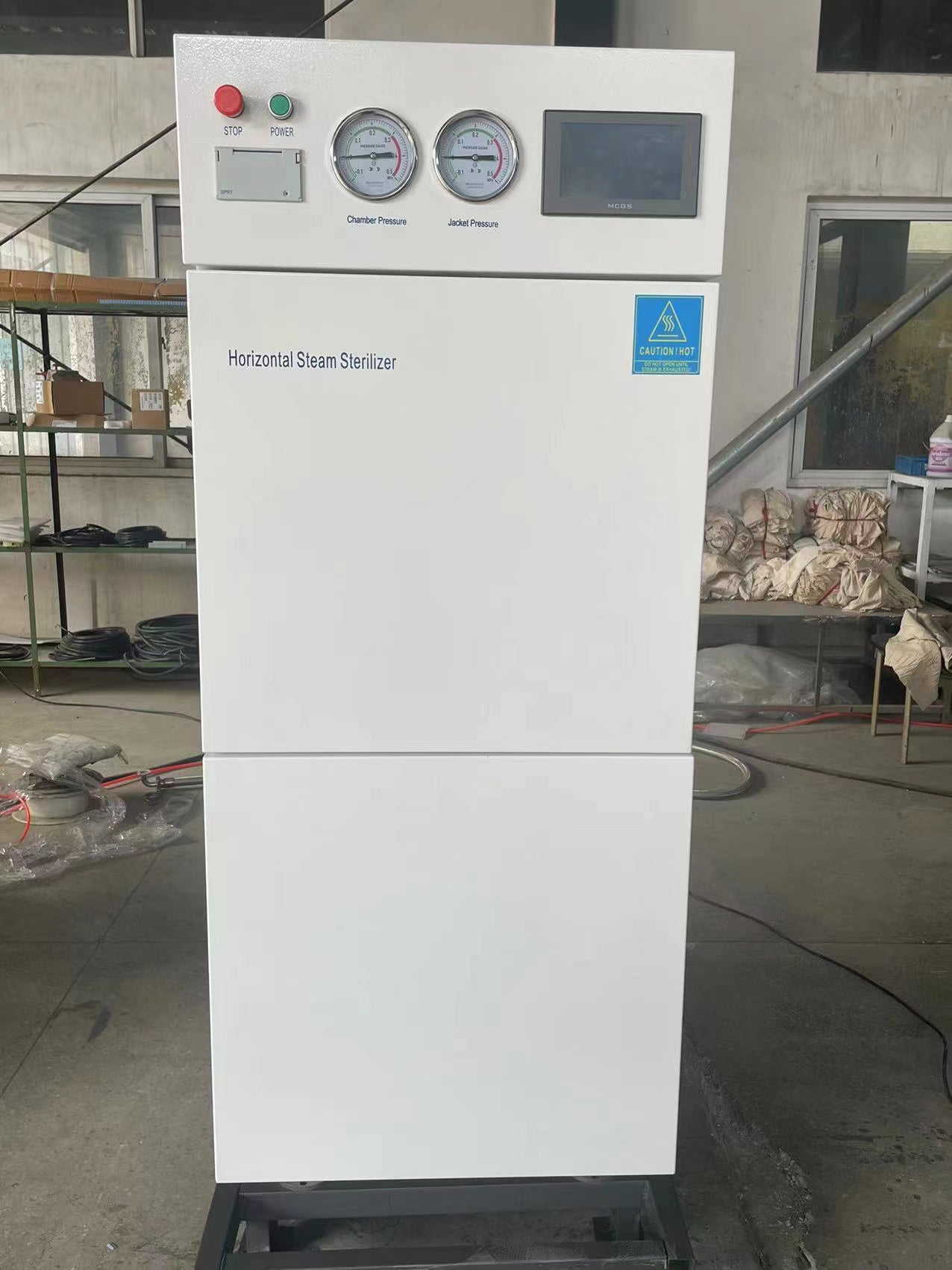

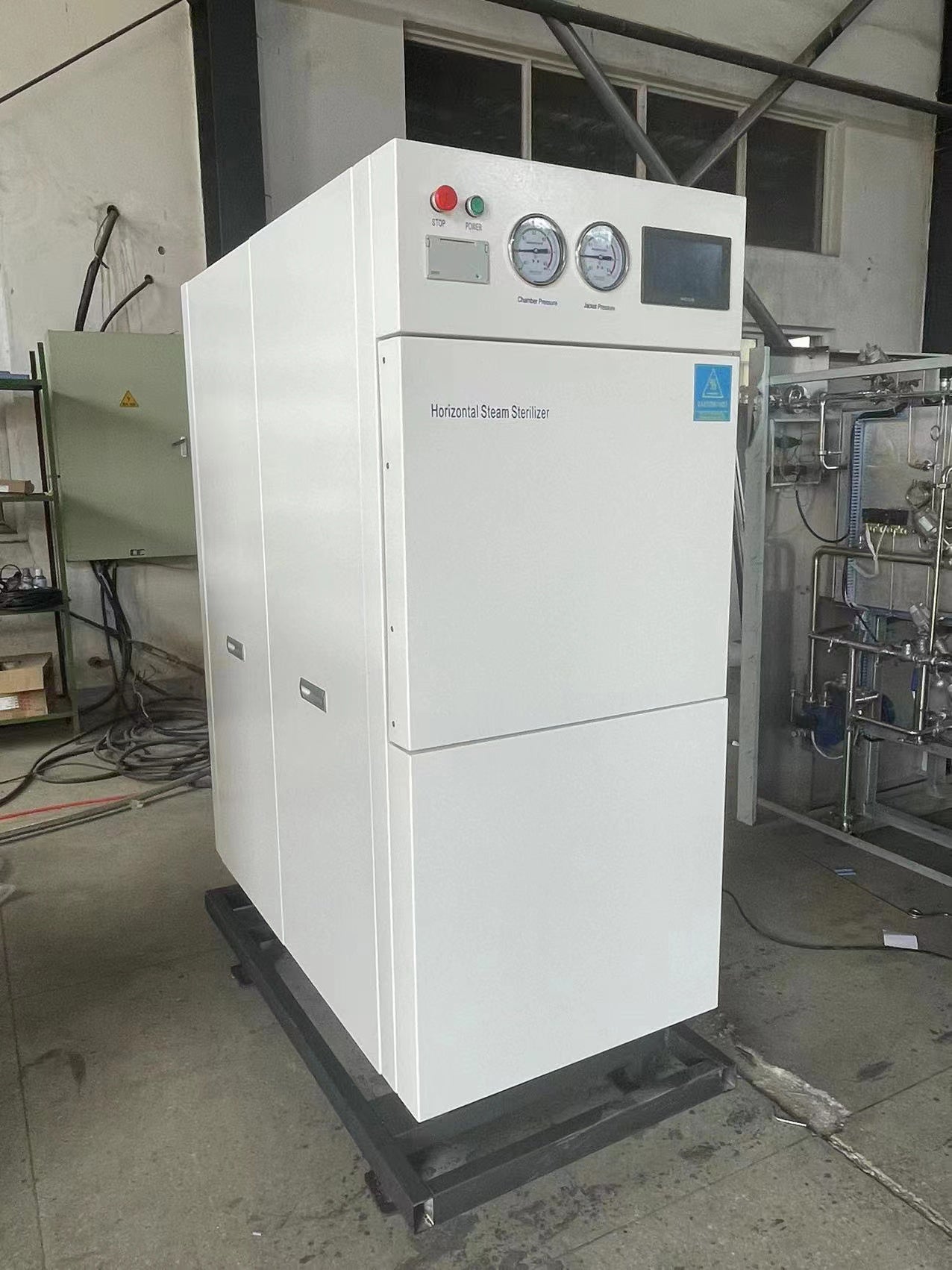

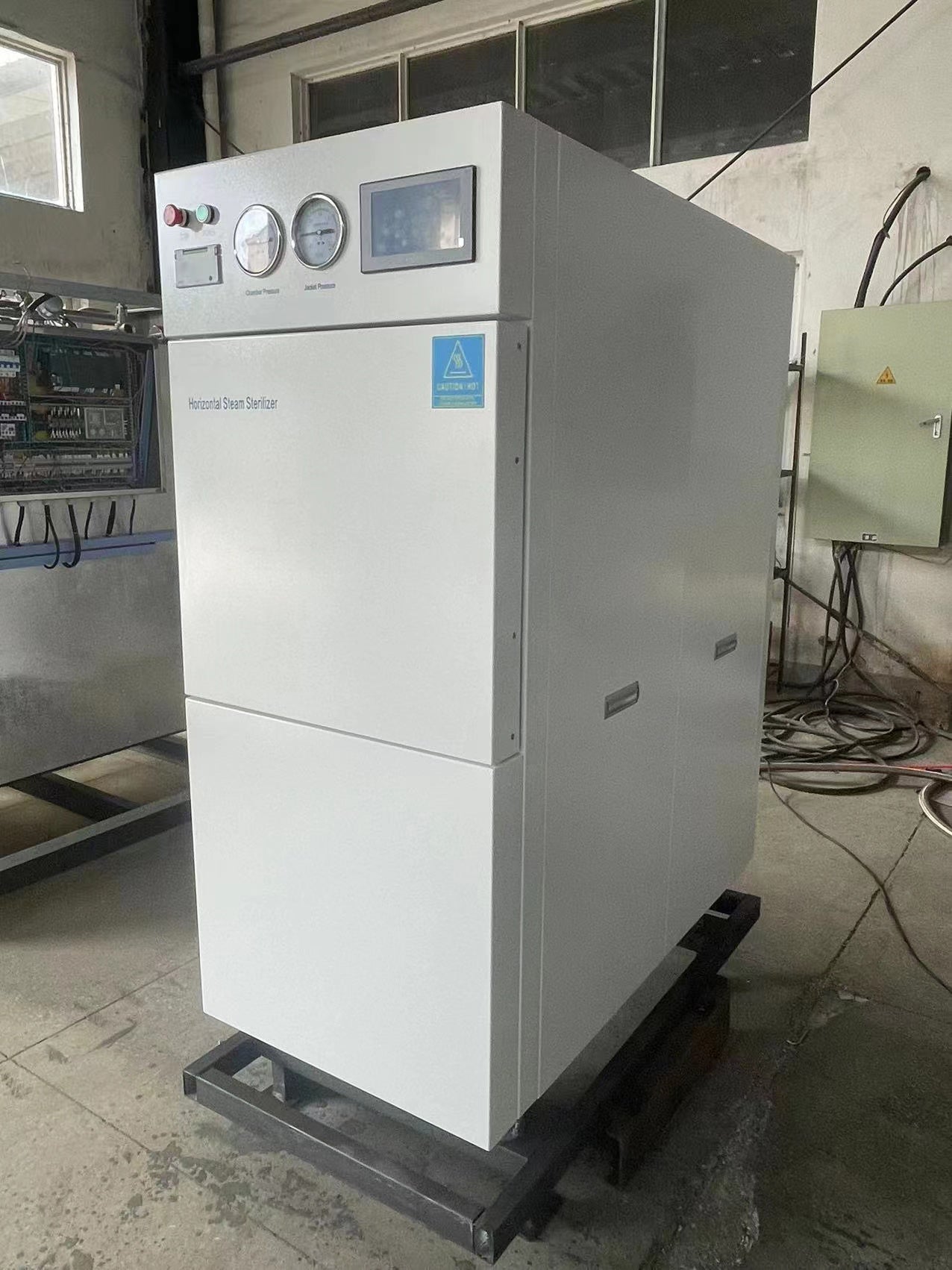

HA-BW Series Horizontal Cylindrical Pressure Steam Sterilizer – 100L to 400L HMI Touch Screen Autoclave for CSSD, Labs & Pharma
HA-BW Series Horizontal Cylindrical Pressure Steam Sterilizer – 100L to 400L HMI Touch Screen Autoclave for CSSD, Labs & Pharma
For hospital CSSD (Central Sterile Supply Department), pharmaceutical cleanrooms, and large research labs that demand high‑throughput sterilization, the SADA Medical HA-BW series horizontal cylindrical autoclave delivers industrial‑grade performance. With chamber capacities ranging from 100L to 400L, this horizontal pressure steam sterilizer features an HMI touch screen interface, jacket heating, optional pulse vacuum, and complete sterilization traceability (printer + FO value). Whether you need to process wrapped surgical packs, liquids, culture media, or medical waste, the HA‑BW ensures consistent, validated sterilization results. Built for 24/7 operation in demanding environments, it’s the backbone of any modern infection control equipment strategy.
Product Video – HA-BW Horizontal Autoclave in Action
Watch the HMI touch screen operation, door safety lock, and complete sterilization cycle.
⚙️ Why Large Healthcare Facilities Choose the HA‑BW Horizontal Autoclave
User‑friendly interface with program selection (fabric, equipment, liquid, BD test, pressure test, custom).
Removes air more effectively – ideal for wrapped instruments, porous loads, and textile packs.
Built‑in printer + FO value record + temperature/time double guarantee – perfect for compliance.
Over‑temperature, over‑pressure, door interlock, and safety valve – operator safe at all times.

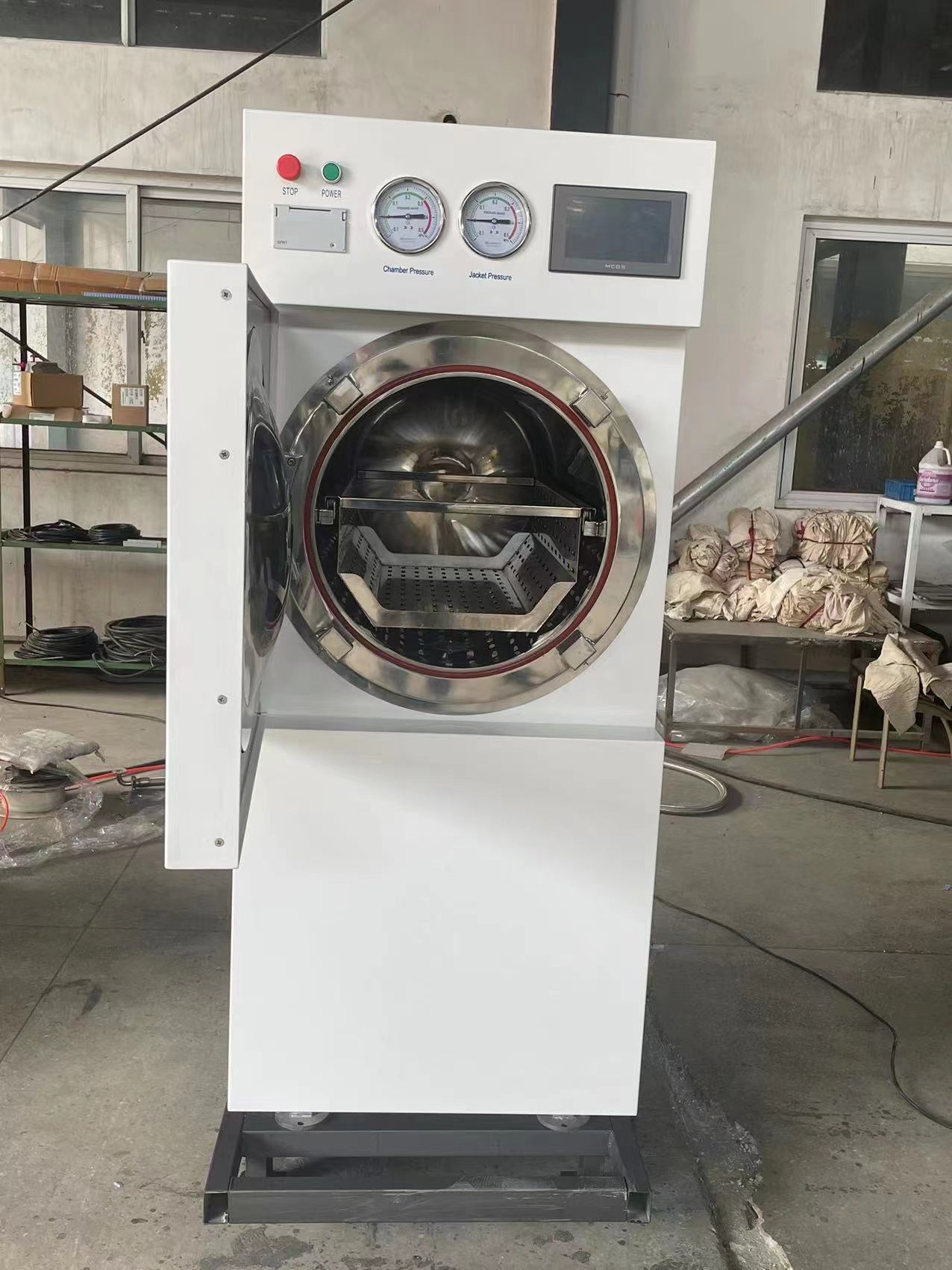

Horizontal circular inner chamber with jacket structure – better temperature uniformity and drying performance.
SUS304 piping, clamp structure for quick assembly – easy maintenance and hygienic.
📋 Technical Specifications – HA-BW Series (Standard, Without Pulse Vacuum)
| Model | Chamber Size (Ø×L mm) | Overall Dimensions (L×W×H mm) | Steam (KG) | Water (KG) | Power (KW) | Net Weight (KG) |
|---|---|---|---|---|---|---|
| HA-BW100 | Ø420×750 | 1160×650×1680 | ≤10 | ≤30 | ≤2+⑨ | 250 |
| HA-BW150 | Ø472×880 | 1290×690×1680 | ≤12 | ≤190 | ≤2+⑫ | 350 |
| HA-BW200 | Ø472×1150 | 1560×690×1680 | ≤13 | ≤190 | ≤2+⑫ | 370 |
| HA-BW300 | Ø620×995 | 1430×850×1760 | ≤18 | ≤200 | ≤2+⑮ | 450 |
| HA-BW400 | Ø620×1320 | 1755×850×1760 | ≤22 | ≤200 | ≤2+⑮ | 510 |
💨 HA-BWV Series (With Pulse Vacuum) – For Superior Air Removal & Wrapped Loads
| Model | Chamber Size (Ø×L mm) | Overall Dimensions (mm) | Steam (KG) | Water (KG) | Power (KW) | Net Weight (KG) |
|---|---|---|---|---|---|---|
| HA-BWV100 | Ø420×750 | 1160×650×1680 | ≤11 | ≤30 | ≤2+⑫ | 250 |
| HA-BWV150 | Ø472×880 | 1290×690×1680 | ≤13 | ≤190 | ≤2+⑮ | 350 |
| HA-BWV200 | Ø472×1150 | 1560×690×1680 | ≤15 | ≤190 | ≤2+⑮ | 370 |
| HA-BWV300 | Ø620×995 | 1430×850×1760 | ≤20 | ≤200 | ≤2+⑱ | 450 |
| HA-BWV400 | Ø620×1320 | 1755×850×1760 | ≤25 | ≤200 | ≤2+⑱ | 510 |
🌟 Common Technical Parameters (All Models): Design pressure -0.1~0.3Mpa | Design temp 144°C | Working pressure 0.245Mpa | Working temp 105‑138°C | Vacuum -0.086Mpa | Temperature equilibrium ≤±2.0°C | Water pressure 0.1‑0.2Mpa | Compressed air 0.4‑0.7Mpa | Steam supply 0.3‑0.7Mpa | Power voltage: AC380V 50Hz three‑phase five‑wire.
🌟 Included Accessories: Drying device, printer, trays. Door: Safety lock electric lock + disc type embedded gear. Seals: Pneumatic or self‑expanding. Built‑in verification interface.
🏥 Sterilization Applications (CSSD / Pharma / Labs)
- Hospital CSSD – wrapped & unwrapped surgical instruments, textile packs, gowns, drapes
- Pharmaceutical factories – fermentation equipment, production tooling, cleanroom garments
- Research labs – culture media, glassware, biohazardous waste
- Dental & veterinary clinics – high‑volume instrument reprocessing
- Funeral homes & prosthetics fabrication – specialized load sterilization
🛡️ Safety & Compliance Features
- Over‑temperature & over‑pressure protection
- Electric door lock + safety interlock – cannot open under pressure
- Safety relief valve
- FO value & temperature/time double guarantee
- Standard equipment verification interface (for validation)
- Multiple built‑in cycles: fabric, equipment, liquid, BD test, pressure test, custom
✅ Quality Management & Certifications
SADA Medical Co., Ltd. is certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). Each HA‑BW horizontal sterilizer is factory tested with cycle validation reports. Our workshop follows strict GMP guidelines. We have supplied large horizontal autoclaves, low‑temperature plasma sterilizers, and EO sterilizers to major hospitals and distributors worldwide. OEM configurations (double door pass‑through, custom trays, voltage, etc.) are available. 12‑month warranty, 24‑hour technical support, and spare parts supply.
📄 Download the full catalog, user manual, and validation guide using the blue button below.
📞 Get Your Quote & Expert Support in One Click
Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Horizontal steam sterilizers for medical, surgical, and laboratory use.
✔ 12‑month warranty, 24‑hour technical support.
✔ Pulse vacuum (HA‑BWV) recommended for wrapped instruments and textile loads.
✔ Double‑door (pass‑through) configuration available for cleanroom/dirty side separation.
