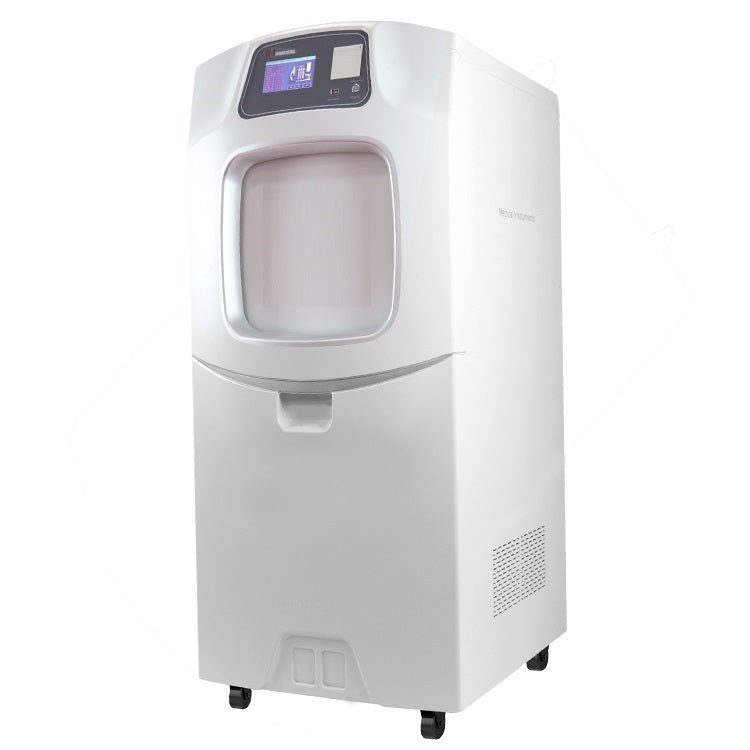

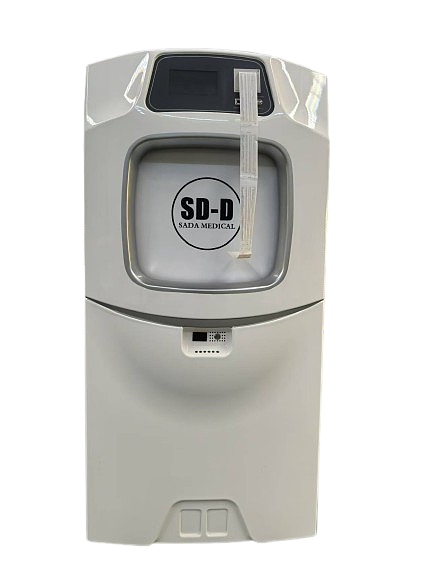

H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer
H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer
H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer
H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer

H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer

H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer

Hydrogen peroxide low-temp plasma sterilizer can not only sterilize metal medical devices at low temperature, but also non-metal medical devices at low temperature. Through the diffusion of hydrogen peroxide in the sterilization chamber, the hydrogen peroxide is “stimulated” into a plasma state to sterilize medical devices.

By combining with plasma, hydrogen peroxide vaporation can sterilize medical instruments and materials safely and rapidly without any toxic residues.

All stages of the sterilization process are operated in a dry and low temperature environment, so it will not damage the instruments sensitive to heat or water vapor, be applicable to both metal and non-metal instruments, and can sterilize the parts of instruments that are difficult to reach (not easy to diffuse), such as hemostatic forceps hinge.

Product Model: SD-P190L
Product Type: Automatic door Sterilization Agent: 60% H2O2 Solution
Temperature at sterilization: 50 ℃ ± 5 ℃
Work pressure: -60pa Gas consumption: 1 capsule for short cycle /2capsual for long cycle

Chamber material: Aluminum alloy
Machine Cover material: ABS plastic

Sterilization Time: Short cycle normal sterilization cycle: 35min Long cycle enhanced sterilization cycle: 55min adjustable

Lifting Door : Mandril-drive auto overhead door with realiable sealing function and safe lock device to guarantee personal safety

Full automatic control system: Siemens PLC , touch screen control , fully automatic system. Display condition: It shows Chamber pressure and temperature, processing phases and alarm errors. Sterilization Program: Preheating stage, vacuuming stage, injection stage, diffusion stage, plasma generation stage, ventilation stage

Printer: Bulit-in thermal printer, real-time print out data ;USB interface available for historical data download.

Capacity: 190L

Power supply: 220V/60HZ

Power: 4.3KW

Chamber size: 820*510*460mm

Packaging size: 1100*800*1780mm

Gross weight: 263KGS

Product Model: SD-P100L, SD-P130L, SD-P190L
Product Type: Automatic door
Sterilization Agent: 60% H2O2 Solution
Temperature at sterilization: 50 ℃ ± 5 ℃
Working pressure -60pa
Gas consumption 1 capsule for short cycle /2capsual for long cycle
Chamber material Aluminum alloy
Machine Cover material ABS plastic
Sterilization Time Short cycle normal sterilization cycle: 35min
  Long cycle enhanced sterilization cycle: 55min        adjustable
Lifting Door Mandril-drive auto overhead door with realiable sealing function and safe lock device to guarantee  personal safety
Full automatic control system Siemens PLC  , touch screen control , fully automatic system.
Display condition  It shows Chamber  pressure and temperature, processing  phases and alarm errors.
Sterilization program Preheating stage, vacuuming stage, injection stage, diffusion stage, plasma generation stage, ventilation stage
Printer Bulit-in thermal printer, real-time print out data ;USB interface available for historical data download.
Capacity 100L, 130L, 190L
Power supply 220V/380V 50HZ/60HZ



SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:


Video of SADA MEDICAL Autoclaves:

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
