1️⃣ Product Introduction
Efficient, Intelligent & Customizable Ultrasonic Cleaning for Medical Use
SADA Medical's Automatic Lifting Ultrasonic Washers are designed to enhance safety and efficiency in medical instrument cleaning. The automatic lifting mechanism reduces manual handling, minimizing the risk of contamination and injury, making them ideal for high-throughput environments.
2️⃣ Product Features & Benefits
✅ One-Touch Intelligent Operation
Start-to-finish automatic cleaning with heating, ultrasonic action, and shutdown for streamlined workflows.
✅ Color LCD Touchscreen with PLC Programmability
Easily set and monitor time, temperature, chemical usage, and fault alerts.
✅ Memory Tracking System
Automatically records cleaning time, working hours, and factory data for traceability and audits.
✅ Safety First Design
Protection against leakage, over-current, over-voltage, over-temperature, and dry operation.
✅ Adjustable Ultrasonic Frequency
Choose between 28kHz, 40kHz, 80kHz, and 100kHz for cleaning different instrument types.
✅ Optional Add-ons
- Built-in Printer: For process traceability
- Automatic Chemical Dosing: Accurate enzymatic agent addition

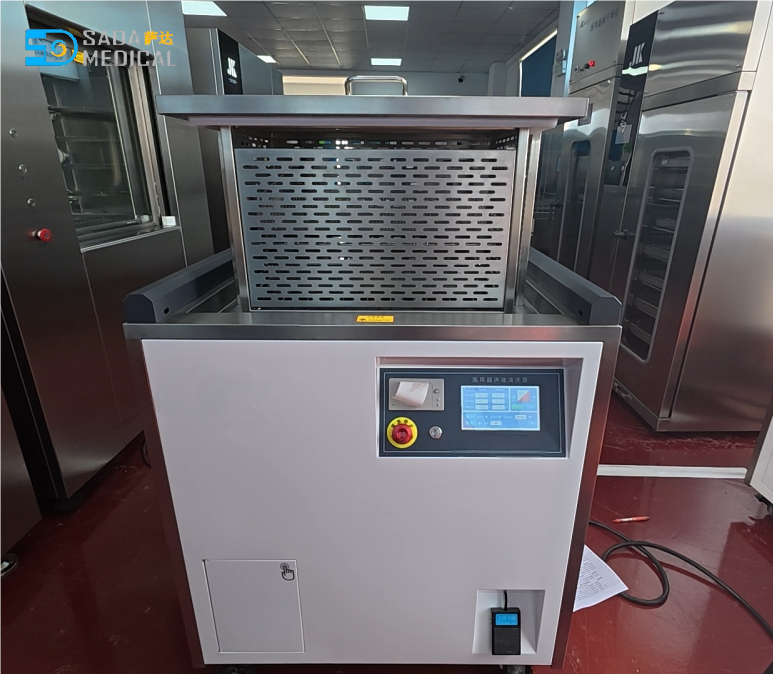

- Infrared Safety with Auto Lift Window: Ergonomic and safe for high-volume use
✅ CNC-Molded Stainless Steel Build
Noise-reducing, corrosion-resistant construction for long-term use in medical environments.
3️⃣ Application Scenarios
🏥 Central Sterile Supply Departments (CSSD)
🏥 Operating Rooms & Endoscopy Clinics
🧪 Biomedical & Research Laboratories
🦷 Dental, ENT, and Surgical Clinics
🏭 Pharmaceutical & Biotech Cleanrooms
Whether you're cleaning complex lumen instruments or standard surgical tools, our ultrasonic washers provide safe, consistent, and residue-free cleaning every time.
4️⃣ Why Choose This Product & SADA Medical
Our Expertise:
- Tailored solutions for complex medical cleaning needs.
- Proven track record in delivering high-quality medical equipment.
- Comprehensive training and support services.
Product Excellence:
- Enhanced ergonomics for staff safety.
- Advanced features for efficient cleaning cycles.
- Robust design for long-term use.
5️⃣ Technical Specifications
Model |
Cleaning tank inner dimensions(L*W*H) |
Capacity(L) |
KHZ |
Power(w) |
Heating power(w) |
Temperature adjust |
Inlet and outlet |
Type |
JK-DY1600 |
600*400*400MM |
96L |
40 |
1600 |
6000 |
0-80ºC |
Automatic Control |
Lifting |
JK-DY2000 |
600*500*400MM |
120L |
40 |
2000 |
6000 |
0-80ºC |
Automatic Control |
Lifting |
JK-DY2200 |
600*600*400MM |
144L |
40 |
2200 |
7000 |
0-80ºC |
Automatic Control |
Lifting |
JK-DY2400 |
700*600*400MM |
168L |
40 |
2400 |
7000 |
0-80ºC |
Automatic Control |
Lifting |
Relevant certificates of the product
