EO Sterilization Equipment CSSD Medical Ethylene Oxide Disinfecting Sterilizer
EO Sterilization Equipment CSSD Medical Ethylene Oxide Disinfecting Sterilizer
EO Sterilization Equipment CSSD Medical Ethylene Oxide Disinfecting Sterilizer
EO Sterilization Equipment CSSD Medical Ethylene Oxide Disinfecting Sterilizer

EO Sterilization Equipment CSSD Medical Ethylene Oxide Disinfecting Sterilizer

Product name: EO Sterilization Equipment CSSD Medical Ethylene Oxide Disinfecting Sterilizer; Gas Sterilization Equipments

Model Number: SADA-EO

Instrument classification: Class II

After-sale Service: Online technical support

Application: Hospital; Cleanroom CSSD; Clinic;

Chamber material: 304 anti-corrosion stainless steel

Power supply: AC 220V 50HZ (Electric heating)

Humidity: 45%-75%

Sterilization temperature:45'c-55'c

Work pressure: -60kpa

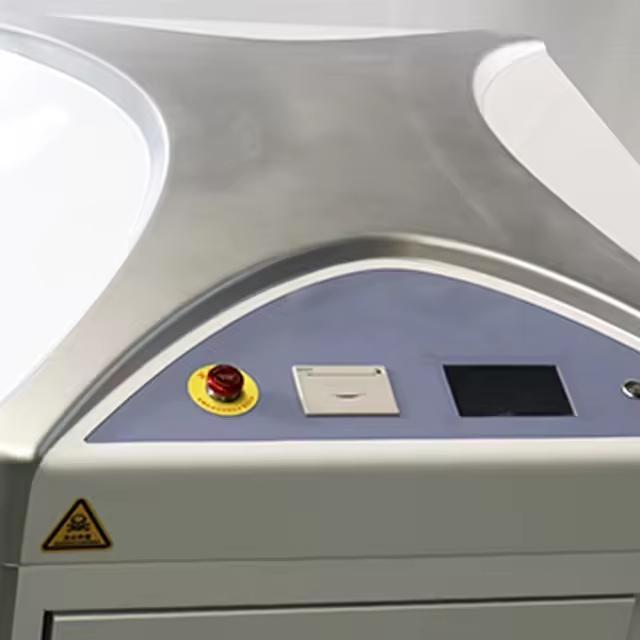

Display: LCD Touch Display

Volume: 80L/120L/220L/330L Available.

Packaging Details
Standard export wooden box packaging.

DELIVERY TIME:
15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

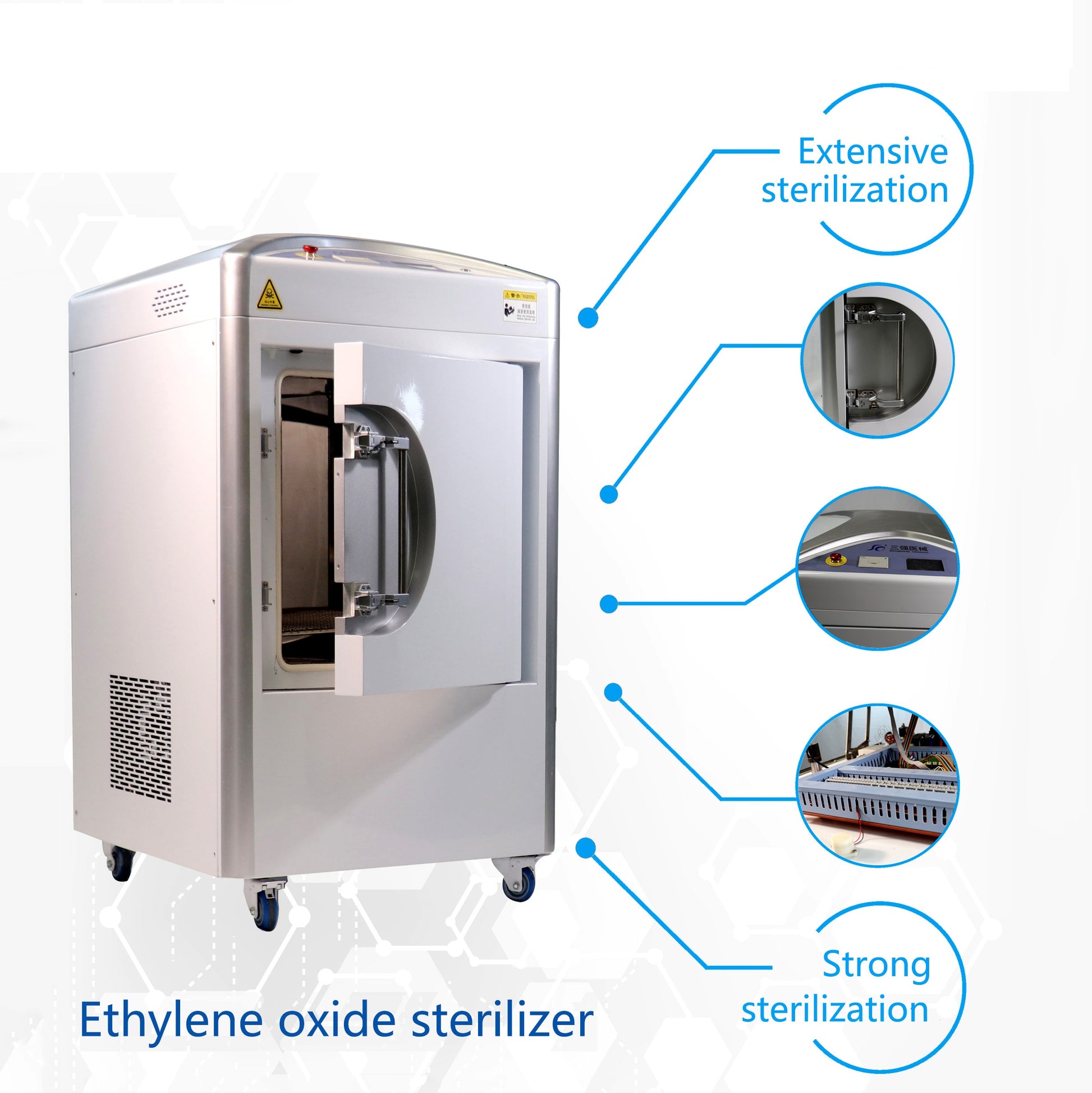

Features: EO/ETO Gas sterilization equipment
✓ Strong penetrability: long-tube objects, thin cavities and instruments can be sterilized

PRODUCT HIGHLIGHT:
▪Sterilization room door: Using 5052 high-quality aviation aluminum, thickness ≥15mm, pressure resistance 200Kpa. Door heating;

▪Air replacement: Automatic ventilation, cycle ventilation 5 times, once every 15 minutes;

▪Display state: Display operating status, temperature, humidity, pressure, sterilization time, residual gas treatment time, times, steam generator temperature;

▪Sensor: Humidity Sensor; Pressure Sensor; Temperature Sensor;

▪Vacuum system: Use an oil-free vacuum pump;

▪Residual gas treatment device: The filtration rate of the filter for particle diameter ≥ 0.2μm is not less than 99.5%;

▪Vacuum rate: Under no-load conditions, the time for the sterilizer to vacuum from atmospheric pressure to -60kPa should be ≤30min;

▪Multiple protection functions: With over-voltage and over-temperature protection、high temperature alarm system、ultra-low pressure alarm system;

▪Power-off memory function: Prevent the sterilization process from being interrupted and data loss caused by unexpected situations such as power failure.

✓ Wide range of applications: high and low temperature instruments can be sterilized, specially selected for human implant sterilization

✓ Non-corrosive: no damage to sterilized equipment

✓ High cost performance: the same volume of H2O2 plasma for comparison.



Model

Volume

Chamber Size(mm)

Specification(mm)

Power

Weight

SD-EO80

80L

585*275*422

795*615*1140

2.6KVA

110KG

SD-EO120

120L

585*375*472

3.0KVA

147KG

SD-EO220

220L

705*505*552

968*800*1240

3.3KVA

207KG

SD-EO330

330L

760*545*682

968*800*1340

3.6KVA

227KG



SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:


Video of SADA MEDICAL Products:

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
