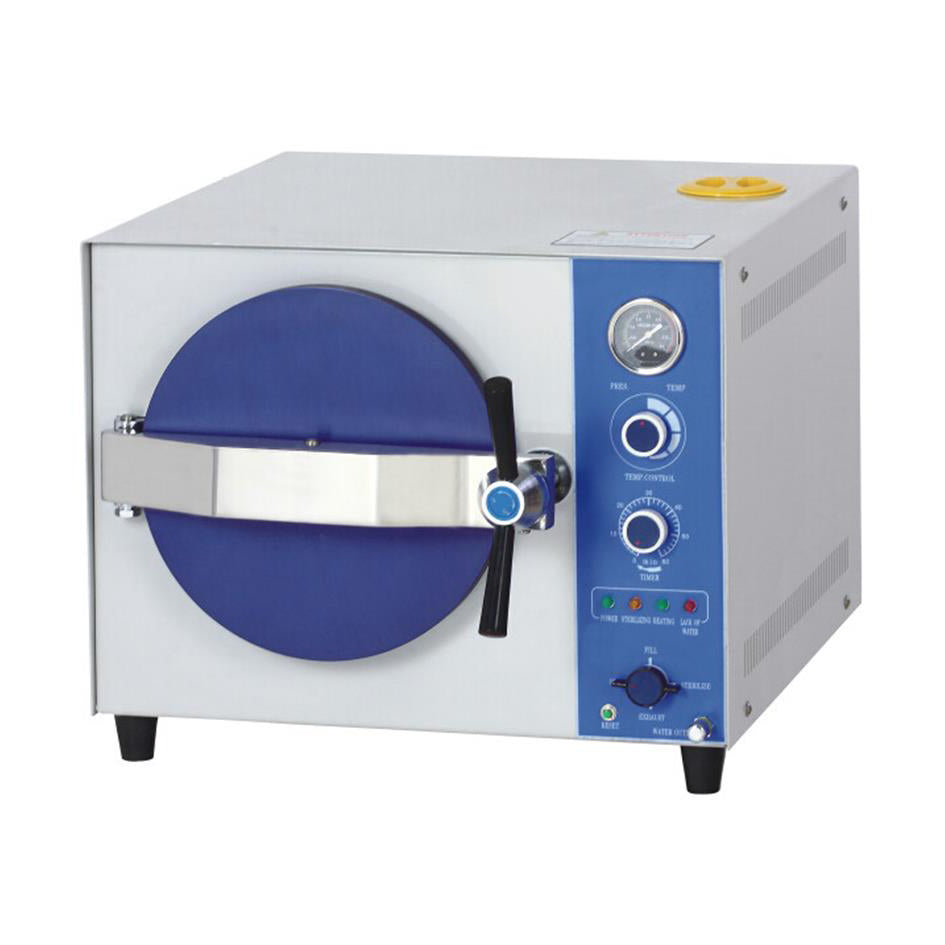

Dental Autoclave Machine Table Top Steam Sterilizer TS-AJ

Dental Autoclave Table Top Steam Sterilizer TS-AJ

Dental Autoclave Machine Table Top Steam Sterilizer TS-AJ

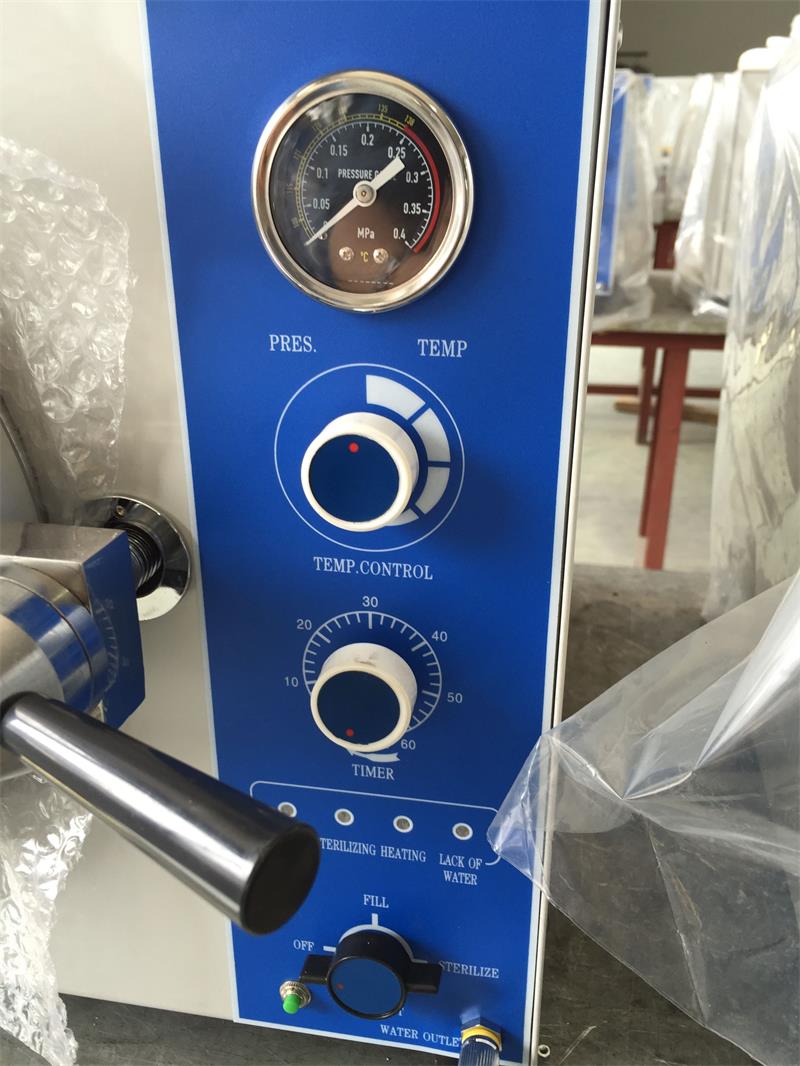

1.Indicator Lights Indicates Working Status
2.For 4~6 minutes Rapidly Sterilizing
3.Sterilizing Temperature and Time can be Pre-set
4. Steam-water Inner Circulation System; NO Steam Discharge,and the Environment for Sterilizing will be Clean and Dry
5. Over Temperature & Over Pressure Auto-protection

1. Safe Protection of Water Lacking
2. Exhaust the Cool Air Automatically

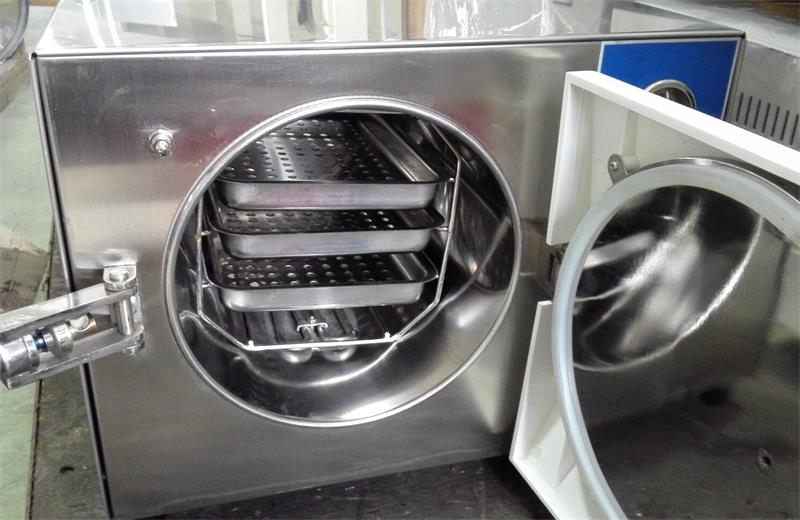

3. With Three Stainless Steel Sterilizing Plates
4. The Chamber of the Sterilizer is Made of Stainless Steel
5. Automatically Shut off with Beep Reminding after Sterilization

Specific Technical Data


Sterilizing chamber volume 20L Ø 250×H420 mm 24L Ø250×H520 mm
Working pressure 0.22 Mpa
Working temperature 134  °C
Adjustment of temperature 105-134  °C
Timer 0-60 min
Heat average ≤ ±1  °C
Power AC 220V 50Hz/1.5KW(AC110V 60Hz)
Sterilizing plate 340×200×30 mm*3pieces 400×200×30 mm*3pieces
Dimension 480×480×384 mm 580×480×384 mm
Exterior package dimension 700×580×500 mm 800×580×500 mm
G.W./N.W. 44/40 kg 50/45 kg



Video for TS-AJ Autoclave

SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
