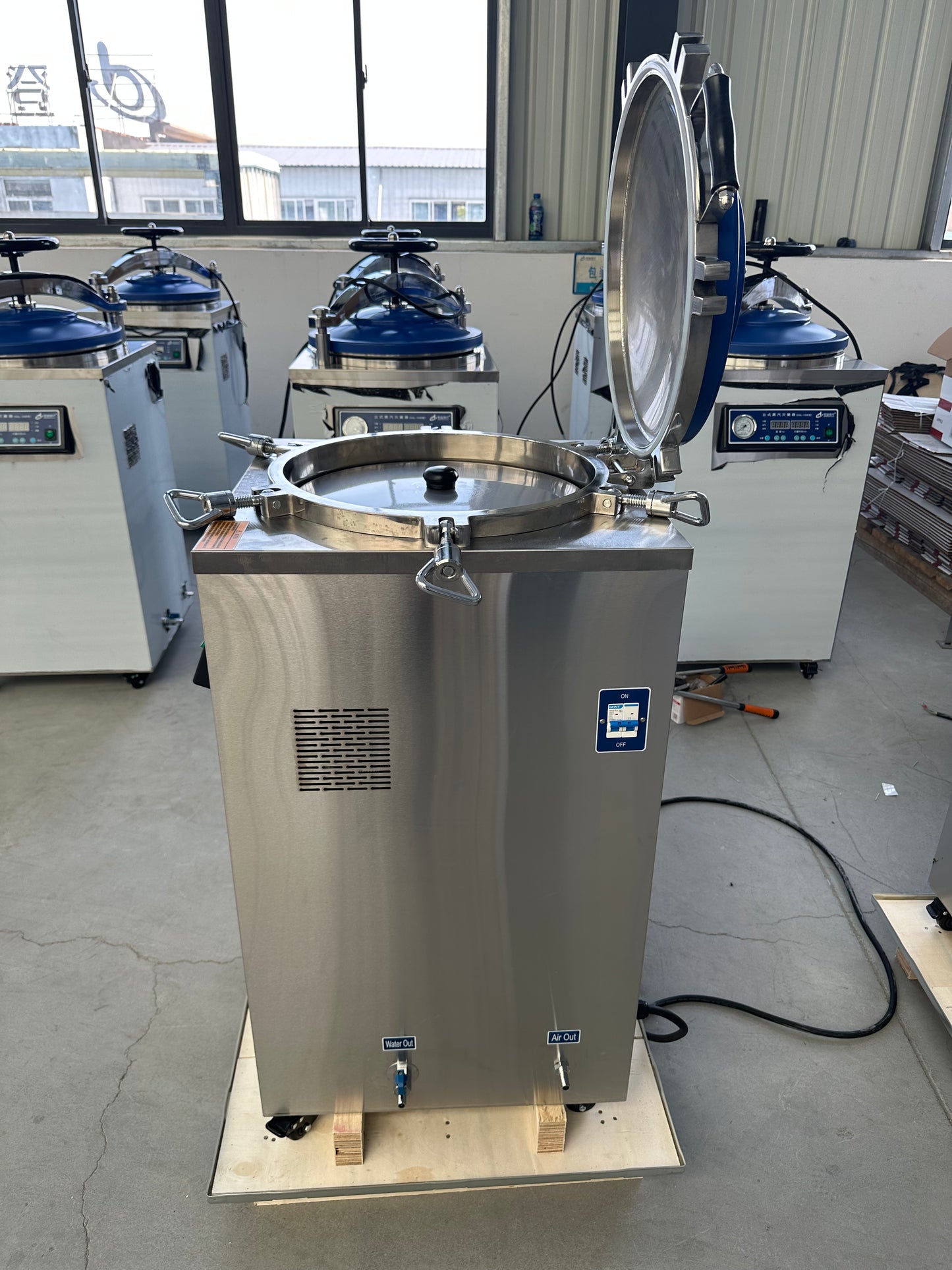

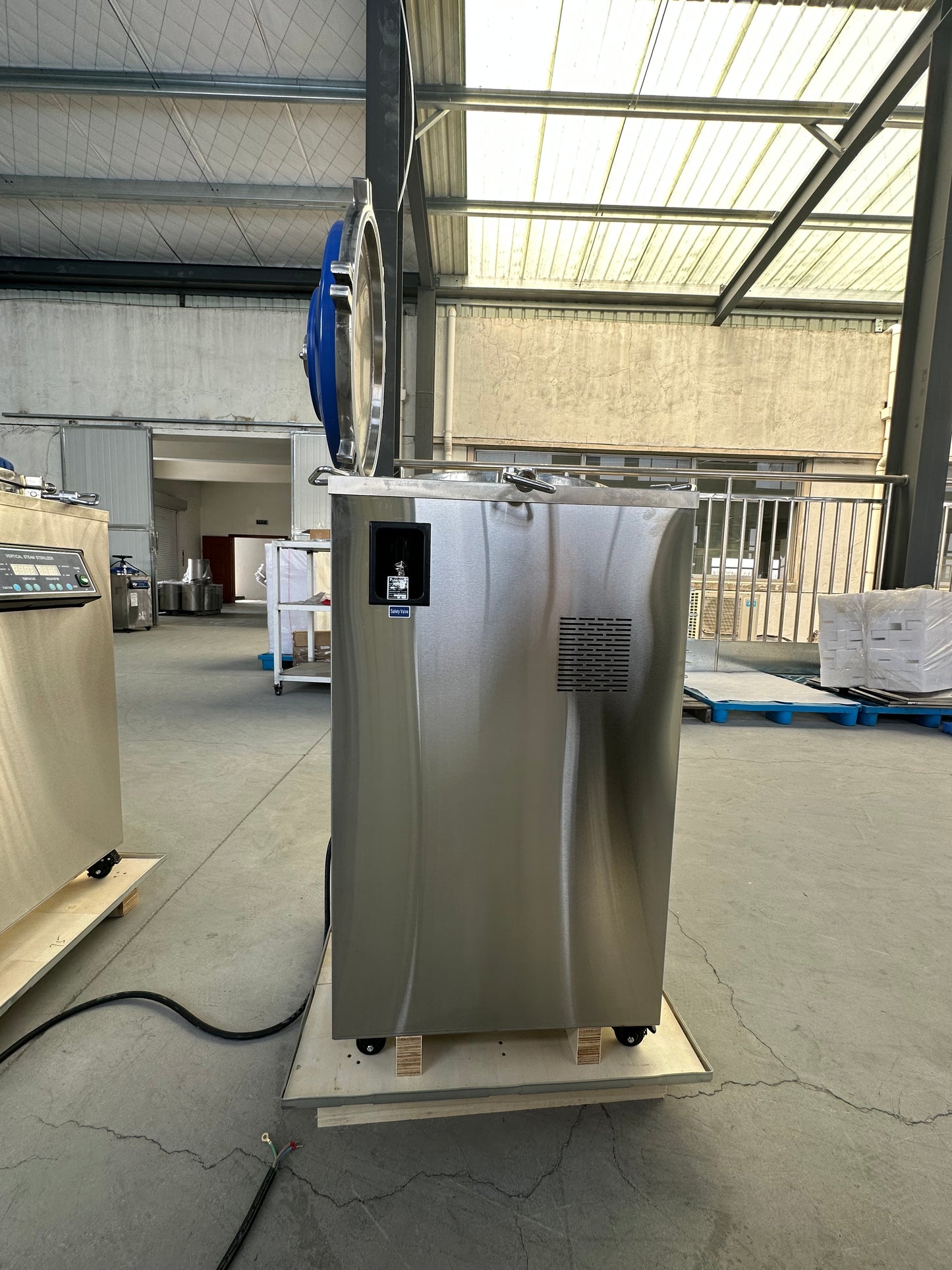

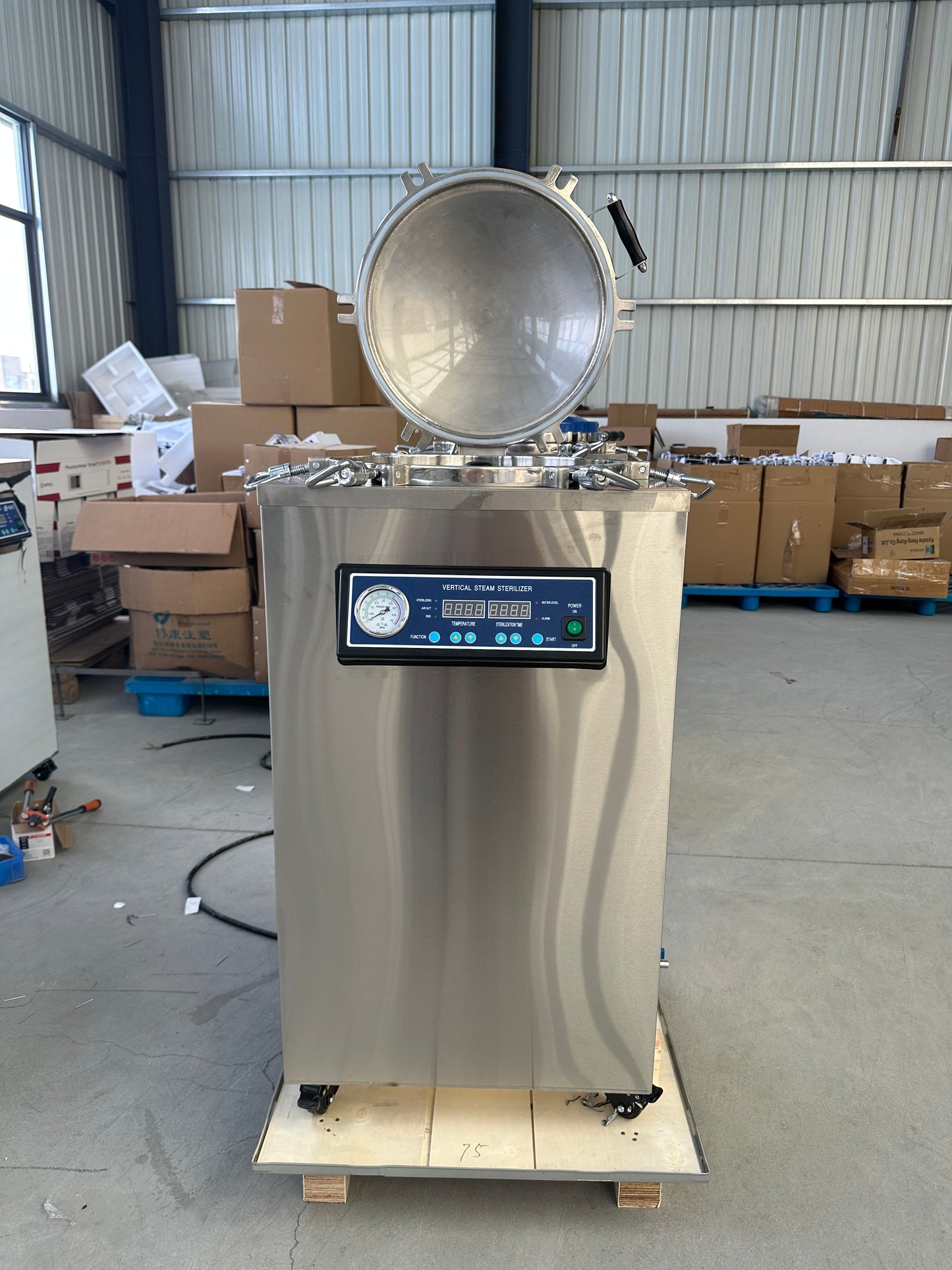

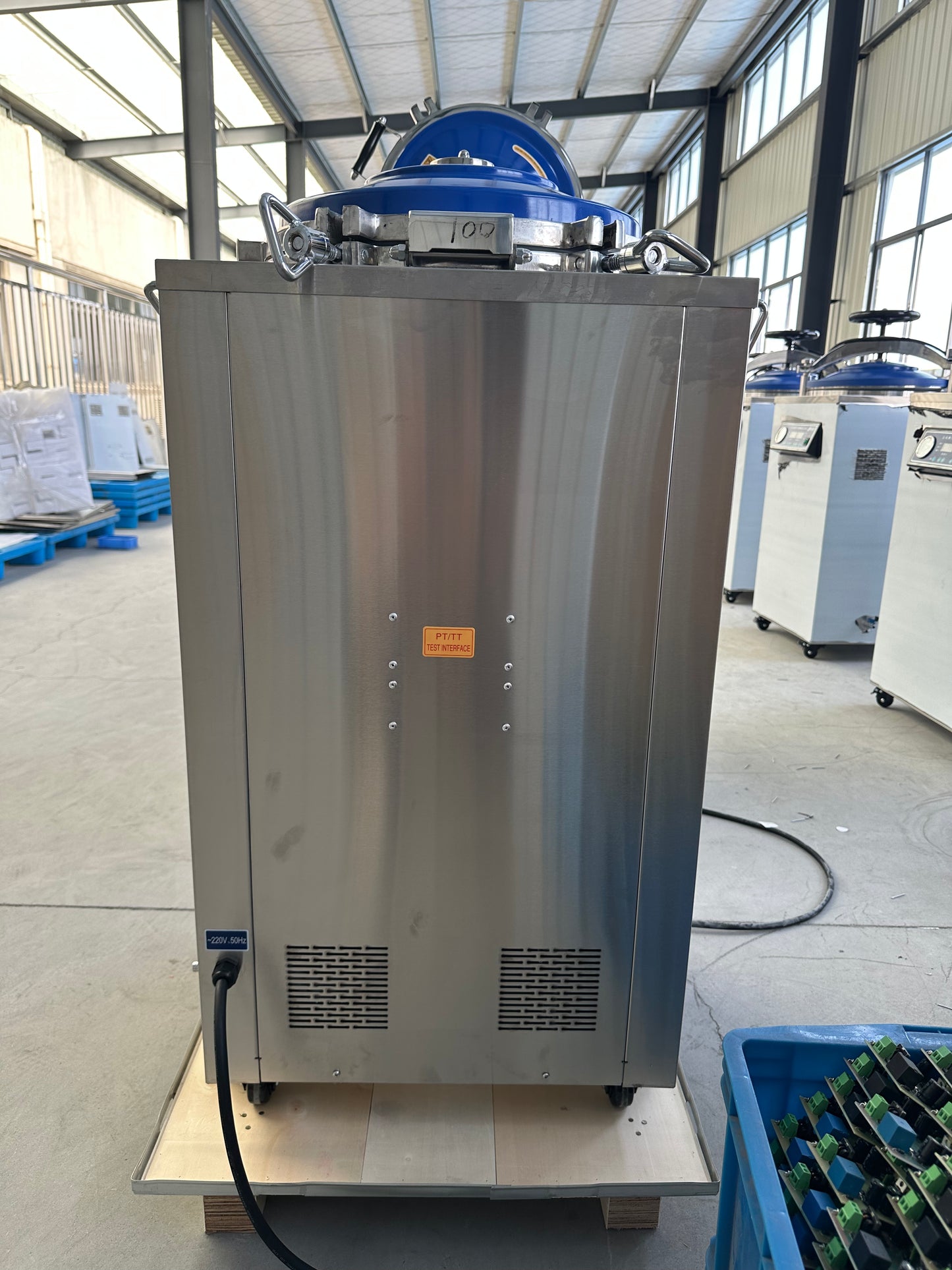

VA-FB Series Automatic Bolt Display Vertical Steam Sterilizer – 35L / 50L / 75L / 100L / 120L / 150L Class N Autoclave with Digital Control
VA-FB Series Automatic Bolt Display Vertical Steam Sterilizer – 35L / 50L / 75L / 100L / 120L / 150L Class N Autoclave with Digital Control
For hospitals, research laboratories, dental clinics, and pharmaceutical facilities that need a robust vertical autoclave with a secure bolt-type door, the SADA Medical VA‑FB series automatic bolt display vertical steam sterilizer delivers reliable, high‑performance sterilization. Available in 35L, 50L, 75L, 100L, 120L, and 150L capacities, this Class N pressure steam sterilizer features a clear digital display, microcomputer automatic control, bolt-type safety lock door, and built‑in drying function. The SUS304 stainless steel chamber resists corrosion and stands up to daily use. With automatic cold air discharge, steam exhaust, over‑temperature protection, over‑pressure protection, low water level protection, and anti‑dry burning, the VA‑FB is designed for safe, unattended operation. The bolt door mechanism provides an extra‑secure seal, making it ideal for busy CSSD, research labs, and high‑volume clinical settings. An optional external printer allows you to document cycles for compliance.
Product Video – VA-FB Bolt Display Vertical Autoclave in Action
⚙️ Why Healthcare Professionals Choose the VA‑FB Bolt Display Autoclave
Heavy‑duty bolt locking mechanism with safety interlock – cannot open under pressure. Provides extra‑secure seal for high‑volume use.
Clear digital readout of temperature, pressure, and time. Microcomputer manages the entire cycle – set and walk away.
Instruments come out completely dry – ready for immediate use or storage. Drying time adjustable 0‑240 min.
Over‑temperature, over‑pressure (auto release), low water level, anti‑dry burning, and safety door lock.
Cold air automatically discharged before sterilization; steam exhausts automatically after cycle – no manual valves.
Six models from 35L to 150L – match exactly to your daily workload.
Add a printer for permanent cycle documentation – ideal for compliance and audits.
📋 Technical Specifications – VA‑FB Series (35L – 100L)

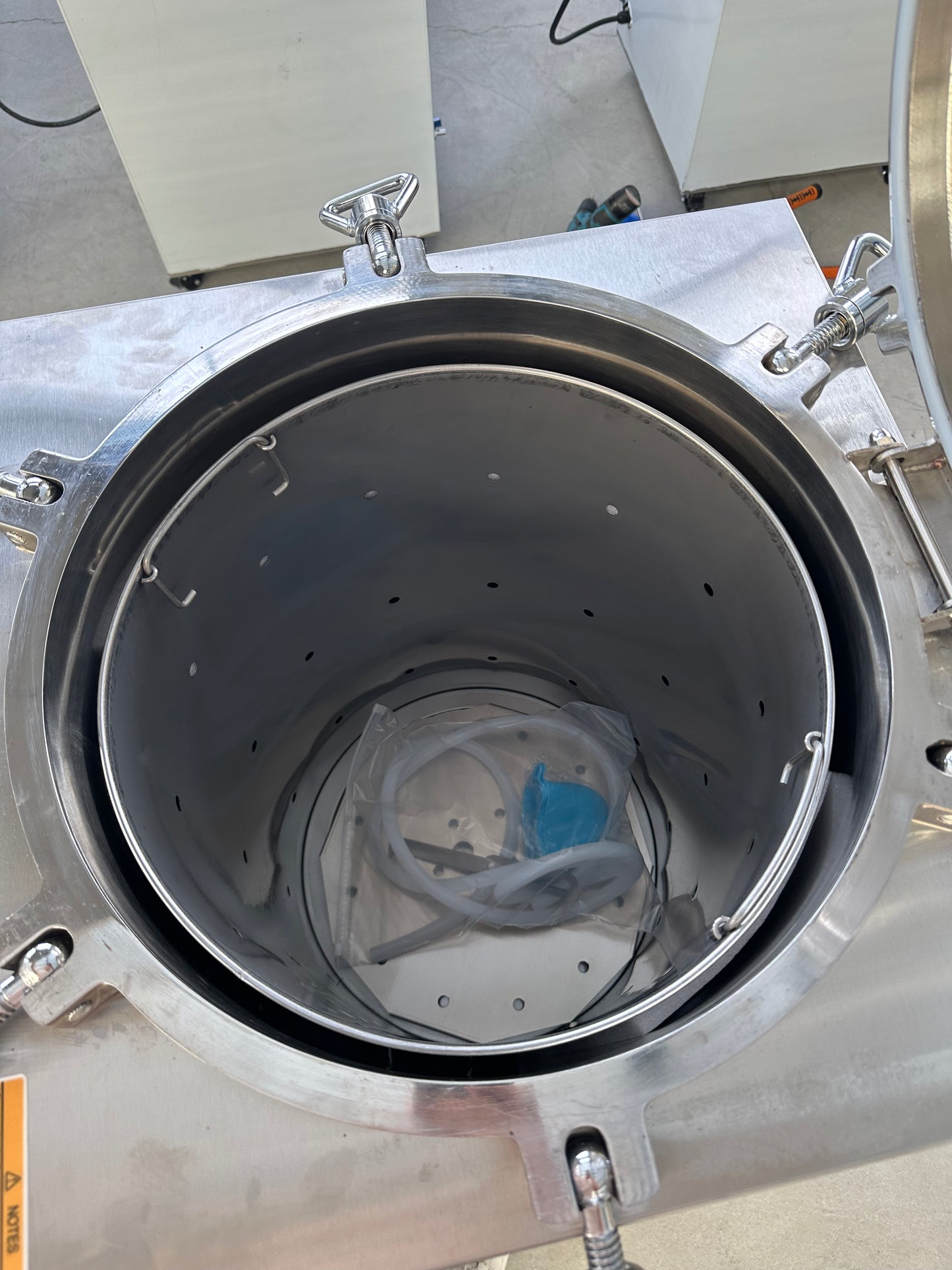

Engineered for reliable daily sterilization. Chamber and all wetted parts are SUS304 stainless steel. All models include stainless steel bucket and optional baskets. (120L and 150L models also available – contact us for specifications.) Below are the complete specifications for 35L‑100L models.
| Parameter | VA‑FB35 | VA‑FB50 | VA‑FB75 | VA‑FB100 |
|---|---|---|---|---|
| Volume | 35L | 50L | 75L | 100L |
| Chamber Size (mm) | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
| Bucket Size (mm) | Ø330×320 | Ø330×480 | Ø380×540 | Ø430×550 |
| Power (kW) | 3.5 | 3.5 | 4.5 | 4.5 |
| Voltage | AC 220V / 50Hz | |||
| Rated Working Pressure | 0.22 MPa | |||
| Rated Working Temperature | 134°C | |||
| Sterilization Temp Range | 116°C – 134°C (adjustable) | |||
| Sterilization Time Range | 4 – 120 minutes | |||
| Drying Time Range | 0 – 240 minutes | |||
| Outer Dimensions (mm) | 480×480×1020 | 480×480×1050 | 525×525×1200 | 555×555×1250 |
| Packing Size (mm) | 580×630×1130 | 580×630×1230 | 630×680×1290 | 690×650×1410 |
| Gross Weight (kg) | 79 | 106 | 120 | 133 |
| Net Weight (kg) | 58 | 80 | 90 | 106 |
| Standard Class | Class N | |||
| Door Type | Bolt-type safety lock door | |||
| Chamber Material | SUS304 Stainless Steel | |||
| Drying Function | Yes (built‑in) | |||
| Included Accessories | Stainless steel bucket + optional baskets | |||
| Optional Feature | External printer | |||
🌟 Bolt Door Advantage: The VA‑FB features a robust bolt-type locking mechanism – different from hand wheel models. The bolt door provides an even tighter, more secure seal, making it especially suitable for high‑use environments like hospital CSSD and large research labs.
🌟 Multifunctional with Drying: Built‑in drying function (0‑240 min) ensures instruments come out completely dry – no wet packs, no waiting.
🌟 Class N – Ideal for unwrapped instruments and solid goods: Designed for sterilizing unwrapped surgical instruments, laboratory glassware, culture media, and medical waste. For wrapped packs or hollow lumens, please see our Class B tabletop models.
🌟 What's included: Vertical autoclave, stainless steel bucket, power cord, user manual. Baskets (optional) and external printer (optional) available upon request.
🏥 Perfect For
- Hospitals & Medical Centers – Surgical instruments, gowns, masks, dressing packs
- Research & University Laboratories – Glassware, culture media, bio‑waste
- Dental Clinics – Unwrapped handpieces, forceps, mirrors, burs
- Pharmaceutical & Biotech Companies – Small batch equipment, packaging materials
- Veterinary Clinics – Surgical kits and dental instruments
- Tattoo & Piercing Studios – Reusable needle holders and forceps
✅ Why Choose the VA‑FB?
- Secure bolt door – Extra‑strong seal for high‑volume use
- Built‑in drying – No separate drying cabinet needed
- Automatic microcomputer control – Set and walk away
- Six capacities (35‑150L) – Match exactly to your workload
- Optional printer – Add cycle documentation when required
- Factory direct pricing – No middleman markup
📏 Which capacity fits your needs?
Best for: Small labs, solo dental practices, research institutions
Compact footprint, efficient for daily loads
Best for: Hospital CSSD, large labs, pharmaceutical facilities
Higher throughput, fewer cycles per day
Best for: Industrial labs, central sterile processing, high‑volume CSSD
Maximum capacity, minimal cycles
💡 Optional accessories: Baskets (multiple tiers) and external printer can be added to any model. Contact us for 120L/150L detailed specifications.
✅ SADA Medical – Quality & Certifications
SADA Medical Co., Ltd. is a professional manufacturer and supplier of steam autoclaves, low‑temperature plasma sterilizers, and ethylene oxide sterilizers, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The VA‑FB series bolt display vertical steam sterilizer is factory‑tested and ready for daily clinical use. Each unit comes with a 12‑month warranty and 24‑hour technical support.
Why customers trust SADA Medical:
- Factory‑direct pricing – no middleman markup
- OEM/private labeling available for volume orders
- 12‑month warranty + 24/7 technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
- 15 working days production lead time
📄 Download the full catalog, user manual, and cycle guide using the blue button below.
📞 Ready to Order the VA‑FB Bolt Display Vertical Autoclave?
Contact us for factory pricing, OEM service, and fast worldwide shipping. Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Steam sterilizers for medical, laboratory, and dental use.
✔ Class N standard – ideal for unwrapped instruments, glassware, and solid goods.
✔ Bolt‑type safety door – extra‑secure seal for high‑volume environments.
✔ Built‑in drying function – instruments come out dry and ready to use.
✔ Microcomputer automatic control – set sterilization (116‑134°C) and drying (0‑240 min) parameters.
✔ Six capacities from 35L to 150L – match your workload exactly.
✔ Optional external printer available for cycle documentation.
✔ 12‑month warranty, 24‑hour technical support.
✔ Power requirement: AC 220V 50Hz – please confirm your facility's power supply.
