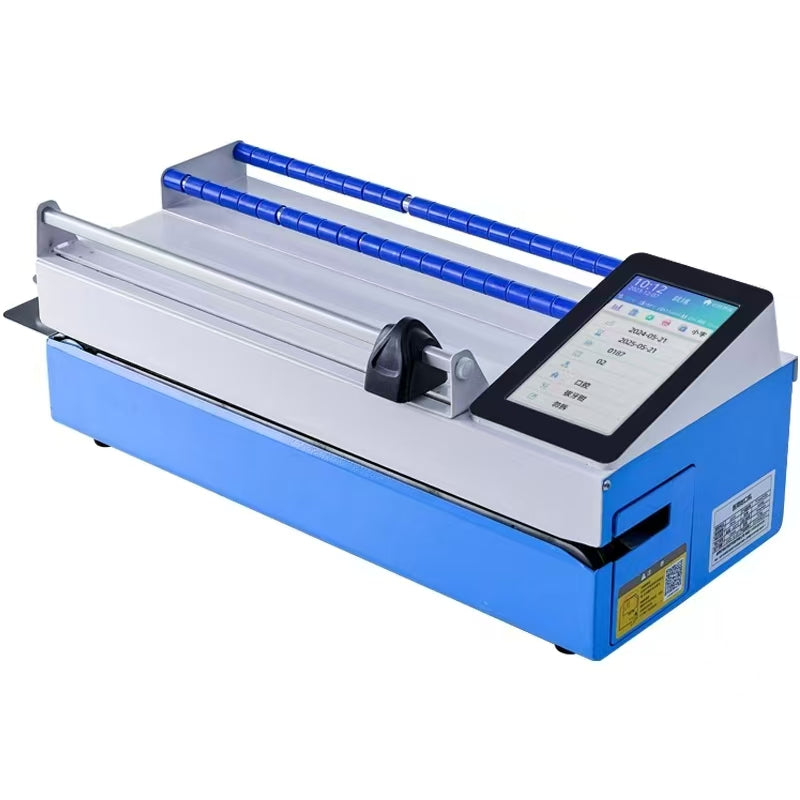

Medical Sealing Machine HTY-100Z | High Efficiency Sealing for Sterilization Bags

The HTY-100Z Medical Sealing Machine is designed for efficient, high-quality sealing of sterilization bags and medical packaging. Its automatic continuous heat-sealing technology ensures precise and reliable results for clinics, hospitals, and other medical institutions. With a user-friendly 7-inch color touchscreen and intelligent temperature control, this machine guarantees optimal performance while saving time and reducing operational complexity.

Key Features:

• Fast Sealing: Equipped with high-temperature ceramic boards for rapid heating to 180°C in under 40 seconds.
• Versatile Sealing: Ideal for a variety of packaging materials, including sterilization bags, paper-plastic bags, and medical packaging.
• Adjustable Temperature: Temperature range from room temperature to 220°C, with precise control (+/-1°C).
• Smart Control System: Featuring an easy-to-use 7-inch color touchscreen, the system tracks all essential sterilization parameters, such as time, temperature, and speed.
• Automatic Shutdown: The machine automatically powers off once the sealing cycle is complete, accompanied by an audible alert.
• High Sealing Strength: Sealing width of 12mm with strong adhesion, meeting YY/T 0698.5-2023 standards.
• Printing Functionality: Equipped with dual printers for batch numbers, expiry dates, and other relevant information for accurate record-keeping.
• Eco-Friendly Design: Built with durable carbon steel, aluminum alloy, and 304 stainless steel components, ensuring both strength and longevity.
• Efficient Cutting: The machine features a manual cutting system that allows for precise sealing of packaging with a maximum cutting width of 350mm.

Specifications:

• Model: HTY-100Z
• Dimensions: 540×255×215 mm
• Weight: 15kg
• Power Input: 400W
• Material: Carbon Steel, Aluminum Alloy, Stainless Steel
• Sealing Width: 12mm
• Sealing Speed: ≥10m/min
• Heating Temperature: 180°C in under 40 seconds
• Screen Size: 7-inch Color Touchscreen
• Control System: Industrial Control System
• Pressure Monitoring: Yes, integrated pressure monitoring for accurate sealing
• Printing System: Dual-line needle printer for customizable printing options
• USB Export: Yes (optional)

Why Choose SADA Medical’s HTY-100Z Sealing Machine?
At SADA Medical, we are committed to providing reliable, cutting-edge solutions for medical sterilization. The HTY-100Z Medical Sealing Machine not only delivers high-speed performance but also offers customizable options such as adjustable temperatures, sealing speed, and detailed printing, making it ideal for high-demand environments.

Ensure the highest quality in your sterilization process with the HTY-100Z Medical Sealing Machine. Perfect for clinics and hospitals that require fast, efficient, and reliable sealing solutions for sterilization bags. Contact us now to learn more or place your order today!
