35L 50L TS-CD Steam-Water Inner Circulation System Table Top Steam Sterilizer

35L 50L TS-CD Steam-Water Inner Circulation System Table Top Steam Sterilizer

Class N Table Top Steam Sterilizer

Brand: SADA Medical

Model NO.: TS-CD
Product Origin:China

Medical Instrument Sterilization Autoclave are widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, funeral homes, dentistry, and prosthetics fabrication.

They vary in size and function depending on the media to be sterilized. Typical loads include laboratory glassware, other equipment and waste, surgical instruments and medical waste.

Sterilization Objects: Unwrapped or Wrapped instruments, Sugircal instruments, Glassware, Liquid , Culture Media, Rubber Material, Gowns, Dressing, Gloves, etc.

Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Lead Time:10 – 15 working days.

Features:

  • For 4~6 minutes rapidly sterilizing.
  • Digital display of working status, touch type key.
  • With 3 fixed cycles of sterilizing program and adjustable for user.
  • The whole process of water adding, temperaturerising, sterilizing, drying steam discharging controlled automatically.
  • Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
  • Safe protection of water lacking.
  • Exhaust the cool air automatically.
  • Door safety lock system.

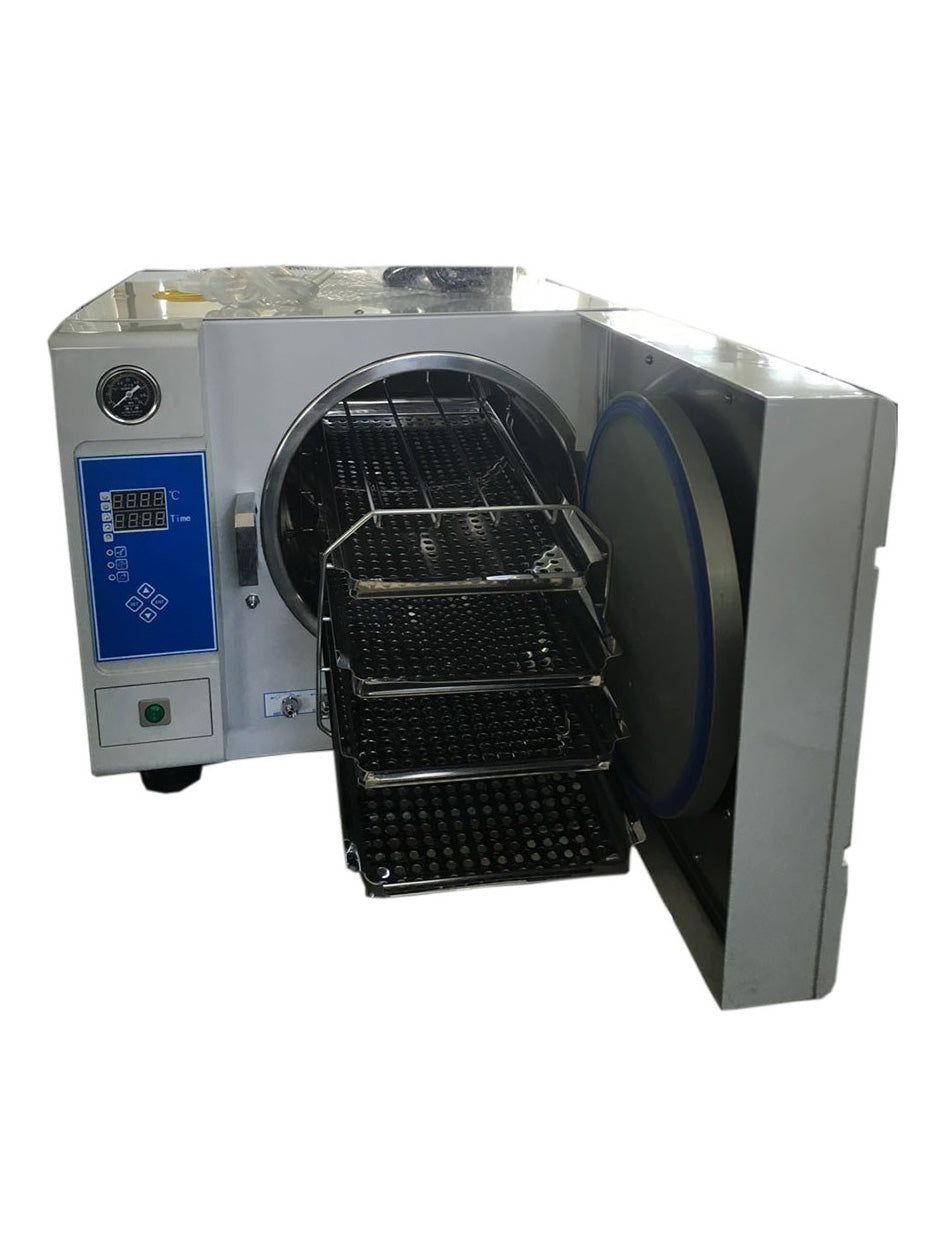

  • With four stainless steel sterilizing plates.
  • The chamber of the sterilizer is made of stainless steel.
  • Automatically shut off with beep reminding after sterilization.
  • With drying function.
MODEL TS-CD20 TS-CD24 TS-CD35 TS-CD50
Sterilizing chamber volume 20L 24L 35L  50L
Ф250 x 420mm Ф250 x 520mm Ф300 x 500mm  Ф340 x 550mm
Working pressure 0.22Mpa
Working temperature 134ºC
Temperature adjust range 105~134ºC
Timer range 0~99min
Heat average ≤±1ºC
Power 1.5KW/AC220V.50Hz 2.7KW/AC220V.50Hz
Sterilizing plate 340 x 200 x 30(3piece) 400 x 200 x 30(3piece) 400 x 200 x 30(4piece) 50() x 250 x 30(4piece)
Dimension 480 x 480 x 380 580 x 480 x 384 730x550x510 770 x 600 x 540

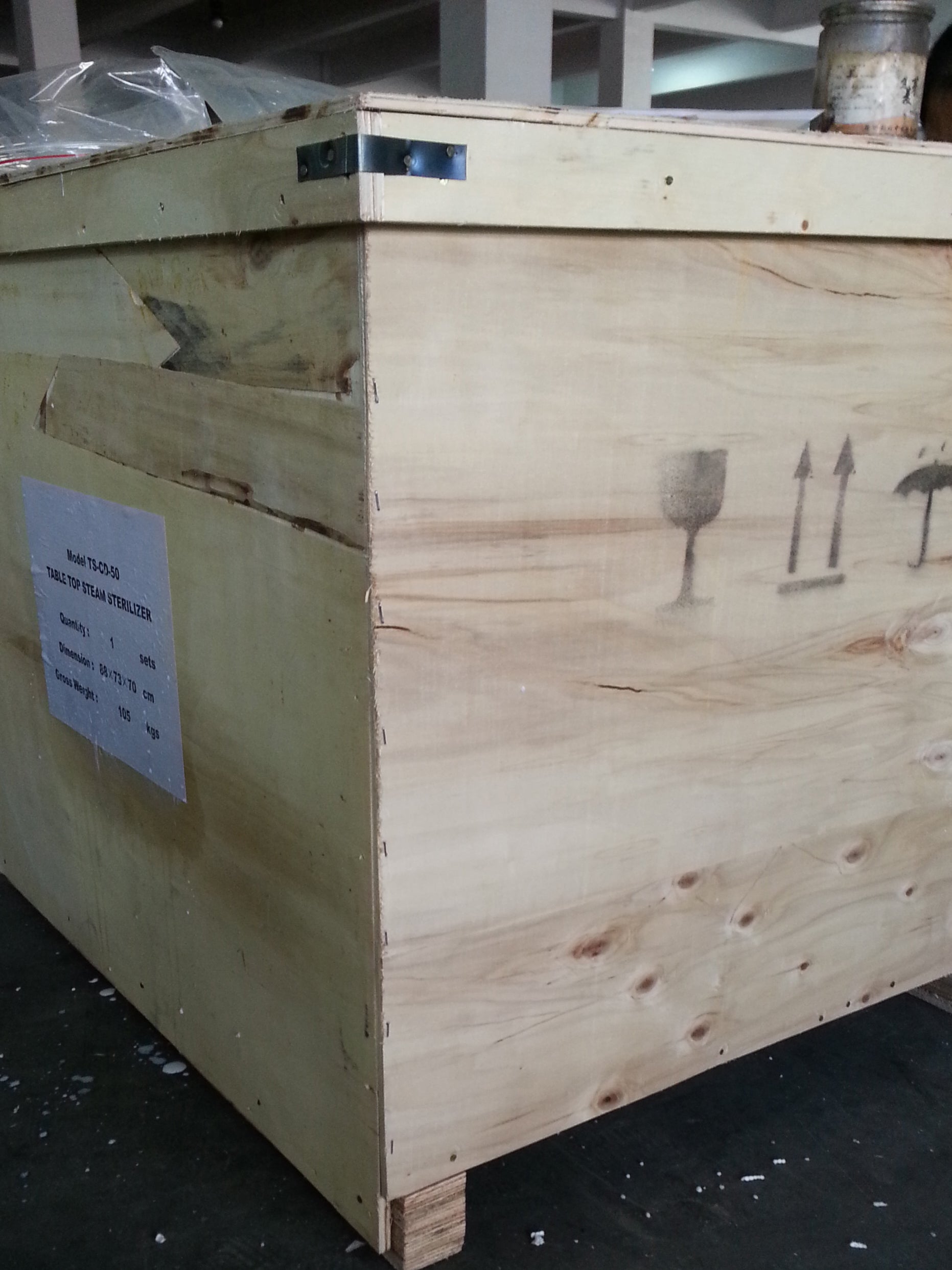

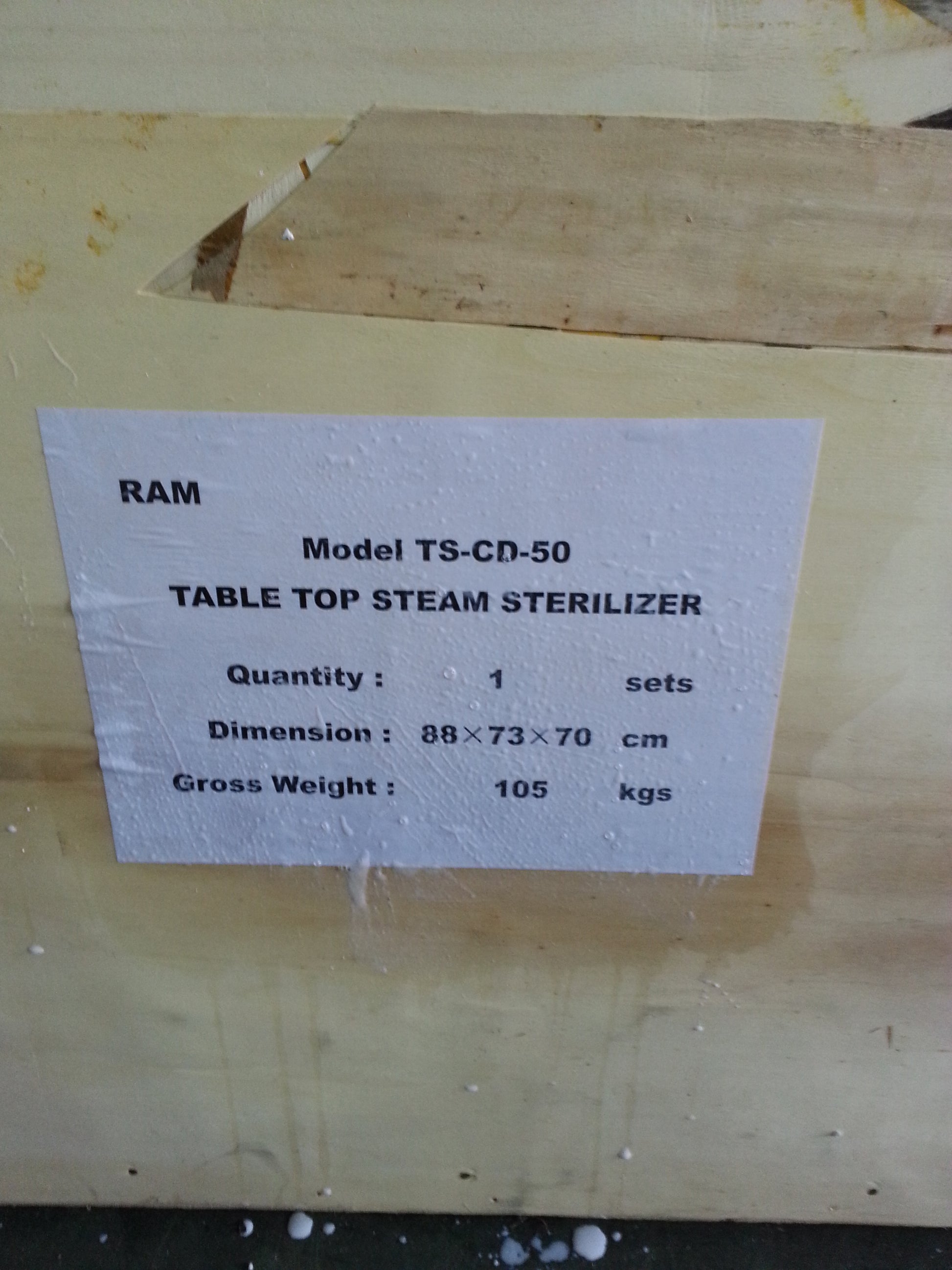

Exterior package dimension 700 x 580 x 50() 800 x 580 x 500 810 x 680 x 650 88() x 730 x 700
G.W/N.W 43/40kg 50/45kg 90/ 73kg 105/86kg

After-sale Service: 1 year quality guarantee; Question response within 24 hours; Video or photos instruction guide.



SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:


Function introduction and detailed presentation video of TS-CD Autoclave:

Sterilizer Operating Instructions

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.

For more product information, please click the button below to download and view!
