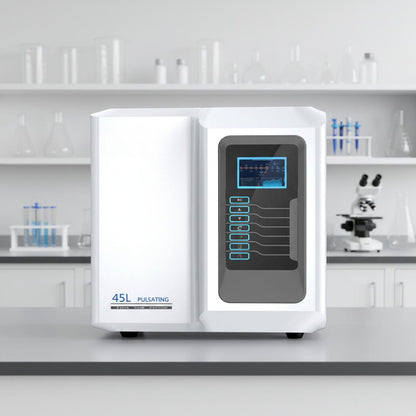

SD-Y45 B-Class Desktop Steam Sterilizer – 45L Pre-Vacuum Autoclave for Dental Clinics, Hospitals & Laboratories
SD-Y45 B-Class Desktop Steam Sterilizer – 45L Pre-Vacuum Autoclave for Dental Clinics, Hospitals & Laboratories
For dental clinics, hospital outpatient departments, and medical laboratories that need a compact yet powerful B-Class pre-vacuum autoclave, the SADA Medical SD-Y45 desktop steam sterilizer delivers professional-grade sterilization in a space-saving design. Unlike simple tabletop sterilisers, the SD-Y45 uses multi-pulse vacuum technology to remove air from the chamber before steam injection – ensuring complete penetration into wrapped instruments, porous fabrics, and hollow lumens. With a 45L 304 stainless steel chamber, 7 programmable sterilization modes, and a built-in printer for full traceability, this B-Class autoclave meets the highest standards for infection control equipment in modern healthcare facilities. Whether you run a busy dental practice or manage CSSD for a mid-sized clinic, the SD-Y45 brings hospital-grade sterility to your benchtop.

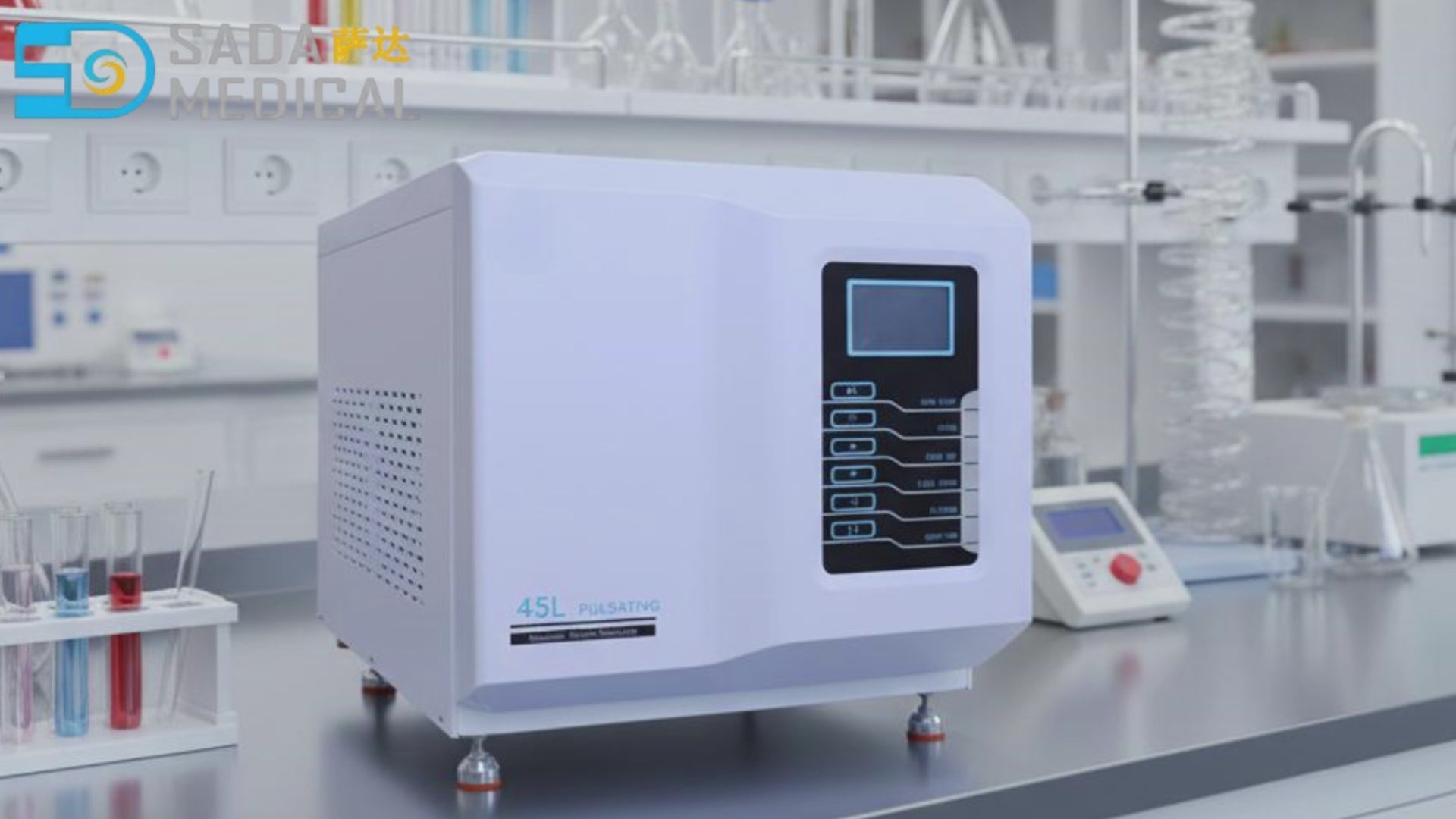

Product Video – SD-Y45 B-Class Autoclave in Action
Watch the pre-vacuum cycle, LCD interface, door lock operation, and built-in printing.
⚙️ Why Dental & Medical Professionals Choose the SD-Y45 B-Class Autoclave
Multi-pulse pre-vacuum technology – sterilizes wrapped instruments, hollow lumens, and porous loads with complete confidence.
Intelligent control, real-time parameter display, automatic door lock – simple enough for any staff member.
Only ~3 kWh per cycle and 0.8–1.5L water consumption – lower operating costs, greener practice.
Real-time sterilization records printed immediately – perfect for compliance, audits, and record-keeping.
Covers exposed/packaged instruments, fabrics, liquids, and more – one machine does it all.
Residual moisture <0.2% – instruments come out dry and ready for immediate use or storage.
Overpressure safety valve, automatic venting, real-time temp/pressure monitoring, door interlock.

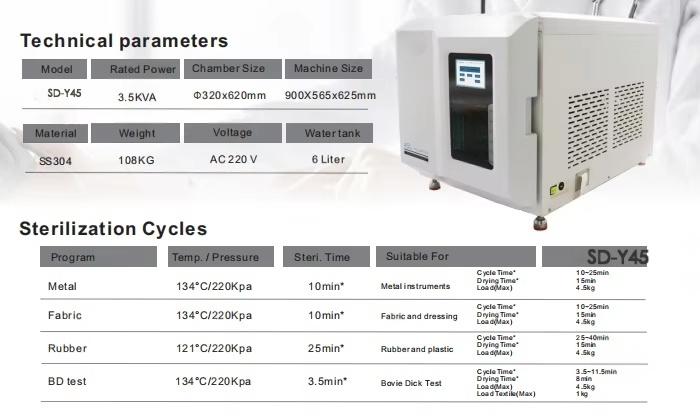

📋 Technical Specifications – SD-Y45 B-Class Desktop Autoclave
Engineered for daily use in demanding clinical environments. The chamber and all wetted parts are SUS304 stainless steel, and the outer casing is ABS for durability and easy cleaning. Below are the complete technical parameters.
| Model | SD-Y45 |
| Type | B-Class Pre-Vacuum Desktop Steam Sterilizer |
| Capacity | 45 Liters |

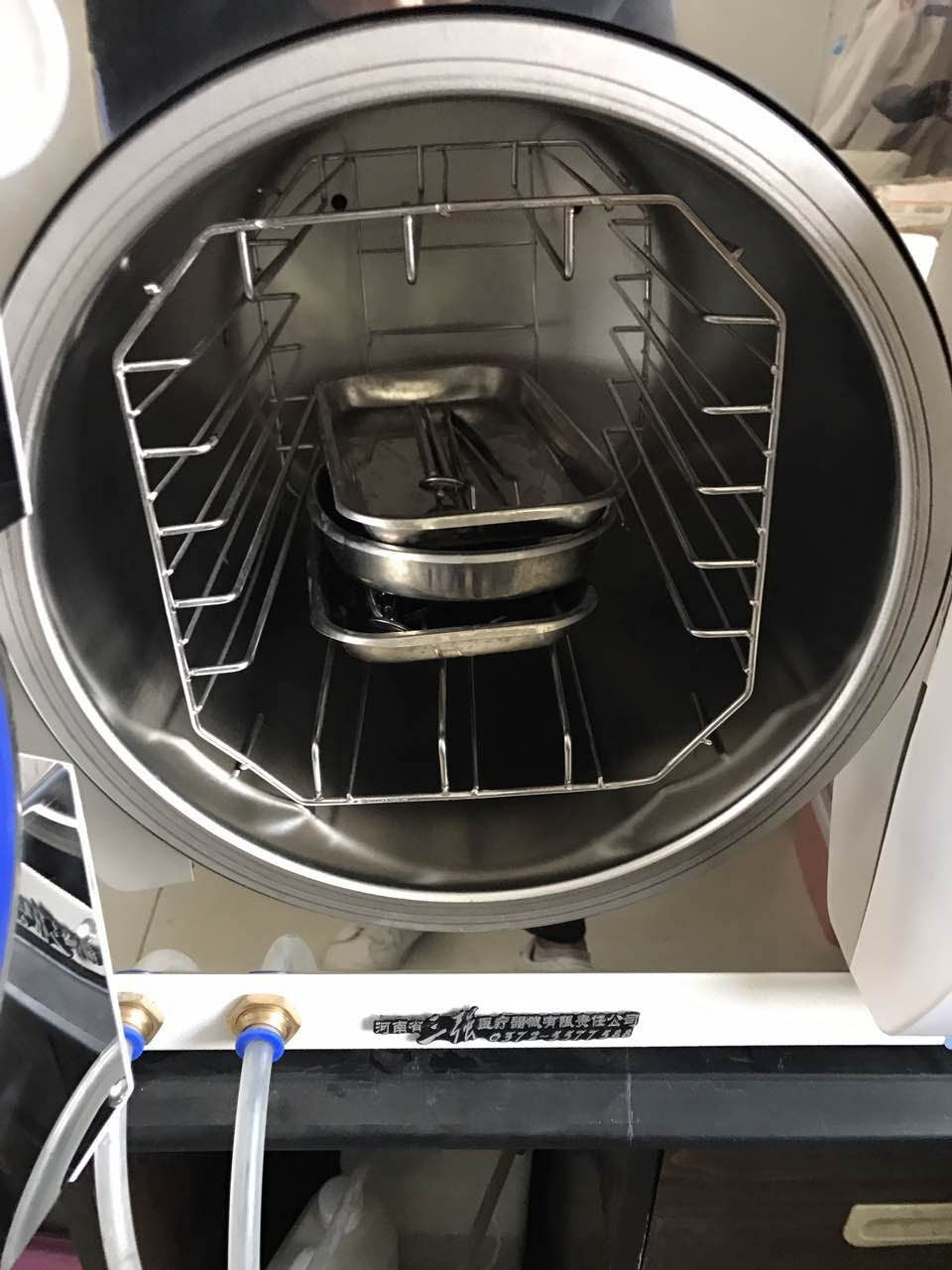

| Chamber Material | 304 Stainless Steel |
| Outer Casing | ABS (durable, corrosion-resistant) |
| Power Supply | AC 220V / 50Hz |
| Power Consumption | 3.5 kVA (~3 kWh per cycle) |
| Operating Temperature | 121–134°C (adjustable) |
| Pressure Range | -80 kPa to 230 kPa |
| Sterilization Time | 0–99 minutes (adjustable) |
| Water Consumption | 0.8–1.5 Liters per cycle |
| Drying Efficiency | Residual moisture <0.2% |
| Weight | 108 kg |
| Display | LCD screen with microcomputer control |
| Printer | Built-in mini printer (real-time records) |
| Sterilization Modes | 7 modes (instruments, fabrics, liquids, etc.) |
| Safety Features | Overpressure safety valve, auto venting, door lock, temp/pressure sensors |
🌟 B-Class Advantage: Unlike N-Class or S-Class sterilizers, the SD-Y45 uses active pre-vacuum cycles to remove air before steam injection. This ensures steam penetrates every surface – including wrapped packs, hollow instruments, and textile loads – meeting the highest international standards for medical sterilizers.
🌟 Steam Quality: Internal steam exhaust with concentrated condensate collection – no gas leakage into your clinical environment.
🔧 7 Sterilization Modes – One Machine Covers All Loads
🏥 Primary Applications
- Dental clinics – handpieces, burs, forceps, mirrors, implantology tools
- Hospital outpatient & CSSD – small surgical packs, gowns, dressings
- Medical labs – culture media, glassware, biohazardous waste
- Ambulatory surgical centers – reusable instrument reprocessing
- Veterinary clinics – surgical tools and dental equipment
- Tattoo & piercing studios – needle sterilization (B-Class required)
🔒 Safety & Compliance
- Overpressure safety valve (auto release)
- Automatic venting system
- Real-time temperature & pressure sensors
- Automatic door lock – cannot open under pressure
- CE certified – meets European medical device standards
- Built-in printer for full cycle documentation
✅ Quality Management & Certifications
SADA Medical Co., Ltd. operates under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The SD-Y45 B-Class desktop sterilizer carries full CE certification and is manufactured in our ISO-compliant facility. Each unit undergoes factory testing with cycle validation. We have supplied dental autoclaves, hospital steam sterilizers, and low-temperature plasma sterilizers to healthcare providers and distributors in over 80 countries. OEM/private labeling available for volume orders.
📄 Download the full catalog, user manual, and cycle validation guide using the blue button below.
📞 Get Your Quote & Expert Support in One Click
Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Sterilization equipment for medical, dental, and laboratory use.
✔ CE certified, ISO 13485:2016 compliant.
✔ 12-month warranty, 24-hour technical support, and spare parts availability.
✔ Optional accessories: additional trays, validation port, custom voltage (110V available).
