Ergonomic Automatic Lifting Ultrasonic Washer – Enhanced Safety for Medical Facilities

Ergonomic Automatic Lifting Ultrasonic Washer – Enhanced Safety for Medical Facilities

1️⃣ Product Introduction

Efficient, Intelligent & Customizable Ultrasonic Cleaning for Medical Use

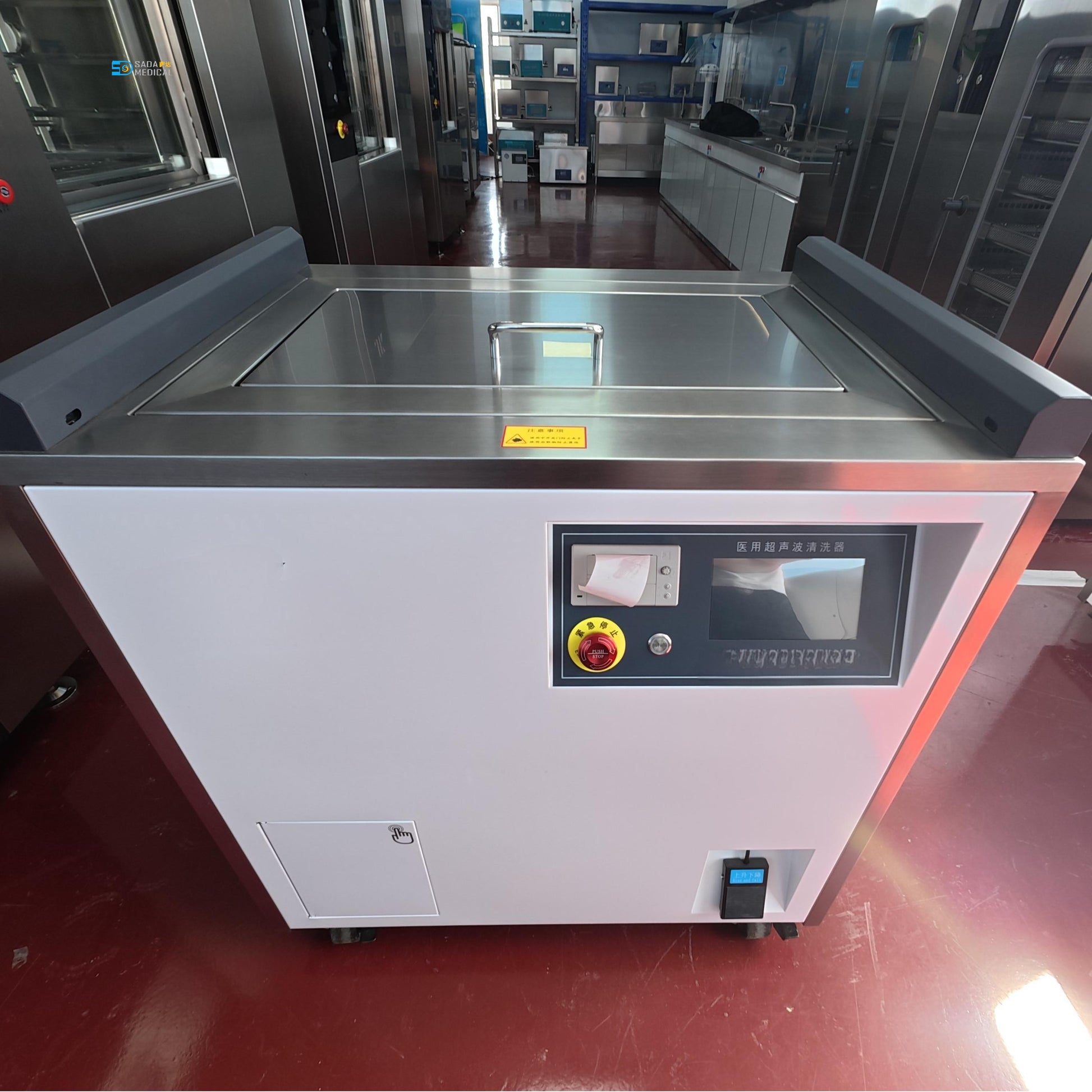

     SADA Medical's Automatic Lifting Ultrasonic Washers are designed to enhance safety and efficiency in medical instrument cleaning. The automatic lifting mechanism reduces manual handling, minimizing the risk of contamination and injury, making them ideal for high-throughput environments.


2️⃣ Product Features & Benefits

One-Touch Intelligent Operation
Start-to-finish automatic cleaning with heating, ultrasonic action, and shutdown for streamlined workflows.

Color LCD Touchscreen with PLC Programmability
Easily set and monitor time, temperature, chemical usage, and fault alerts.

Memory Tracking System
Automatically records cleaning time, working hours, and factory data for traceability and audits.

Safety First Design
Protection against leakage, over-current, over-voltage, over-temperature, and dry operation.

Adjustable Ultrasonic Frequency
Choose between 28kHz, 40kHz, 80kHz, and 100kHz for cleaning different instrument types.

Optional Add-ons

  • Built-in Printer: For process traceability
  • Automatic Chemical Dosing: Accurate enzymatic agent addition
  • Infrared Safety with Auto Lift Window: Ergonomic and safe for high-volume use

CNC-Molded Stainless Steel Build
Noise-reducing, corrosion-resistant construction for long-term use in medical environments.


3️⃣ Application Scenarios

🏥 Central Sterile Supply Departments (CSSD)
🏥 Operating Rooms & Endoscopy Clinics
🧪 Biomedical & Research Laboratories
🦷 Dental, ENT, and Surgical Clinics
🏭 Pharmaceutical & Biotech Cleanrooms

Whether you're cleaning complex lumen instruments or standard surgical tools, our ultrasonic washers provide safe, consistent, and residue-free cleaning every time.


4️⃣ Why Choose This Product & SADA Medical

Our Expertise:

  • Tailored solutions for complex medical cleaning needs.
  • Proven track record in delivering high-quality medical equipment.
  • Comprehensive training and support services.

Product Excellence:

  • Enhanced ergonomics for staff safety.
  • Advanced features for efficient cleaning cycles.
  • Robust design for long-term use.

5️⃣ Technical Specifications

Model

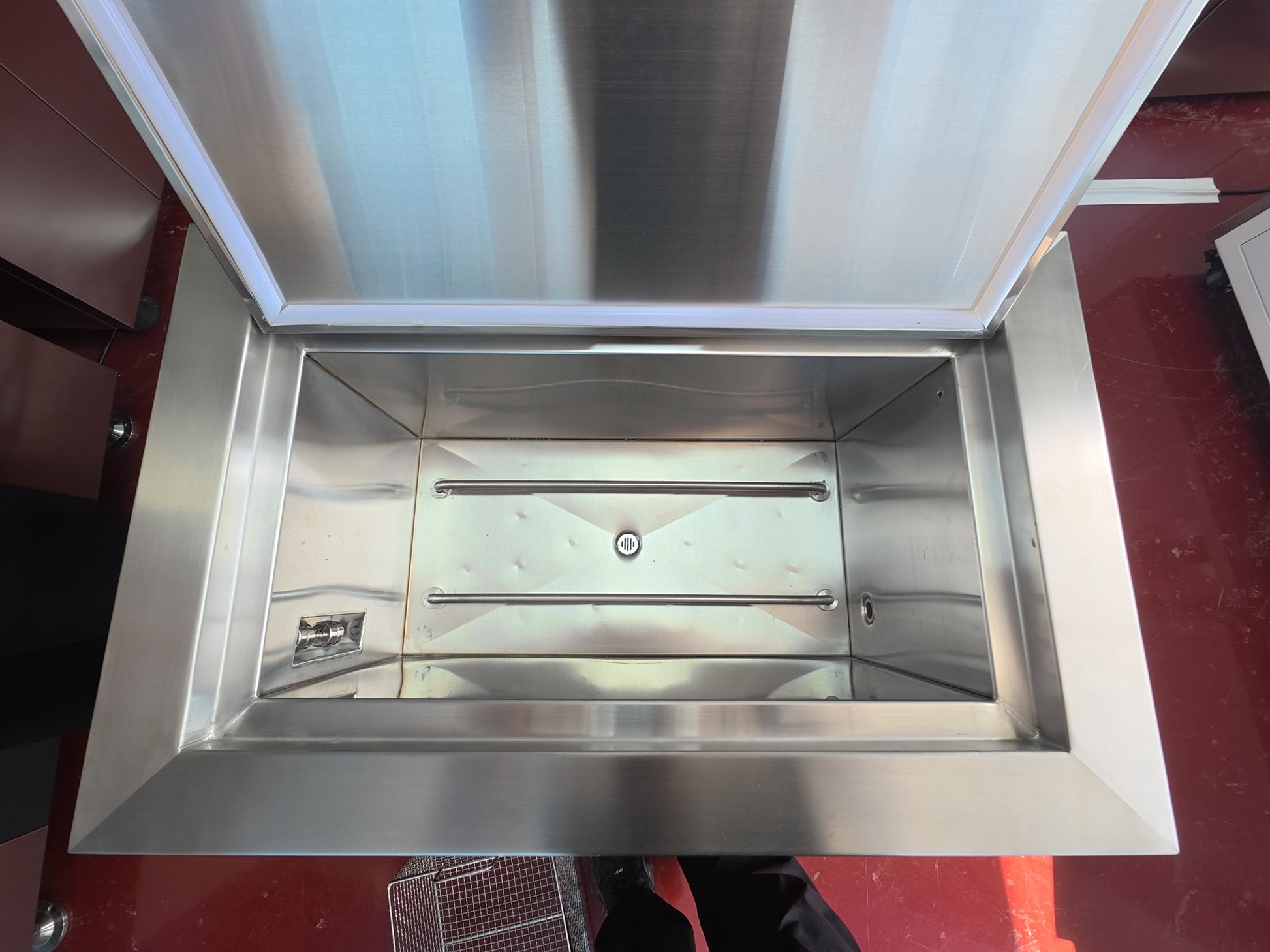

Cleaning tank inner dimensions(L*W*H)

Capacity(L)

KHZ

Power(w)

Heating power(w)

Temperature adjust

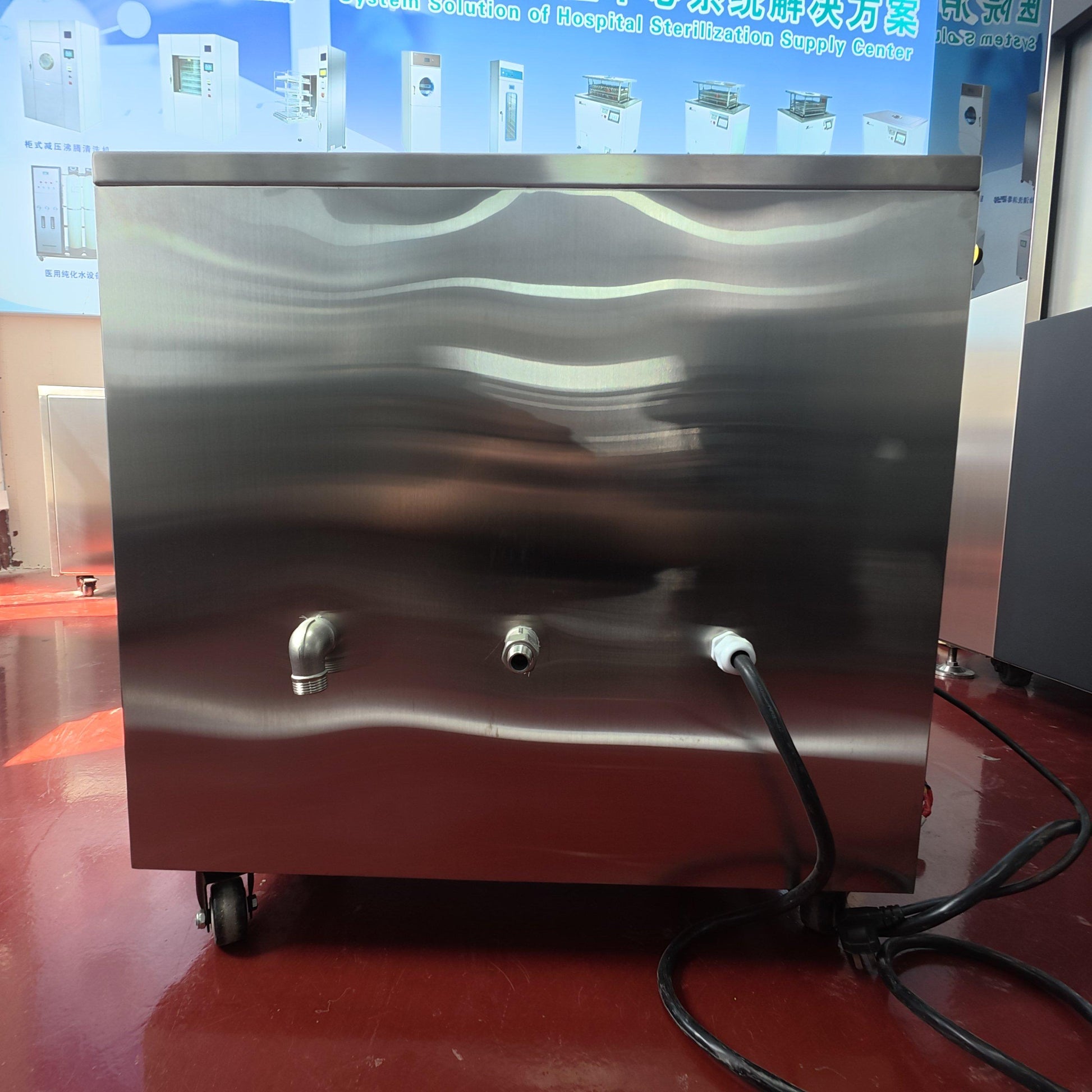

Inlet and outlet

Type

JK-DY1600

600*400*400MM

96L

40

1600

6000

0-80ºC

Automatic Control

Lifting

JK-DY2000

600*500*400MM

120L

40

2000

6000

0-80ºC

Automatic Control

Lifting

JK-DY2200

600*600*400MM

144L

40

2200

7000

0-80ºC

Automatic Control

Lifting

JK-DY2400

700*600*400MM

168L

40

2400

7000

0-80ºC

Automatic Control

Lifting


Relevant certificates of the product

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

💬 Ready to Upgrade Your Instrument Cleaning Workflow?

Contact SADA Medical today for expert consultation or a fast quote.

✅ Bulk order pricing available
✅ Worldwide shipping
✅ CE/ISO certified
✅ Custom configurations supported

Please feel free to contact us by Below Contact Form, looking forward to hearing from you soon.
