SD-KX-530 Series Automatic Washer-Disinfector – 530L High-Capacity Medical Instrument Cleaning & Disinfection System for Hospitals & CSSD
SD-KX-530 Series Automatic Washer-Disinfector – 530L High-Capacity Medical Instrument Cleaning & Disinfection System for Hospitals & CSSD
For hospital CSSD, operating rooms, ICUs, endoscopy units, and central supply departments that demand high‑capacity, fully automated cleaning and disinfection, the SADA Medical SD-KX-530 automatic washer‑disinfector delivers performance, traceability, and efficiency. With a 530L (536L) chamber capacity and the ability to process up to 12 standard baskets per cycle, this integrated washer‑disinfector handles surgical instruments, endoscopes, forceps, syringes, glassware, and other reusable medical devices. The PLC‑controlled system with 7" LCD touchscreen offers 6 preset standard modes plus a customizable mode – allowing you to adjust temperature, time, and chemical dosing for different loads. Features include automatic chemical dosing (enzymes, lubricants, disinfectants), 93°C thermal disinfection, hot air drying at 90°C, real‑time printer, USB data port, and dual‑door design for clean/dirty zone separation. Constructed from SUS304 stainless steel with Siemens PLC and high‑quality pumps/valves, the SD‑KX‑530 ensures reliable, low‑noise (≤75dB) operation. Whether for a large hospital CSSD or a pharmaceutical production unit, this washer‑disinfector streamlines your reprocessing workflow.
Product Video – SD-KX-530 Washer‑Disinfector in Action
⚙️ Why Large Healthcare Facilities Choose the SD‑KX‑530 Washer‑Disinfector
One machine does it all – enzymatic wash, thermal disinfection (93°C), and hot air drying (90°C).
Siemens PLC control with intuitive HMI. 6 preset standard modes + 1 customizable mode – adjust time, temp, chemical dosing.
Complete cleaning, disinfection, and drying in approximately 35 minutes – improves throughput.
Separate clean and dirty zones – prevents cross‑contamination. Ideal for CSSD layouts.
Precise metering of enzymes, lubricants, and disinfectants – consistent results, no waste.
Built‑in thermal printer for real‑time cycle records. USB port for data export – audit‑ready.
Chamber and all wetted parts in stainless steel. High‑quality pumps, valves, and fan – low noise (≤75dB).
Automatic fault detection, error display, and safe operation – protects both instruments and staff.
📋 Technical Specifications – SD‑KX Series (490L / 530L)
Engineered for high‑volume, automated cleaning and disinfection. Chamber and all wetted parts are SUS304 stainless steel. Below are the complete specifications for both models.
| Parameter | SD‑KX‑490 | SD‑KX‑530 |
|---|---|---|
| Chamber Volume (L) | 470 Liters (approx.) | 536 Liters |
| Chamber Size (L×W×H mm) | 693×728×935 | 693×828×935 |
| External Size (L×W×H mm) | 1190×900×2020 | 1270×1000×2020 |
| Power Consumption | 30 kVA | 40 kVA |
| Power Supply | 3N ~ 380V, 50Hz (three‑phase five‑wire) | |
| Chamber Material | SUS304 Stainless Steel | |
| Disinfection Temperature | 93°C (thermal disinfection) | |
| Drying Temperature | 90°C (hot air drying, 20 min typical) | |
| Water Source Pressure | 0.2 – 0.5 MPa | |
| Number of Cleaning Racks | 4 | |

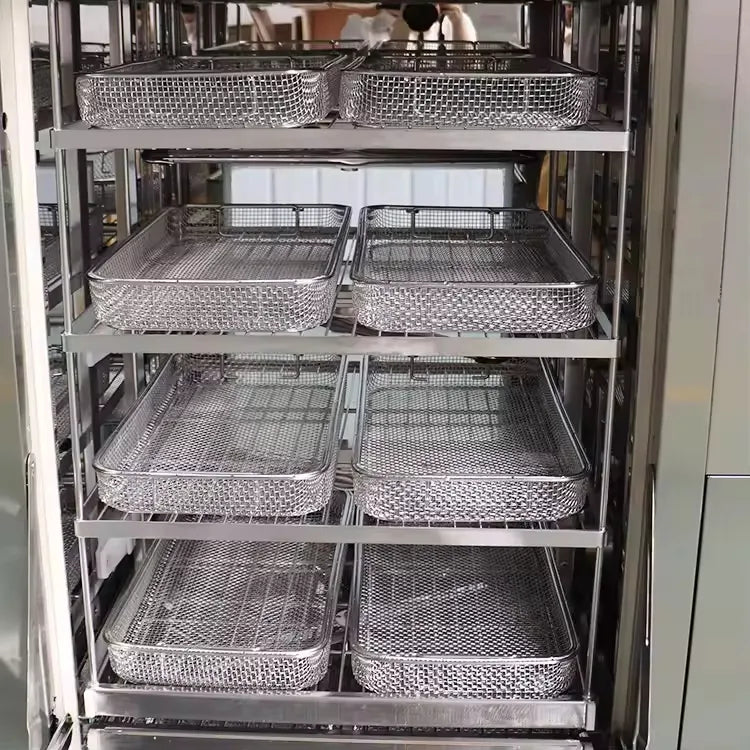

| Number of Baskets | 12 (standard) | |
| Working Noise | ≤75 dB | |
| Control System | Siemens PLC + 7" LCD touchscreen | |
| Operating Modes | 6 preset standard modes + 1 custom mode (adjustable time/temp) | |
| Standard Accessories | Thermal printer, 7" touch screen, USB data port, 4 movable casters + 4 fixed tripods | |
| Door Design | Dual‑door (pass‑through), separate clean/dirty zones | |
| Functions | Cleaning, Disinfection, Drying | |
| Appropriate Load Types | Radioactive, contaminated, high‑quantity, high‑cleanliness items | |
🌟 Fast & Efficient Workflow: The SD‑KX‑530 completes a full enzymatic cleaning, thermal disinfection (93°C), and hot air drying (90°C) cycle in approximately 35 minutes (depending on load). This rapid turnaround reduces instrument inventory requirements and speeds up CSSD throughput.
🌟 Customizable for Your Loads: The custom operating mode allows you to independently set time and temperature for each process step (pre‑wash, enzymatic wash, rinses, thermal disinfection, drying) – ideal for specialized instruments or unusual soil loads.
🌟 Dual‑Door Advantage: The pass‑through design (clean side / dirty side) is essential for CSSD workflow compliance. Load dirty instruments on one side; unload clean, disinfected instruments on the other – no cross‑contamination.
🌟 What's included: Washer‑disinfector unit, 4 cleaning racks, 12 standard baskets, thermal printer (with paper), USB port, 4 movable casters + 4 fixed tripods, user manual.
📋 Operating Modes (6 Standard + Custom)
- Standard Mode 1: Enzymatic fast cleaning (35 min cycle)
- Standard Mode 2: Thermal disinfection (93°C)
- Standard Mode 3: Chemical disinfection (low‑temp option)
- Standard Mode 4: Heavy‑soil instrument cleaning
- Standard Mode 5: Glassware & labware cleaning
- Standard Mode 6: Rinse & dry only
- Custom Mode: Fully adjustable – set your own time, temperature, and chemical dosing parameters
🏥 Primary Applications
- Hospital CSSD – High‑volume surgical instrument reprocessing
- Operating Rooms & ICUs – Forceps, scissors, clamps, suction tubes
- Endoscopy Units – Flexible/rigid endoscopes, biopsy forceps
- Dental Clinics – Handpieces, mirrors, burs, syringes
- Laboratories & Research Institutes – Glassware, measuring devices, containers
- Pharmaceutical & Production Units – Instruments requiring high‑level hygiene
✅ SADA Medical – Quality & Certifications
SADA Medical Co., Ltd. is a professional manufacturer and supplier of washer‑disinfectors, steam autoclaves, low‑temperature plasma sterilizers, and ethylene oxide sterilizers, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The SD‑KX‑530 automatic washer‑disinfector is factory‑tested and ready for demanding daily use. Each unit comes with a 12‑month warranty and 24‑hour technical support.
Why customers trust SADA Medical:
- Factory‑direct pricing – no middleman markup
- OEM/private labeling available for volume orders
- 12‑month warranty + 24/7 technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
- Custom configurations (language, racks, baskets) available
📄 Download the full catalog, user manual, and validation guide using the blue button below.
📞 Upgrade Your Hospital or Lab Cleaning Workflow Today!
Contact us for factory pricing, OEM service, and fast worldwide shipping. Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Automatic washer‑disinfectors for medical and laboratory use.
✔ High capacity: up to 536L chamber, 12 baskets per cycle – ideal for high‑throughput CSSD.
✔ Integrated cleaning, thermal disinfection (93°C), and hot air drying (90°C).
✔ Siemens PLC + 7" color touchscreen – 6 standard modes + custom programmable mode.
✔ Dual‑door (pass‑through) design – clean/dirty zone separation.
✔ Automatic chemical dosing (enzymes, lubricants, disinfectants).
✔ Built‑in printer + USB data port – full traceability.
✔ Durable SUS304 stainless steel, low noise (≤75dB).
✔ 12‑month warranty, 24‑hour technical support.
⚠️ Power requirement: 3N ~ 380V, 50Hz – please confirm your facility's power supply.
