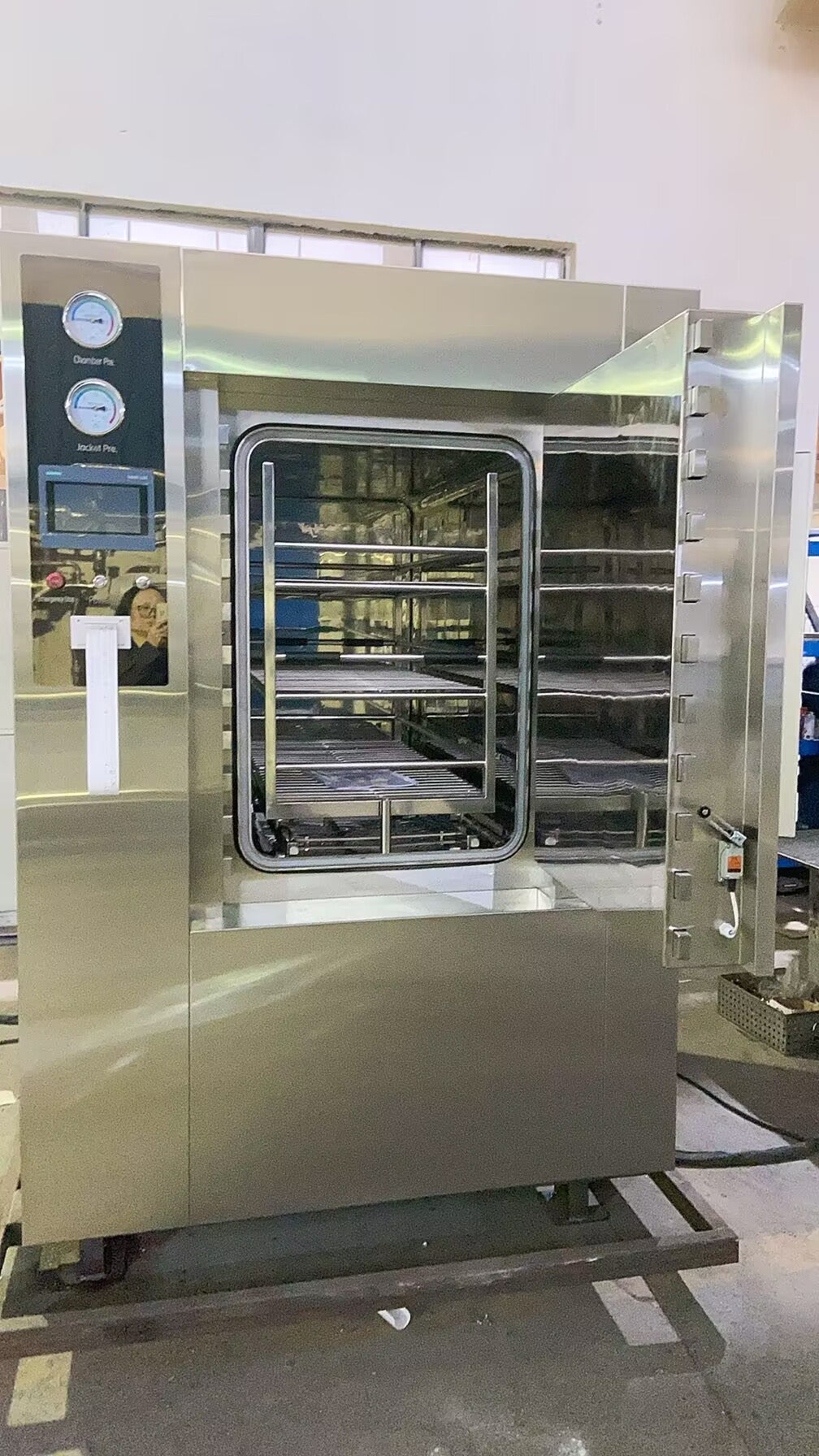

For hospitals, central sterile supply departments (CSSD), dental clinics, laboratories, and research centers that demand high‑efficiency B‑Class sterilization, the SADA Medical HA-BVS (single door) and HA-BVD (double door) pulsed vacuum horizontal steam sterilizers deliver superior performance. These autoclaves use pulsed vacuum technology to remove air completely, ensuring uniform steam penetration and fast heating – ideal for surgical instruments, medical textiles, liquids, glassware, and BD tests. The PLC-controlled touchscreen HMI allows precise parameter monitoring, automated vacuum drying, and permanent sterilization record printing. Available in capacities from 150L to 1500L, with single or double door configurations, the HA‑BV series fits everything from small clinics to large hospital CSSD. Choose HA-BVS (single door) for medium‑volume workflows or HA-BVD (double door) for pass‑through, clean‑side/dirty‑side separation in high‑volume operations.

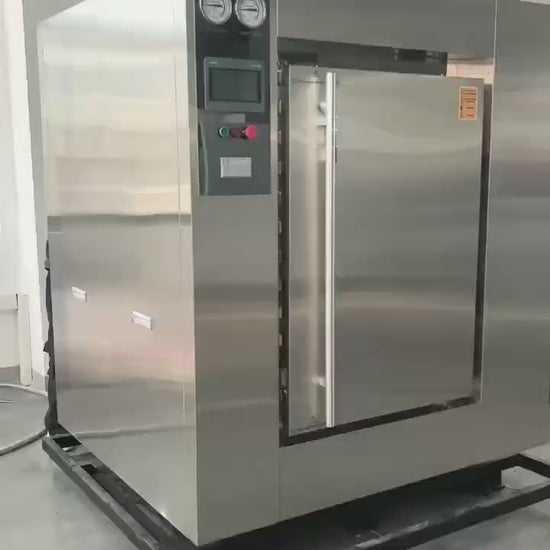

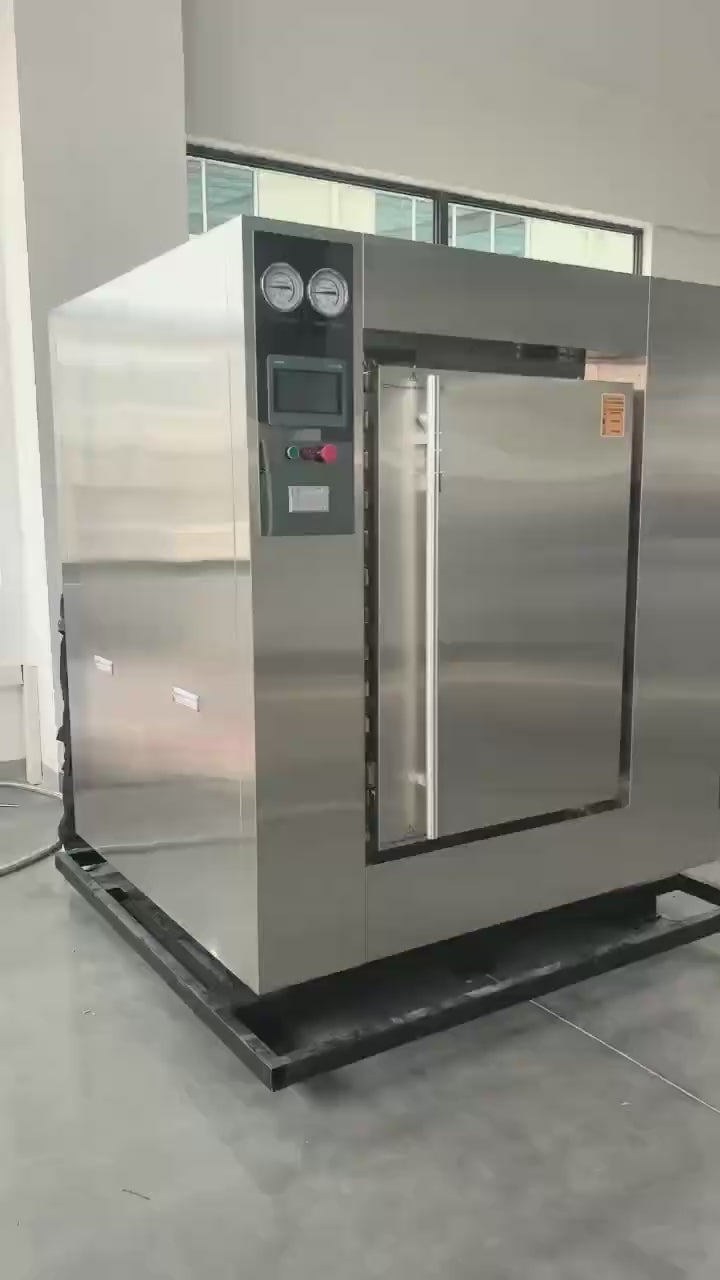

Product Video – HA-BVS/HA-BVD Horizontal Sterilizer in Action
⚙️ Why Healthcare Facilities Choose the HA‑BV Series
HA‑BVS (single door) for clinics/labs; HA‑BVD (double door) for hospital pass‑through, clean/dirty separation.
Complete air removal – ensures steam penetration into wrapped instruments, textiles, hollow loads, and liquids.
Fully automatic control, real‑time monitoring, and data recording – includes printer for permanent sterilization records.
Residual moisture <0.2% – instruments and textiles come out dry, ready for storage or immediate use.
Instruments, fabrics, liquids, BD test, vacuum test, and custom programs – one machine for all loads.
Door interlocks (cannot open under pressure), over‑pressure safety valve, vacuum monitoring, low water protection.

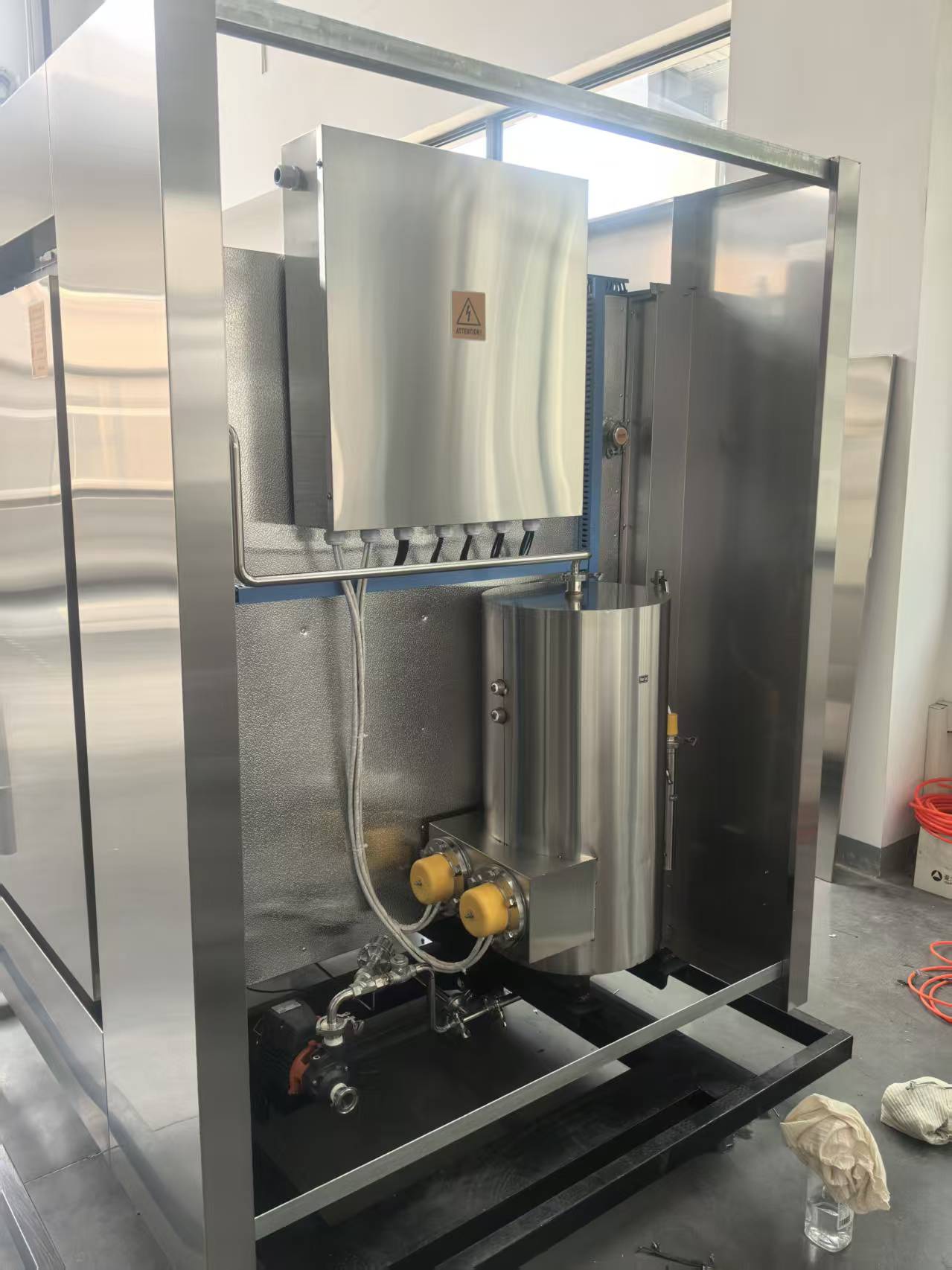

Stainless steel chamber and optimized SUS304 piping – long‑term reliability, easy maintenance.
📋 Technical Specifications – HA‑BVS / HA‑BVD Series (150L – 1500L)
Engineered for high‑capacity B‑Class pulsed vacuum sterilization. Chamber and all piping are SUS304 stainless steel. Below are the complete specifications for all models.
| Model | Capacity (L) | Chamber Size (L×W×H mm) | External Size (L×W×H mm) | Steam (kg) | Water (kg) | Power (kW) |
|---|---|---|---|---|---|---|
| HA-BVD(S)150 | 150L | 700×450×480 | 950×1120×1760 | ≤14 | ≤190 | 2.3 |
| HA-BVD(S)200 | 200L | 925×450×480 | 1175×1120×1760 | ≤16 | ≤190 | 2.3 |
| HA-BVD(S)250 | 250L | 780×600×600 | 1030×1300×1900 | ≤18 | ≤200 | 3.5 |
| HA-BVD(S)360 | 360L | 1000×600×600 | 1250×1300×1900 | ≤25 | ≤200 | 3.5 |
| HA-BVD(S)600 | 600L | 1190×610×910 | 1440×1310×1900 | ≤30 | ≤210 | 5.0 |
| HA-BVD(S)800 | 800L | 1450×610×910 | 1700×1310×1900 | ≤35 | ≤200 | 5.0 |
| HA-BVD(S)1000 | 1000L | 1250×680×1180 | 1550×1440×1950 | ≤42 | ≤200 | 5.0 |
| HA-BVD(S)1200 | 1200L | 1450×680×1180 | 1700×1440×1950 | ≤50 | ≤200 | 6.0 |
| HA-BVD(S)1500 | 1500L | 1850×680×1180 | 2100×1440×1950 | ≤60 | ≤200 | 6.0 |
🌟 B‑Class Pulsed Vacuum Advantage: Multiple pre‑vacuum pulses remove virtually all air from the chamber and load – ensuring complete steam penetration into wrapped packs, hollow instruments, porous textiles, and liquid loads. This meets the highest international standards for medical device sterilization.

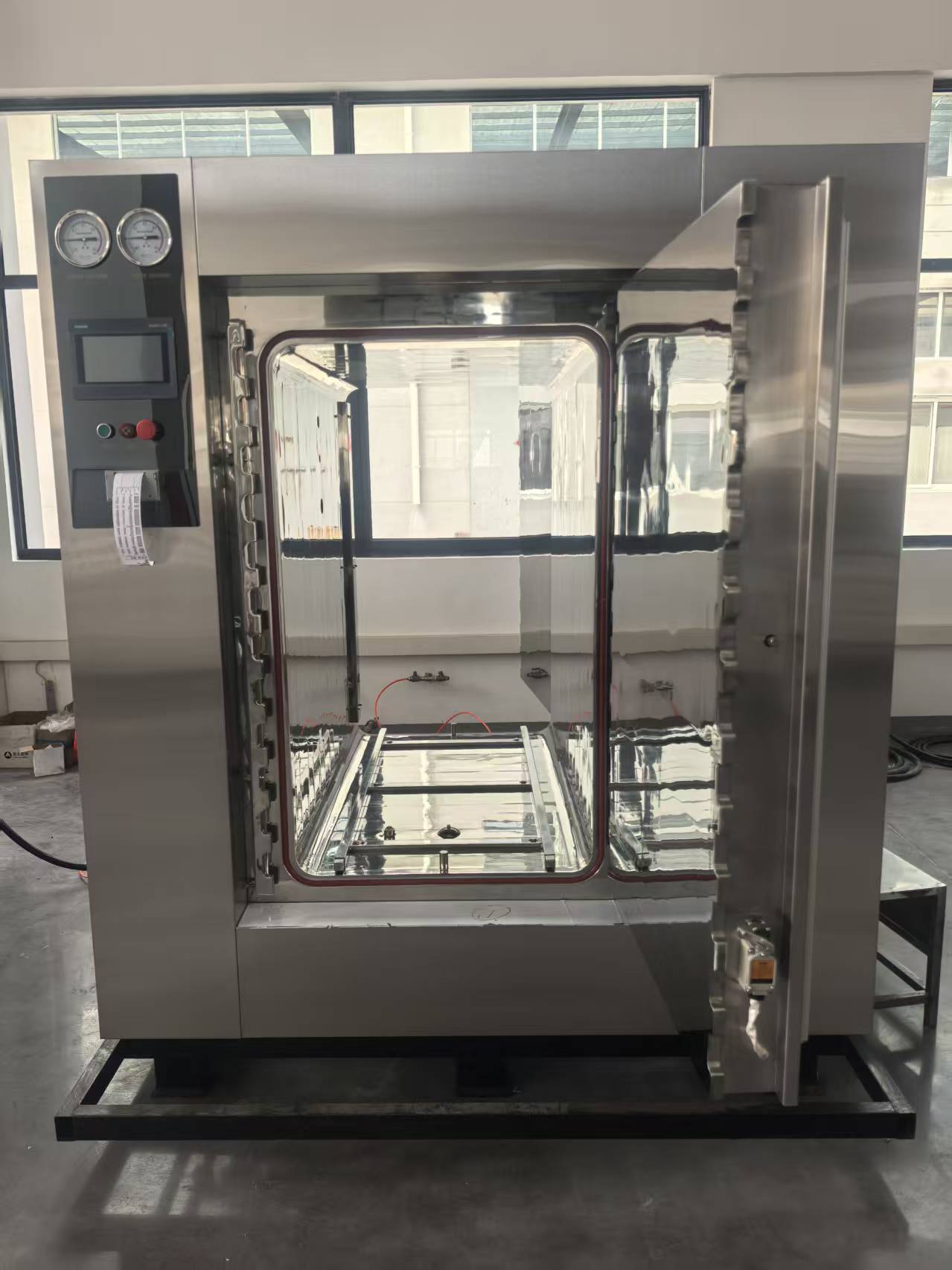

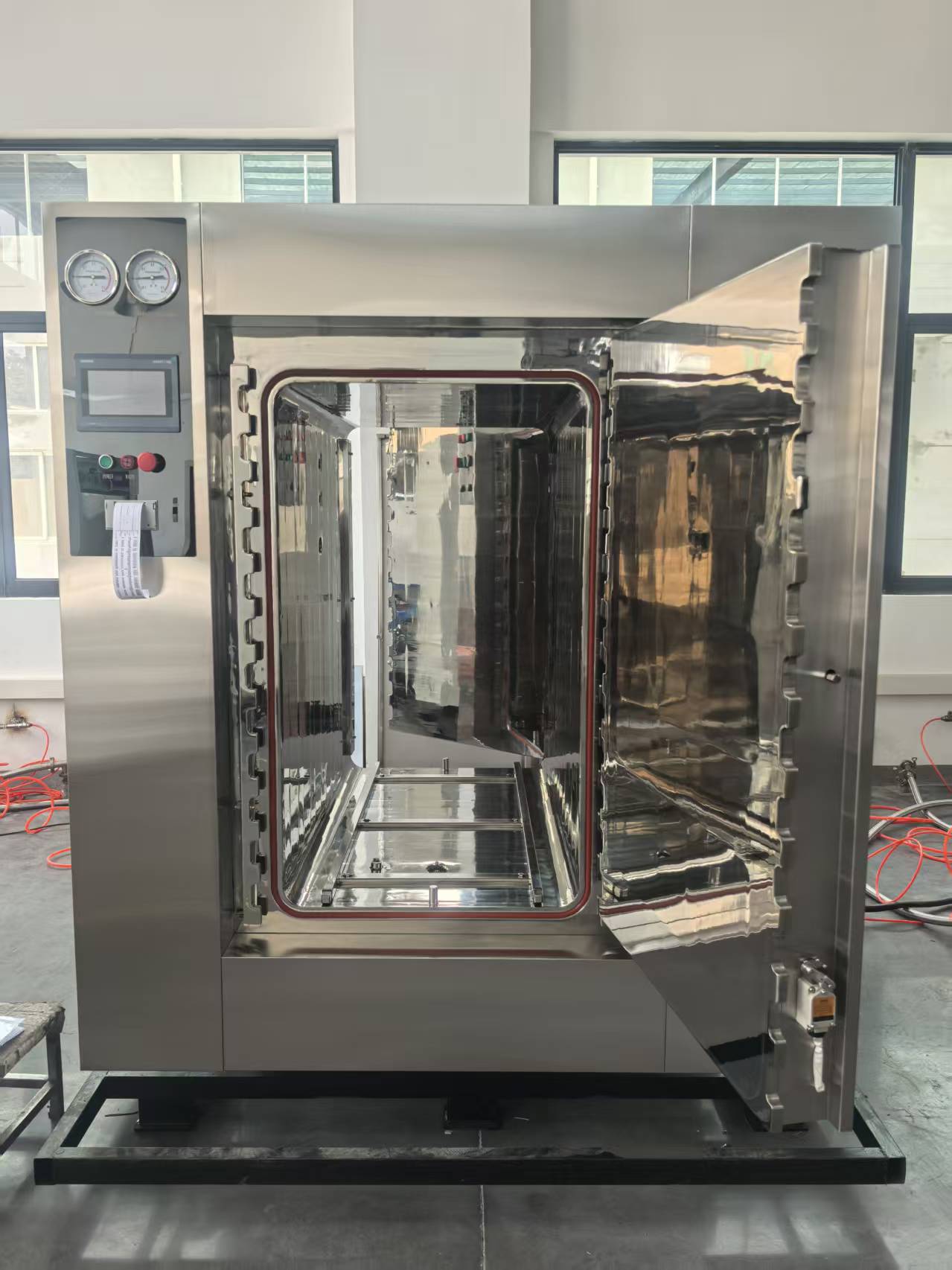

🌟 Double‑Door (Pass‑Through) Configuration: HA‑BVD models allow loading on the dirty side and unloading on the clean side – essential for CSSD workflow compliance and preventing cross‑contamination.
🌟 7 Sterilization Modes: Instruments (wrapped/unwrapped), fabrics/textiles, liquids, BD test, vacuum test, and custom programs – flexible for all clinical and laboratory loads.

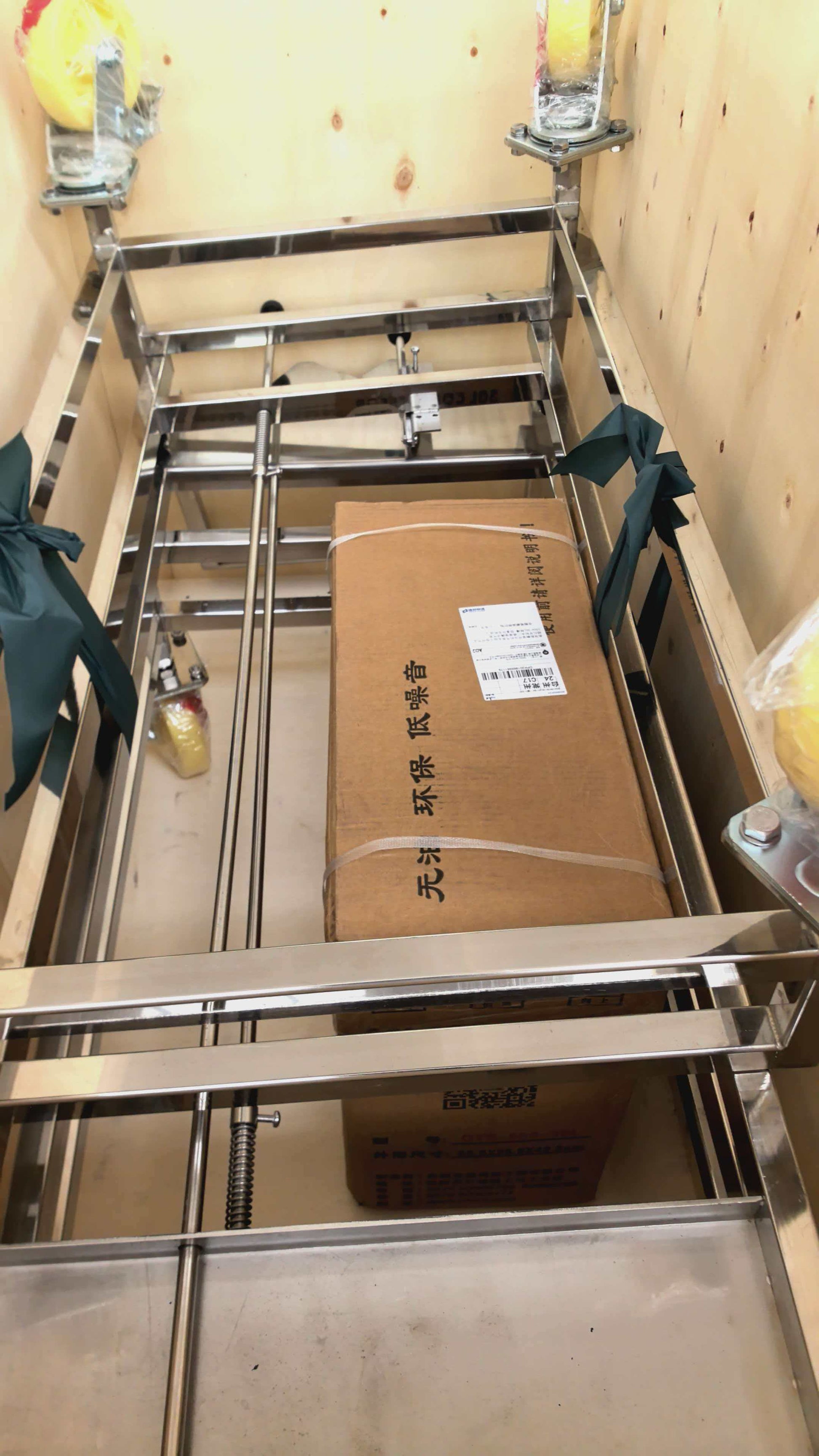

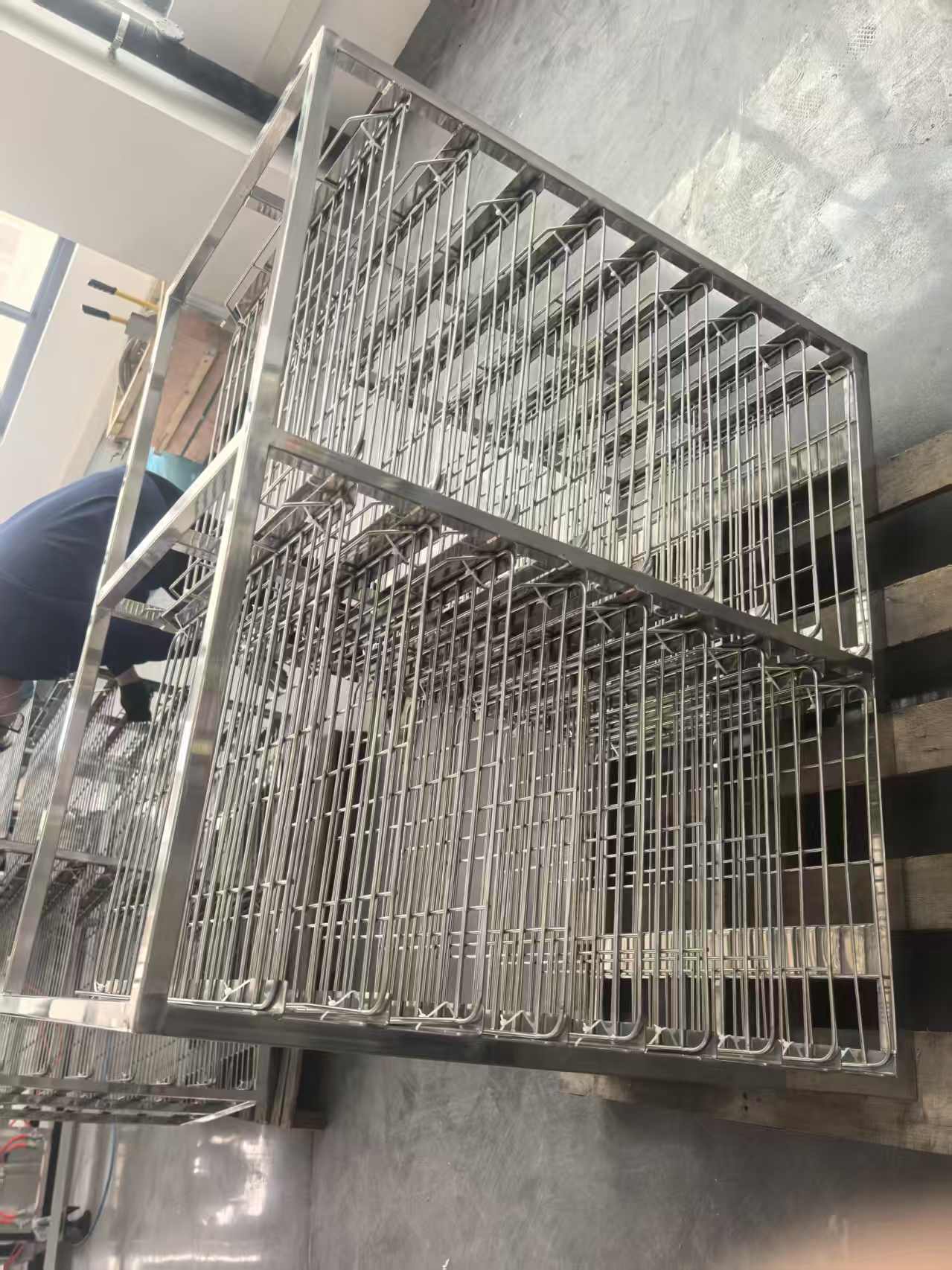

🌟 What's included: Horizontal sterilizer unit, PLC control panel with HMI touchscreen, printer, loading racks/trolleys (as per capacity), user manual, and validation interface.
📋 7 Sterilization Modes
- Instrument Mode – Wrapped/unwrapped surgical instruments
- Fabric/Textile Mode – Gowns, drapes, surgical linens
- Liquid Mode – Culture media, solutions, pharmaceutical liquids
- BD Test Mode – Steam penetration validation
- Vacuum Test Mode – Chamber integrity verification
- Custom Program 1 & 2 – User‑defined parameters
🏥 Primary Applications
- Hospital CSSD – Central Sterile Supply Department
- Operating Rooms & Surgical Centers – High‑volume instruments
- Dental & Medical Clinics – Wrapped packs, textiles
- Pharmaceutical & Biotech Labs – Cleanroom equipment
- Research & University Laboratories – Glassware, media, waste
🚪 Single Door vs Double Door – Which One Do You Need?
Best for: Medium‑volume clinics, small laboratories, dental practices, research institutes.
Load and unload from the same side. Compact footprint. Ideal when space or workflow does not require pass‑through separation.
Best for: High‑volume hospital CSSD, large central sterile processing departments, pharmaceutical manufacturing.
Load contaminated instruments on one side, unload sterile packs on the other – eliminates cross‑contamination risk.
✅ SADA Medical – Quality & Certifications
SADA Medical Co., Ltd. is a professional manufacturer and supplier of horizontal autoclaves, steam sterilizers, low‑temperature plasma sterilizers, and washer disinfectors, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The HA‑BV series pulsed vacuum horizontal sterilizer is factory‑tested with cycle validation reports. Each unit comes with a 12‑month warranty and 24‑hour technical support. A standard validation interface is included for IQ/OQ/PQ testing.
Why customers trust SADA Medical:
- Factory‑direct pricing – no middleman markup
- OEM/private labeling available for volume orders
- 12‑month warranty + 24/7 technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
- Custom configurations (trolleys, racks, voltage) available
📄 Download the full catalog, user manual, and validation guide using the blue button below.
📞 Upgrade Your Sterilization Process with HA‑BV Series
Contact us for factory pricing, OEM service, and fast worldwide shipping. Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Horizontal steam sterilizers for medical and laboratory use.
✔ B‑Class pulsed vacuum – for wrapped instruments, textiles, hollow loads, and liquids.
✔ 9 capacities from 150L to 1500L – single door (HA‑BVS) or double door (HA‑BVD).

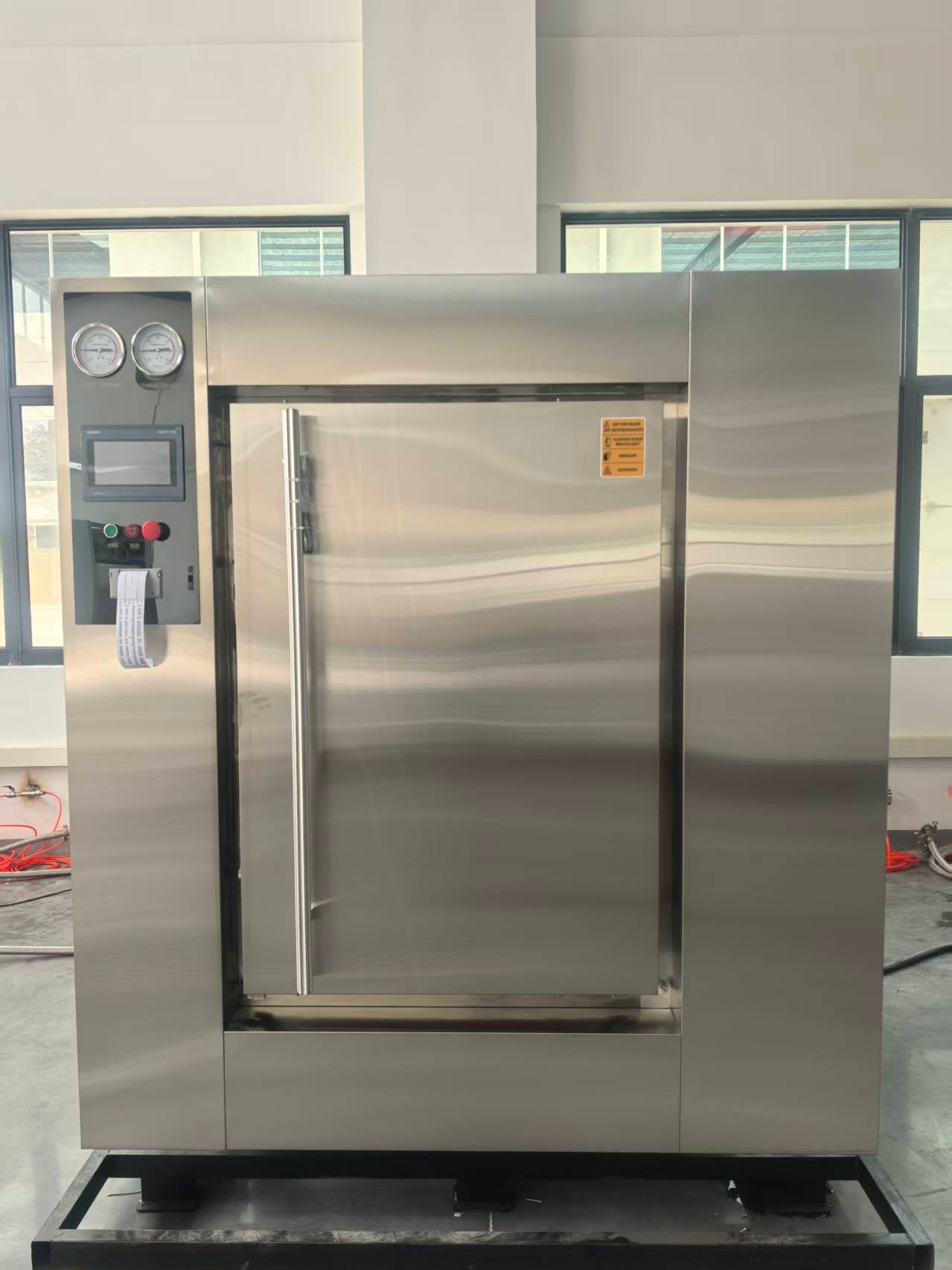

✔ PLC + HMI touchscreen – fully automatic with real‑time monitoring and printer.
✔ Automatic vacuum drying – residual moisture <0.2%.
✔ 7 sterilization modes – flexible for all clinical and lab loads.
✔ Multiple safety protections – door interlocks, over‑pressure valve, vacuum monitoring.
✔ Stainless steel chamber and optimized SUS304 piping.
✔ 12‑month warranty, 24‑hour technical support.
⚠️ Power supply: AC 380V three‑phase – please confirm your facility's power supply.
