Features:

7” capacitive touch screen, fully automatically controlled, easy to operate on.

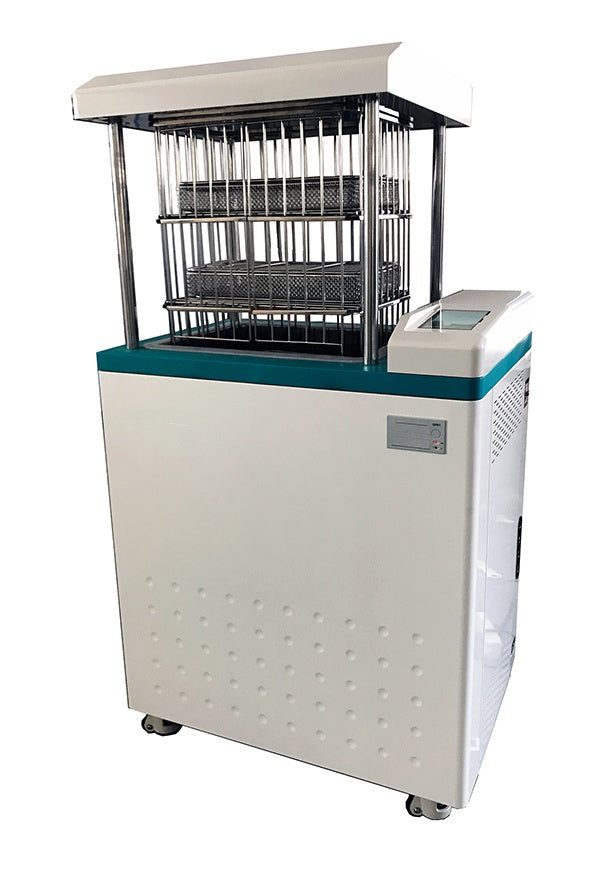

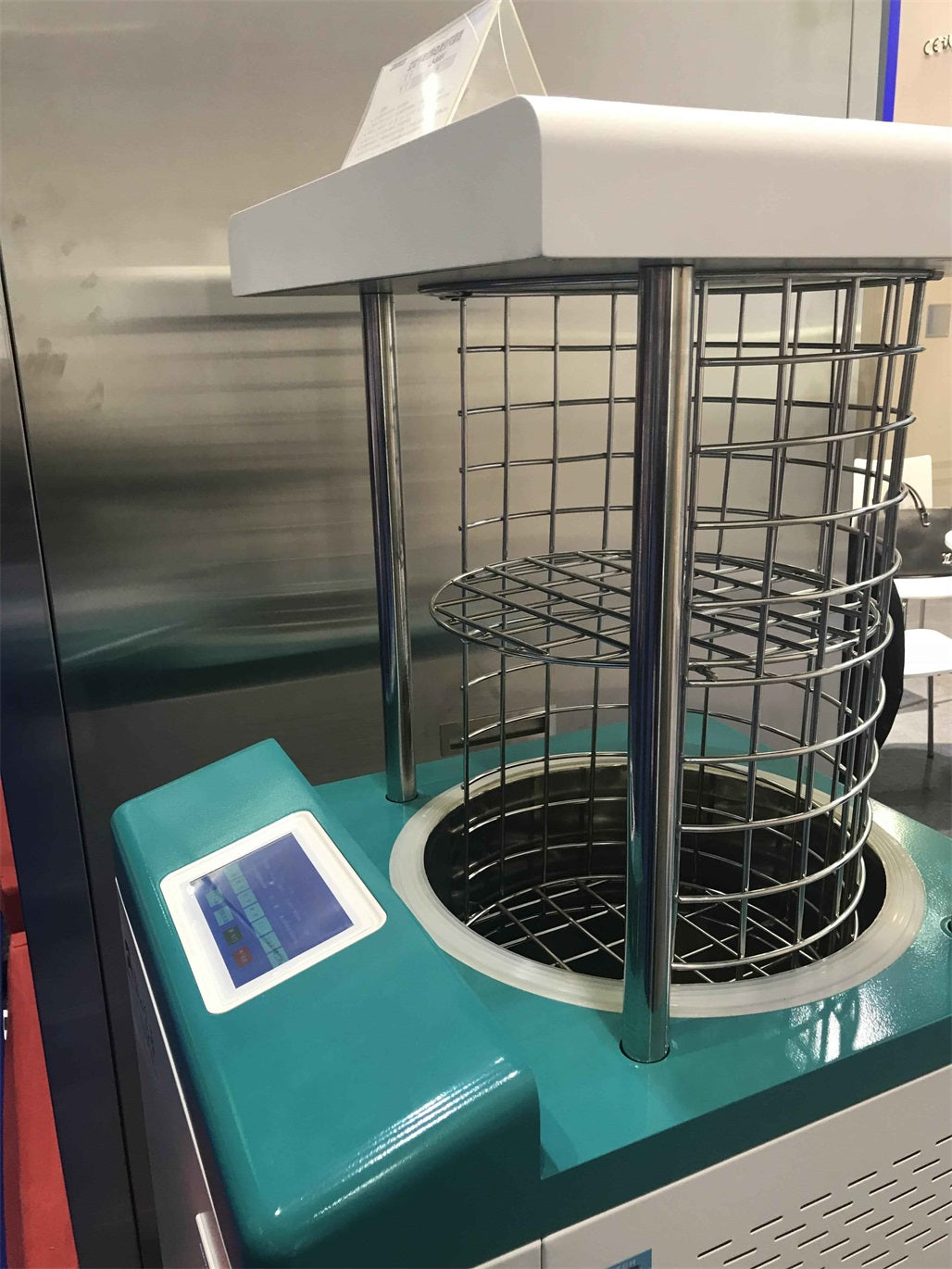

Elevating type door, which is more convenient to place and fetch the objects from the autoclave.

The whole procedure from water inlet, pulse vacuum, heat, sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation.

Pulse vacuum, the limit is-0.080Mpa, which ensure the sterilizing more
completely

Separated steam generator, which is more energy saving by comparing to the
normal heating and prevent the sterilizing objects from been oxidized.

There are several programs loaded in the autoclaves for different requirement of different objects

With PT-TT testing port, easy to run the testing
Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART
2000 0.2 um, which ensure the air is sterile, prevent the contamination.

Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

Specifications:

Capacity: 60L, 80L, 100L, 120L
Max. Working pressure: 0.23Mpa
Working pressure: 0.22Mpa
Working temperature: 134℃
Adjustment of temperature: 0~134℃
Timer: 0-99 min
Power: 3-3.6KW

Video of VA-SVN Autoclaves:

SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:


Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, dry ovens, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
