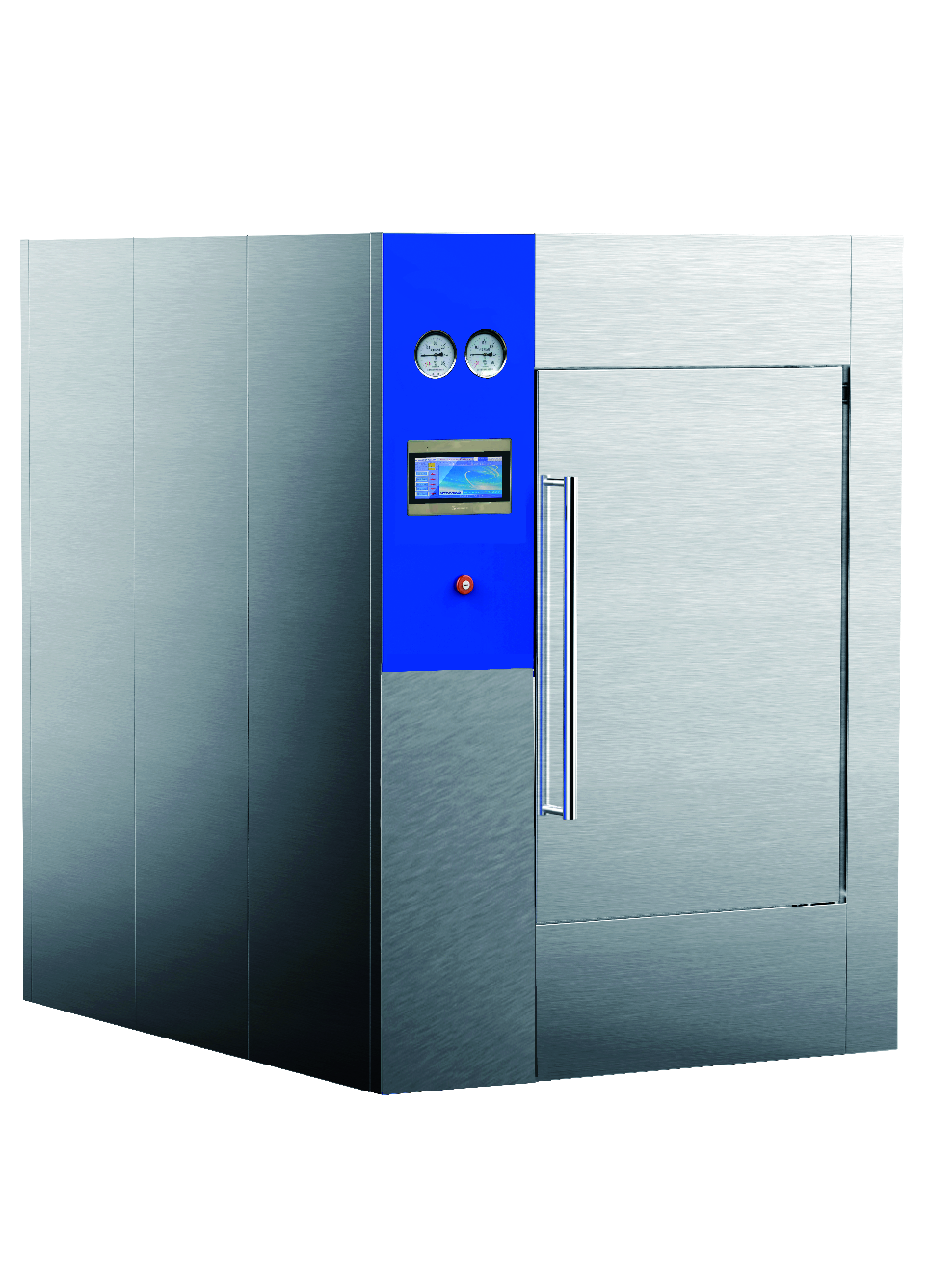

Pass through pressure steam sterilizer with motor-drive doors
Pass through pressure steam sterilizer with motor-drive doors
Pass through pressure steam sterilizer with motor-drive doors
Model: MSG.B240H/K
Sterilizing Volume: 240L, 360L, 600L, 800L, 1000L, 1200L, 1500L.
Application:
The large pressure steam sterilizer with motorized door series is suitable for sterilizing articles in supply rooms, pharmaceutical factories, laboratories and other places. It can sterilize high temperature, high pressure and high humidity resistant articles such as packaged and unpackaged articles, Class A hollow articles, Class B hollow articles and articles with internal pipes.
Features of Horizontal Pressure Steam Sterilizer
1.The main controller adopts high-quality imported controller, which is accurate, stable and reliable.
2.The human-computer interface adopts the 7-inch touch screen of 65000 color , which has powerful function and rich colors, and can display animation and curve report forms.
3.The design of man-machine interface is beautiful and generous, and at the same time, it is more convenient for users to operate. It adopts the designs of menu program , one button touch operation and intensive operation.Each running process can be displayed in full color in real time.
4.For the design of the controller software, a unique real-time feedback module based on the fuzzy control theory is realized to ensure the accuracy of the process. It can ensure the temperature band, the temperature fluctuation and the temperature uniformity of the equipment.
5.A unique function of prompting maintenance information is designed to remind the users to maintain the equipment. It includes cleaning the sealing ring regularly, wiping the main body regularly and checking the filter regularly.

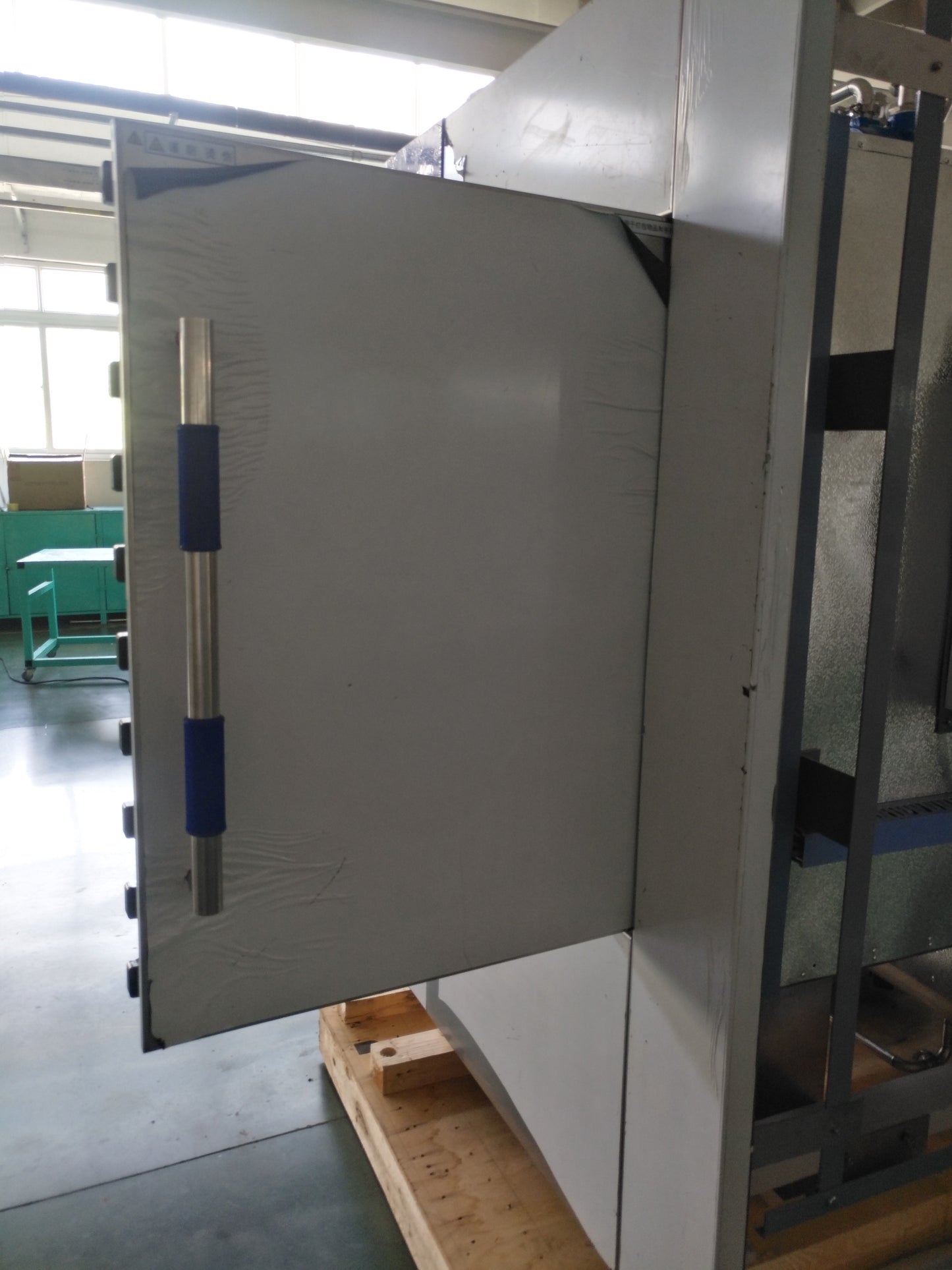

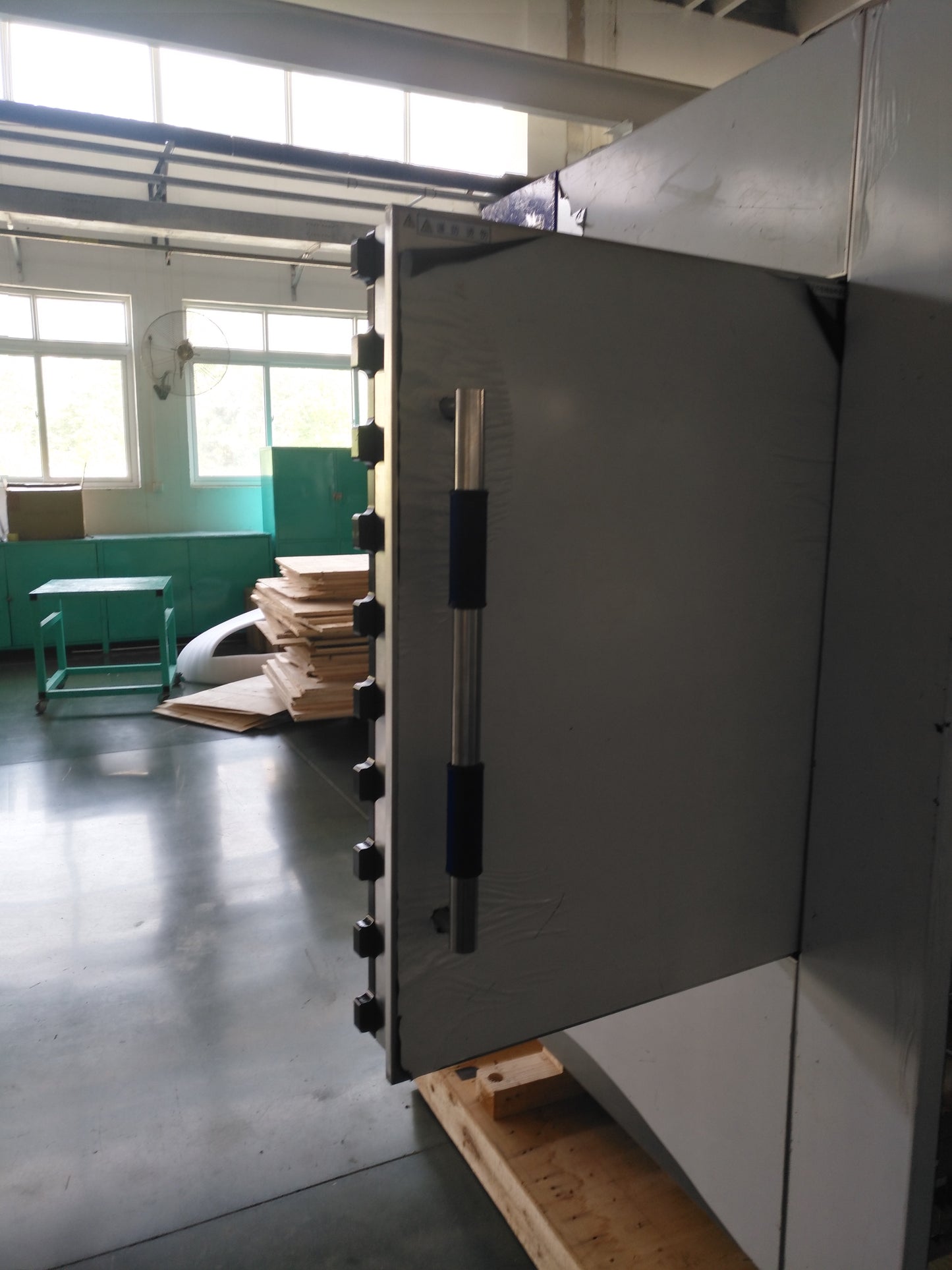

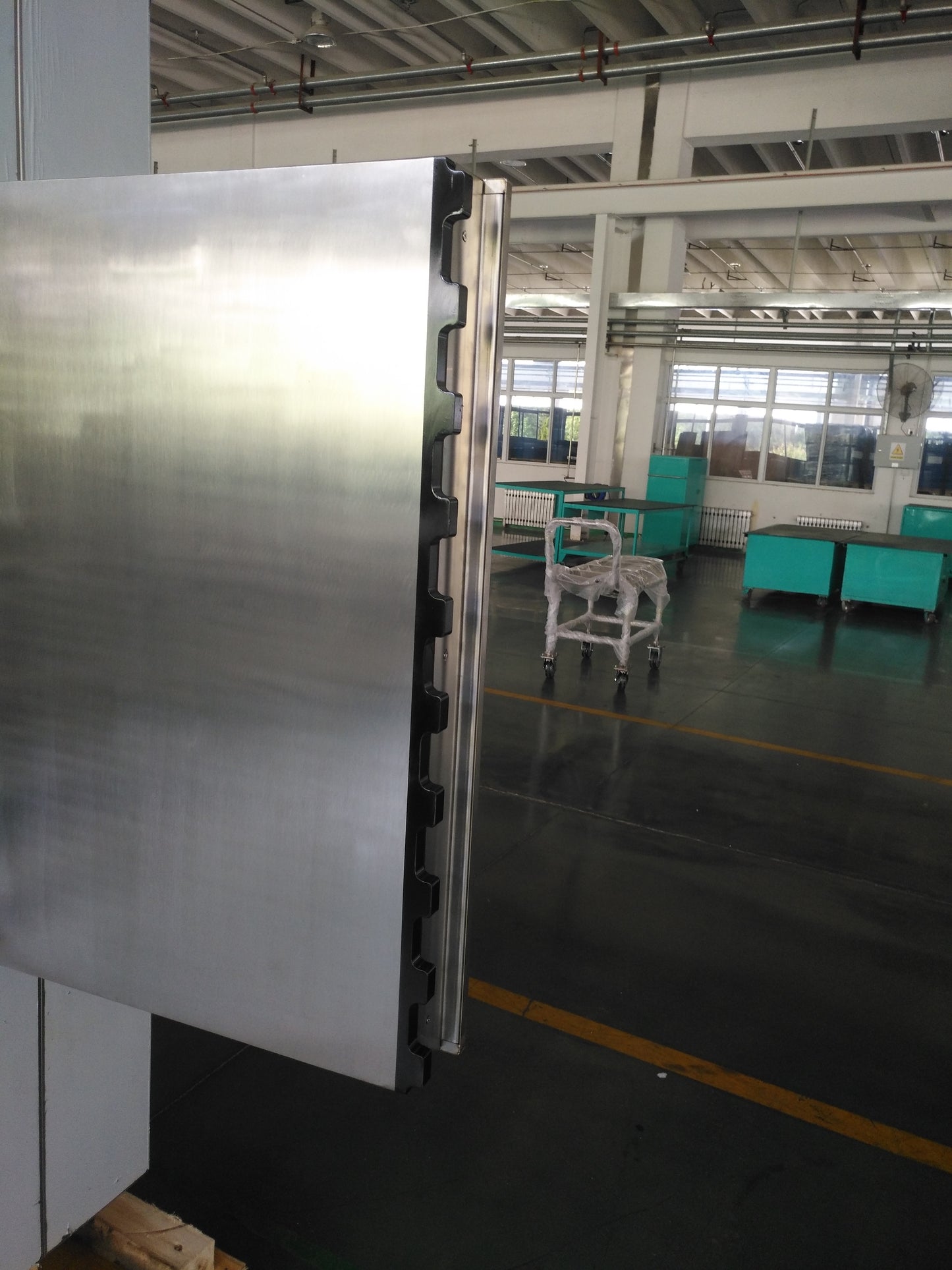

6.Double sealed doors, relying on rack for pneumatic lifting, pneumatic sealing structure, easy to operate, safe and reliable.
7.It adopts the imported high-quality solenoid valve. The performance is more stable and the service life is long.
8.It has the perfect functions of prompting the fault information and self-diagnosing the faults.
9.With a protective system of three-level user’s rights , it is convenient for the users to manage the equipment.
10.It can be equipped with a bar code scanning device, which can be connected to the hospital HIS system easily.
11.The USB storage system can be selected to store the running status of the equipment into the USB storage device in real time.
12.The central monitoring system can be selected to realize the remote operation of the equipment.
Specifications:
The main technical parameters
The main technical parameters
◇The design pressure of the main body: 0.4MPa
◇The maximum working pressure: 0.23MPa
◇The design temperature: 150℃
◇The maximum working temperature: 138℃
◇The selection of sterilization temperature: 105℃～138℃
◇Pressure when the safety valve is opened: 0.28MPa
◇Pressure of steam source: 0.3MPa～0.5MPa
◇Requirements for water source: softened water with the pressure of 0.15-0.3Mpa
◇The range of pulsation times is: 0～99 times
◇Range of sterilization time：0～9999S
◇Drying time: 0～9999S
|
Model |
Capacity |
Chamber size (W×D×H)mm |
Overall size |
Net Weight (kg) |
Power |
Maximum steam consumption (Kg/Cycle) |
Maximum water consumption |
|
|
|
|
|
|
|
Build-in steam generator |
External steam supply |
|
|
|
MSG.BJ |
360L |
600*1000*600 |
1255*1290*1900 |
930 |
22 |
/ |
/ |
200 |
|
MSG.BJ |
360L |
600*1000*600 |
1255*1230*1900 |
930 |
22 |
/ |
/ |
200 |
|
MSG.BJ |
600L |
610*1180*910 |
1325*1470*2320 |
1400 |
39 |
/ |
/ |
280 |
|
MSG.BJ |
600L |
610*1180*910 |
1325*1470*2320 |
1340 |
/ |
3 |
28 |
250 |
|
MSG.BJ |
800L |
610*1460*910 |
1325*1750*2320 |
1500 |
/ |
3 |
30 |
250 |
|
MSG.BJ |
1000L |
610*1800*910 |
1325*2090*1940 |
1600 |
/ |
3 |
38 |
350 |
|
MSG D |
1200L |
680*1500*1180 |
1410*1800*1940 |
1950 |
/ |
4.5 |
40 |
360 |
|
MSG.BJ |
1500L |
680*1800*1180 |
1410*2090*1940 |
2200 |
/ |
4.5 |
45 |
450 |
SADA MEDICAL Quality Standards:
ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
CERTIFICATES:
SADA MEDICAL Workshop:
Video of SADA MEDICAL Horizontal Autoclaves:
Catalog, Brothures and User Manual Please refer below Link:
https://www.sadamedical.com/pages/catalog-download
