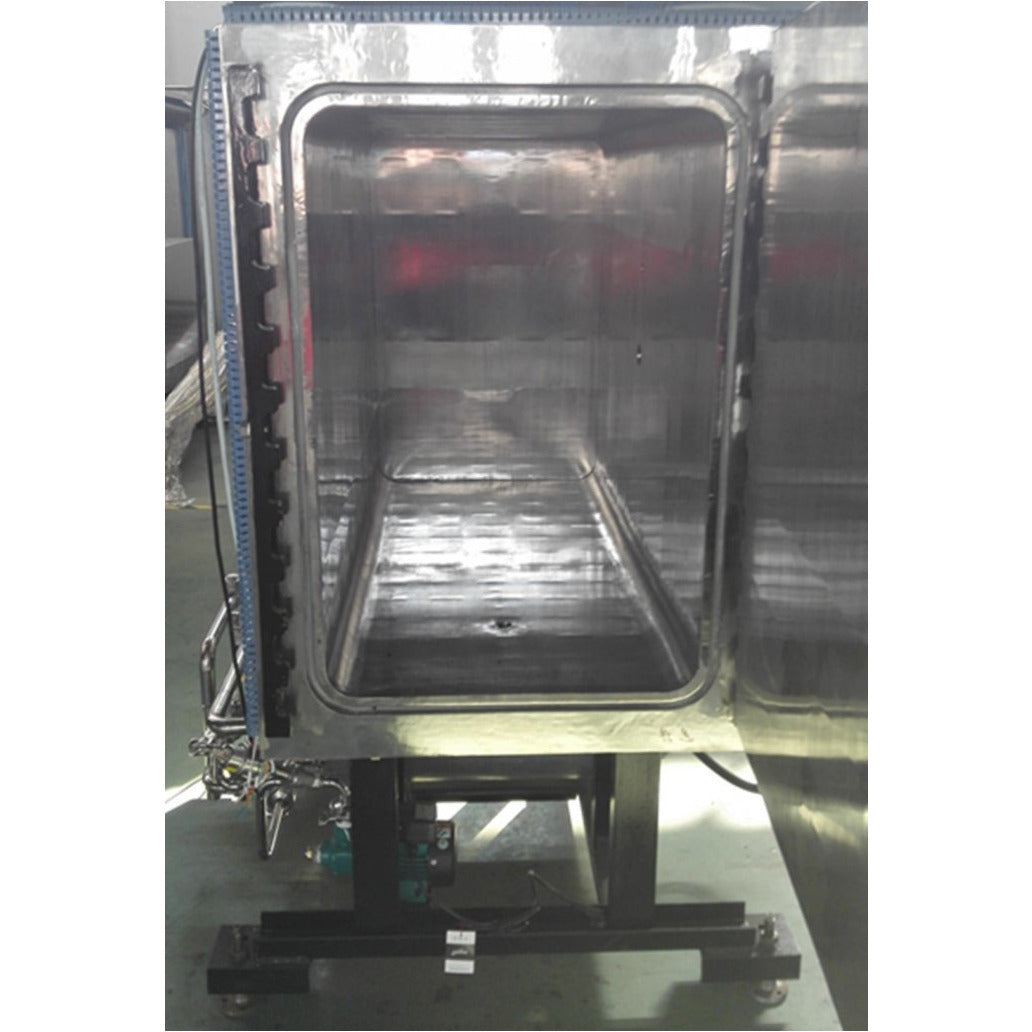

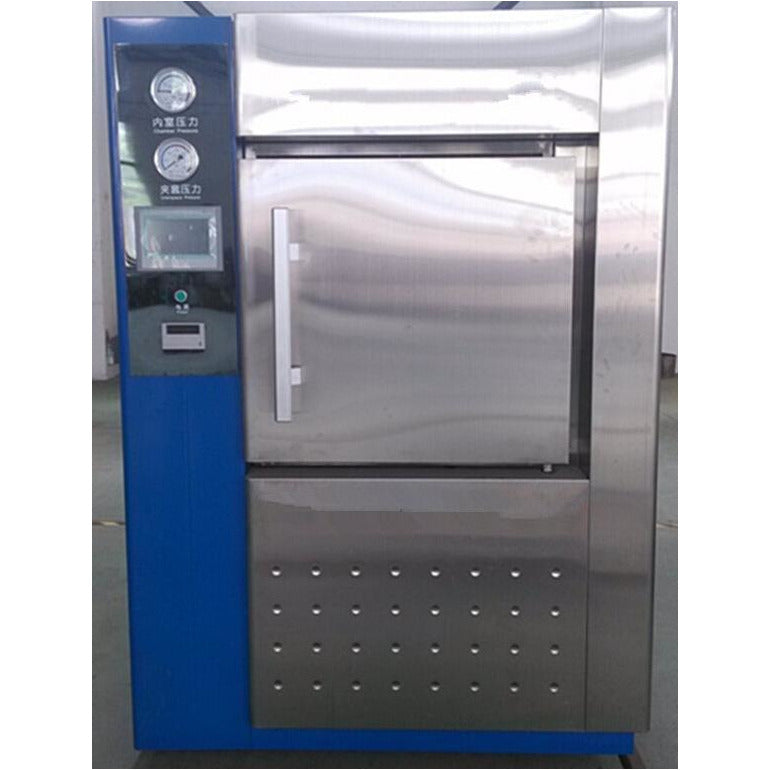

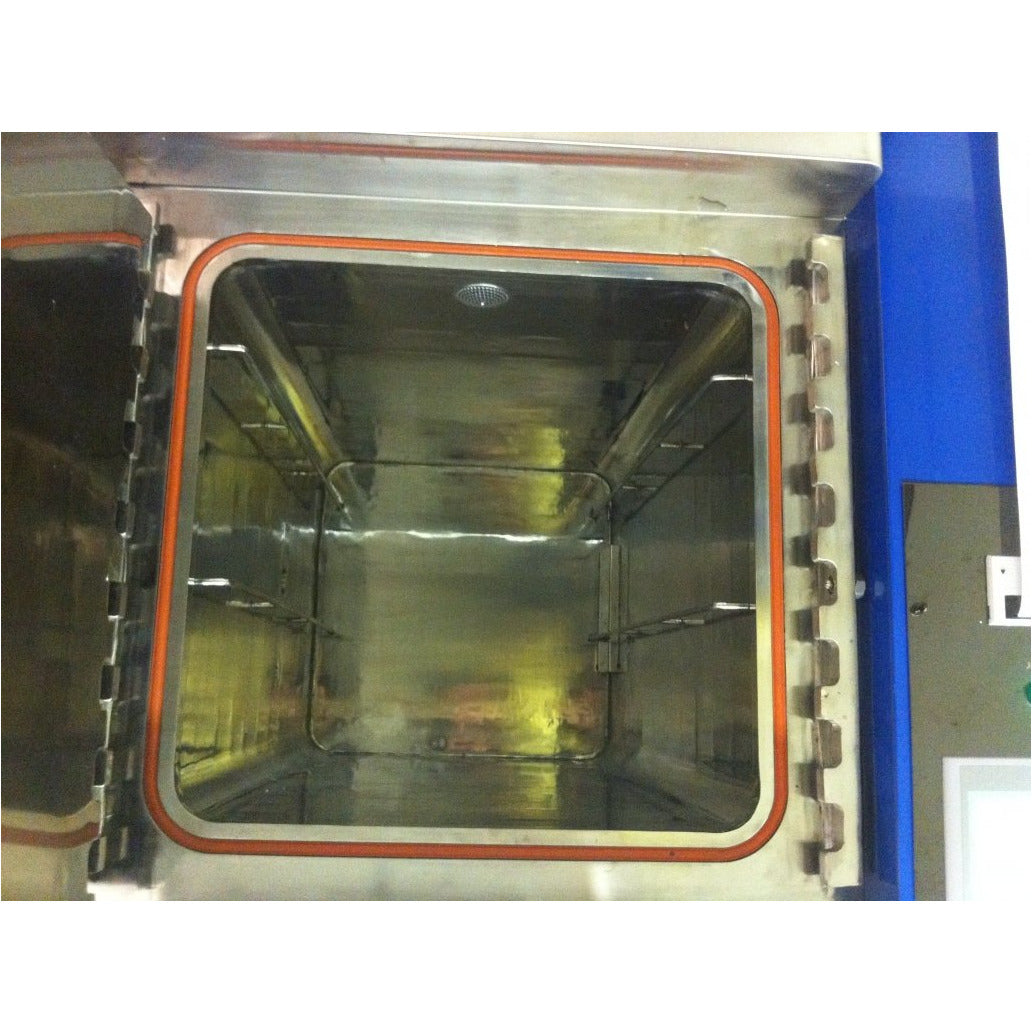

Mushroom Sterilization Sterilizer Autoclave
Mushroom Sterilization Sterilizer Autoclave
Mushroom Sterilization Sterilizer Autoclave
Model: HA-BVS
Chamber Volume: 120L- 5000L
Design pressure: 0.245Mpa
Design temperature: 139ºC
Work pressure: 0~0.22Mpa
Material: SUS304 / SUS316 / SUS316L
Door: Single Door
Display: Touch Screen
Control System: Siemens PLC + HMI + DCS
Configuration: Loading cart, transport cart, tray
Production time: 30 working days
HS Code: 8419200000
Warranty: 12 months
Application range: Hospital, lab, clinic, pharmaceutical factory, research institutions, etc.
Brand:Sada Medical
Product Origin:China
Shipping Port:Shanghai, Qingdao, Ningbo, Shenzhen, Guangzhou, etc.
Large Pulse Vacuum Autoclave Machine
Technology Advantage
1. Control system: It is integrated by Siemens PLC + HMI + DCS, advanced function for recording, printing and storing.
2. Monitoring system: Independent temperature monitoring system.
3. Vacuum pump: The steam condenser is fitted in the exhaust/vacuum line to condense the steam before entering inside the vacuum pump.
4. GMP validation port: The GMP validation ports of 16 temperature sensor are used for validation.
5. Controller software design: unique real-timely feedback module based on fuzzy control-theoretical, ensuring accurate processing control, guaranteeing the bond, fluctuation and uniformity of temperature thoroughly.
6. Man-machine interface software: menu programming, one-key touch operation and all kinds of operation intensive design, with elegant appearance. Full-color real-time dynamic displaying during each running process.
7. Fault: Perfect fault information warning and fault self-diagnosis function.
8. Door: National patent door interlock device. National patent sealing technology – closed inflatable seal ring with compressed air.
9. Pneumatic valve and solenoid valve: high quality, stable performance and a long lifespan.
Safety Feature
1. Mechanical pressure relief safety valve for chamber and jacket
2. Over-pressure protective device
3. Over-temperature protective device
4. Protective measure device of door safety
5. Interlock function device
Specifications:
|
Model |
Chamber Size | Steam Consumption (KG) | Tap Water Consumption (KG) | Power | Gross Weight/Net Weight | Overall Size |
| LxWxH(MM) | LxWxH(MM) | |||||
| HA-BVS250 | 800x600X600 | 18KG | 35KG | 2-2.4KW | 900KG | 1100x1350X1900 |
| HA-BVS360 | 1000x600X600 | 25KG | 40KG | 2-2.4KW | 1000KG | 1300x1350X1900 |
| HA-BVS600 | 1200x610X910 | 30KG | 45KG | 3-3.6KW | 1400KG | 1500x1360X1950 |
| HA-BVS800 | 1500x610X910 | 40KG | 50KG | 3KW | 1600KG | 1800x1360X1950 |
| HA-BVS1200 | 1450x680X1180 | 48KG | 55KG | 4KW | 1800KG | 1750x1440X1950 |
| HA-BVS1500 | 1850x680X1180 | 55KG | 60KG | 4KW | 2000KG | 2150x1440X1950 |
| HA-BVS2000 | 1600x900X1400 | 65KG | 65KG | 4.5KW | 2500KG | 1950x1750X2200 |
| HA-BVS2500 | 1950x900X1400 | 75KG | 75KG | 6KW | 3000KG | 2300x1750X2200 |
| HA-BVS3000 | 2400x900X1400 | 90KG | 90KG | 8KW | 3500KG | 2700x1750X2200 |
SADA MEDICAL Quality Standards:
ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
CERTIFICATES:
SADA MEDICAL Workshop:
Video of SADA MEDICAL Horizontal Autoclaves:
Catalog, Brothures and User Manual Please refer below Link:
https://www.sadamedical.com/pages/catalog-download
Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.
If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
