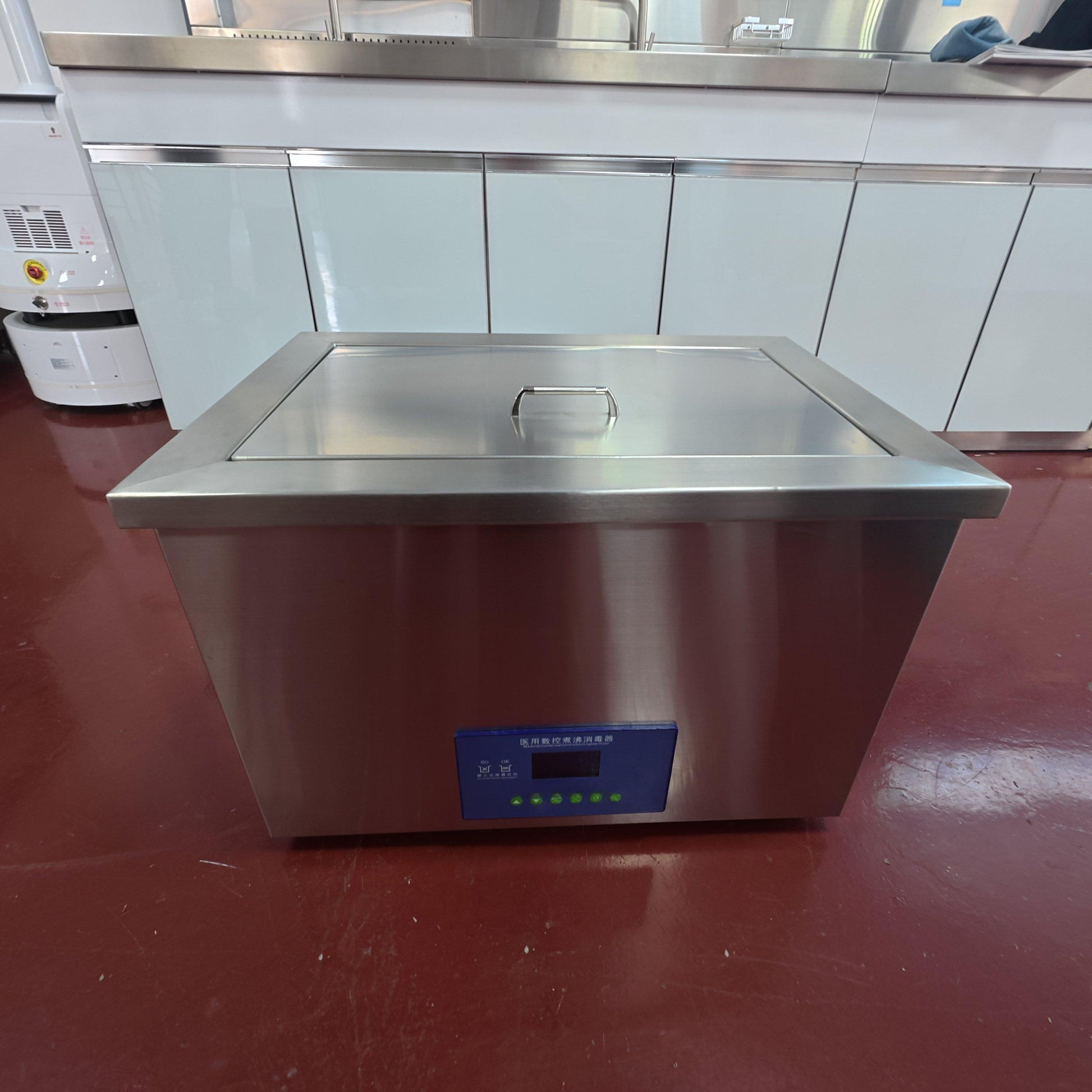

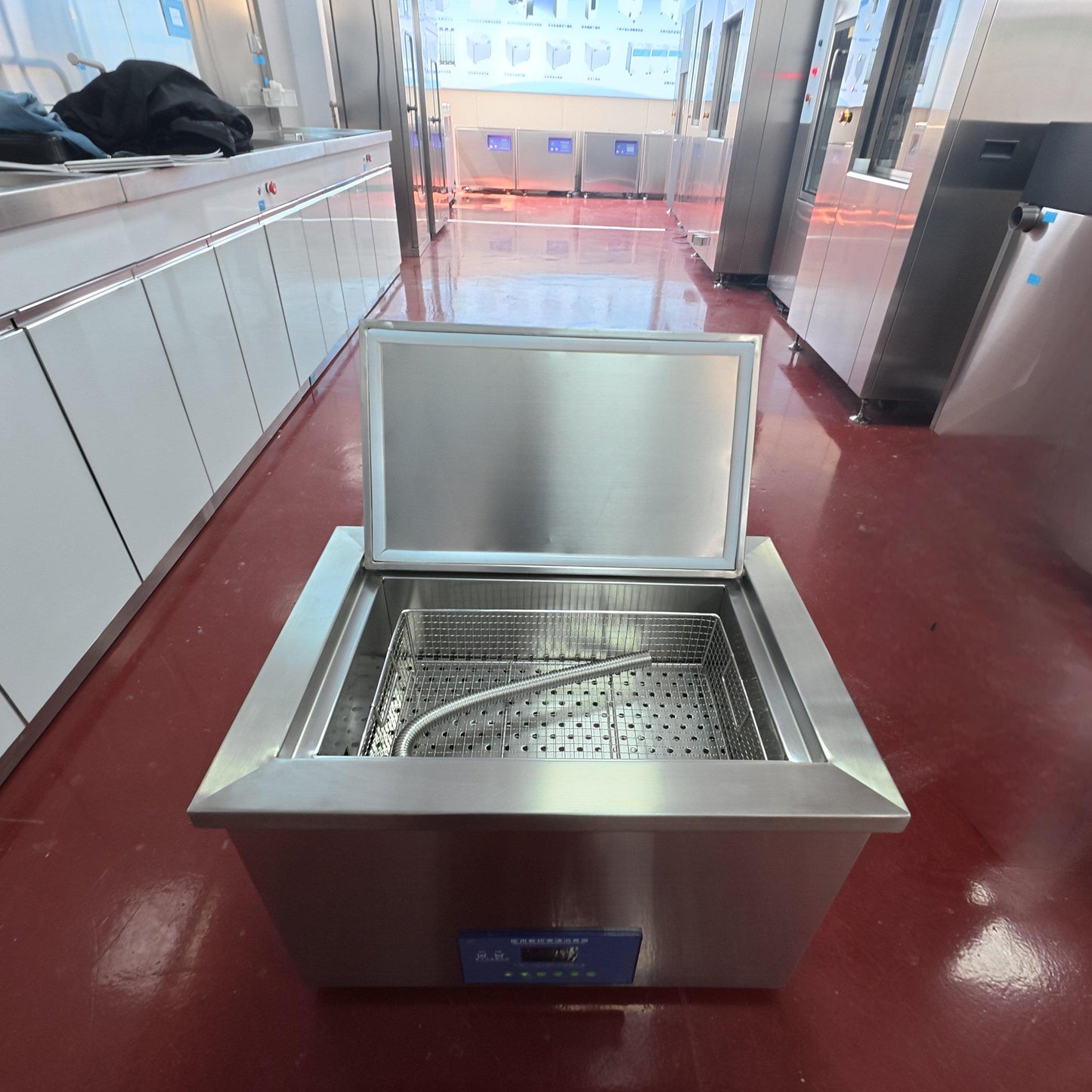

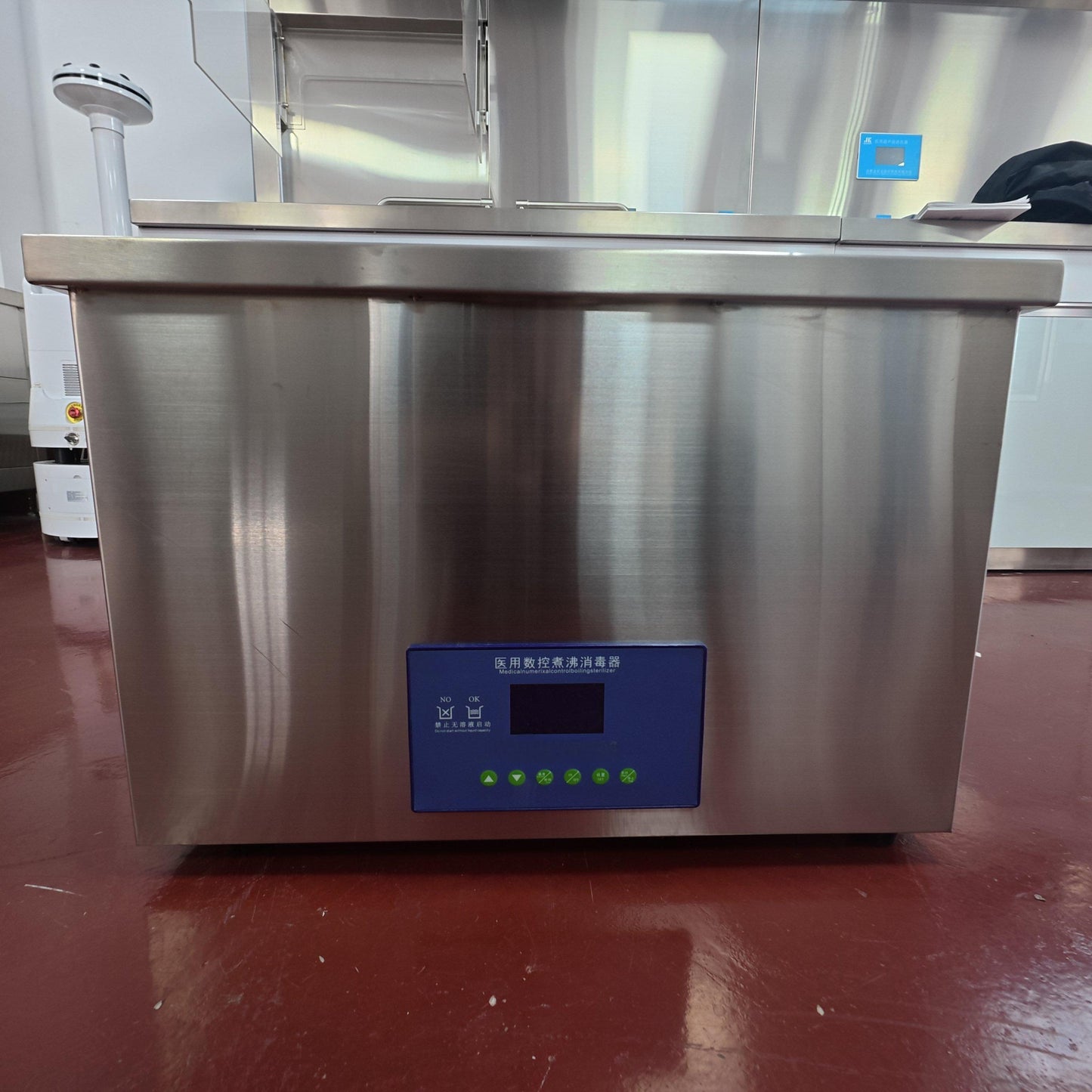

Medical Numerical Control Boiling Disinfector – Compact & Efficient Boiling Sterilizer for Clinics & Labs

1️⃣ Product Introduction

    The desktop Medical Numerical Control Boiling Disinfector is designed for small and medium-sized healthcare settings requiring fast, safe, and consistent sterilization. Ideal for surgical tools, endoscopes, and reusable instruments, this unit ensures effective 93°C boiling disinfection with intuitive operation in a compact footprint.

---

2️⃣ Product Features & Benefits

1. Intelligent One-Button Operation
   Start the complete disinfection cycle—including boiling, oiling, rust prevention, and shutdown—with a single touch.
2. Advanced Programmable Control
   PLC-based color LCD touchscreen with preset sterilization programs. Displays temperature, working time, consumables used, alarms, and real-time fault diagnostics.
3. Smart Memory Function
   Automatically records release date, cumulative usage, set boiling time, and temperature—ensuring consistent performance.
4. 93°C High-Efficiency Boiling Disinfection
   Delivers consistent thermal disinfection with real-time A0 value display, fully compliant with WS310.3-2016 standards.
5. Comprehensive Safety Protection
   Built-in protections against leakage, over-temperature, over-voltage, over-current, and dry operation.
6. Automatic Lifting Door (for applicable models)
   Hands-free lifting and closing reduce operator fatigue and minimize the risk of accidental scalding.
7. Automatic Chemical & Oil Dispensing (Optional)
   Precisely meters lubricants and rust inhibitors for extended instrument life.
8. Fully Automated Water Management

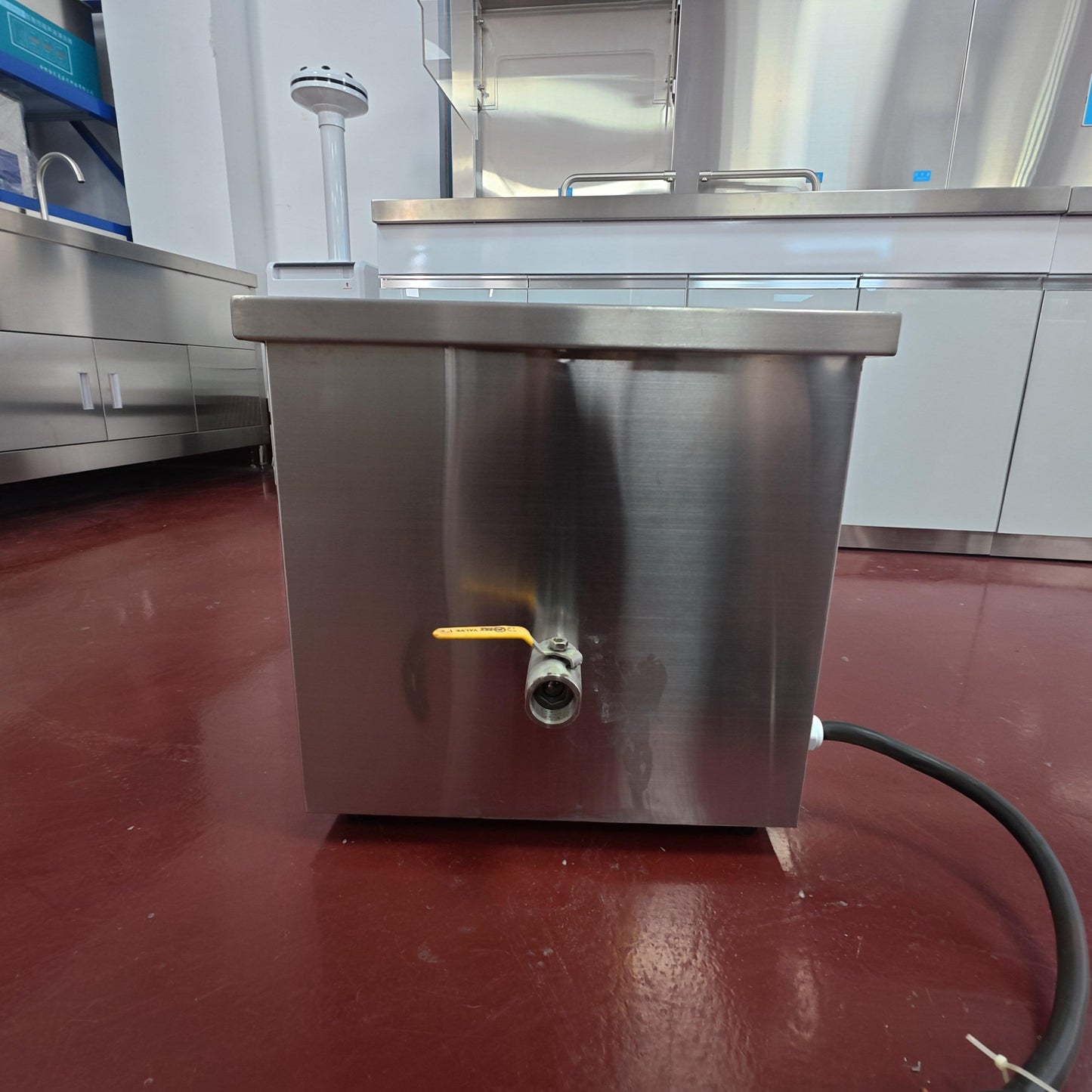

   Supports auto water inlet, drainage, and water level control to ensure smooth operation.
9. Infrared Safety System (Lifting Models)
   Ensures operator safety with sensor-based door movement and thermal protection.
10. Optional Built-in Printer
    Easily print sterilization records for traceability and compliance.

---

3️⃣ Application Scenarios

🧪 Laboratory & Small Clinic Use
Compact and space-saving, ideal for small- to mid-sized clinics, outpatient departments, dental practices, and laboratory reprocessing units.

🩺 Instrument Types
Perfect for scalpels, tweezers, biopsy forceps, dressing bowls, and stainless steel trays requiring routine boiling disinfection and rust prevention.

🏥 Application Environments

• Outpatient Surgery Centers
• Private Dental Clinics
• Laboratory Disinfection Stations
• Mobile Medical Units

🧼 Typical Use Case
After ultrasonic cleaning, instruments are transferred to the desktop boiling disinfector for high-temperature A0-compliant disinfection at 93°C.

📦 Why Desktop Type
✔️ Small footprint
✔️ Manual control with precise disinfection
✔️ Ideal for limited-space reprocessing areas

---

4️⃣Why Choose This Product & SADA Medical

🔧 From the Product Perspective:

• Desktop footprint, yet high efficiency
• Smart programmable logic with real-time performance display
• Automatic rust-proofing and lubrication to protect instrument lifespan

🏢 From the Brand – SADA Medical:

• Over 10 years of experience in medical disinfection and sterilization solutions
• Supports customized configurations to meet your facility’s needs
• Certified with CE and ISO standards
• Provides responsive international service and post-sales technical support
• Proven success in global hospital projects, including Europe, Central Asia, and the Middle East

---

5️⃣ Technical Specifications

Model	Boiling tank inner dimensions	Capacity(L)	Heating power	Temperature adjust	Type
JK-DYJ300	300*240*150	13L	4	0-99 ºC	Desktops
JK-DYJ500	500*300*150	22.5L	4.5	0-99 ºC	Desktops
JK-DYJ550	500*300*200	30L	4.5	0-99 ºC	Desktops
JK-DYJ600	600*200*288	35L	6	0-99 ºC	Vertical
JK-DYJ1000	600*300*288	52L	10	0-99 ºC	Vertical
JK-DYJ1200	600*400*288	69L	12	0-99 ºC	Vertical
JK-DYJ1500	700*400*288	86L	13	0-99 ºC	Vertical
JK-DYJ1800	700*500*288	103L	14	0-99 ºC	Vertical
JK-DYJ3600	1200*600*288	207L	20	0-99 ºC	Vertical
JK-DYJ96	600*400*400	96L	13	0-99 ºC	Lifting
JK-DYJ120	600*500*400	120L	14	0-99 ºC	Lifting
JK-DYJ144	600*600*400	144L	15	0-99 ºC	Lifting
JK-DYJ168	700*600*400	168L	16	0-99 ºC	Lifting

Video showing the appearance and internal structure of the product

Relevant certificates of the product

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download
