Laboratory Equipment Radiology Device Digital X-ray Radiography Imaging System

Laboratory Equipment Radiology Device Digital X-ray Radiography Imaging System

Product Description

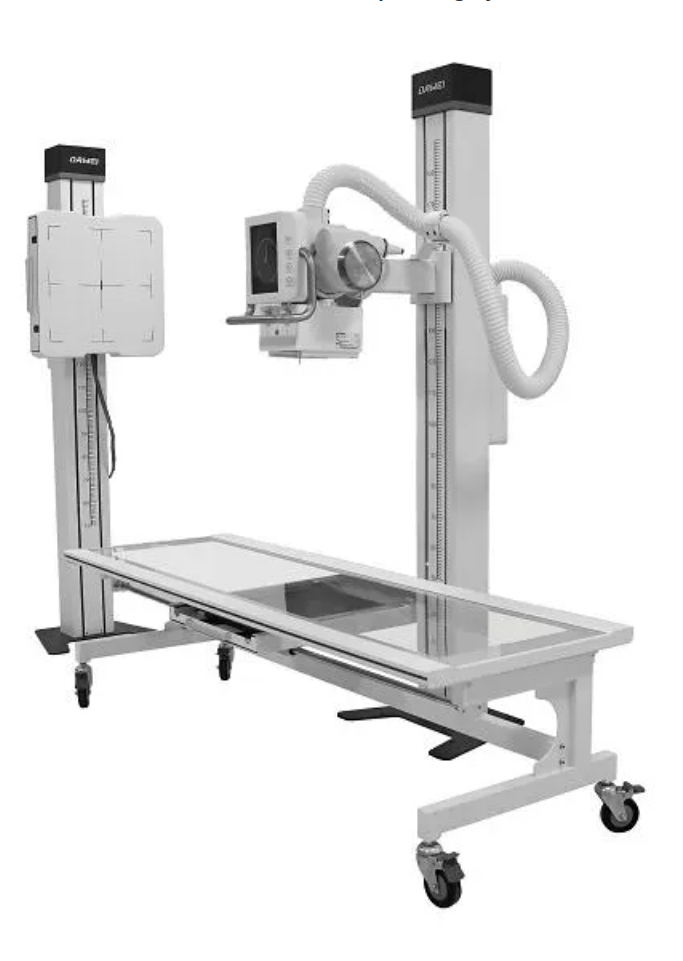

Digital X-ray Radiography System(DR)

Accurate radiation dose output, care for the radiation  safety of patients.

ltra-wide range of millisecond-level control, with three exposure modes of kV-mA, kV-mAs, and kV-mA-ms.

Fault self diagnosis, accurate positioning error, convenient maintenance, modular design.

Industry leading automatic tube calibration function, perfect control tube current accuracy.
Specifications:

Item Parameters
General parameter
Output Power 50kW
Input Voltage 220VAC,±10%,50Hz
Inverter Frequency 25kHz,±10%
Exposure parameter
kV range 40 KV~150KV
mA range 10 mA~630 mA
ms range 1ms~6300 ms
mAs range 0.1mAs~200mAs
Other parameters
Tech mode kV-mA(AEC);kV-mAs;kV-mA-ms
APR num 2000
AEC(Optional) AEC Ionization chamber power supply:+/-15V
Minimum exposure time:5ms
Auxiliary power supply +24V DC 2A;24V AC 8A
Communication Interface RS-232


SADA MEDICAL Quality Standards:

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:

Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, dry ovens, consumables, we have exported to all over the world with affordable prices.

If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
