JK-XD-1 Automatic Endoscope Washer Disinfector | Single Tank | SADA Medical

JK-XD-1 Automatic Endoscope Washer Disinfector | Single Tank | SADA Medical

1️⃣ Product Introduction

    The JK-XD-1 Automatic Endoscope Washer Disinfector is a single-tank system engineered for fast, effective, and traceable endoscope cleaning and disinfection. With intelligent PLC control, real-time leak detection, and a complete traceability system, it offers healthcare professionals an all-in-one automated solution to enhance safety and reduce manual labor.


2️⃣ Product Features & Benefits

  • Hands-Free Operation
    Kick-to-open tempered glass door avoids direct contact and prevents cross-contamination.
  • Efficient 10-Minute Disinfection Cycle
    Rapid full disinfection with alkaline glutaraldehyde or o-phthalaldehyde.
  • Full-Coverage Internal Channel Cleaning
    Vortex circulation, immersion, high-pressure perfusion ensure 360° cleaning.
  • Quick Plug Connection System
    Seamless transition from manual to machine disinfection with imported connectors.
  • Advanced Leak Detection System
    Real-time continuous pressure monitoring (0.015–0.035Mpa) prevents equipment damage.
  • Full Process Traceability
    Records patient, scope, and operator data with optional printout or hospital system integration.
  • Self-Disinfection with Patent
    Thorough reverse flushing of all liquid pathways and high-pressure spray of tank body.

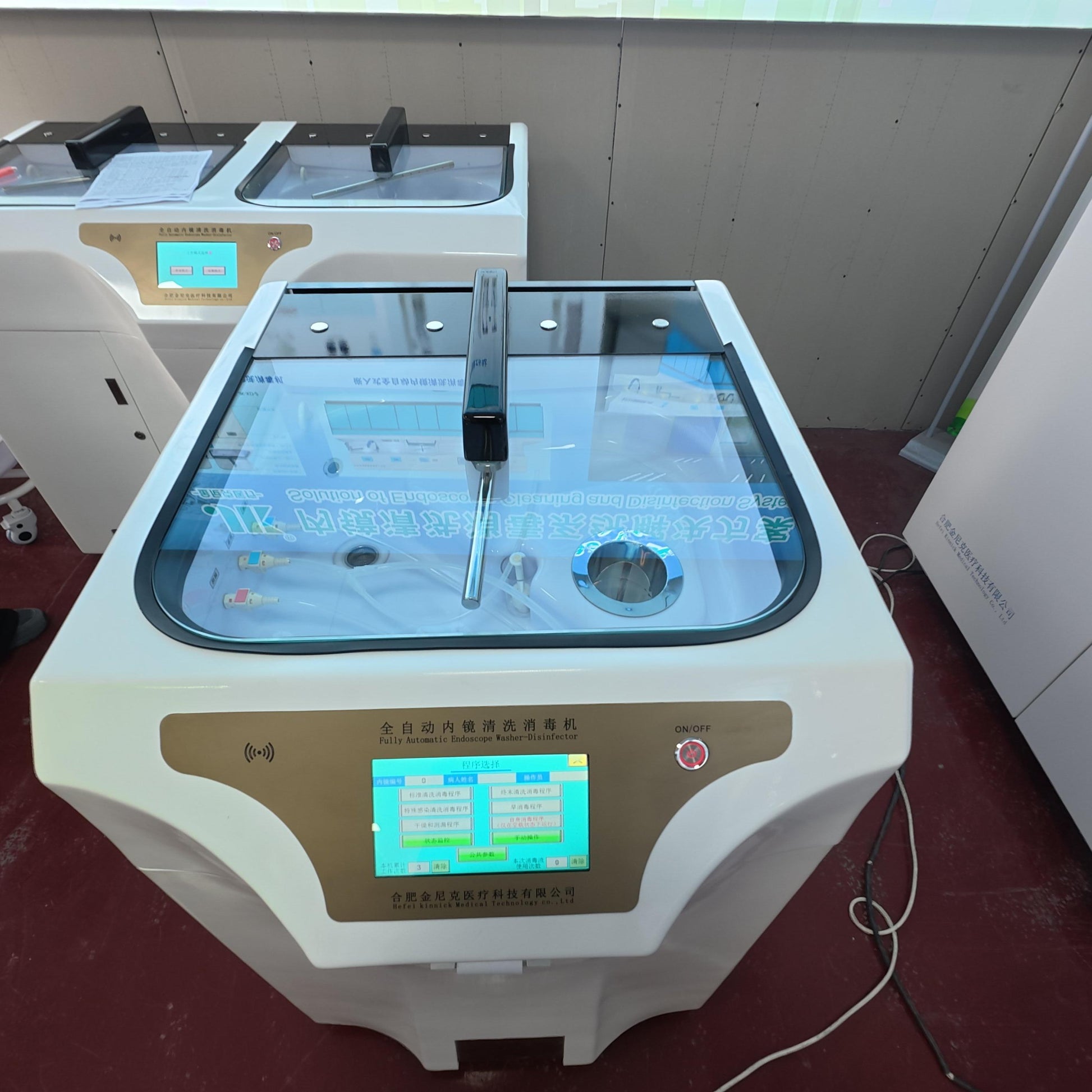

  • 7-Inch PLC Touchscreen
    Choose from 6 preset modes: standard, infection, drying, terminal, early, and self-disinfection.
  • Automated Additive Management
    Precise control of disinfectant, enzyme, alcohol dosage and draining.
  • Endoscope-Friendly Design
    Spacious mirror slot protects the fiber optic system and extends equipment life.

3️⃣ Application Scenarios

  • 🏥 Hospitals & Endoscopy Units
    Ideal for central sterile supply departments (CSSD), gastroenterology, urology, and respiratory wards.
  • 👩⚕️ Outpatient Clinics & Day Surgery Centers
    Streamlines endoscope reprocessing while ensuring compliance.
  • 🦷 ENT and Dental Clinics
    Safe and efficient solution for high-throughput endoscope disinfection needs.
  • 🔬 Medical Labs & Research Centers
    Maintains instrument integrity and hygiene for scientific accuracy.

4️⃣Why Choose This Product & SADA Medical

🔧 From the Product Perspective:

  • Compact single-tank design, ideal for limited space
  • Full automation reduces staff workload and human error
  • Traceable, validated process for enhanced infection control compliance
  • Economical choice for medium-sized facilities

🏢 From the Brand – SADA Medical:

  • Over 10 years of experience in medical disinfection and sterilization solutions
  • Supports customized configurations to meet your facility’s needs
  • Certified with CE and ISO standards
  • Provides responsive international service and post-sales technical support
  • Proven success in global hospital projects, including Europe, Central Asia, and the Middle East

5️⃣ Technical Specifications

Model JK-XD-1

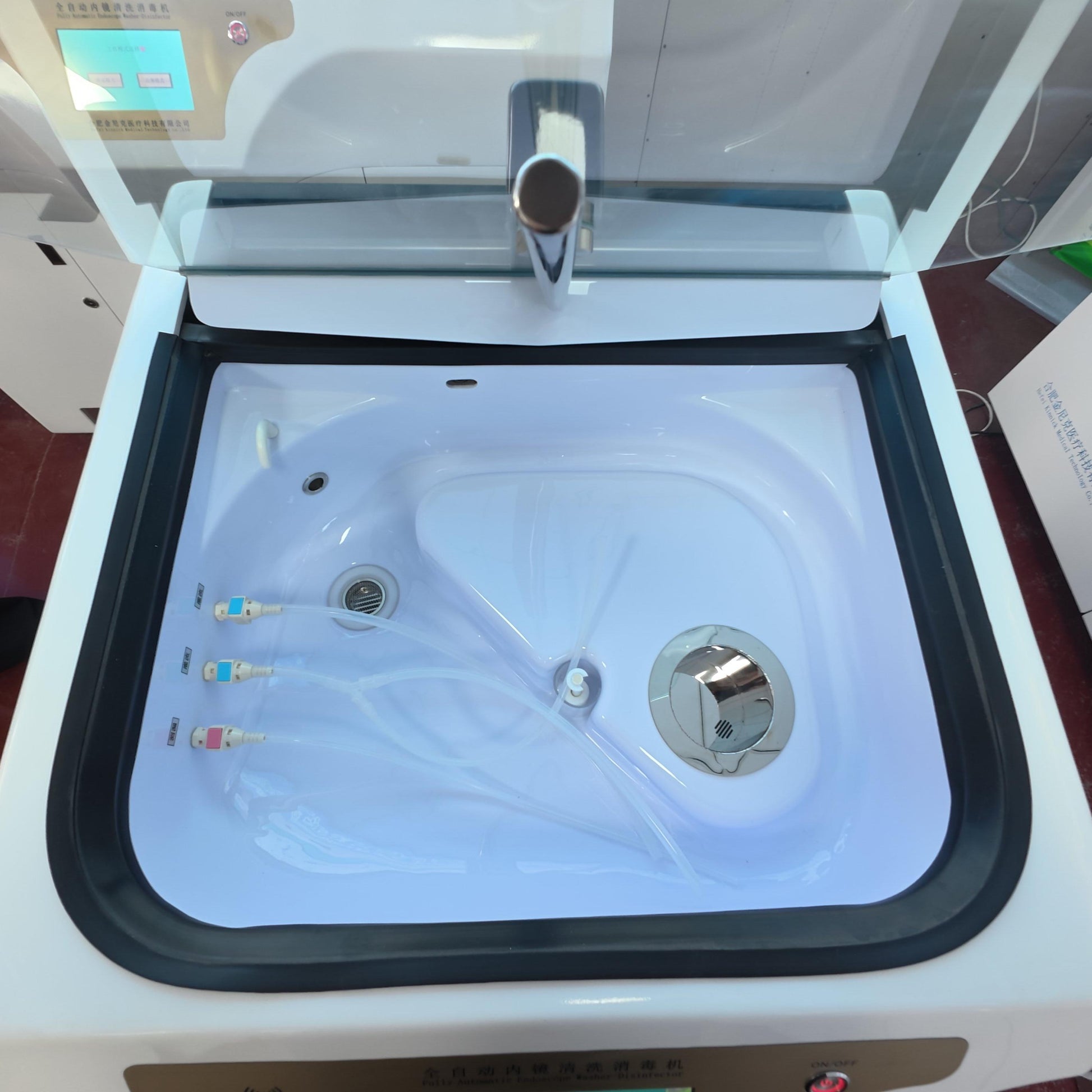

Tank Design Single tank
Control PLC + 7" Touchscreen
Disinfection Time ≤10 min (alkaline glutaraldehyde / OPA)
Leak Detection 0.015–0.035Mpa, real-time monitoring
Modes 6 Preset Cleaning Modes
Additive Management Automatic (enzyme, alcohol, disinfectant)
Self-Disinfection Yes (patented)
Connectivity HIS compatible
Traceability Patient, scope, operator, printable report

Relevant certificates of the product

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download

Ready to upgrade your endoscope disinfection process?
    Contact our expert team today to get your custom quote, technical details, or a free consultation.
🔹 Fast global shipping
🔹 Customizable for your facility
🔹 Full regulatory compliance

📞 Contact us by Below Contact Form or Email kevin@sadamedical.com
💬 Inquire now and take the first step toward smarter, safer disinfection.
