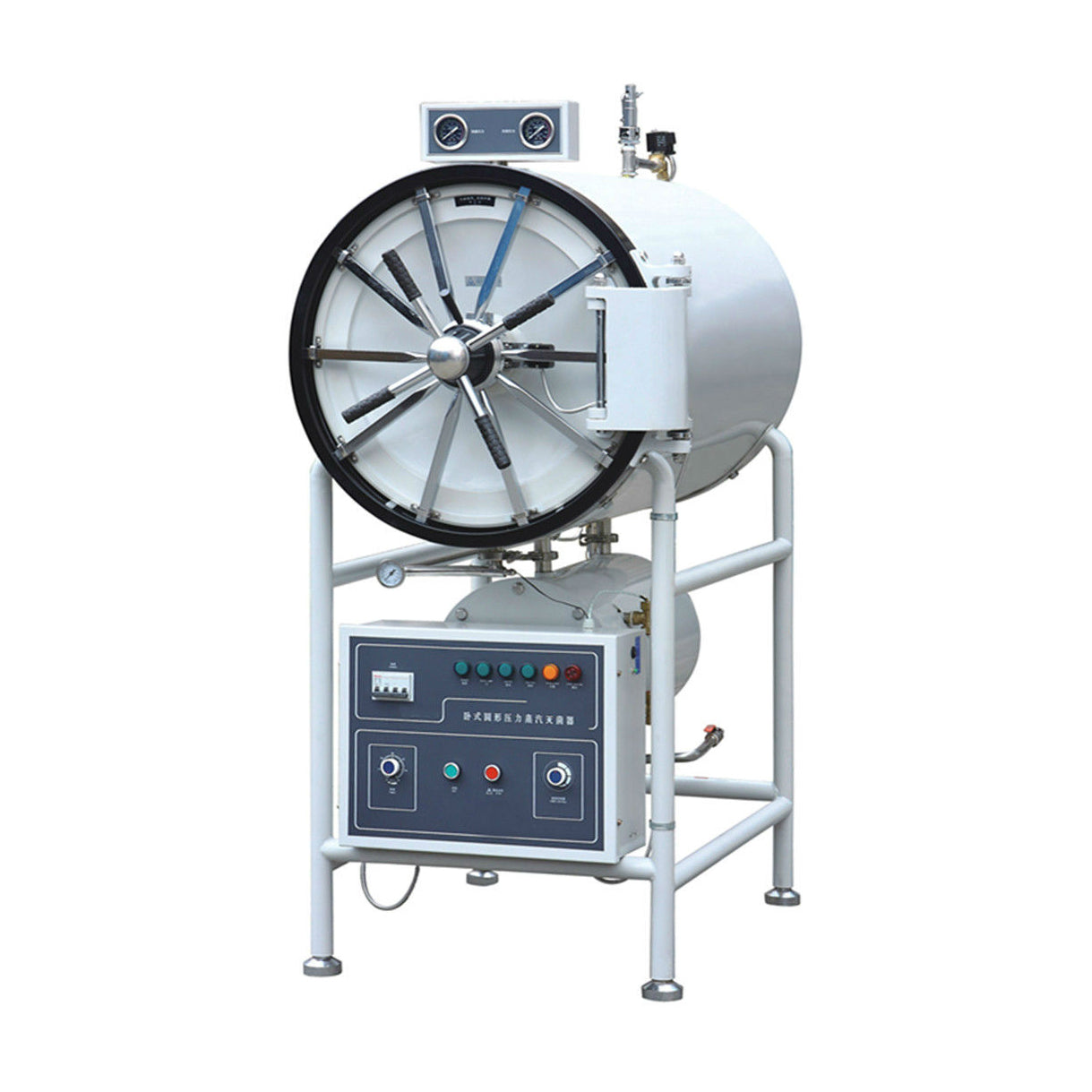

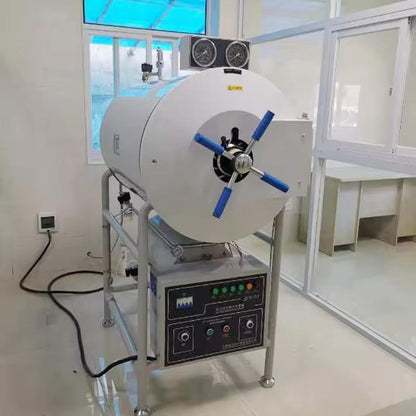

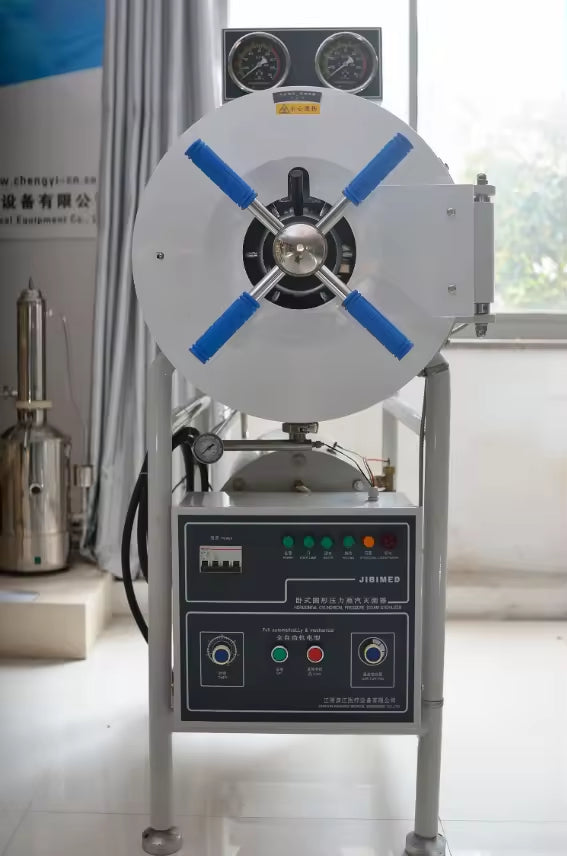

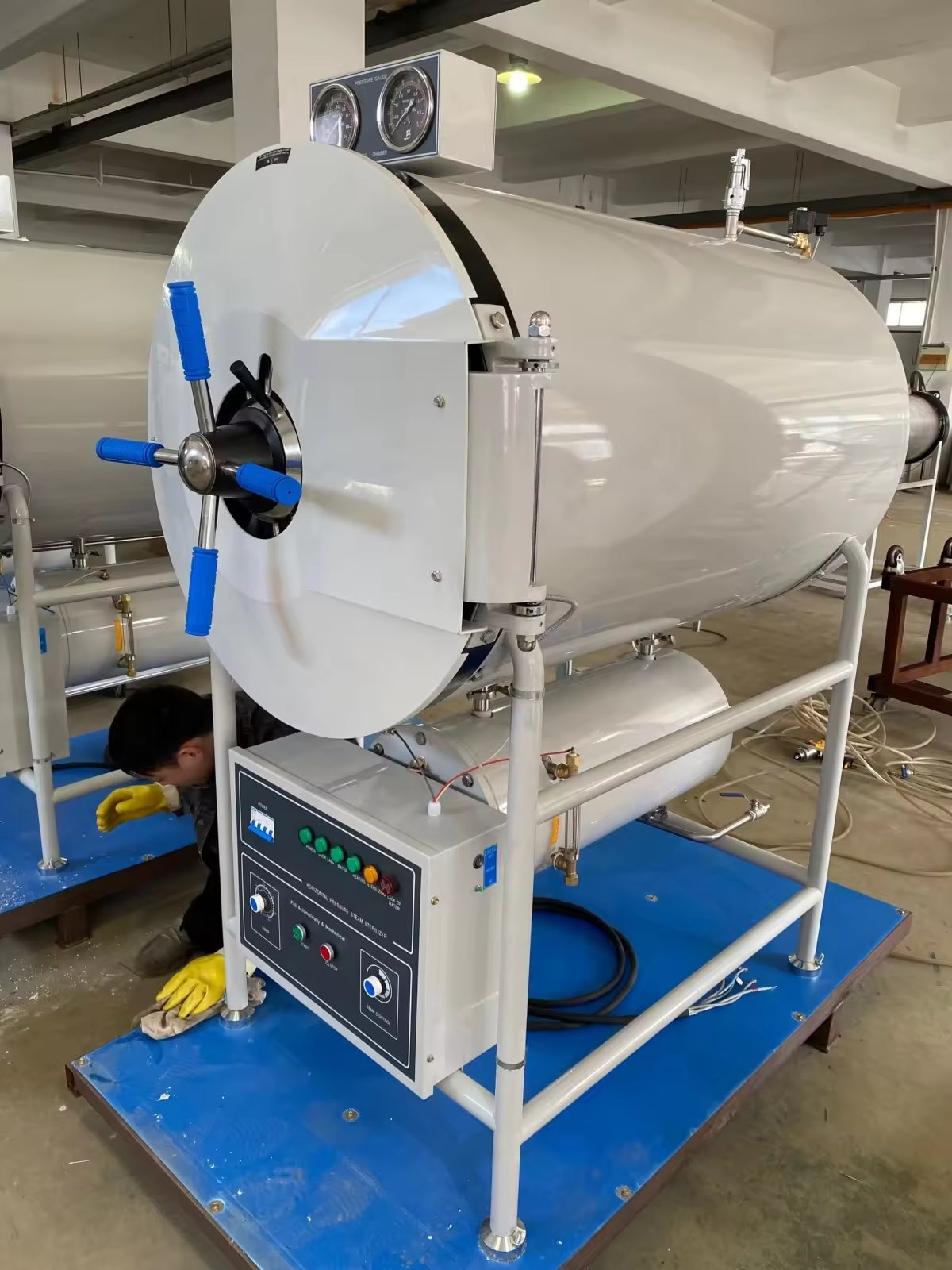

A-BC Series Horizontal Autoclave – 150L / 200L / 280L / 400L / 500L Hospital Waste Material Sterilizer with Drying Function
A-BC Series Horizontal Autoclave – 150L / 200L / 280L / 400L / 500L Hospital Waste Material Sterilizer with Drying Function

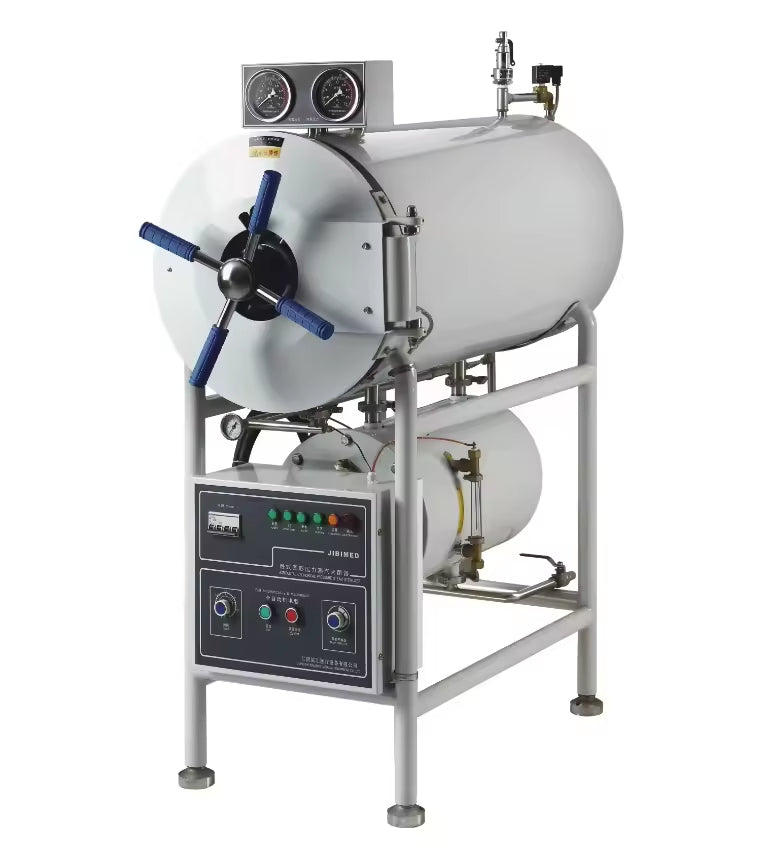

For hospitals, CSSD, waste treatment centers, and laboratories that require a high‑capacity, reliable sterilizer for medical waste and reusable instruments, the SADA Medical HA-BC series big horizontal autoclave delivers robust performance. Available in 150L, 200L, 280L, 400L, and 500L chamber capacities, this horizontal pressure steam sterilizer is designed to handle hospital waste, surgical instruments, laboratory glassware, culture media, rubber materials, gowns, dressings, and gloves. The fully automatic control system manages the sterilization process with drying function included – ideal for medical dressing drying after sterilization. Built with a stainless steel chamber, the HA-BC features over‑temperature and over‑pressure auto‑protection, a safety interlock door (cannot open until chamber pressure drops below 0.027MPa), an automatic safety valve (releases at >0.24MPa), and low water cut‑off with alarm. Whether you need to sterilize infectious waste before disposal or process large volumes of surgical packs, the HA‑BC horizontal autoclave offers safety, efficiency, and compliance.
Product Video – HA-BC Horizontal Waste Sterilizer in Action
⚙️ Why Hospitals & Waste Management Choose the HA‑BC Horizontal Autoclave

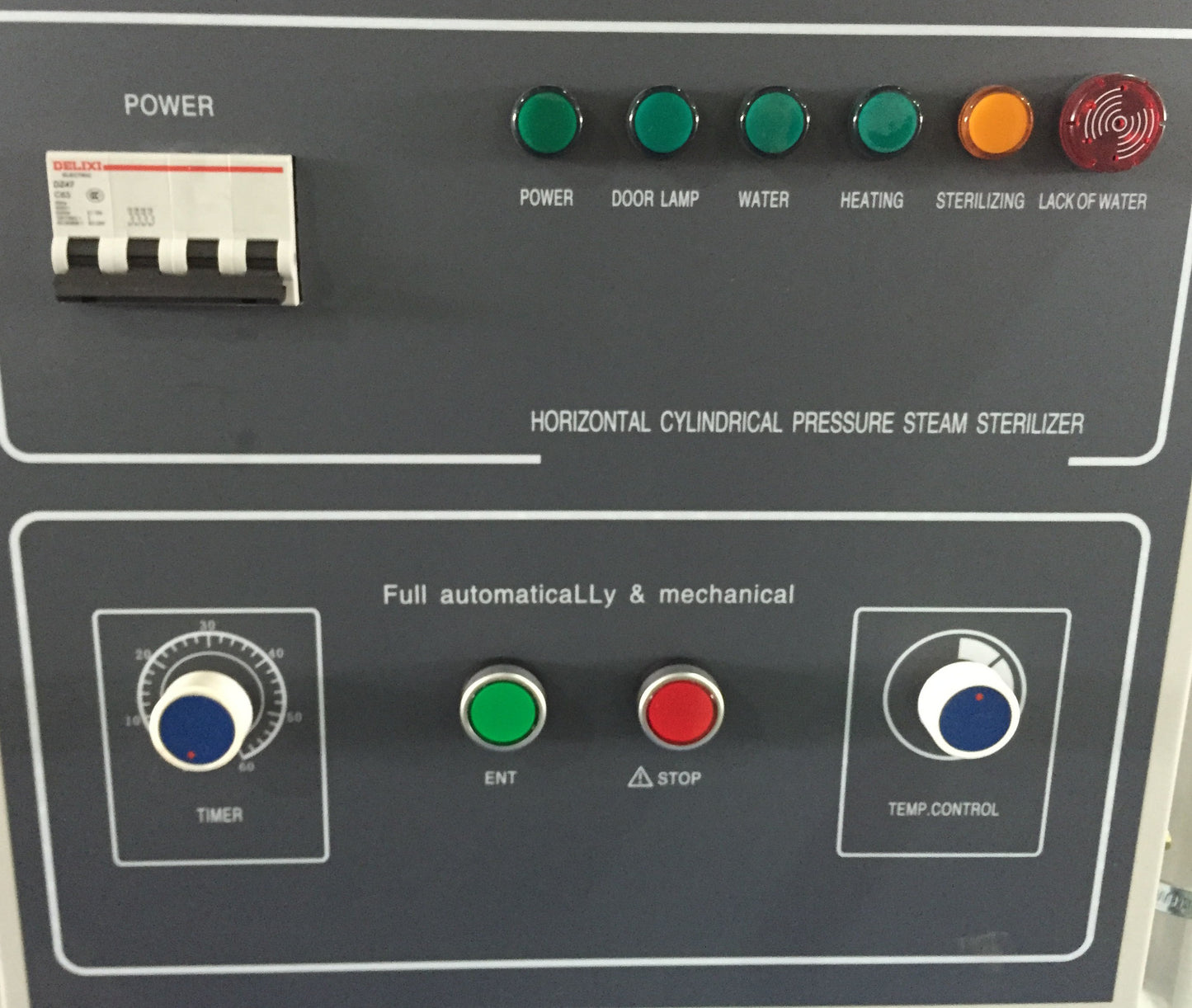

Microprocessor‑controlled sterilization process – easy to operate, no manual intervention needed.
Integrated drying cycle (0‑60 min) – ideal for medical dressings, textiles, and dry waste. No separate drying cabinet required.
Over‑temperature & over‑pressure auto‑protection, safety valve (opens at >0.24MPa), low water cut‑off with alarm.

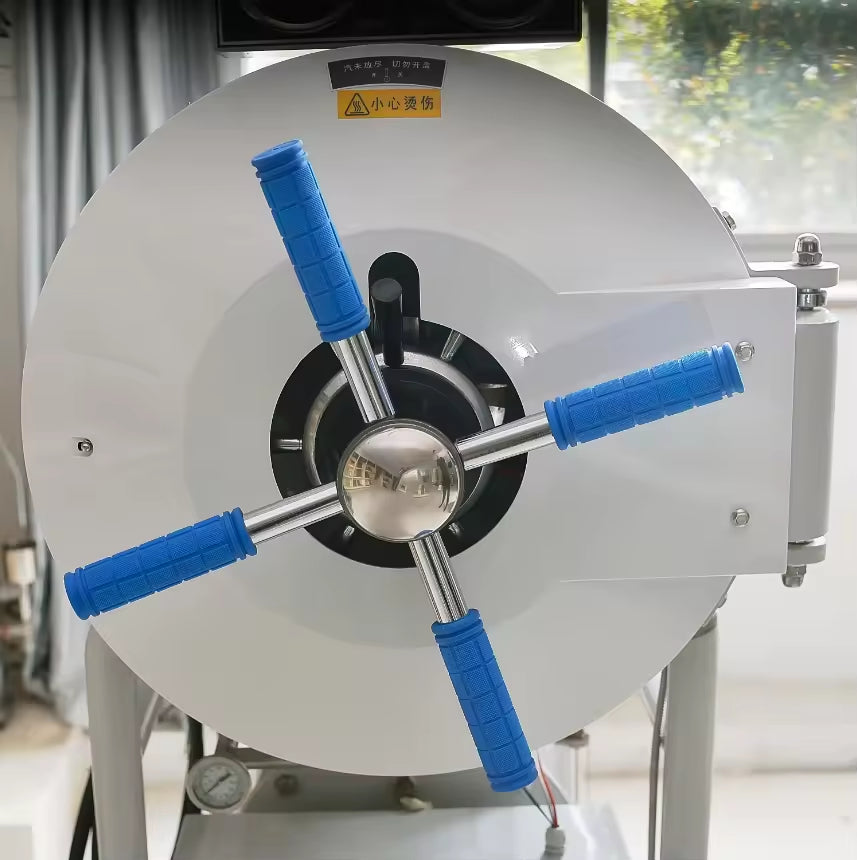

Door cannot open until chamber pressure drops below 0.027MPa. Unit cannot start if door is not properly closed.
Adjustable 40°C – 134°C, sterilization time 0‑60 min – versatile for different loads (waste, instruments, liquids).
Five models from 150L to 500L – match your facility’s waste volume or instrument throughput.
Corrosion‑resistant, easy to clean, and built for long‑term daily use in demanding environments.
📋 Technical Specifications – HA‑BC Series (150L – 500L)
Engineered for high‑volume waste and instrument sterilization. All models feature a stainless steel chamber, automatic control, and built‑in drying. Below are the complete specifications for all five capacities.
| Model | HA‑BC150 | HA‑BC200 | HA‑BC280 | HA‑BC400 | HA‑BC500 |
|---|---|---|---|---|---|
| Volume | 150L | 200L | 280L | 400L | 500L |
| Chamber Size (mm) | Ф440×1000 | Ф515×1000 | Ф600×1000 | Ф700×1100 | Ф700×1300 |
| Working Pressure | 0.22 MPa | ||||
| Working Temperature | 134°C | ||||
| Temperature Range | 40°C – 134°C (adjustable) | ||||
| Sterilization Time | 0 – 60 minutes | ||||
| Drying Time | 0 – 60 minutes | ||||
| Heat Average | ≤ ±2°C | ||||
| Power (kW) | 9kW | 9kW | 12kW | 18kW | 18kW |
| Power Supply | AC 380V / 50Hz (three‑phase) | ||||
| Overall Dimensions (mm) | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
| Transport Dim. (mm) | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
| Gross / Net Weight (kg) | 320/240 | 350/260 | 465/365 | 530/420 | 580/470 |
🌟 Designed for Medical Waste & High‑Volume Sterilization: The HA-BC horizontal autoclave is ideal for treating infectious hospital waste before disposal, as well as for sterilizing large instrument sets, textiles, and laboratory waste. The combination of 134°C steam sterilization and built‑in drying ensures waste is rendered safe and dry, ready for further processing or landfill.
🌟 Safety First: The door interlock system (cannot open above 0.027MPa) and over‑pressure safety valve (automatic release at >0.24MPa) provide operator protection. Low water cut‑off prevents dry running.
🌟 What's included: Horizontal autoclave unit, stainless steel chamber, drying system, automatic control panel, power cord, user manual. Custom tray configurations available upon request.
🏥 Primary Applications
- Hospital waste treatment – Infectious medical waste, sharps containers (after shredding)
- CSSD (Central Sterile Supply Department) – High‑volume surgical instruments, dressing packs, gowns
- Laboratories – Biohazardous waste, glassware, culture media, animal bedding
- Pharmaceutical & biotech facilities – Production waste, cleanroom garments
- Veterinary clinics & research centers – Animal waste, surgical kits
- Funeral homes & prosthetics fabrication – Specialized load sterilization
✅ Why Choose the HA‑BC for Waste Sterilization?
- Large capacity – Up to 500L, reduces number of cycles per day
- Fully automatic – Minimal staff training, consistent results
- Drying function – Waste comes out dry, easier to handle
- Safety interlock door – No accidental opening under pressure
- Low water protection – Prevents damage and ensures cycle integrity
- Stainless steel chamber – Long service life, easy to decontaminate
📏 Which capacity fits your facility?
Small hospitals, labs, dental clinics
Chamber: Ф440×1000 or Ф515×1000
Mid‑size hospitals, regional CSSD
Chamber: Ф600×1000
Large hospitals, central waste treatment
Chamber: Ф700×1100 or Ф700×1300
✅ SADA Medical – Quality & Certifications
SADA Medical Co., Ltd. is a professional manufacturer and supplier of horizontal autoclaves, steam sterilizers, low‑temperature plasma sterilizers, and ethylene oxide sterilizers, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The HA-BC series big horizontal autoclave is factory‑tested and ready for demanding daily use. Each unit comes with a 12‑month warranty and 24‑hour technical support.
Why customers trust SADA Medical:
- Factory‑direct pricing – no middleman markup
- OEM/private labeling available for volume orders
- 12‑month warranty + 24/7 technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
- 20‑25 working days production lead time
📄 Download the full catalog, user manual, and validation guide using the blue button below.
📞 Ready to Order the HA‑BC Horizontal Waste Sterilizer?
Contact us for factory pricing, OEM service, and fast worldwide shipping. Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Horizontal steam sterilizers for medical waste and instrument processing.
✔ 5 models from 150L to 500L – match your facility’s volume.
✔ Fully automatic control with built‑in drying – waste and instruments ready for disposal or storage.
✔ Multiple safety features: door interlock, over‑pressure safety valve, low water cut‑off, over‑temp protection.
✔ Stainless steel chamber – durable, corrosion‑resistant.
✔ Wide temperature range (40‑134°C) and sterilization/drying times (0‑60 min).
✔ 12‑month warranty, 24‑hour technical support.
⚠️ Power requirement: AC 380V 50Hz three‑phase – please confirm your facility’s power supply.
