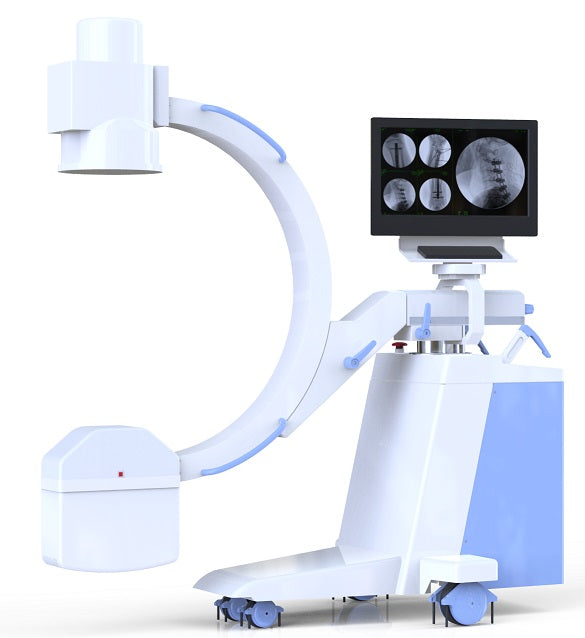

C-ARM High Frequency Mobile Surgical X-ray System SD-AR-M20E

C-ARM High Frequency Mobile Surgical X-ray System SD-AR-M20E

Usages:

Orthopedics: osteopathy, displaces, nailing.

Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.

Features
  1. New integrated design, compact appearance, convenient operation.
  2. Unique hand-held remote controller, more convenient operation
  3. Graphical colorfully LCD touch screen console interface, convenient operation, fashionable design.
  4. High-quality combined HF-HV X-ray generator, greatly reducing the X-ray irradiation.
  5. Toshiba image intensifier is employed, stable and reliable in quality, high-definition image and display system.
  6. With the perspective KV, MA auto8matic tracking feature, the image brightness and definition are automatically set at optimal function.
  7. Integrated digital acquisition and processing system make the operation more convenient.

Configuration

1, New (with electric auxiliary support arm) C-arm main rack    1 set

2, High-frequency high-voltage X-ray generator and high-frequency inverter power supply

(5KW,40KHZ,120KV)                                     1 set

3, Toshiba 9-inch image intensifier                           1 set

4, Megapixel ultra-low-light digital cameras                   1 set

5, Integrated digital acquisition and processing system         1 set

6, High-thickness grids                                      1 set

7, Electric adjustable collimator                              1 set

8, 24-inch LCD monitor, resolution:1920*1080                 1 set

9, Unique hand-held remote controller                        1 set



Technical Specifications

PARAMETER

SPECIFICATION

Fluoroscopic

Capacity

Max rated capacity

Tube Current 4mA,

Tube Voltage 120kV

Automatic Fluoroscopy

Tube Voltage:40kV~120kV Adjust Automatically

Tube Current

0.3mA~4mA set manually

Manual Fluoroscopy

Continuous Tube Voltage:40kV~120kV

Continuous Tube Current

 0.3mA~4mA

Pulse Fluoroscopy

Continuous Tube Voltage 40kV~120kV

Continuous Tube Current

0.3mA~30mA

Photography Capacity

Max rated capacity

5 KW



Tube Voltage and Current Combination



40kV~49kV 1 ~180 mAs

50kV~59kV 1 ~140 mAs

60kV~69kV 1 ~125 mAs

70kV~79kV 1 ~110 mAs

80kV~89kV 1 ~100 mAs

90kV~99kV 1 ~80 mAs

100kV~109kV 1 ~63 mAs

110kV~120kV 1 ~50 mAs

Plateholder Size

200mm×250mm(8″×10″) or

250mm×300m(10″×12″)

X-ray Tube

X-ray Tube Special for High Frequency

Fixed anode Dual focus

large focus: 1.5, small focus: 0.3 (Advantage)

Inverter Frequency:

40KHz

Thermal capacity:

35KJ (47KHU)

Video System

Image Intensifier

Image Intensifier made by TOSHIBA (9″,6″,4.5″)

CCD Vidicon

Ultralow light megapixel CCD camera imported from Japan

Monitor

23inch Horizontal 1280 lines and vertical 1024 lines,

Bandwidth :

48MHz, Image/sec : 75

grayscale:  11

Line pairs resolution:  1.2 LP / mm

Integrated digital acquisition and processing system

Registration: registration, medical records, Worklist

Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image

Open silhouette, edge enhancement, recursive noise reduction

Processing; four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement report: save, preview, expert template

Dicom features: Dicom browsing, web service

Structure

Directive wheel

±90°revolution can freely change the moving  direction of the unit

Ascending & Descending Range of Pillar

≥400mm

C-arm

Forward and Backward Movement: 200mm

Revolution around Horizontal Axis

±180°

Revolution around Vertical Axis

±15°( Advantage), better than others’  ±12.5°, easier to take special positions radiography)

Slip on orbit

120°(+90°~ 30°)

Frame monitor rotation

 300 °
