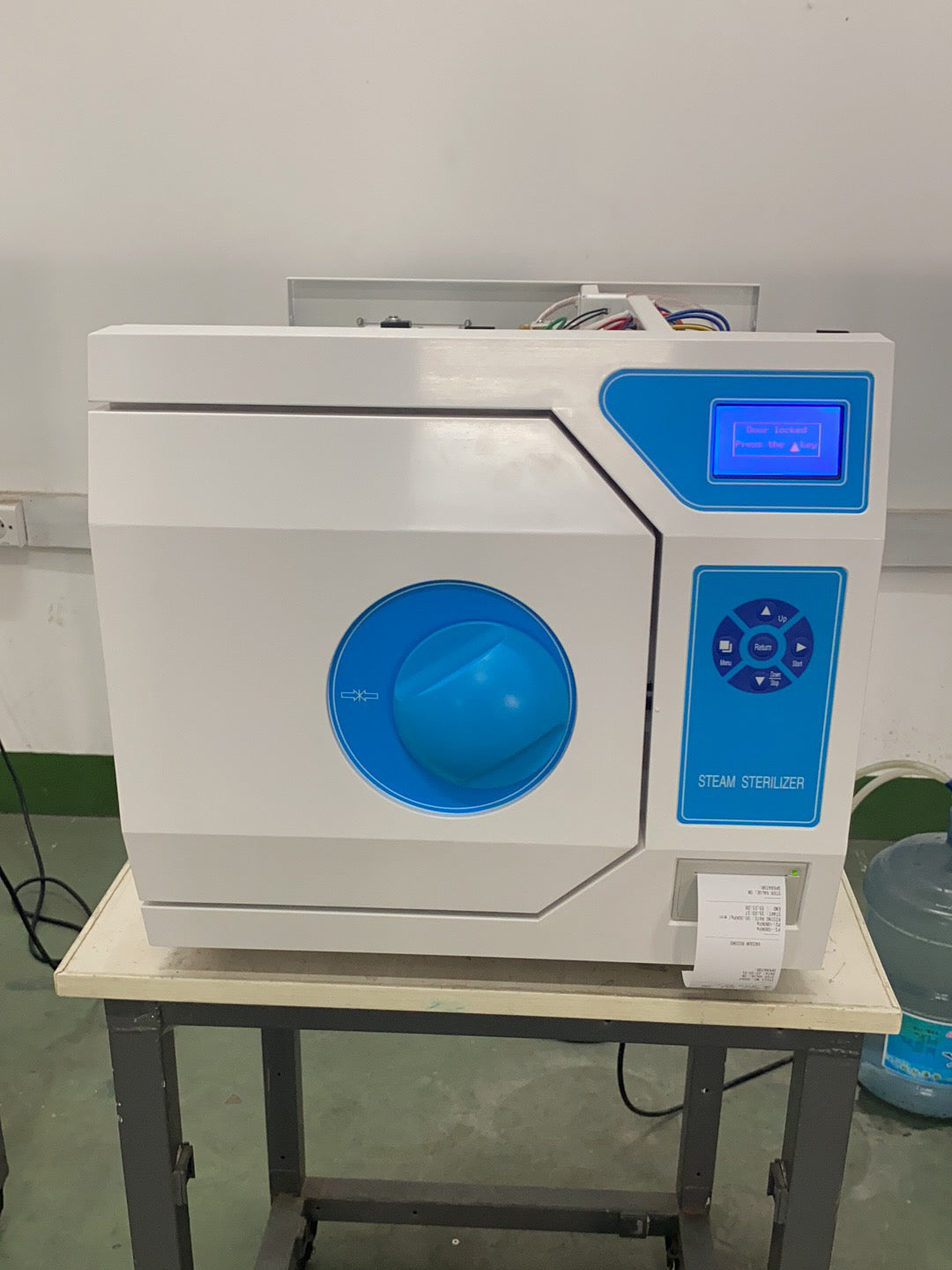

SD-GTB Series Table Top Pulsating Vacuum Class B Autoclave – 8L / 12L / 18L / 23L Pre-Vacuum Sterilizer for Dental Clinics & Hospitals
SD-GTB Series Table Top Pulsating Vacuum Class B Autoclave – 8L / 12L / 18L / 23L Pre-Vacuum Sterilizer for Dental Clinics & Hospitals
For dental clinics, hospital operating rooms, endoscopy units, and dialysis centers that require a compact yet powerful Class B table top autoclave, the SADA Medical SD-GTB series pulsating vacuum sterilizer delivers professional-grade sterilization with three pre-vacuum pulses. Available in 8L, 12L, 18L, and 23L capacities, this European Class B standard sterilizer effectively sterilizes wrapped instruments, unwrapped solid instruments, dental handpieces, endoscopes, implantable devices, dressing fabrics, rubber tubes, glassware, and culture media. The LCD display with touch buttons provides intuitive control, while built-in BD test, HELIX test, and vacuum test allow easy performance validation.
Product Video – SD-GTB Class B Table Top Autoclave in Action
Watch the LCD display, pulsating vacuum cycle, and automatic sterilization process.
⚙️ Why Dental & Medical Professionals Choose the SD‑GTB Class B Autoclave
Three times pre-vacuum – sterilizes wrapped instruments, hollow lumens, dental handpieces, and porous loads.
Clear real‑time monitoring of temperature, pressure, and cycle status. Simple, intuitive operation.
Validate steam penetration, hollow instrument sterilization, and chamber integrity – no external test equipment needed.
Easy refill – see water level at a glance. No tools required.
Over‑temperature, over‑pressure, low water level, anti‑dry burning, safety door lock – fully protected.
Automatic cold air discharge before sterilization; automatic steam exhaust after cycle – no manual valves.
Fast saturated steam supply – quick cycle start, no external steam line needed.
Add a printer for real‑time cycle records and USB/U disk for historical data export – full traceability.
📋 Technical Specifications – SD‑GTB Series (8L – 23L)
Engineered for reliable Class B sterilization. Chamber and inner tank are made of high‑quality stainless steel. All models meet European Class B standards with three pre-vacuum pulses. Below are the complete specifications for all four capacities.
| Parameter | SD‑GTB8 | SD‑GTB12 | SD‑GTB18 | SD‑GTB23 |
|---|---|---|---|---|
| Volume | 8L | 12L | 18L | 23L |
| Chamber Size (mm) | Ø170×320 | Ø200×355 | Ø250×370 | Ø250×470 |
| Power (kW) | 1.5 | 1.8 | 2.2 | 2.2 |
| Voltage | AC 110V/220V, 50/60Hz (selectable) | |||
| Rated Working Pressure | 0.22 MPa | |||
| Rated Working Temperature | 134°C | |||
| Outer Dimensions (mm) | 445×580×400 | 445×580×400 | 505×620×450 | 505×710×450 |
| Packing Size (mm) | 650×500×450 | 650×500×450 | 670×560×510 | 760×560×510 |
| Gross Weight (kg) | 45 | 48 | 62 | 65 |
| Net Weight (kg) | 42 | 44 | 53 | 58 |
| Standard | European Class B (3x pre-vacuum) | |||
| Pre-Vacuum Pulses | 3 times | |||
| Display | LCD display with touch buttons | |||
| Built-in Tests | BD test, HELIX test, Vacuum test | |||
| Steam Source | Built-in steam generator | |||
| Water Tank | Open-type top water tank | |||
| Safety Features | Over-temp, over-pressure, low water, anti-dry, safety door lock | |||
| Optional | External/built-in printer, USB, U disk | |||
🌟 Class B Advantage – Three Pre-Vacuum Pulses: The SD-GTB performs three vacuum pulses before steam injection, removing virtually all air from the chamber and load. This ensures complete steam penetration into wrapped instruments, hollow lumens (dental handpieces, suction tubes), porous materials, and implantable devices – meeting the highest international standards for medical sterilization.
🌟 Built-in Validation Tests: BD test (Bowie & Dick) checks steam penetration; HELIX test validates sterilization of hollow instruments; Vacuum test confirms chamber integrity. No external test packs required – run tests directly from the control panel.
🌟 Traceability Options: Choose an external or built-in printer for real‑time cycle records. Add USB with U disk support for historical data export – perfect for compliance and audits.
🌟 What's included: Table top Class B autoclave, stainless steel trays, power cord, user manual. Optional printer and USB available upon request.
🏥 Perfect For
- Dental clinics – Handpieces, burs, forceps, mirrors, implantable instruments
- Hospital operating rooms & supply rooms – Surgical instruments, wrapped packs
- Endoscopy units – Flexible/rigid endoscopes, cameras, light cables
- Ophthalmology clinics – Delicate microsurgical instruments
- Dialysis centers – Reusable components
- Laboratories & research facilities – Glassware, culture media, waste
- Veterinary clinics – Surgical kits and dental instruments
🔬 Built‑In Validation Tests
- BD Test (Bowie & Dick) – Verifies steam penetration and air removal
- HELIX Test – Validates sterilization of hollow instruments and lumens
- Vacuum Test – Checks chamber integrity and vacuum system performance
Run these tests directly from the LCD control panel – no external test equipment required.
📏 Which capacity fits your practice?
Best for: Small dental practices, specialty clinics, low-volume labs
Chamber: Ø170×320 or Ø200×355
Best for: General dental clinics, small hospital departments
Chamber: Ø250×370
Best for: Busy dental practices, group clinics, operating rooms
Chamber: Ø250×470
💡 Note: All SD-GTB models are true European Class B with three pre-vacuum pulses – suitable for wrapped instruments, hollow loads, and implantable devices.
✅ SADA Medical – Quality & Certifications
SADA Medical Co., Ltd. is a professional manufacturer and supplier of steam autoclaves, low‑temperature plasma sterilizers, and ethylene oxide sterilizers, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The SD-GTB series Class B table top autoclave is factory‑tested with cycle validation reports. Each unit comes with a 12‑month warranty and 24‑hour technical support.
Why customers trust SADA Medical:
- Factory‑direct pricing – no middleman markup
- OEM/private labeling available for volume orders
- 12‑month warranty + 24/7 technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
- 10‑15 working days production lead time
📄 Download the full catalog, user manual, and validation guide using the blue button below.
📞 Ready to Order the SD‑GTB Class B Table Top Autoclave?
Contact us for factory pricing, OEM service, and fast worldwide shipping. Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Sterilization equipment for medical, dental, and laboratory use.
✔ European Class B standard with 3x pre‑vacuum – for wrapped instruments, hollow loads, and implantable devices.
✔ Built‑in BD test, HELIX test, and Vacuum test – easy performance validation.
✔ LCD display with touch buttons – simple, intuitive operation.
✔ Optional printer (external or built‑in) and USB with U disk support – full traceability.
✔ 12‑month warranty, 24‑hour technical support.
✔ Universal voltage: AC 110V 60Hz or AC 220V 50Hz – please specify when ordering.
✔ Lead time: 10‑15 working days for production.
