HA-BAV Series Vacuum Horizontal Autoclave – 100L / 150L / 200L / 300L High Pressure Steam Sterilizer with Touch Screen & Printer for Hospital CSSD
HA-BAV Series Vacuum Horizontal Autoclave – 100L / 150L / 200L / 300L High Pressure Steam Sterilizer with Touch Screen & Printer for Hospital CSSD
For hospital CSSD (Central Sterile Supply Department), large surgical centers, and pharmaceutical cleanrooms that demand high-throughput sterilization with complete validation, the SADA Medical HA-BAV series vacuum horizontal autoclave delivers industrial-grade performance. With chamber capacities ranging from 100L to 300L, this high pressure vacuum steam sterilizer features 3+ pulsating vacuum cycles for superior air removal – ensuring steam penetration into wrapped instruments, hollow lumens, porous loads, and internal pipeline instruments. The 7-inch color touch screen with microcomputer control offers 6+ sterilization programs, built-in printer for full cycle documentation, Bowie & Dick test function, and deep drying capability. Built with a circular double-layer chamber (sterilization chamber + jacket) and constructed from high-quality stainless steel, the HA-BAV is the backbone of any modern infection control equipment strategy. Whether you manage a busy CSSD or a pharmaceutical production line, the HA-BAV ensures consistent, validated sterilization results – day after day.

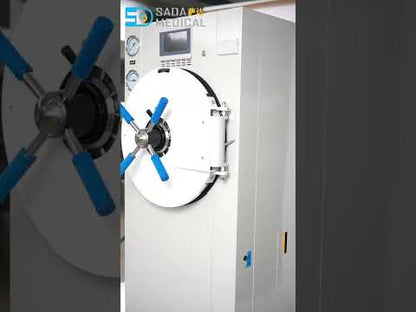

Product Video – HA-BAV Horizontal Vacuum Autoclave in Action
Watch the touch screen operation, pulse vacuum cycle, printer output, and door safety system.
⚙️ Why Large Healthcare Facilities Choose the HA‑BAV Vacuum Autoclave

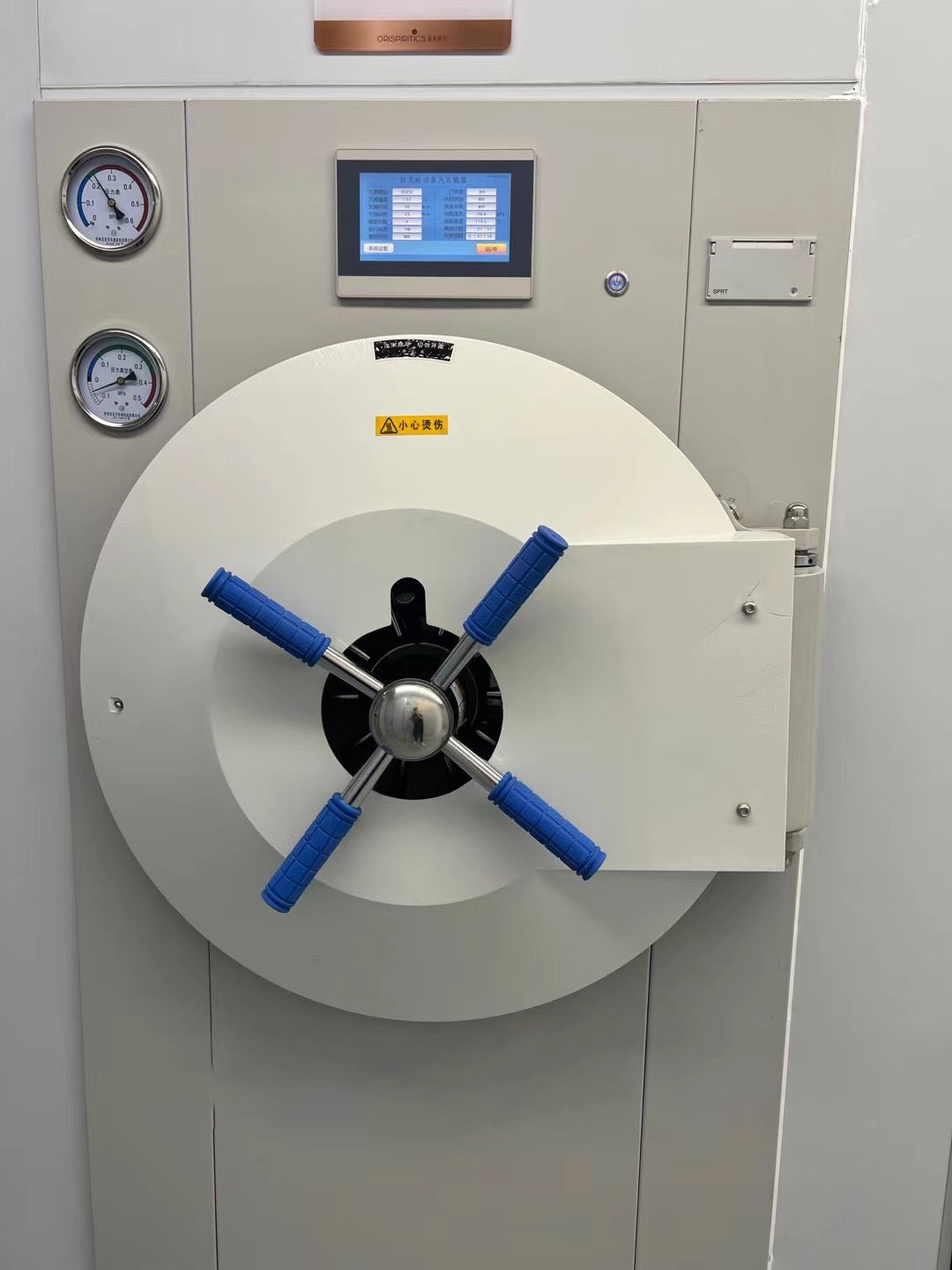

Micro-computer automatically controls the sterilization process – no need for supervision. Displays time, pressure, temperature, and cycle status.
Suitable for packed, unpacked, hollow porous, and internal pipeline instruments – complete air removal every time.

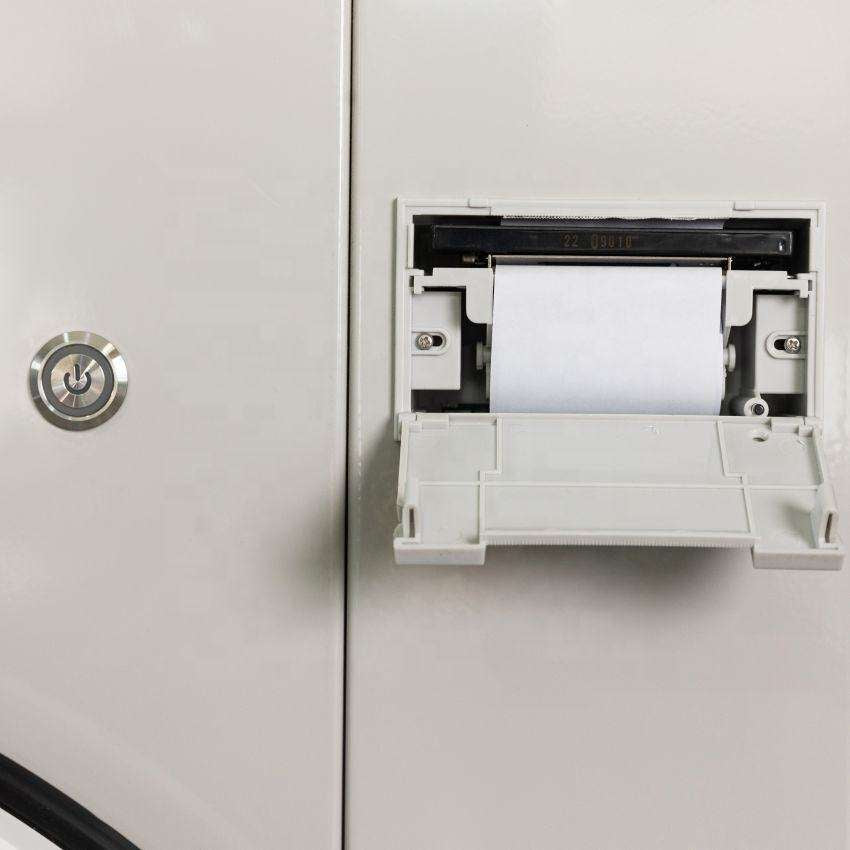

Printer records the entire sterilization process. Bowie & Dick test function verifies steam penetration – full traceability.
Circular double-layer design (sterilization chamber + jacket) with deep drying function – better temperature uniformity.
Choose the program according to the objects being sterilized – fabric, instruments, liquids, plastics, custom cycles.
Over-temperature, over-pressure, low water level, over-current protection + safety interlock door system.

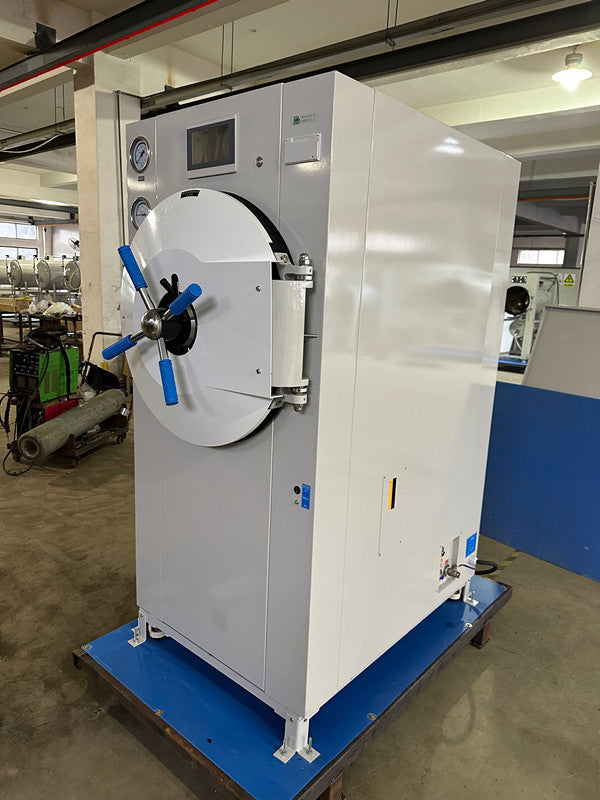

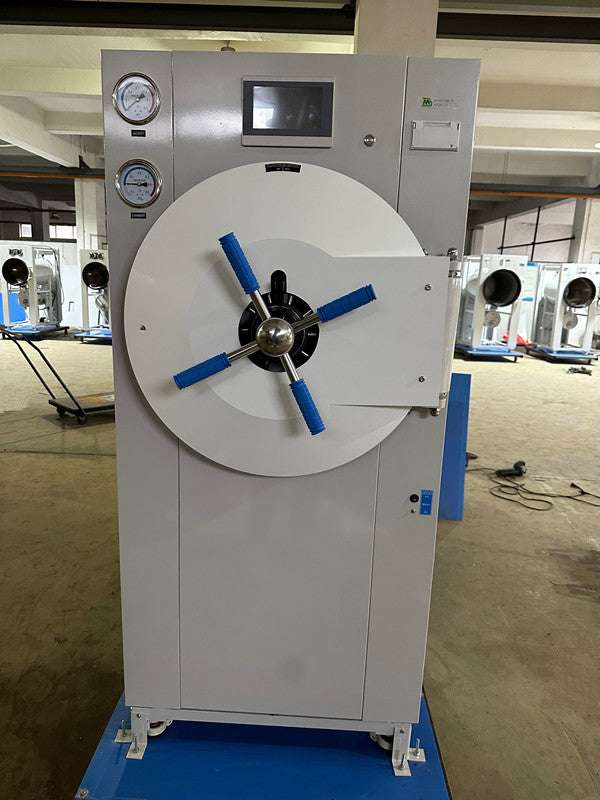

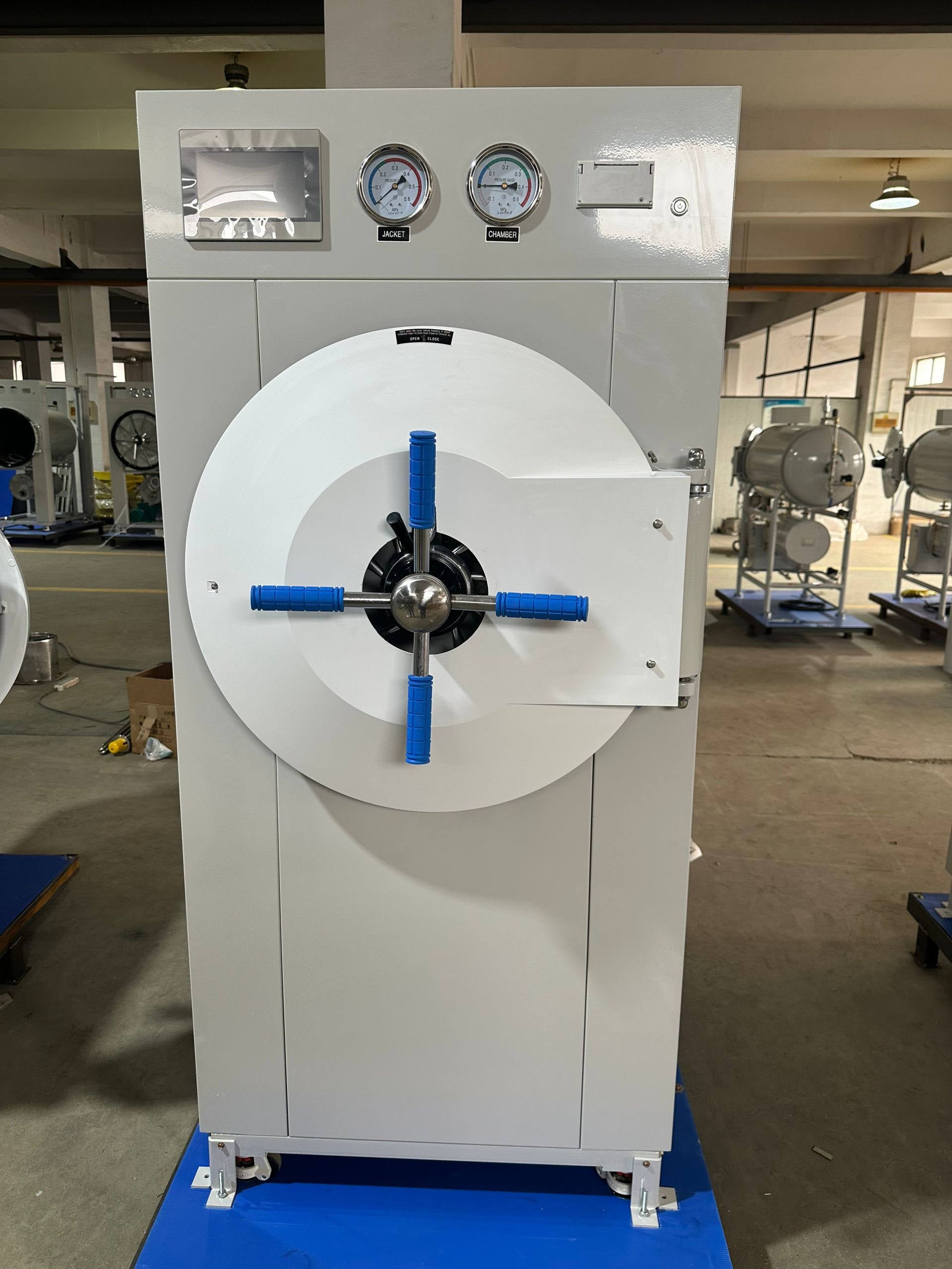

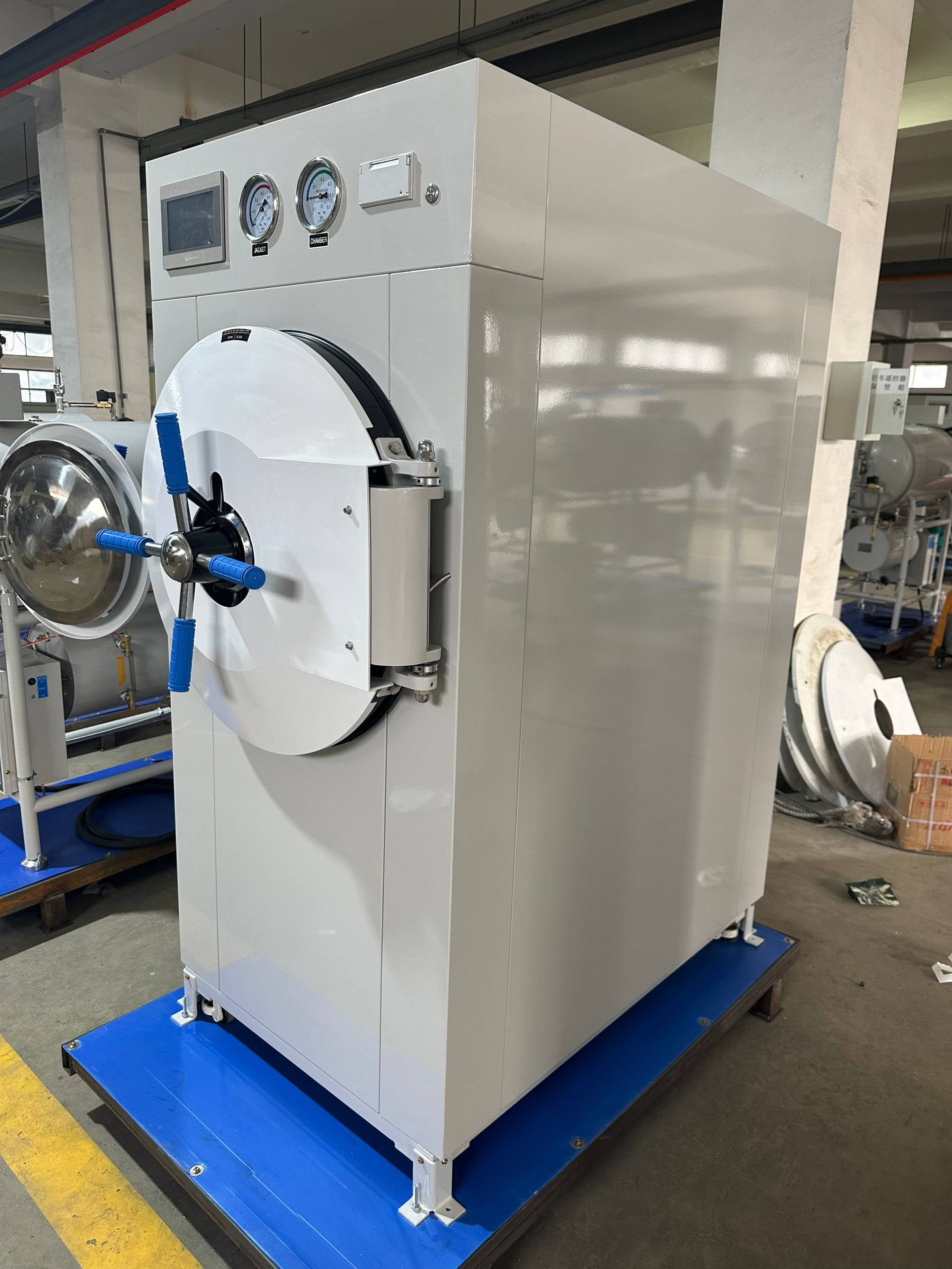

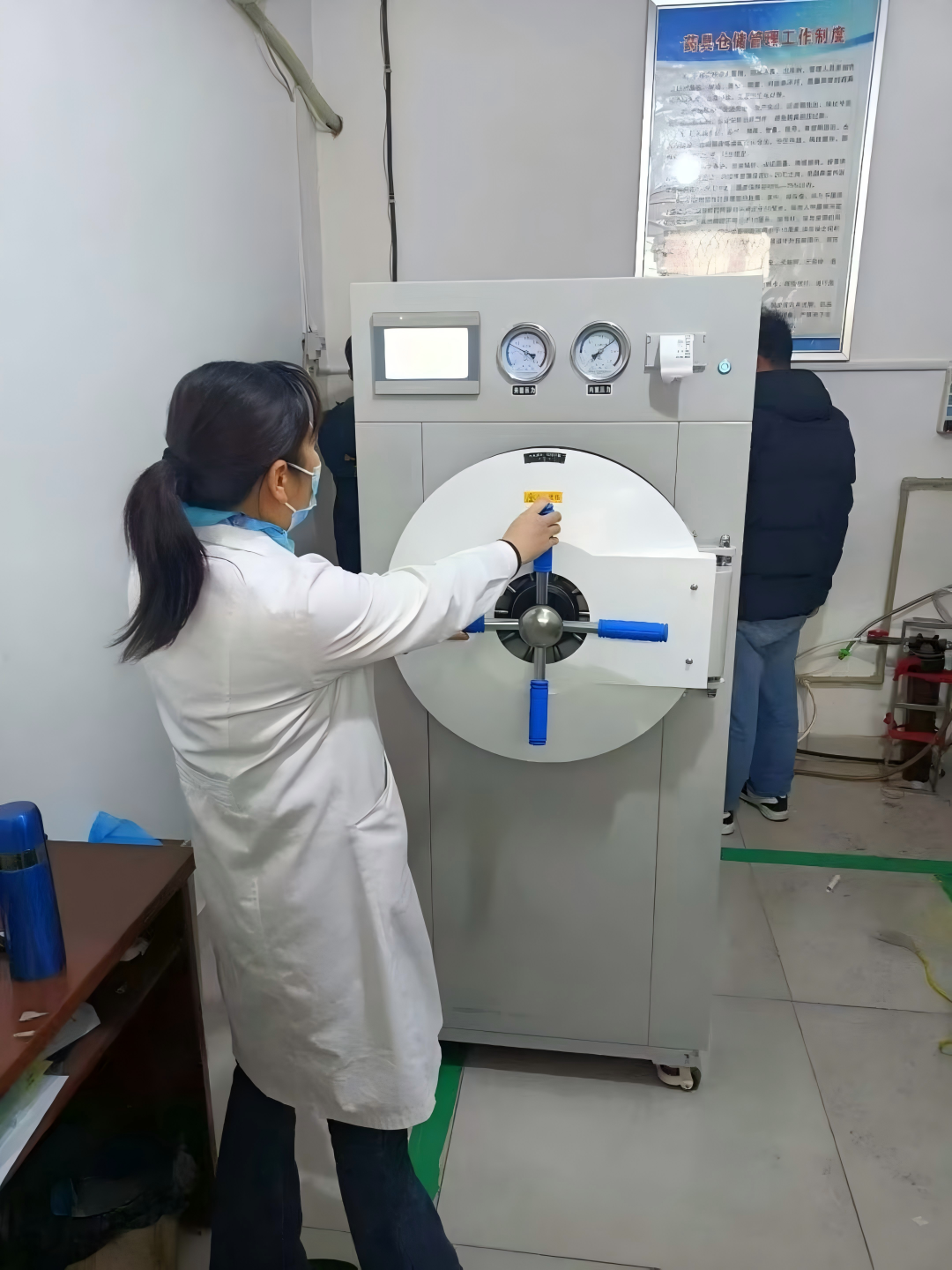

Manual door with radial rod rotary table type, two-stage self-locking, interlock safety device. Single door (double door pass-through optional).
📋 Technical Specifications – HA‑BAV Series (100L – 300L)
Engineered for high-volume sterilization in demanding environments. The sterilization chamber is made of high-quality stainless steel with a circular double-layer design. Below are the complete specifications for all models.
| Parameter | HA‑BAV100 | HA‑BAV150 | HA‑BAV200 | HA‑BAV300 |
|---|---|---|---|---|
| Chamber Volume | 100L | 150L | 200L | 300L |
| Chamber Size (mm) | Φ440 × 670 | Φ440 × 1000 | Φ515 × 1000 | Φ600 × 1080 |
| Max Working Pressure | 0.22 MPa | |||
| Max Working Temperature | 134°C | |||
| Temperature Selection | 115 – 134°C (adjustable) | |||
| Sterilization Time | 0 – 99 minutes (adjustable) | |||
| Drying Time | 0 – 99 minutes (adjustable) | |||
| Heat Average | ≤ ±2°C | |||
| Vacuum Limit | -0.08 MPa | |||
| Power / Supply Voltage | 10kW / AC 380V 50Hz | 13kW / AC 380V 50Hz | ||
| Overall Size (mm) | 1400×660×1640 | 1400×660×1640 | 1400×750×1740 | 1520×850×1850 |
| Package Size (mm) | 1560×820×1820 | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
| Gross Weight (KG) | 430 | 440 | 460 | 580 |
| Net Weight (KG) | 340 | 350 | 370 | 470 |
🌟 Pulse Vacuum Advantage: The HA-BAV series performs 3 or more pulsating vacuum cycles before steam injection. This removes virtually all air from the chamber and load – ensuring steam penetrates wrapped instruments, hollow devices, porous materials, and internal pipelines.

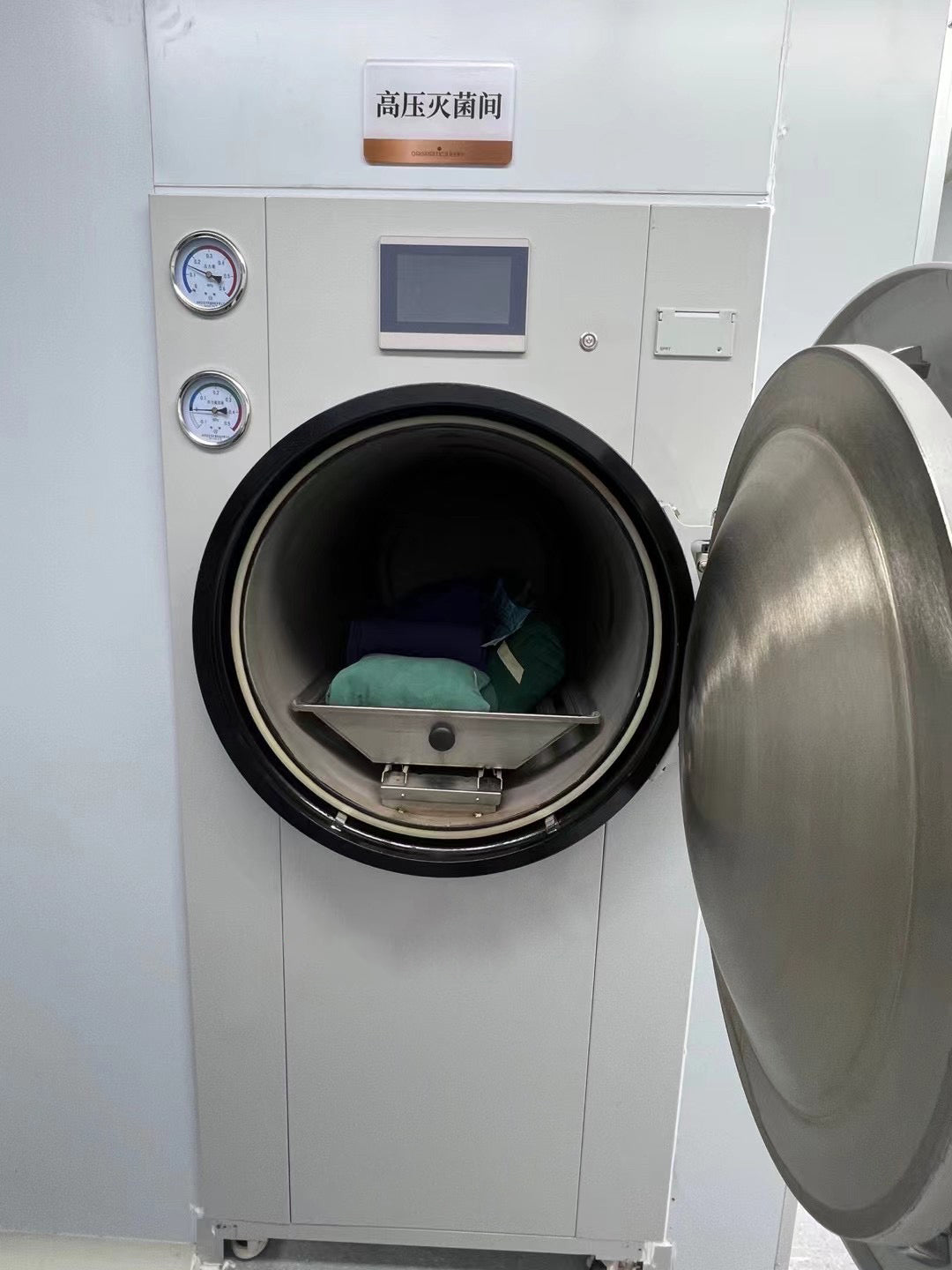

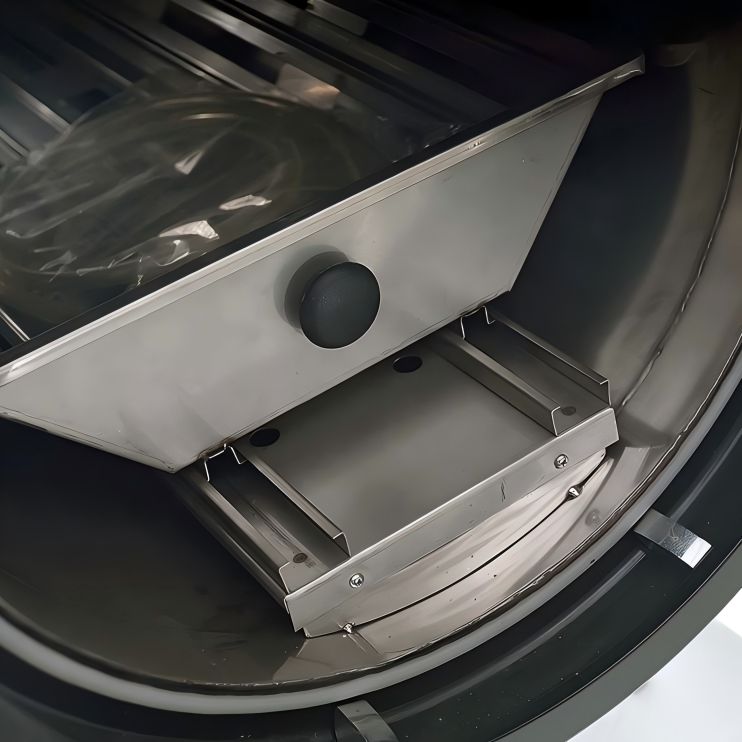

🌟 Built-in Steam Generator: No external steam supply needed. One set of movable sterilization plates is randomly adapted.
🌟 Deep Drying Function: The double-layer chamber design (sterilization chamber + jacket) provides excellent drying results – instruments come out dry and ready for storage or use.
🌟 What's included: Horizontal autoclave, movable sterilization plates/trays, printer (built-in), user manual, and test interface.
📋 Sterilization Programs (6+ Types)
- Fabric/Textile Program – For gowns, drapes, and surgical linens
- Instrument Program – For wrapped and unwrapped surgical instruments
- Liquid Program – For culture media, solutions, and pharmaceutical liquids
- Plastic/Rubber Program – For heat-sensitive materials
- B&D Test Program – For steam penetration validation
- Vacuum Test Program – For chamber integrity verification
- Custom User-Defined Program – For specialized loads
🏥 Primary Applications
- Hospital CSSD – Central Sterile Supply Department
- Surgical centers & operating rooms – High-volume instrument reprocessing
- Pharmaceutical factories – Cleanroom equipment and tool sterilization
- Research laboratories & universities – Biohazardous waste, glassware, media
- Dental & veterinary clinics – Large-scale instrument sterilization
- Funeral homes & prosthetics fabrication – Specialized load processing
🛡️ Complete Safety Protection System
- Door Safety Interlock: When door is not closed tightly, steam cannot enter – alarm sounds. When chamber pressure >0.027MPa, door is locked and cannot be opened.
- Over-Pressure Protection: Safety valve automatically releases pressure if working pressure is exceeded.
- Low Water Level Protection: Unit cannot start until proper water level is reached; automatically cuts off when low water is detected.
- Over-Current Protection: Power circuit breaker automatically cuts power supply on current overload.

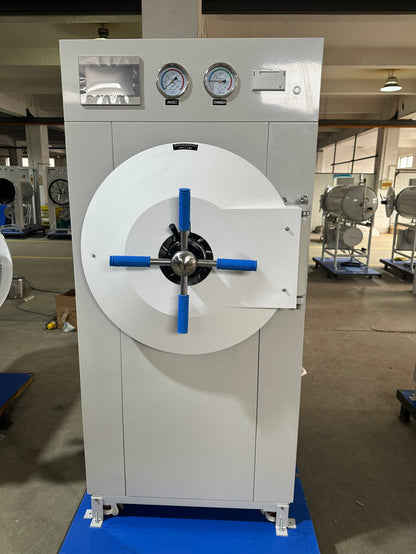

Sealing Door: Manual door opening/closing, radial rod rotary table type. Equipped with two-stage self-locking, interlock safety device, and pressure safety interlock. Double-door pass-through option available for cleanroom/dirty side separation.
✅ SADA Medical – Quality & Certifications
SADA Medical Co., Ltd. is a professional manufacturer and supplier of steam autoclaves, low-temperature plasma sterilizers, ethylene oxide sterilizers, dry ovens, and consumables, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The HA-BAV series vacuum horizontal autoclave is factory-tested with cycle validation reports.
Why customers trust SADA Medical:
- Factory-direct pricing – no middleman markup
- OEM/private labeling available for volume orders
- 12-month warranty + 24-hour technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
- Double-door pass-through configuration available on request
📄 Download the full catalog, user manual, and validation guide using the blue button below.
📞 Ready to Order the HA‑BAV Vacuum Autoclave?
Contact us for factory pricing, OEM service, and fast worldwide shipping. Talk directly to our sterilization specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8419200000 – Vacuum horizontal sterilizers for medical, surgical, and laboratory use.
✔ 3+ pulse vacuum technology – suitable for packed, hollow porous, and internal pipeline instruments.
✔ 12-month warranty, 24-hour technical support, and spare parts availability.
✔ Built-in printer for complete cycle documentation + Bowie & Dick test function.
✔ Double-layer chamber with jacket – deep drying function included.
✔ Double-door (pass-through) configuration available for cleanroom applications.
✔ Power requirement: AC 380V 50Hz three-phase – please confirm your facility's power supply.
