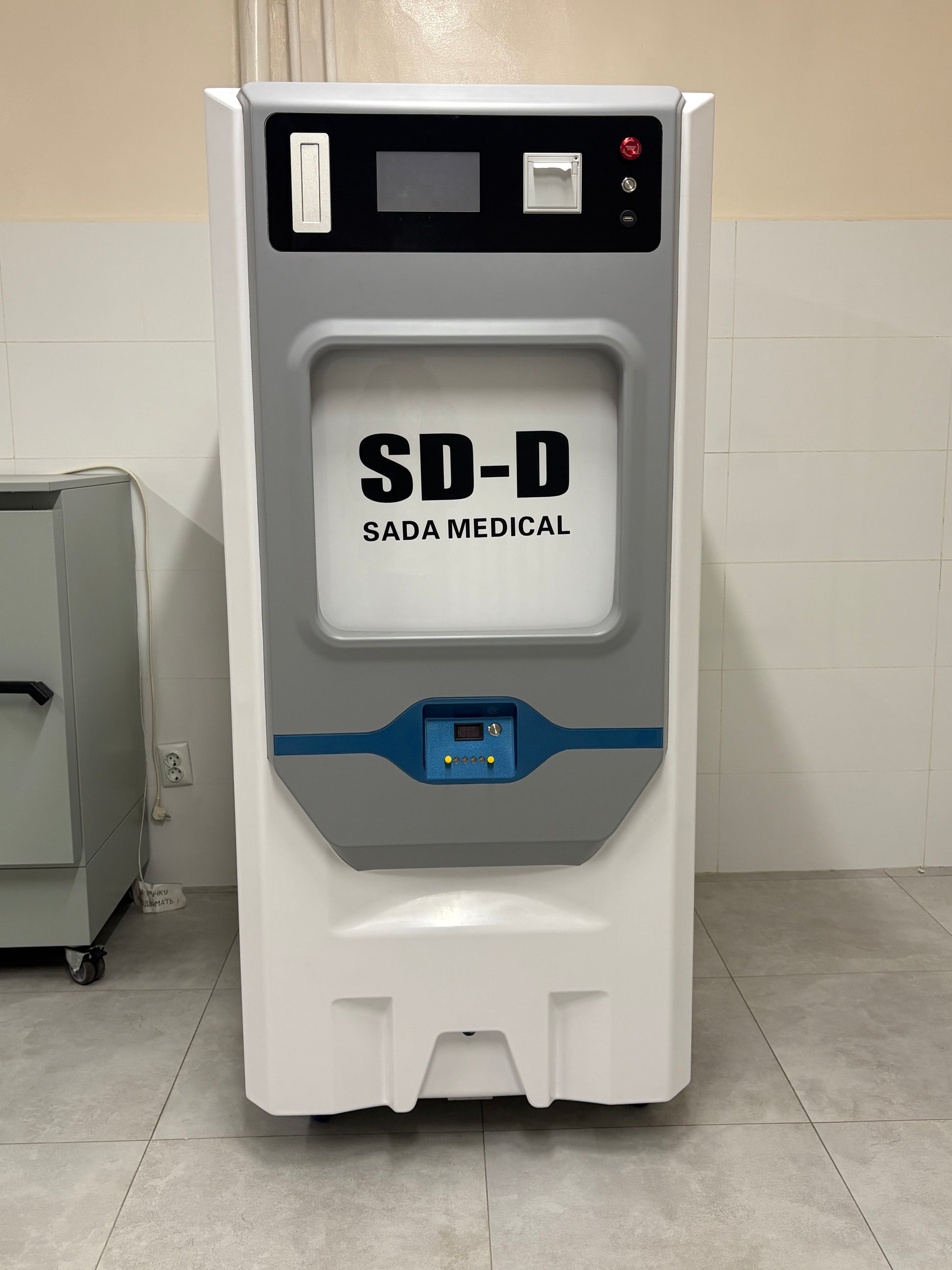

SD-DZ220 Hydrogen Peroxide Plasma Sterilizer Medical Equipment Touch Screen

Name: SD-DZ220 Hydrogen Peroxide Plasma Sterilizer Medical Equipment Touch Screen
Brand: Sada Medical
Availability: InStock

Hydrogen Peroxide Low-Temperature Plasma Sterilizer | SD-DZ | Fast & Safe Medical-Grade Sterilization

Product Introduction:

Used for rapid sterilization of surgical instruments, heat- and moisture-sensitive items, orthopedic drills, electrosurgical units, high polymer materials, ethylene materials, and rigid/flexible endoscopes.

Key Features & Benefits

◆ Product Name: Hydrogen Peroxide Low-Temperature Plasma Sterilizer
◆ Model: SD-DZ220
◆ Device Classification: Class II Registration
◆ Manufacturer: Hefei Sada Medical Equipment Co., Ltd.
◆ Dimensions
External Dimensions (L×W×H): 1105×790×1765 mm
Sterilization Chamber Dimensions (L×W×H): 820×510×460 mm

◆Total Volume: 192 liter, Working volume: 160 liter
◆ Key Operating Information
Hydrogen Peroxide Concentration: 58%–60%
Cartridge Specification: Each single capsule ≥3 ml; 12 capsules per cartridge

◆Working Temperature: 45℃~56℃
◆Sterilization Time:
Standard Cycle: About 55 minutes for general instruments (e.g., metal
scalpels, forceps)
Advanced Cycle: Less than 60 minutes for complex instruments (e.g., rigidscopes with lumens, powered tools)
Endoscopic Cycle: About 45 minutes for flexible endoscopes (e.g.,
gastroscopes, colonoscopes)
Energy Consumption: ≤3.4 kWh per cycle
◆Operating Environment
Power Supply: 220VAC / 50HZ
Power: 4.8KVA
Weight: 305 kg
Ambient Temperature: 10–40℃
Relative Humidity: ≤80%
Atmospheric Pressure Range: 70 kPa–106 kPa

◆Materials
Chamber Material: High-quality 5052 aluminum with advanced anti-oxidationtreatment; excellent thermal conductivity and corrosion resistance;
Housing Material: High-strength ABS, heat-resistant and flame-retardant forimproved safety;
Door Material: 5052 aluminum alloy, anti-oxidation treated; thickness ≥10mm for enhanced pressure resistance;
Pipeline Material: SUS304 stainless steel, sanitary grade with clampconnections; certificates available;
Insulation Material: ≥20 mm thermal cotton, low thermal conductivity, fire-resistant, aging-resistant, non-toxic, eco-friendly, and soft texture for eventemperature distribution;

◆Structure and Appearance
Chamber Structure: Rectangular design, increased internal space; wall thickness ≥8 mm; maximum pressure resistance ≤5 Pa;
Frame Structure: SUS304 square steel with high-temperature spray treatment, rust-resistant and durable;
Casters: Thermoplastic polyurethane wheels with brake; shock-resistant, wear-resistant, and chemically resistant;
Design: User-friendly with rounded corners; modern and professional gray-white color scheme;
Door Mechanism: Electric lifting door driven by a push rod;

◆Control System and Features

Hydrogen Peroxide Injection: Cartridge-based for precision, safety, and convenience;

Capsule Memory Function: Retains capsule count after power loss;

Control System: Microprocessor-controlled pulsing system with manual override. Siemens PLC and user-friendly interface; one-button start to end; displays temperature, pressure, sterilization time, and supports system upgrades.

Heating System: PID-controlled temperature regulation; separate control for door, inner chamber, and vaporizer ensures stability;

◆ Operation and Loading

Operating Height: ≤160 cm for ease of use, especially by female operators

Loading Method: Movable aluminum perforated loading tray; increased capacity and space efficiency

Loading Space: Two compartments; each ≥79×47×21 cm (L×W×H)

Interface: High-precision industrial touchscreen with 262K colors; customized user interface for enhanced user experience and lower energy consumption;

Loading Weight: Every cycle take about 10kg or more of medical devices weight.

Certificate

Sterilizer appearance display video:

Sterilizer Operating Instructions

Catalog, Brothures and User Manual Please refer below Link:

https://www.sadamedical.com/pages/catalog-download
