SD-CPS Hydrogen Peroxide Low-Temperature Plasma Sterilizer | High-Efficiency Sterilization for Medical Devices
SD-CPS Hydrogen Peroxide Low-Temperature Plasma Sterilizer | High-Efficiency Sterilization for Medical Devices
Product Description
The SD-CPS Hydrogen Peroxide Low-Temperature Plasma Sterilizer by Sada Medical is a high-efficiency, eco-friendly sterilization solution for hospitals, clinics, laboratories, and medical device manufacturers. Utilizing hydrogen peroxide (H₂O₂) plasma in a low-temperature environment, it safely sterilizes heat-sensitive medical instruments without corrosion or residue.
This sterilizer is suitable for multiple capacities—100L, 120L, 160L, 180L, 200L, 300L, and 400L—meeting both small-scale and high-volume sterilization requirements. Rapid sterilization is achieved in 25 minutes, standard cycles take 35 minutes, and enhanced cycles up to 55 minutes.

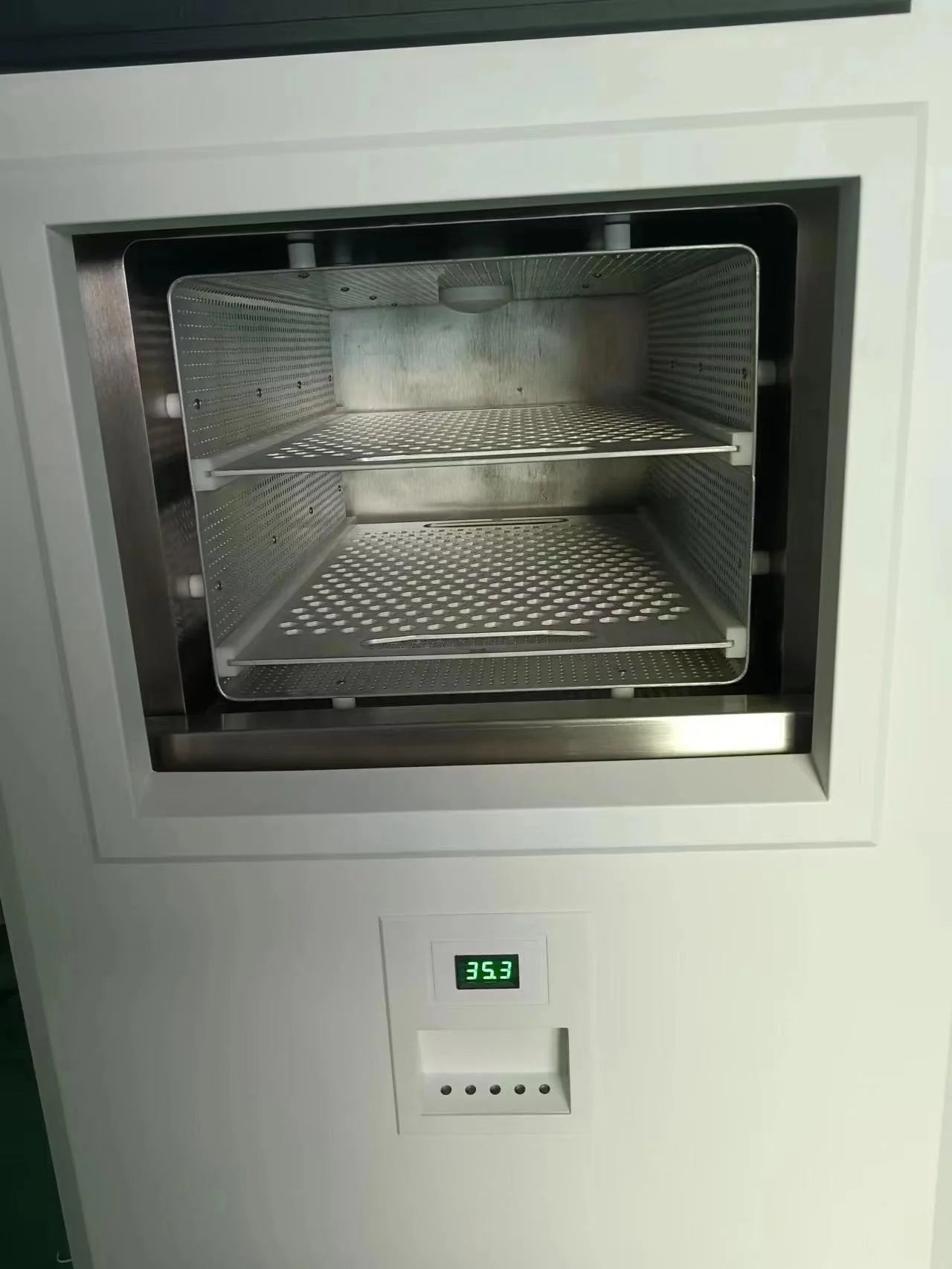

Equipped with a 7-inch high-resolution color touch screen, sterilization parameters are clearly displayed, with full cycle records via USB and built-in micro printer. The 304 stainless steel chamber, robust vacuum system, and RF plasma source ensure consistent, reliable sterilization.
Designed for medical, laboratory, and specialized environments, the SD-CPS sterilizer safely handles delicate instruments including endoscopes, surgical tools, and electronics. Its non-toxic, residue-free process protects both staff and the environment.
Product Features
- Advanced H₂O₂ Plasma Technology: Superior sterilization for heat-sensitive instruments
- Rapid & Flexible Cycles: 25 min rapid, 35 min standard, 55 min enhanced
- Eco-Friendly & Residue-Free: Fully dissociates H₂O₂ into water and oxygen
- Automatic & Safe Operation: Foot-sensing door, anti-clamp design, real-time alarm system
- Comprehensive Sterilization Records: Built-in micro printer and USB export for traceability
- Low-Temperature Operation: 50℃ ± 5℃ for delicate instruments
- High-Efficiency Vacuum Pump: 16 m³/hour evacuation, low noise <65dB
- Durable Construction: 304 stainless steel chamber with aluminum glow grid
- Wide Capacity Options: 100L, 120L, 160L, 180L, 200L, 300L, 400L
Technical Specifications (Table)
| Specification | Details |
|---|---|
| Models / Capacities | SD-CPS100, SD-CPS120, SD-CPS160, SD-CPS180, SD-CPS200, SD-CPS300, SD-CPS400 |
| Chamber Material | 304 Stainless Steel, 3mm thick, rectangular, durable |
| Glow Electric Ion Grid | Aluminum alloy 5052, 3mm thickness |
| Sterilizing Agent | 58% Hydrogen Peroxide, 12 capsules (5ml each) |
| Sterilization Method | Hydrogen Peroxide Plasma Technology |
| Sterilization Temperature | 50℃ ± 5℃ |
| Sterilization Time | 25 min (Rapid), 35 min (Standard), 55 min (Enhanced) |
| Screen | 7-inch high-resolution color touch screen |
| Vacuum Pump | Rotary plate vacuum pump, 16 m³/hour evacuation rate |
| Power Supply | 380V, 4.0 KVA |
| Safety Features | Anti-clamp door, automatic alarms, temperature & pressure protection |
| Data Export | USB and built-in micro printer |
| Chamber Size (160L Example) | 770 x 460 x 460 mm |
| Outer Dimensions (160L) | 920 x 770 x 1760 mm |
| Net Weight (160L) | ~290 kg |
Application Scenarios
- Hospitals, surgical centers, and dental clinics
- Laboratories and research facilities
- Medical device manufacturing and packaging
- Sterilization of delicate or heat-sensitive instruments, endoscopes, electronics
- Pharmaceutical and biotech equipment sterilization
Why Choose SD-CPS?
- Reliable & High-Efficiency: Rapid low-temperature sterilization for heat-sensitive instruments
- Eco-Friendly & Residue-Free: Safe for staff and environment, no harmful residues
- User-Friendly & Traceable: Touchscreen interface with printer and USB record keeping
- Durable & Safe Design: Stainless steel chamber, vacuum system, anti-clamp safety features
- Flexible Capacity Options: 100–400L models for clinics, hospitals, and production facilities
Protect your medical instruments with fast, safe, and reliable sterilization!
