JK-DY Series Compact Desktop Ultrasonic Washer – 4L / 6L / 10L / 15L / 22.5L / 30L Precision Medical Instrument Cleaner for Clinics & Laboratories
JK-DY Series Compact Desktop Ultrasonic Washer – 4L / 6L / 10L / 15L / 22.5L / 30L Precision Medical Instrument Cleaner for Clinics & Laboratories
For clinics, laboratories, CSSD departments, and operating rooms that need a compact yet powerful cleaning solution for delicate medical instruments, the SADA Medical JK-DY series compact desktop ultrasonic washer delivers thorough, residue‑free cleaning in a space‑saving design. Available in capacities from 4L to 30L, these ultrasonic cleaners use 40kHz high‑frequency sound waves to gently yet effectively remove blood, tissue, biofilm, and contaminants from scalpels, forceps, syringes, glassware, dental instruments, and lumen devices. With one‑touch operation (automatic heating, ultrasonic cleaning, and shutdown) or manual control interface, these units are easy to use for any staff member. Built‑in safety protections against leakage, over‑temperature, and over‑current ensure safe daily operation. The stainless steel tank with CNC molding provides long‑term durability and easy cleaning. Whether for a dental clinic, a research lab, or a hospital CSSD, the JK‑DY series offers consistent, energy‑efficient ultrasonic cleaning – protecting your instruments and improving patient safety.
Product Video – JK-DY Desktop Ultrasonic Washer in Action
⚙️ Why Clinics & Labs Choose the JK‑DY Ultrasonic Washer
Choose automatic mode (heating + ultrasonic + shutdown) or manual operation – flexible for different workflows.
Effective yet gentle cleaning for delicate instruments – removes contaminants without surface damage.
Leakage protection, over‑temperature cut‑off, and over‑current protection – safe unattended operation.
High‑quality SUS304 tank with CNC molding – corrosion‑resistant and easy to clean.
Low power consumption (100‑550W ultrasonic + 600‑1000W heating) – reduces operating costs.
From 4L to 30L – fits on any countertop, ideal for space‑constrained clinics and labs.
📋 Technical Specifications – JK‑DY Series (4L – 30L)
Engineered for reliable, residue‑free cleaning of medical and laboratory instruments. All models feature 40kHz ultrasonic frequency, manual control interface with optional one‑touch operation, and a stainless steel tank. Below are the complete specifications for all six capacities.
| Model | Capacity | Frequency | Ultrasonic Power | Heating Power | Tank Dimensions (mm) | Control Type |
|---|---|---|---|---|---|---|
| JK-DY100 | 4L | 40kHz | 100W | 600W | 300×150×100 | Manual |

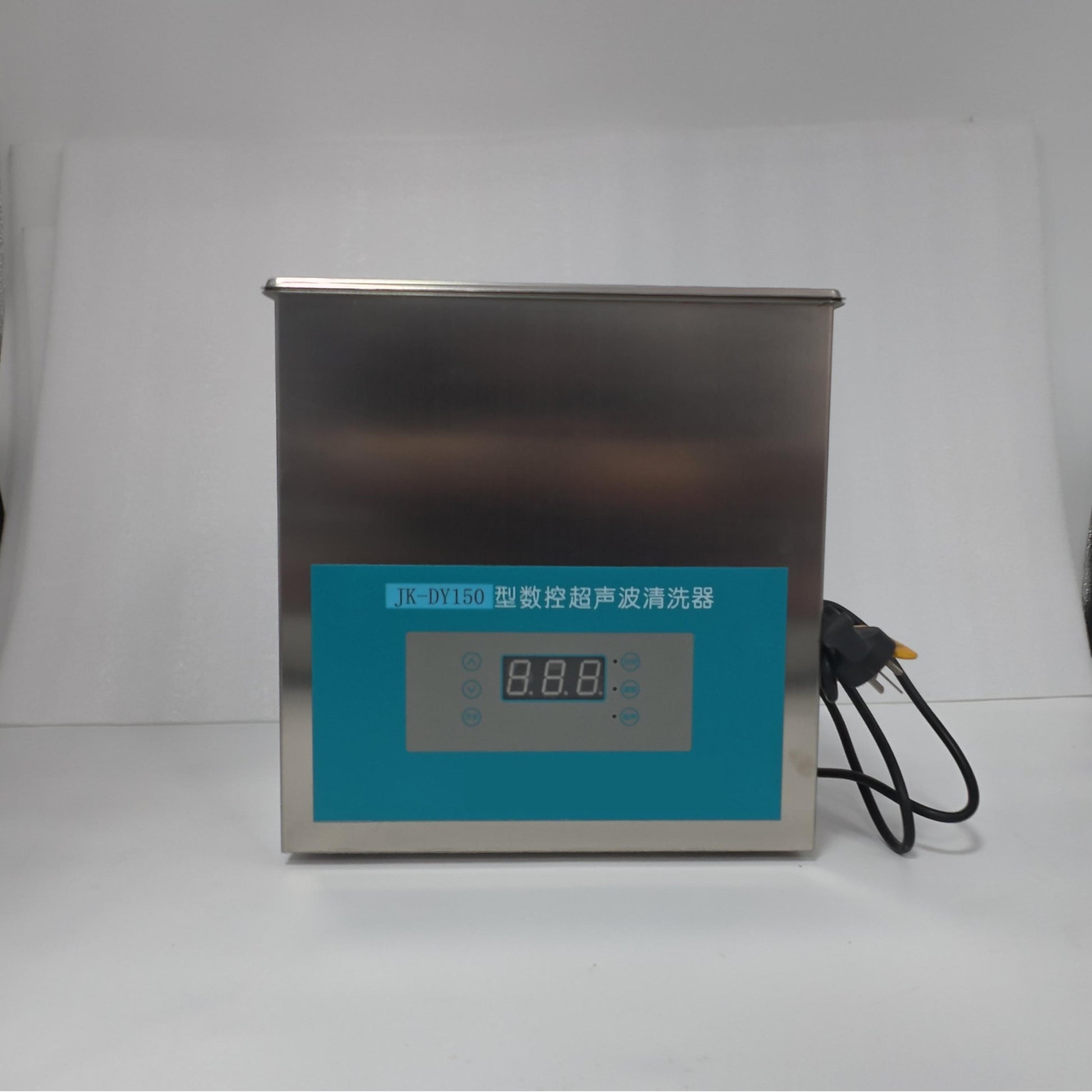

| JK-DY150 | 6L | 40kHz | 150W | 600W | 300×150×150 | Manual |
| JK-DY300 | 10L | 40kHz | 300W | 600W | 300×240×150 | Manual |
| JK-DY400 | 15L | 40kHz | 400W | 600W | 330×300×150 | Manual |
| JK-DY500 | 22.5L | 40kHz | 500W | 1000W | 500×300×150 | Manual |
| JK-DY550 | 30L | 40kHz | 550W | 1000W | 500×300×200 | Manual |
🌟 How Ultrasonic Cleaning Works: High‑frequency (40kHz) sound waves create microscopic cavitation bubbles in the cleaning solution. These bubbles implode near instrument surfaces, dislodging blood, tissue, biofilm, and other contaminants – even from crevices, hinges, and lumens. The result is a thorough, gentle, and residue‑free clean without manual scrubbing.
🌟 Ideal for delicate instruments: Scalpels, forceps, scissors, dental handpieces, endodontic files, glassware, syringes, and laparoscopic tools.

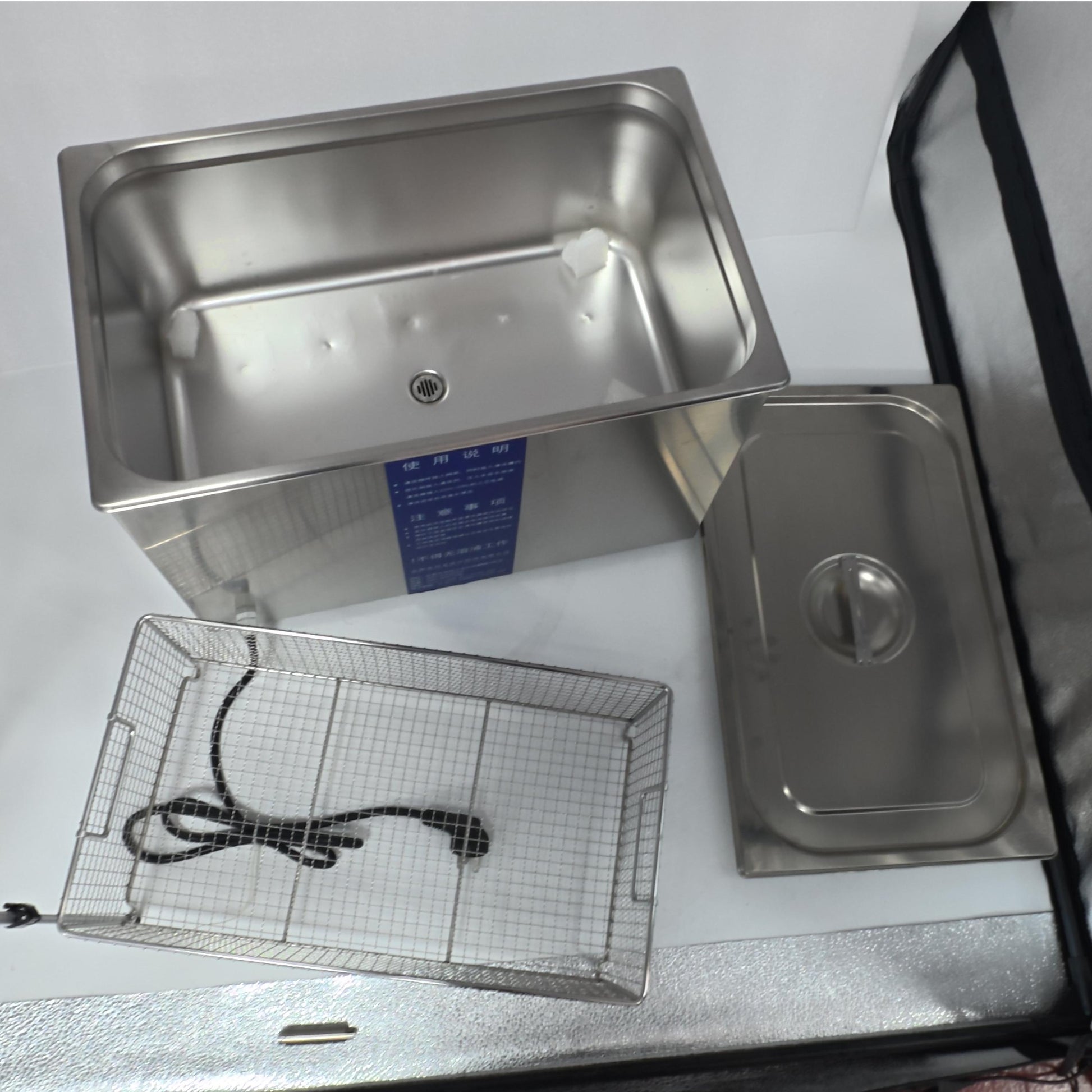

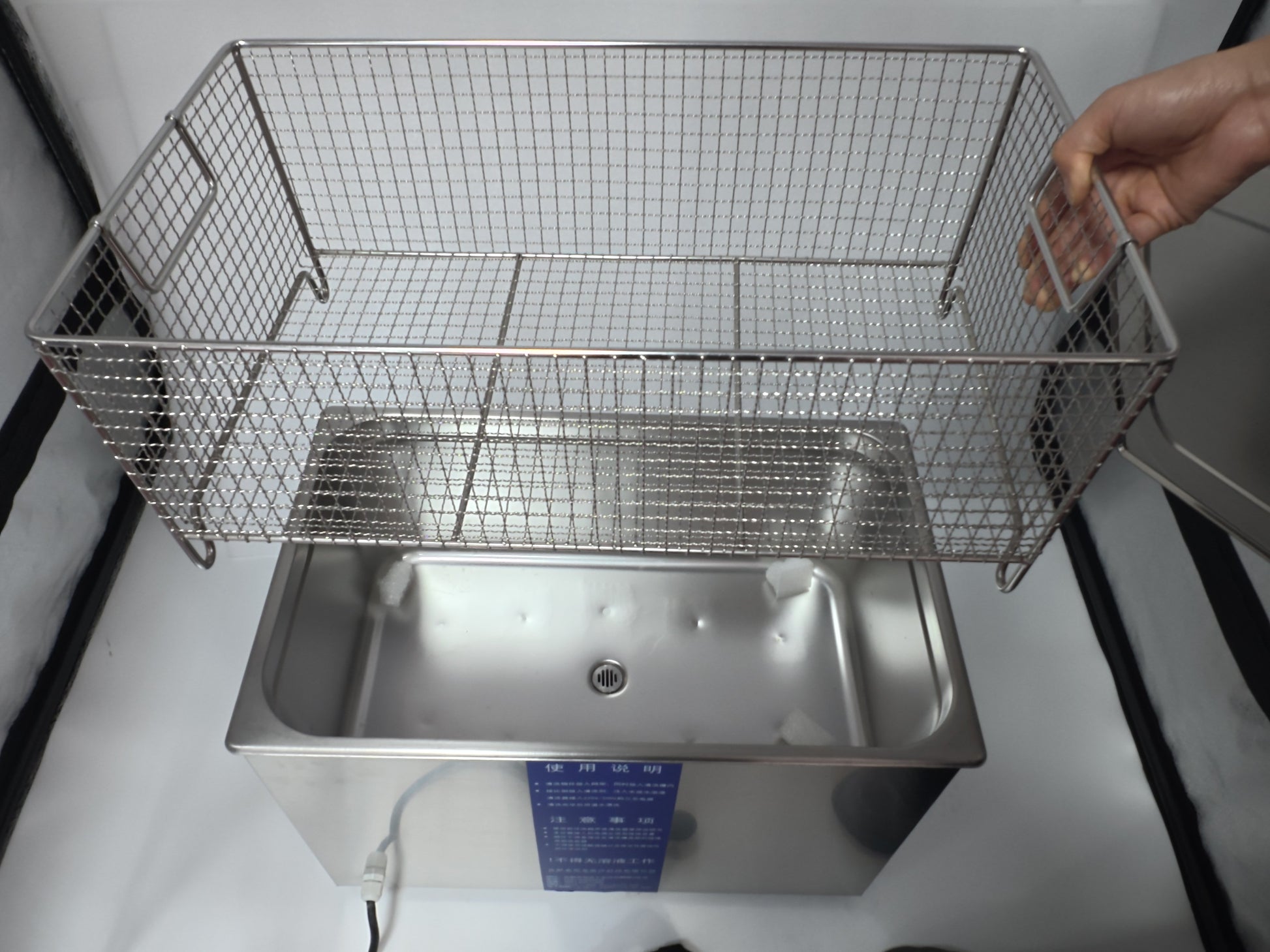

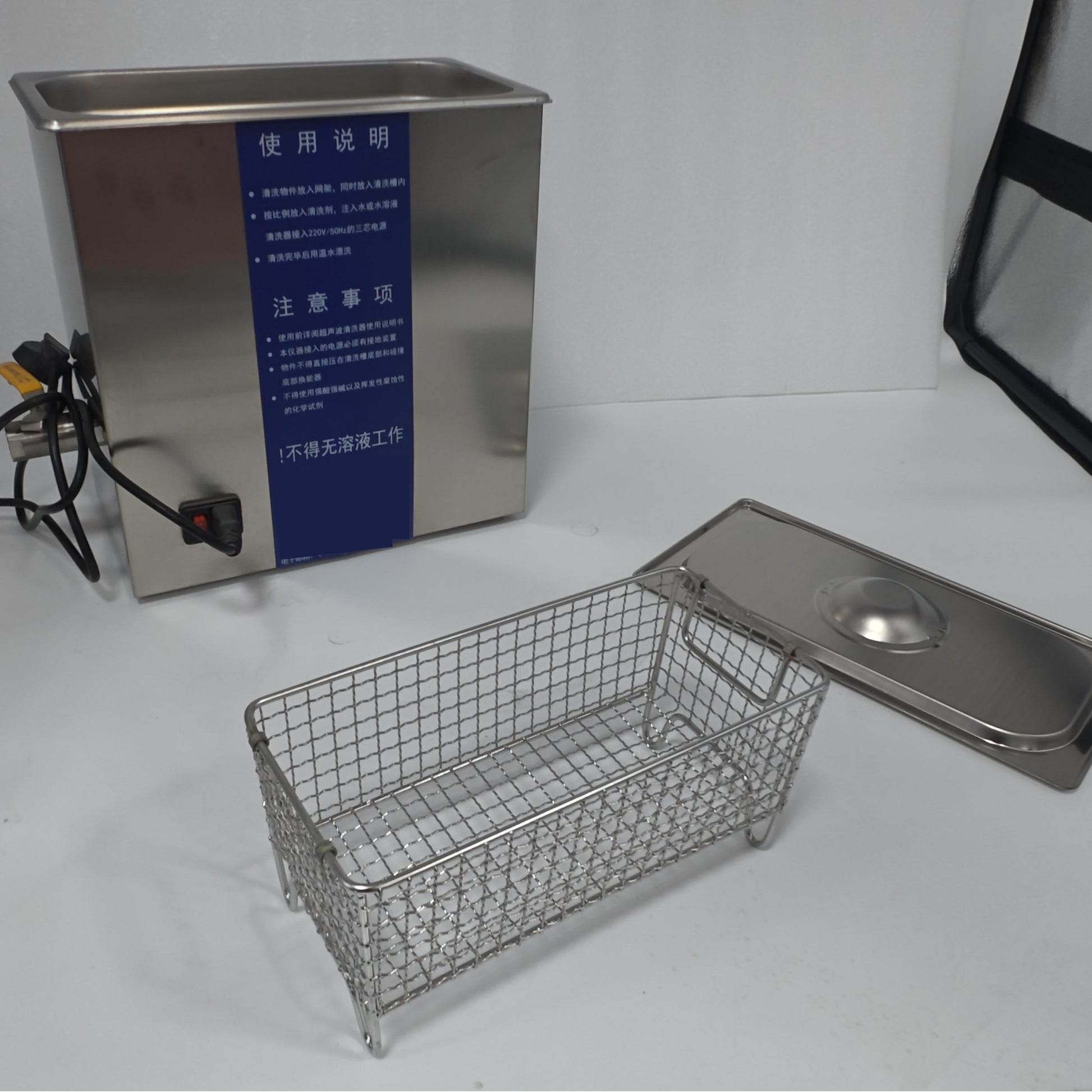

🌟 What's included: Ultrasonic cleaner unit, stainless steel tank, basket (select models), power cord, user manual. Contact us for basket availability per model.
🏥 Primary Applications
- Hospital CSSD (Central Sterile Supply Department) – Pre‑cleaning of surgical instruments before sterilization
- Operating Rooms & Endoscopy Clinics – Cleaning of laparoscopic tools, endoscope accessories
- Dental, ENT, and Surgical Clinics – Handpieces, forceps, mirrors, burs, implantology tools
- Biomedical & Research Laboratories – Glassware, pipettes, vials, lab equipment
- Pharmaceutical & Biotech Cleanrooms – Small parts, filling needles, production tools
- Veterinary Clinics – Surgical instruments and dental tools
✅ Why Choose the JK‑DY Series?
- Space‑saving compact design – Fits any countertop
- Energy‑efficient – Low power consumption, fast heating
- Easy to operate – One‑touch or manual control
- Safety certified – Leakage, over‑temp, over‑current protection
- Durable stainless steel – Long service life
- CE / ISO certified – Compliant with international medical standards
📏 Which capacity fits your needs?
Small clinics, dental offices, 1‑2 person labs
Tank: 300×150×100 or ×150
Mid‑size clinics, group practices, teaching labs
Tank: 300×240×150 or 330×300×150
Hospital CSSD, large labs, high‑volume clinics
Tank: 500×300×150 or ×200
✅ SADA Medical – Quality & Certifications
SADA Medical Co., Ltd. has over a decade of experience in manufacturing ultrasonic cleaners, steam autoclaves, washer disinfectors, and low‑temperature plasma sterilizers, exporting to over 80 countries worldwide. We are certified under ISO 9001:2015 and EN ISO 13485:2016 (Medical Devices). The JK‑DY series compact desktop ultrasonic washer is CE certified and factory‑tested for reliable daily use. Each unit comes with a 12‑month warranty and 24‑hour technical support. Custom configurations and bulk order pricing are available.
Why customers trust SADA Medical:
- Factory‑direct pricing – no middleman markup
- OEM/private labeling available for volume orders
- 12‑month warranty + 24/7 technical support
- Fast worldwide shipping from Shanghai, Ningbo, Qingdao ports
- Custom basket and tank configurations available
📄 Download the full catalog, user manual, and cleaning guide using the blue button below.
📞 Ready to Upgrade Your Instrument Cleaning Workflow?
Contact SADA Medical today for expert consultation or a fast quote. Bulk order pricing available, worldwide shipping, CE/ISO certified, and custom configurations supported. Talk directly to our specialists at Sada Medical Equipment Co., Ltd.
📱 Tel / WhatsApp: +86 18056076519 | 📧 vivian@sadamedical.com | 🌍 sadamedical.com
✔ HS Code 8479899990 – Ultrasonic cleaning equipment for medical and laboratory use.
✔ 40kHz frequency – gentle yet effective cleaning for delicate instruments.
✔ 6 models from 4L to 30L – choose the right size for your workload.
✔ Manual control interface with one‑touch option – simple operation.
✔ Built‑in safety protections: leakage, over‑temperature, over‑current.
✔ Durable SUS304 stainless steel tank with CNC molding.
✔ CE certified, ISO 13485 compliant.
✔ 12‑month warranty, 24‑hour technical support.
✔ Power supply: AC 110V/220V, 50/60Hz – please specify when ordering.
