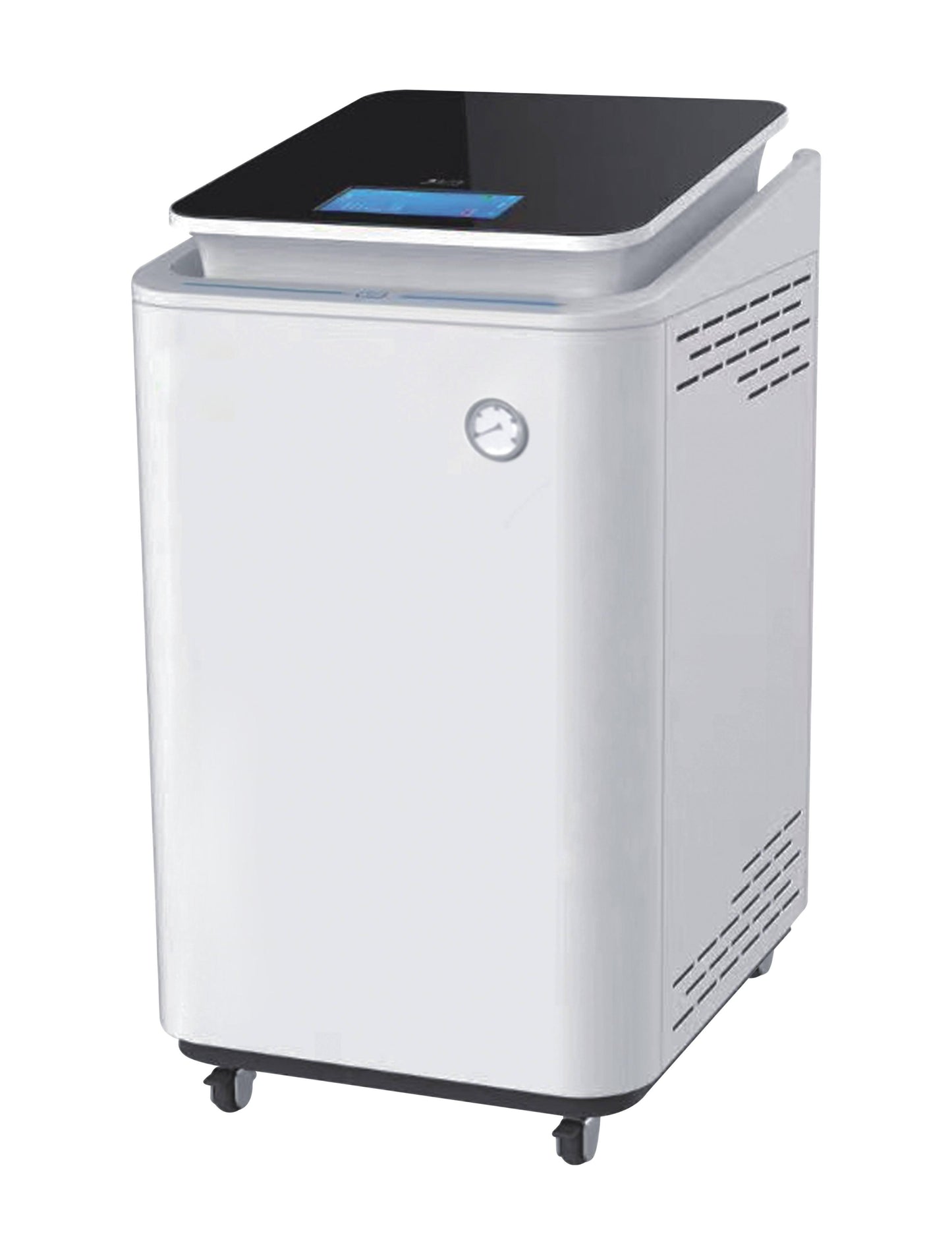

Automatic Flip-top Vertical Steam Sterilizer | Intelligent Touchscreen Autoclave for Medical and Laboratory Use

✅ Product Introduction

The Automatic Flip-top Vertical Pressure Steam Sterilizer is a high-performance autoclave built for modern medical and laboratory environments. Designed with an automatic lid-opening system and advanced touchscreen control, it ensures safe, thorough, and efficient sterilization of instruments, dressings, liquids, gowns, and more.

Whether you're operating a busy hospital CSSD, clinical laboratory, or small dental office, this autoclave adapts seamlessly to your sterilization needs, ensuring compliance, efficiency, and traceability.

---

🏆 Key Features & Advantages

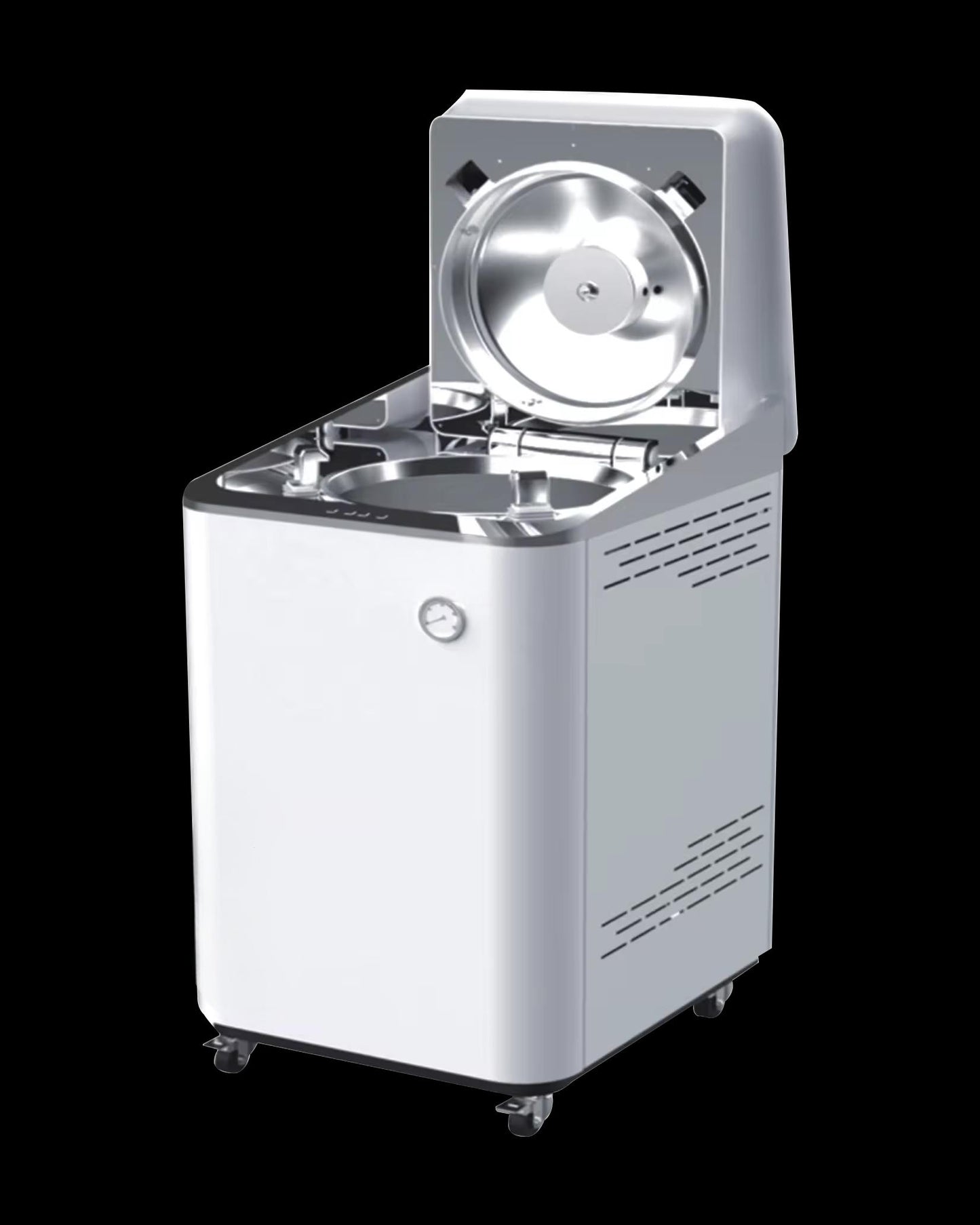

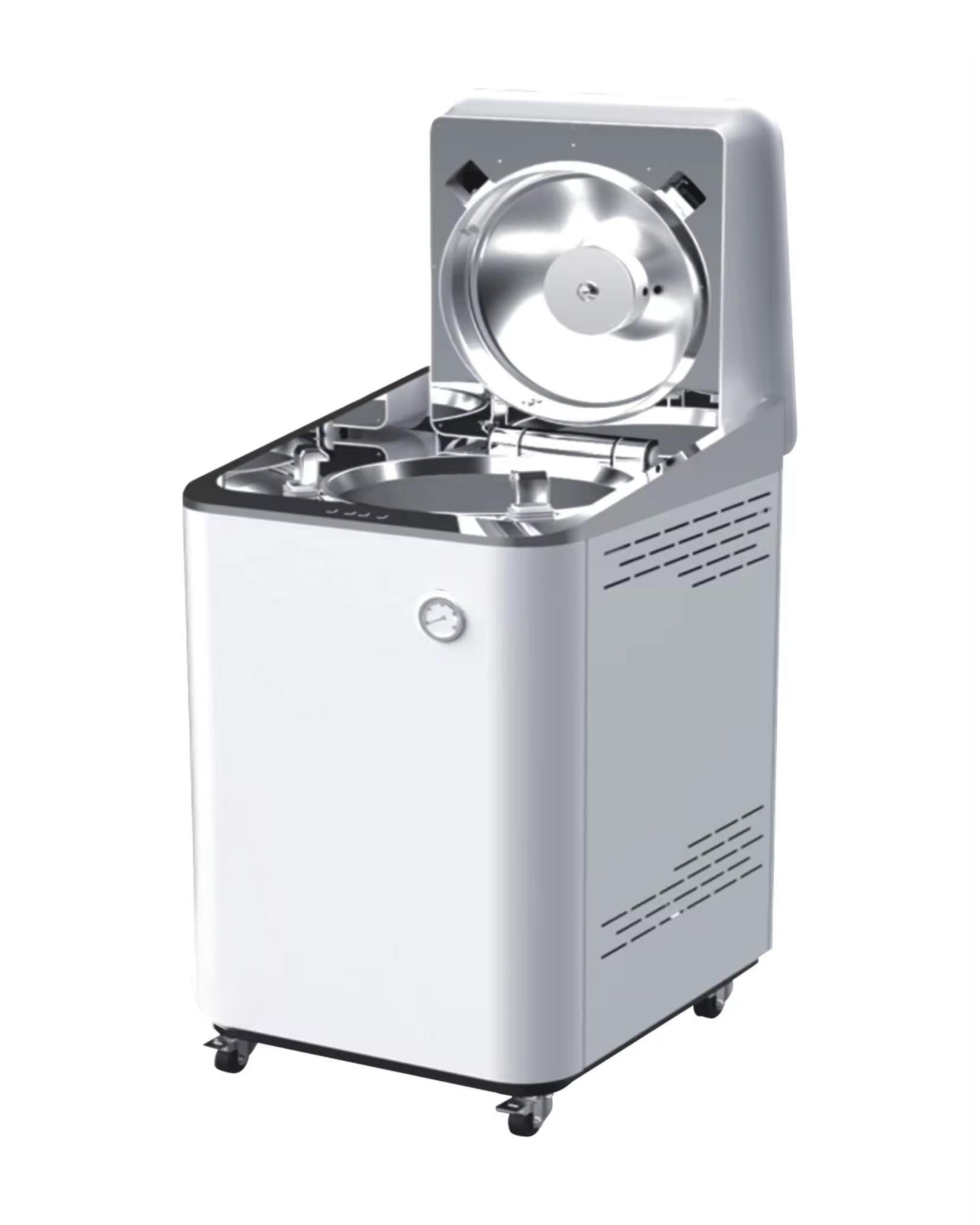

🔓 One-touch Automatic Flip-top Cover
Hygienic and efficient with no manual contact – opens and closes automatically at the

 press of a button.

💧 Optional Drying Function
Enhance post-sterilization efficiency by activating the heated air drying feature.

💨 Vacuum Upgrade Compatibility
Supports external vacuum pump upgrade, converting the sterilizer into a pulsating vacuum autoclave for higher precision and drying quality.

📱 7" Android Touchscreen Interface
Intuitive controls, multi-language support, remote control option (via WiFi), and real-time status display.

📁 USB Data Export + GMP Compliance
Export sterilization logs via USB. Features built-in password levels and data traceability to meet strict GMP standards.

🌀 Inner Steam-Water Circulation System
Environmentally friendly, no steam escapes outside – keeps the space clean and dry.

🛡️ Complete Safety Protections
Over-temperature, over-voltage, over-current, no-water protection, leakage protection, safety door lock detection, and more.

---

🏥 Application Scenarios

This vertical autoclave is ideal for:

• 🏨 Hospitals & CSSD departments
• 🦷 Dental and ENT clinics
• 🧪 Laboratories and research centers
• 🧬 Pharmaceutical production facilities
• 🧫 Microbiology, food & beverage testing labs
• 🧍♀️ Outpatient surgical centers
• 🏥 General healthcare institutions

Perfect for sterilizing:

• Surgical instruments
• Liquid media
• Medical gowns and dressing
• Glassware and lab utensils
• Endoscopic accessories (if pre-cleaned)

---

❤️ Why Choose This Sterilizer?（选择它的理由）

🔧 From SADA Medical – Your Trusted Medical Equipment Supplier

• 🌐 10+ years of industry experience
• 🛠️ Professional after-sales service & global technical support
• ⚙️ OEM & customization available
• 🚚 Fast worldwide delivery

🧠 From the Product Itself

• All-in-one sterilization with automatic lid
• Modular upgrades (vacuum, drying, remote control)
• Built for high throughput & full traceability
• Supports strict hospital & lab compliance (GMP, ISO, WS standards)

---

📊 Technical Specifications

Technical Data	VA-FDA60	VA-FDA80	VA-FDA100	VA-FDA120
Chamber     volume	60L	80L	100L	120L
	φ396×490mm	φ396×650mm	φ480×560mm	φ480×660mm
The   height   after   rising	1310mm	1590mm	1475mm	1565mm
Design pressure	0.3MPa
Design temperature	150℃
Max.working pressure	0.25MPa
Max.working       temperature	138℃
Heat average	≤±1℃
Timer    range	0~99 min
Power	(3+1.3)KW/AC220V.50Hz		(4.5+1.3)KW/AC220V.50Hz	(5.8+1.3)KW/AC220V.50Hz
Overall       dimension(mm)	686*556*913	686*556*1035	840*600*970	840×600×1060
Transport       dimension(mm)	786×656×1013	786×656×1135	940×610×1000	940×610×1075
G.W/N.W	210kg/180kg	230kg/200kg	300kg/270kg	325kg/295kg

ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices

CERTIFICATES:



SADA MEDICAL Workshop:
